Information fuel-injection pump
BOSCH
9 410 613 073
9410613073
ZEXEL
101067-8130
1010678130
Rating:

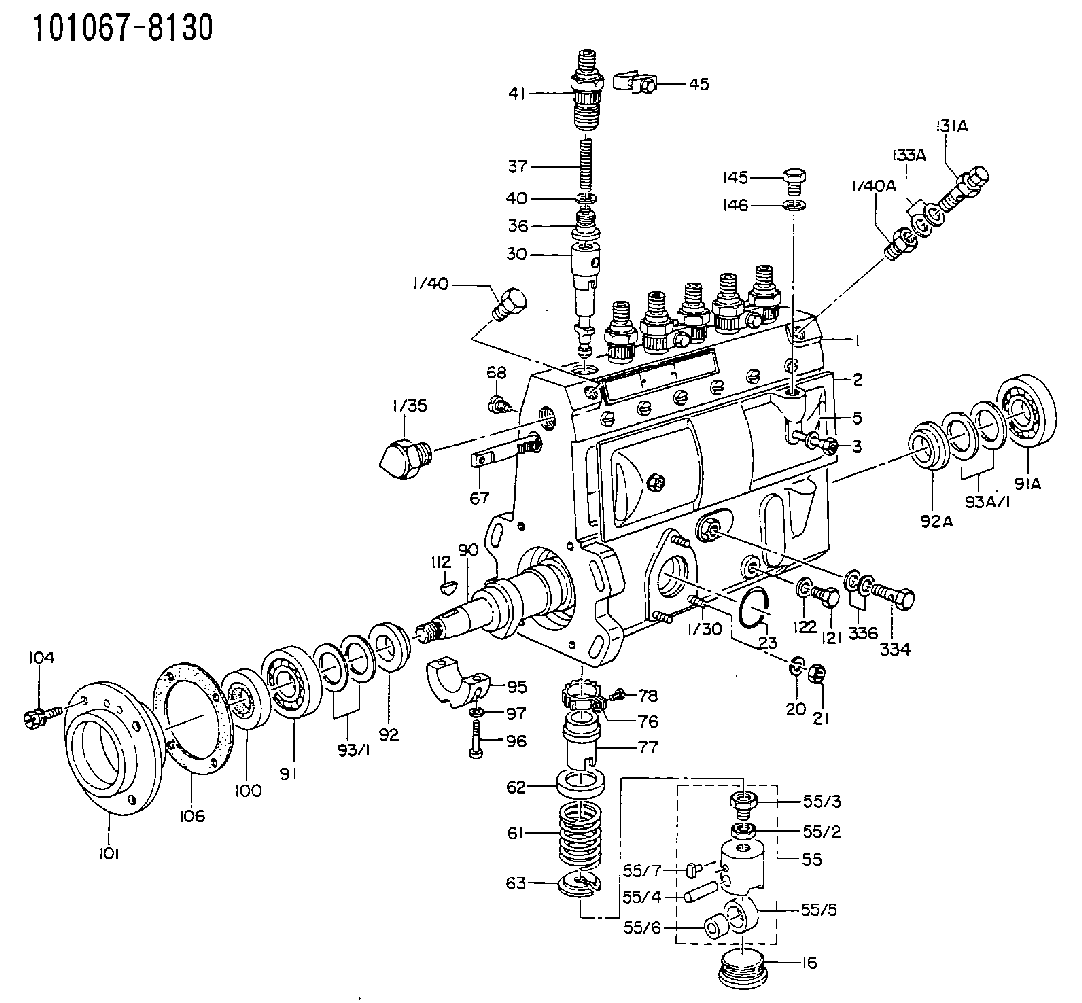

Scheme ###:
| 1. | [1] | 131073-5520 | PUMP HOUSING |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/35. | [1] | 154007-0200 | ADAPTOR |
| 1/40. | [1] | 131002-2700 | ADAPTOR |
| 1/40A. | [1] | 131002-2700 | ADAPTOR |
| 2. | [1] | 131028-6020 | COVER |
| 2/2. | [1] | 131011-0800 | GASKET |
| 3. | [2] | 131017-1000 | FLAT-HEAD SCREW |
| 5. | [2] | 029340-6020 | GASKET D10&6.5T1.00 |
| 16. | [6] | 131034-1401 | CAPSULE |
| 21. | [3] | 139206-0400 | UNION NUT |
| 23. | [1] | 029633-1010 | O-RING |
| 30. | [6] | 131151-3520 | PLUNGER-AND-BARREL ASSY |
| 36. | [6] | 131110-4020 | DELIVERY-VALVE ASSEMBLY |
| 37. | [6] | 131112-0600 | COILED SPRING |
| 40. | [6] | 131115-0200 | GASKET |
| 41. | [6] | 131116-0500 | FITTING |
| 45. | [3] | 131122-0520 | PLATE |
| 55. | [6] | 131200-0620 | TAPPET |
| 55/2. | [1] | 131201-0100 | UNION NUT |
| 55/3. | [1] | 131202-0100 | HEXAGON SCREW |
| 55/4. | [1] | 131203-0200 | BEARING PIN |
| 55/5. | [1] | 131204-1000 | ROLLER |
| 55/6. | [1] | 131205-0500 | BUSHING |
| 55/7. | [1] | 131206-0200 | SLIDER |
| 61. | [6] | 131215-0600 | COMPRESSION SPRING |
| 62. | [6] | 131216-0100 | SLOTTED WASHER |
| 63. | [6] | 131217-0100 | SLOTTED WASHER |
| 67. | [1] | 131256-0800 | CONTROL RACK |
| 68. | [1] | 131226-0300 | FLAT-HEAD SCREW |
| 76. | [6] | 131240-0100 | PINION |
| 77. | [6] | 131241-0100 | CONTROL SLEEVE |
| 78. | [6] | 131242-0100 | FLAT-HEAD SCREW |
| 90. | [1] | 131370-0200 | CAMSHAFT |
| 91. | [1] | 028001-7010 | BEARING PLATE |
| 91A. | [1] | 028001-7010 | BEARING PLATE |
| 92. | [1] | 131302-0600 | SPACER RING |
| 92A. | [1] | 131302-0600 | SPACER RING |
| 93/1. | [0] | 029311-7010 | SHIM D22&17T0.1 |
| 93/1. | [0] | 029311-7020 | SHIM D22&17T0.12 |
| 93/1. | [0] | 029311-7030 | SHIM D22&17T0.14 |
| 93/1. | [0] | 029311-7040 | SHIM D22&17T0.16 |
| 93/1. | [0] | 029311-7050 | SHIM D22&17T0.18 |
| 93/1. | [0] | 029311-7060 | SHIM D22&17T0.5 |
| 93/1. | [0] | 029311-7070 | SHIM D22&17T1.0 |
| 93/1. | [0] | 029311-7090 | SHIM D22&17T0.3 |
| 93/1. | [0] | 029311-7210 | SHIM D22&17T0.7 |
| 93/1. | [0] | 029311-7220 | SHIM D22&17T1.4 |
| 93/1. | [0] | 139417-0000 | SHIM D22&17T2.4 |
| 93A/1. | [0] | 029311-7010 | SHIM D22&17T0.1 |
| 93A/1. | [0] | 029311-7020 | SHIM D22&17T0.12 |
| 93A/1. | [0] | 029311-7030 | SHIM D22&17T0.14 |
| 93A/1. | [0] | 029311-7040 | SHIM D22&17T0.16 |
| 93A/1. | [0] | 029311-7050 | SHIM D22&17T0.18 |
| 93A/1. | [0] | 029311-7060 | SHIM D22&17T0.5 |
| 93A/1. | [0] | 029311-7070 | SHIM D22&17T1.0 |
| 93A/1. | [0] | 029311-7090 | SHIM D22&17T0.3 |
| 93A/1. | [0] | 029311-7210 | SHIM D22&17T0.7 |
| 93A/1. | [0] | 029311-7220 | SHIM D22&17T1.4 |
| 93A/1. | [0] | 139417-0000 | SHIM D22&17T2.4 |
| 95. | [1] | 131306-0800 | BEARING SHELL |
| 96. | [2] | 029050-5010 | FLAT-HEAD SCREW M5P0.8L32 |
| 97. | [2] | 026505-0940 | GASKET |
| 100. | [1] | 029621-7020 | PACKING RING |
| 101. | [1] | 131330-2200 | COVER |
| 104. | [4] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 106. | [1] | 131321-1300 | GASKET |
| 112. | [1] | 025803-1640 | WOODRUFF KEY |
| 121. | [1] | 029111-0010 | CAPSULE |
| 122. | [1] | 029341-0020 | GASKET |
| 131A. | [1] | 131424-1520 | OVER FLOW VALVE |
| 133A. | [2] | 026514-1840 | GASKET D17.9&14.2T1 |
| 334. | [1] | 029731-0120 | EYE BOLT |
| 336. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
101067-8130
9 410 613 073
FUEL-INJECTION PUMP
* Q
* Q
