Buy 101049-8760 ZEXEL 9 410 610 308 BOSCH FUEL-INJECTION PUMP 9410610308 1010498760

Information fuel-injection pump

BOSCH 9 410 610 308 9410610308

ZEXEL 101049-8760 1010498760

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101049-8760 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

VIIKEND Fuel Injection Pump 101049-8760 6204-73-1310 Compatible with Komatsu Engine 4D95L 4D95LE 4D95L-1FF 4D95L-1GG 4D95LE-1B-B

$1,190.00

02 Jun 2025

CN: VIIKEND ENGINE PARTS

VIIKEND Fuel Injection Pump 101049-8760 6204-73-1310 Compatible with Komatsu Engine 4D95L 4D95LE 4D95L-1FF 4D95L-1GG 4D95LE-1B-B
VIIKEND Part Name: Fuel Injection Pump || Part Number: 101049-8760 6204-73-1310 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Engine Model: 4D95L || Applicable: Compatible with Komatsu Engine 4D95L 4D95LE 4D95L-1FF 4D95L-1GG 4D95LE-1B-B || Package included: 1pcs Fuel Injection Pump 101049-8760 6204-73-1310

You can express buy:

USD 1708.12
06-06-2025

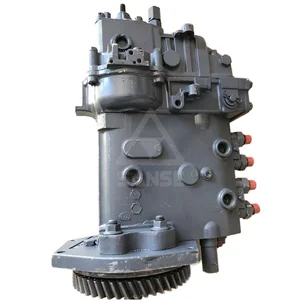

4D95 Excavator Injector Pump or Zexel Pump 101049-8760

USD 1965.61
10-05-2025

PC75UU-2 excavator fuel injector pump Zexel 1010498760 injection pump

USD 1960
11-11-2022

Scheme ###:

1.	[1]	131063-9820	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35.	[1]	131400-0100	ADAPTOR
1/40A.	[1]	131420-0420	BLEEDER SCREW
2.	[1]	131028-6220	COVER
2/2.	[1]	131011-1900	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	029340-6020	GASKET D10&6.5T1.00
16.	[4]	131034-1401	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[4]	131152-4420	PLUNGER-AND-BARREL ASSY
36.	[4]	131110-6820	DELIVERY-VALVE ASSEMBLY
37.	[4]	131112-1600	COILED SPRING
40.	[4]	131115-1600	GASKET
41.	[4]	131116-5220	FITTING
45.	[2]	131122-0520	PLATE
49.	[4]	139717-0100	O-RING
55.	[4]	131200-2820	TAPPET
55/2.	[1]	131203-0800	BEARING PIN
55/3.	[1]	131204-1000	ROLLER
55/4.	[1]	131205-0500	BUSHING
55/5.	[1]	131206-0200	SLIDER
56/1.	[0]	029311-0020	SHIM D19&10T0.30
56/1.	[0]	029311-0030	SHIM D19&10T0.40
56/1.	[0]	029311-0040	SHIM D19&10T0.50
56/1.	[0]	029311-0050	SHIM D19&10T0.6
56/1.	[0]	029311-0060	SHIM D19&10T0.7
56/1.	[0]	029311-0070	SHIM D19&10T0.8
56/1.	[0]	029311-0080	SHIM D19&10T0.9
56/1.	[0]	029311-0090	SHIM D19&10T1
56/1.	[0]	029311-0110	SHIM D19&10T1.1
56/1.	[0]	029311-0120	SHIM D19&10T1.2
56/1.	[0]	029311-0130	SHIM D19&10T1.3
56/1.	[0]	029311-0140	SHIM D19&10T1.4
56/1.	[0]	029311-0270	SHIM D19&10T0.55
56/1.	[0]	029311-0280	SHIM D19&10T0.65
56/1.	[0]	029311-0290	SHIM D19&10T0.75
56/1.	[0]	029311-0310	SHIM D19&10T0.85
56/1.	[0]	029311-0320	SHIM D19&10T0.95
56/1.	[0]	029311-0330	SHIM D19&10T1.05
56/1.	[0]	029311-0340	SHIM D19&10T1.15
56/1.	[0]	029311-0350	SHIM D19&10T1.25
56/1.	[0]	029311-0490	SHIM D19&10T1.5
56/1.	[0]	029311-0500	SHIM D19&10T1.6
56/1.	[0]	029311-0580	SHIM D19&10T0.2
56/1.	[0]	029311-0590	SHIM D19&10T0.25
56/1.	[0]	029311-0600	SHIM D19&10T0.35
56/1.	[0]	029311-0610	SHIM D19&10T0.45
56/1.	[0]	029311-0620	SHIM D19&10T1.35
56/1.	[0]	029311-0630	SHIM D19&10T1.45
56/1.	[0]	029311-0710	SHIM D19&10T1.55
61.	[4]	131215-2500	COMPRESSION SPRING
62.	[4]	131216-0100	SLOTTED WASHER
63.	[4]	131217-0200	SLOTTED WASHER
67.	[1]	131254-0000	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[4]	131240-0100	PINION
77.	[4]	131241-0100	CONTROL SLEEVE
78.	[4]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131360-2700	CAMSHAFT
91A.	[1]	016630-2030	BEARING PLATE
91B.	[1]	028201-7020	BEARING PLATE
91E.	[1]	016630-2030	BEARING PLATE
91F.	[1]	028201-7020	BEARING PLATE
92.	[1]	131302-0300	SPACER RING
92A.	[1]	131302-0300	SPACER RING
93/1.	[0]	029311-7010	SHIM D22&17T0.1
93/1.	[0]	029311-7020	SHIM D22&17T0.12
93/1.	[0]	029311-7030	SHIM D22&17T0.14
93/1.	[0]	029311-7040	SHIM D22&17T0.16
93/1.	[0]	029311-7050	SHIM D22&17T0.18
93/1.	[0]	029311-7060	SHIM D22&17T0.5
93/1.	[0]	029311-7070	SHIM D22&17T1.0
93/1.	[0]	029311-7090	SHIM D22&17T0.3
93/1.	[0]	029311-7210	SHIM D22&17T0.7
93/1.	[0]	029311-7220	SHIM D22&17T1.4
93/1.	[0]	139417-0000	SHIM D22&17T2.4
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
100.	[1]	029621-7050	PACKING RING
101.	[1]	131330-6200	COVER
104.	[4]	020006-1440	BLEEDER SCREW M6P1L14
112.	[1]	025803-1640	WOODRUFF KEY
117.	[1]	131401-0020	EYE BOLT
118.	[2]	029341-4130	GASKET D20&13.8T2*
334.	[1]	029731-0120	EYE BOLT
336.	[2]	029341-0110	GASKET

Include in #1:

101492-3731 as FUEL INJECTION PUMP

101696-9270 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

101049-8760

9 410 610 308
NP-PES4A90C420RS2000

FUEL-INJECTION PUMP
Q

Information:

2. Loosen clamp (5). 3. Remove three bolts (4) and elbow (6) from the turbocharger.4. Loosen clamp (7) on the inlet manifold hose. 5. Loosen clamp (8) and slide it on to the turbocharger. 6. Loosen bolts and nuts (9) and slide tubes (10) into the exhaust manifold flanges to get clearance for the removal of the turbocharger.7. Remove two bolts (12) and turbocharger (11). 8. Remove two O-ring seals (14).9. Remove three bolts (13) and mounting bracket (15). 10. Remove the two O-ring seals from the cylinder block.Install Turbocharger
1. Inspect all O-ring seals for wear or damage. Put a small amount of oil on the O-ring seals. 2. Put O-ring seals (1) and (3) in position.3. Install mounting bracket (2) and the bolts that hold it in place. 4. Put turbocharger (4) in position and install the bolts.5. Put tube (7) in position and install clamps (5). 6. Put 5P3931 Anti-Seize on the threads of bolts (6). Install bolts (6) and the nuts. 7. Put clamp (8) in position and tighten it.8. Put elbow (9) in position and install the bolts. 9. Tighten clamp (10). 10. Put hoses (12) in position and tighten clamps (11).
