101047-8230 ZEXEL 9 410 612 701 BOSCH FUEL-INJECTION PUMP 9410612701 1010478230

Information fuel-injection pump

BOSCH 9 410 612 701 9410612701

ZEXEL 101047-8230 1010478230

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101047-8230 zexel genuine, new aftermarket engine parts with delivery

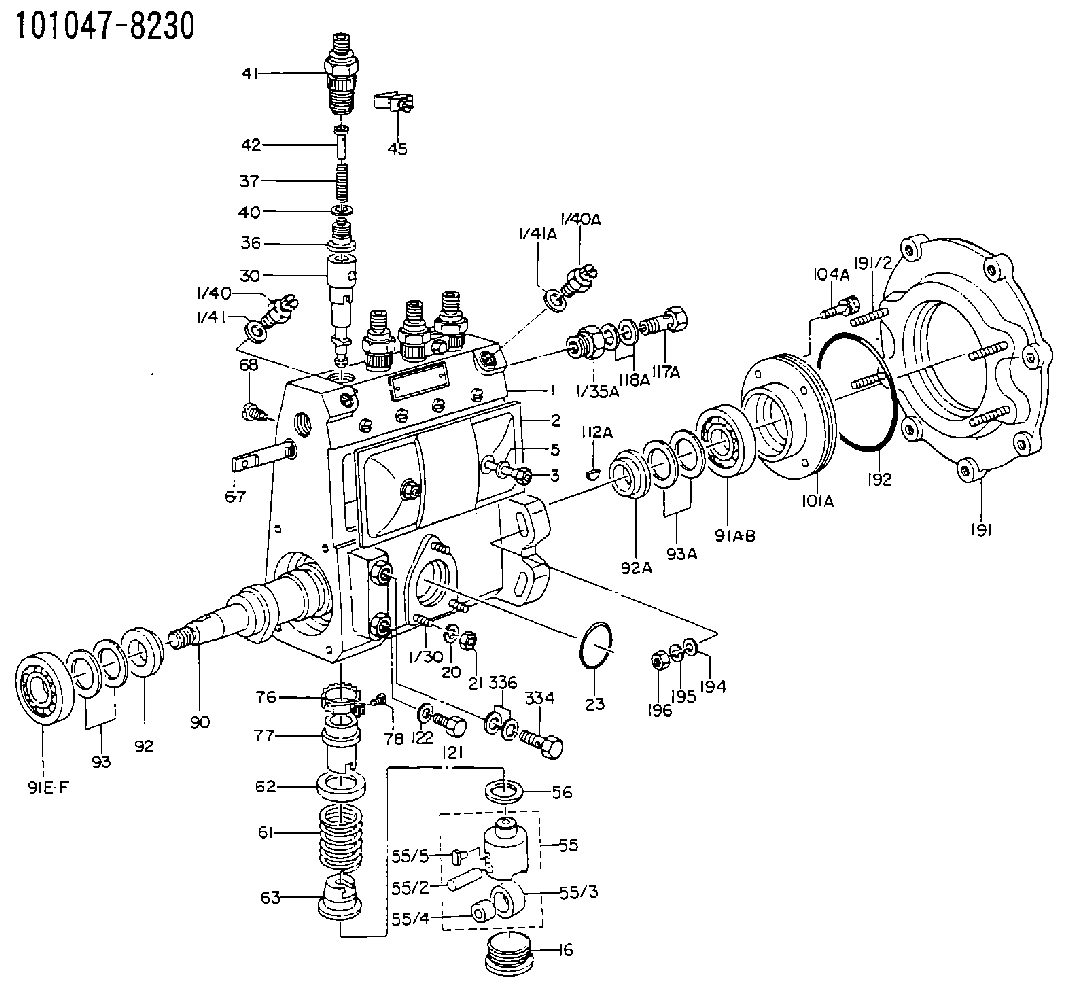

Scheme ###:

1.	[1]	131062-5920	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35A.	[1]	131400-0100	ADAPTOR
1/40.	[1]	131420-0420	BLEEDER SCREW
1/40A.	[1]	131420-0420	BLEEDER SCREW
1/41.	[1]	026512-1540	GASKET D15.4&12.2T1.50
1/41A.	[1]	026512-1540	GASKET D15.4&12.2T1.50
2.	[1]	131028-6220	COVER
2/2.	[1]	131011-1900	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	029340-6020	GASKET D10&6.5T1.00
16.	[4]	131034-1401	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[4]	131151-8720	PLUNGER-AND-BARREL ASSY
36.	[4]	131110-0520	DELIVERY-VALVE ASSEMBLY
37.	[4]	131112-0300	COILED SPRING
40.	[4]	131115-0200	GASKET
41.	[4]	131116-6400	FITTING
42.	[4]	131117-2900	FILLER PIECE
45.	[2]	131122-0520	PLATE
55.	[4]	131200-0220	TAPPET
55/2.	[1]	131203-0200	BEARING PIN
55/3.	[1]	131204-1000	ROLLER
55/4.	[1]	131205-0500	BUSHING
55/5.	[1]	131206-0200	SLIDER
56/1.	[0]	029311-0020	SHIM D19&10T0.30
56/1.	[0]	029311-0030	SHIM D19&10T0.40
56/1.	[0]	029311-0040	SHIM D19&10T0.50
56/1.	[0]	029311-0050	SHIM D19&10T0.6
56/1.	[0]	029311-0060	SHIM D19&10T0.7
56/1.	[0]	029311-0070	SHIM D19&10T0.8
56/1.	[0]	029311-0080	SHIM D19&10T0.9
56/1.	[0]	029311-0090	SHIM D19&10T1
56/1.	[0]	029311-0110	SHIM D19&10T1.1
56/1.	[0]	029311-0120	SHIM D19&10T1.2
56/1.	[0]	029311-0130	SHIM D19&10T1.3
56/1.	[0]	029311-0140	SHIM D19&10T1.4
56/1.	[0]	029311-0270	SHIM D19&10T0.55
56/1.	[0]	029311-0280	SHIM D19&10T0.65
56/1.	[0]	029311-0290	SHIM D19&10T0.75
56/1.	[0]	029311-0310	SHIM D19&10T0.85
56/1.	[0]	029311-0320	SHIM D19&10T0.95
56/1.	[0]	029311-0330	SHIM D19&10T1.05
56/1.	[0]	029311-0340	SHIM D19&10T1.15
56/1.	[0]	029311-0350	SHIM D19&10T1.25
56/1.	[0]	029311-0490	SHIM D19&10T1.5
56/1.	[0]	029311-0500	SHIM D19&10T1.6
56/1.	[0]	029311-0580	SHIM D19&10T0.2
56/1.	[0]	029311-0590	SHIM D19&10T0.25
56/1.	[0]	029311-0600	SHIM D19&10T0.35
56/1.	[0]	029311-0610	SHIM D19&10T0.45
56/1.	[0]	029311-0620	SHIM D19&10T1.35
56/1.	[0]	029311-0630	SHIM D19&10T1.45
56/1.	[0]	029311-0710	SHIM D19&10T1.55
61.	[4]	131215-2500	COMPRESSION SPRING
62.	[4]	131216-0100	SLOTTED WASHER
63.	[4]	131217-0200	SLOTTED WASHER
67.	[1]	131254-0500	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[4]	131240-0100	PINION
77.	[4]	131241-0100	CONTROL SLEEVE
78.	[4]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131360-1300	CAMSHAFT
91A.	[1]	016630-2030	BEARING PLATE
91B.	[1]	028201-7020	BEARING PLATE
91E.	[1]	016630-2030	BEARING PLATE
91F.	[1]	028201-7020	BEARING PLATE
92.	[1]	131302-0300	SPACER RING
92A.	[1]	131302-0300	SPACER RING
93/1.	[0]	029311-7010	SHIM D22&17T0.1
93/1.	[0]	029311-7020	SHIM D22&17T0.12
93/1.	[0]	029311-7030	SHIM D22&17T0.14
93/1.	[0]	029311-7040	SHIM D22&17T0.16
93/1.	[0]	029311-7050	SHIM D22&17T0.18
93/1.	[0]	029311-7060	SHIM D22&17T0.5
93/1.	[0]	029311-7070	SHIM D22&17T1.0
93/1.	[0]	029311-7090	SHIM D22&17T0.3
93/1.	[0]	029311-7210	SHIM D22&17T0.7
93/1.	[0]	029311-7220	SHIM D22&17T1.4
93/1.	[0]	139417-0000	SHIM D22&17T2.4
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
101A.	[1]	131330-2200	COVER
104A.	[4]	020006-1440	BLEEDER SCREW M6P1L14
112A.	[1]	025803-1610	WOODRUFF KEY
117A.	[1]	029731-4580	EYE BOLT
118A.	[2]	029341-4080	GASKET
191.	[1]	131459-6420	BRACKET
191/2.	[4]	029041-0010	STUD
192.	[1]	139768-0000	O-RING
194.	[4]	014011-0140	PLAIN WASHER D22&10.5T1.6
195.	[4]	014111-0440	LOCKING WASHER
196.	[4]	131465-0000	UNION NUT
334.	[1]	029731-0410	EYE BOLT
336.	[2]	029341-0090	GASKET

Include in #1:

101471-0220 as FUEL INJECTION PUMP

101693-9141 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

101047-8230

9 410 612 701

FUEL-INJECTION PUMP
* Q

Information:

(1) Thickness of top plate ... .338 .001 in.(8.59 0.03 mm) Thickness of gasket that is placed between top plate and cylinder block ... .008 .001 in.(0.20 0.03 mm)Height of liner over top plate, under installation pressure ... .005 .003 in.(0.13 0.08 mm)(2) Height of dowels above top surface of cylinder block ... .73 in.(18.5 mm)(3) Dimension (new) from centerline of crankshaft bearing bore to top of block (top deck) ... 16.750 .006 in.(425.45 0.15 mm)(4) Bore in block for camshaft bearings ... 3.0250 .0007 in.(76.835 0.018 mm)(5) Bore in the block for the main bearings: standard, original size (new) ... 5.1138 .0005 in.(129.891 0.013 mm).025 in. (0.64 mm) larger than original size ... 5.1388 .0005 in.(130.526 0.013 mm)(6) Distance from front or rear face of cylinder block to end of dowels ... .75 in.(19.1 mm)(7) Width of main bearing cap ... 8.5000 .0005 in.(215.900 0.013 mm) Width of block for main bearing cap ... 8.5000 .0005 in.(215.900 0.013 mm)Clearance between main bearing cap and cylinder block ... .001 in.(0.03 mm) tight to ... .001 in.(0.03 mm) loose
Tightening Procedure For Main Bearings(8) Torque for the bolts that hold the caps for the main bearings: Install the main bearing caps with the marks (arrow) toward the front of the engine. Install each cap in the correct position by putting the number stamped on the bottom of the cap toward the corresponding number on the cylinder block.a. Put engine oil on the threads of the bolts.b. Tighten the bolts first on the tab side of the cap to ... 190 10 lb. ft.(260 14 N m)c. Tighten the bolts on the opposite side to ... 190 10 lb. ft.(260 14 N m)d. Put a mark on each bolt and cap as shown.e. Tighten the bolts on the opposite side, from the mark ... 120°f. Tighten the bolts on the tab side of the cap, from the mark ... 120°(9) Dimension (new) from centerline of crankshaft bearing bore to bottom of block (pan rails) ... 6.500 .004 in.(165.10 0.10 mm) (10) Put 9S3264 Pipe Sealant on threads of 14 plugs before installation in the cylinder block.(11) Torque for bolts holding oil jet cooling tubes (later engines) ... 18 5 lb. ft.(24 7 N m)
