101047-8220 ZEXEL 9 410 610 013 BOSCH FUEL-INJECTION PUMP 9410610013 1010478220

Information fuel-injection pump

BOSCH 9 410 610 013 9410610013

ZEXEL 101047-8220 1010478220

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101047-8220 zexel genuine, new aftermarket engine parts with delivery

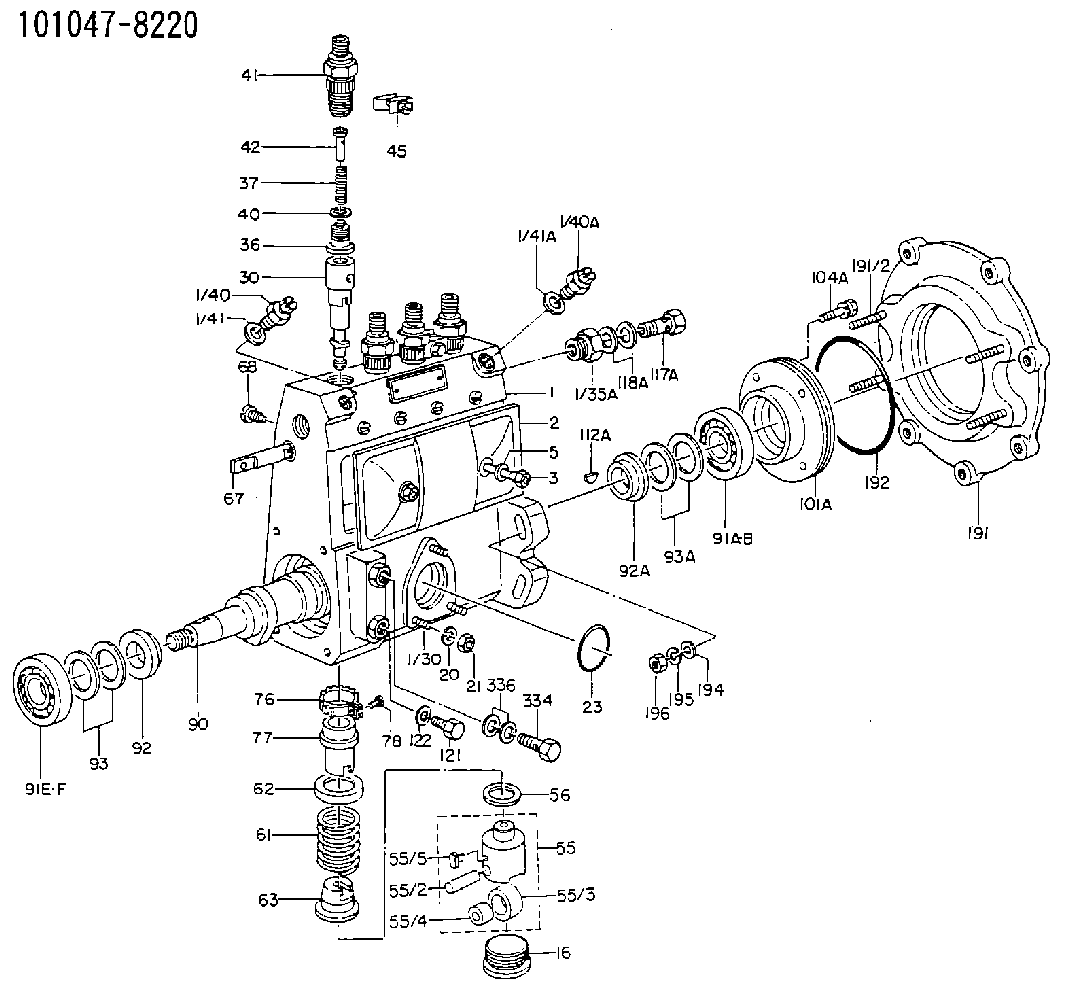

Scheme ###:

1.	[1]	131062-5920	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35A.	[1]	131400-0100	ADAPTOR
1/40.	[1]	131420-0420	BLEEDER SCREW
1/40A.	[1]	131420-0420	BLEEDER SCREW
1/41.	[1]	026512-1540	GASKET D15.4&12.2T1.50
1/41A.	[1]	026512-1540	GASKET D15.4&12.2T1.50
2.	[1]	131028-6220	COVER
2/2.	[1]	131011-1900	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	029340-6020	GASKET D10&6.5T1.00
16.	[4]	131034-1401	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[4]	131151-8720	PLUNGER-AND-BARREL ASSY
36.	[4]	131110-0520	DELIVERY-VALVE ASSEMBLY
37.	[4]	131112-0300	COILED SPRING
40.	[4]	131115-0200	GASKET
41.	[4]	131116-6400	FITTING
42.	[4]	131117-2900	FILLER PIECE
45.	[2]	131122-0520	PLATE
55.	[4]	131200-0220	TAPPET
55/2.	[1]	131203-0200	BEARING PIN
55/3.	[1]	131204-1000	ROLLER
55/4.	[1]	131205-0500	BUSHING
55/5.	[1]	131206-0200	SLIDER
56/1.	[0]	029311-0020	SHIM D19&10T0.30
56/1.	[0]	029311-0030	SHIM D19&10T0.40
56/1.	[0]	029311-0040	SHIM D19&10T0.50
56/1.	[0]	029311-0050	SHIM D19&10T0.6
56/1.	[0]	029311-0060	SHIM D19&10T0.7
56/1.	[0]	029311-0070	SHIM D19&10T0.8
56/1.	[0]	029311-0080	SHIM D19&10T0.9
56/1.	[0]	029311-0090	SHIM D19&10T1
56/1.	[0]	029311-0110	SHIM D19&10T1.1
56/1.	[0]	029311-0120	SHIM D19&10T1.2
56/1.	[0]	029311-0130	SHIM D19&10T1.3
56/1.	[0]	029311-0140	SHIM D19&10T1.4
56/1.	[0]	029311-0270	SHIM D19&10T0.55
56/1.	[0]	029311-0280	SHIM D19&10T0.65
56/1.	[0]	029311-0290	SHIM D19&10T0.75
56/1.	[0]	029311-0310	SHIM D19&10T0.85
56/1.	[0]	029311-0320	SHIM D19&10T0.95
56/1.	[0]	029311-0330	SHIM D19&10T1.05
56/1.	[0]	029311-0340	SHIM D19&10T1.15
56/1.	[0]	029311-0350	SHIM D19&10T1.25
56/1.	[0]	029311-0490	SHIM D19&10T1.5
56/1.	[0]	029311-0500	SHIM D19&10T1.6
56/1.	[0]	029311-0580	SHIM D19&10T0.2
56/1.	[0]	029311-0590	SHIM D19&10T0.25
56/1.	[0]	029311-0600	SHIM D19&10T0.35
56/1.	[0]	029311-0610	SHIM D19&10T0.45
56/1.	[0]	029311-0620	SHIM D19&10T1.35
56/1.	[0]	029311-0630	SHIM D19&10T1.45
56/1.	[0]	029311-0710	SHIM D19&10T1.55
61.	[4]	131215-2500	COMPRESSION SPRING
62.	[4]	131216-0100	SLOTTED WASHER
63.	[4]	131217-0200	SLOTTED WASHER
67.	[1]	131254-0500	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[4]	131240-0100	PINION
77.	[4]	131241-0100	CONTROL SLEEVE
78.	[4]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131360-1300	CAMSHAFT
91A.	[1]	016630-2030	BEARING PLATE
91B.	[1]	028201-7020	BEARING PLATE
91E.	[1]	016630-2030	BEARING PLATE
91F.	[1]	028201-7020	BEARING PLATE
92.	[1]	131302-0300	SPACER RING
92A.	[1]	131302-0300	SPACER RING
93/1.	[0]	029311-7010	SHIM D22&17T0.1
93/1.	[0]	029311-7020	SHIM D22&17T0.12
93/1.	[0]	029311-7030	SHIM D22&17T0.14
93/1.	[0]	029311-7040	SHIM D22&17T0.16
93/1.	[0]	029311-7050	SHIM D22&17T0.18
93/1.	[0]	029311-7060	SHIM D22&17T0.5
93/1.	[0]	029311-7070	SHIM D22&17T1.0
93/1.	[0]	029311-7090	SHIM D22&17T0.3
93/1.	[0]	029311-7210	SHIM D22&17T0.7
93/1.	[0]	029311-7220	SHIM D22&17T1.4
93/1.	[0]	139417-0000	SHIM D22&17T2.4
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
101A.	[1]	131330-2200	COVER
104A.	[4]	020006-1440	BLEEDER SCREW M6P1L14
112A.	[1]	025803-1610	WOODRUFF KEY
117A.	[1]	029731-4580	EYE BOLT
118A.	[2]	029341-4080	GASKET
191.	[1]	131459-1920	BRACKET
191/2.	[4]	029041-0010	STUD
192.	[1]	139768-0000	O-RING
194.	[4]	014011-0140	PLAIN WASHER D22&10.5T1.6
195.	[4]	014111-0440	LOCKING WASHER
196.	[4]	131465-0000	UNION NUT
334.	[1]	029731-0410	EYE BOLT
336.	[2]	029341-0090	GASKET

Include in #1:

101471-0190 as FUEL INJECTION PUMP

101603-9233 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

101047-8220

9 410 610 013

FUEL-INJECTION PUMP
* Q

Information:

Section A:
Rotation (seen from the drive end) ... counterclockwise Test on test stand, with SAE 10W oil at 120° F (49° C) Output ... 51 U.S. gpm(193 liter/min) with pump at ... 2550 rpmSection B:
Rotation (seen from the drive end) ... counterclockwise Test on test stand, with SAE 10W oil at 120° F (49° C) Output ... 72 U.S. gpm(272 liter/min) at a pressure of ... 45 psi(310 kPa) with pump at ... 2550 rpmOutput ... 36 U.S. gpm(136 liter/min) at a pressure of ... 81 psi(560 kPa)with pump at ... 2550 rpm Scavenge pump end (Section A)(1) Diameter of drive shaft and idler shaft (new) ... .8000 .0002 in.(20.320 0.005 mm) Bore in bearings for drive shaft and idler shaft (new) ... .8016 .0003 in.(20.361 0.008 mm)(2) Length of gears (new) ... 2.2503 .0010 in.(57.158 0.025 mm) Depth of bores for gears (new) ... 2.2553 .0008 in.(57.285 0.020 mm) Spacer assembly(3) Diameter of drive shaft and idler shaft (new) ... .8747 .0002 in.(22.217 0.005 mm) Bore in bearings for drive shaft and idler shaft (new) ... .8763 .0003 in.(22.258 0.008 mm) Pump body assembly (Section B)(4) Length of gears (new) ... 3.1250 .0010 in.(79.375 0.025 mm) Depth of bores for gears (new) ... 3.1300 .0008 in.(79.502 0.020 mm)(5) Diameter of drive shaft and idler shaft (new) ... .8747 .0002 in.(22.217 0.005 mm) Bore in bearings for drive shaft and idler shaft (new) ... .8763 .0003 in.(22.258 0.008 mm)(6) 2S2760 Spring (oil pressure relief valve): Length under test force ... 4.64 in.(117.9 mm)Test force ... 110 6 lb.(490 27 N)Free length after test ... 6.02 in.(152.9 mm)Outside diameter ... 1.063 in.(27.00 mm)
SCAVENGE PUMP(7) Bearing junction.(8) Position of bearing junction from the centerline through bearing bores ... 30° 15°(9) Install bearings in bottom of gear bores to a depth of ... .060 .010 in.(1.52 0.25 mm) Rotation of pump must be free when turned by hand.
