101047-8210 ZEXEL 9 410 612 700 BOSCH FUEL-INJECTION PUMP 9410612700 1010478210

Information fuel-injection pump

BOSCH 9 410 612 700 9410612700

ZEXEL 101047-8210 1010478210

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101047-8210 zexel genuine, new aftermarket engine parts with delivery

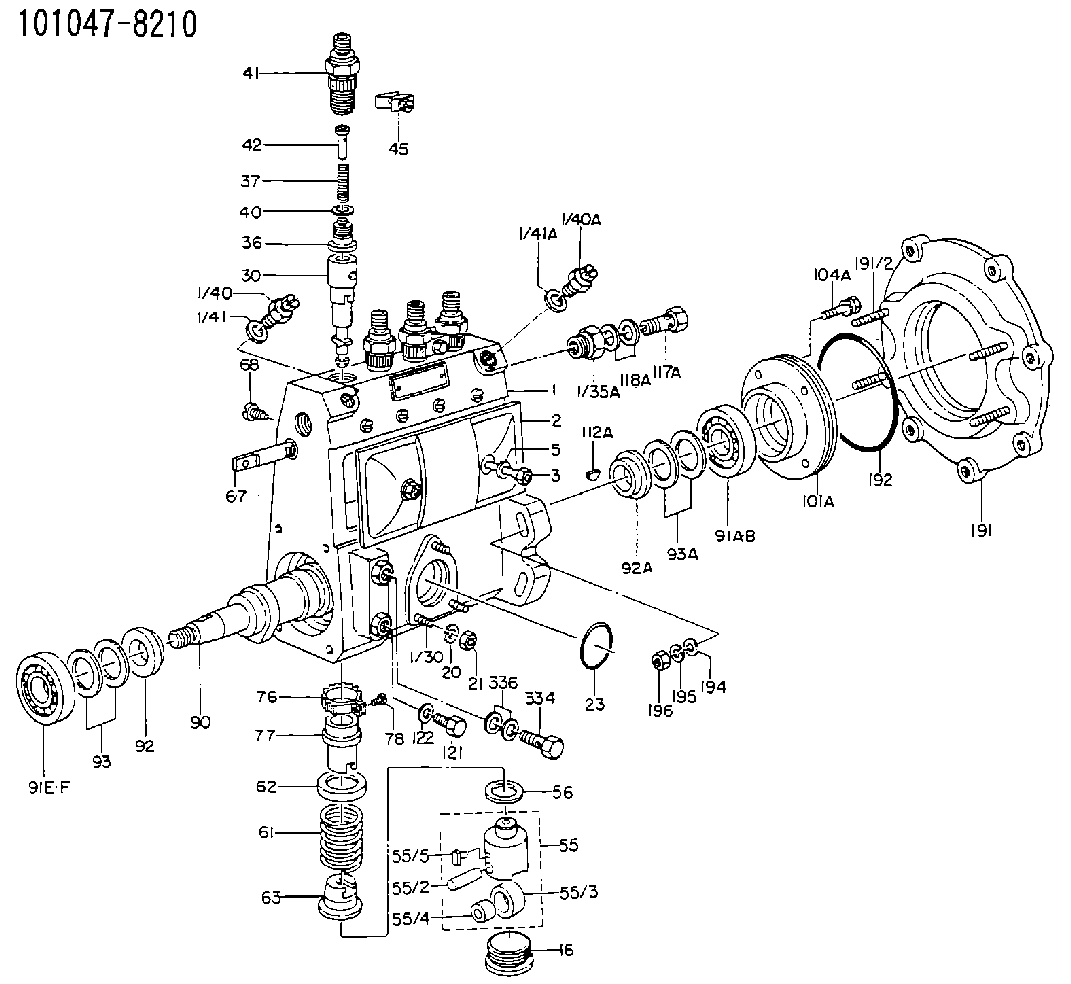

Scheme ###:

1.	[1]	131062-5920	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35A.	[1]	131400-0100	ADAPTOR
1/40.	[1]	131420-0420	BLEEDER SCREW
1/40A.	[1]	131420-0420	BLEEDER SCREW
1/41.	[1]	026512-1540	GASKET D15.4&12.2T1.50
1/41A.	[1]	026512-1540	GASKET D15.4&12.2T1.50
2.	[1]	131028-6220	COVER
2/2.	[1]	131011-1900	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	029340-6020	GASKET D10&6.5T1.00
16.	[4]	131034-1401	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[4]	131151-7020	PLUNGER-AND-BARREL ASSY
36.	[4]	131110-0520	DELIVERY-VALVE ASSEMBLY
37.	[4]	131112-0300	COILED SPRING
40.	[4]	131115-0200	GASKET
41.	[4]	131116-6400	FITTING
42.	[4]	131117-2900	FILLER PIECE
45.	[2]	131122-0520	PLATE
55.	[4]	131200-0220	TAPPET
55/2.	[1]	131203-0200	BEARING PIN
55/3.	[1]	131204-1000	ROLLER
55/4.	[1]	131205-0500	BUSHING
55/5.	[1]	131206-0200	SLIDER
56/1.	[0]	029311-0020	SHIM D19&10T0.30
56/1.	[0]	029311-0030	SHIM D19&10T0.40
56/1.	[0]	029311-0040	SHIM D19&10T0.50
56/1.	[0]	029311-0050	SHIM D19&10T0.6
56/1.	[0]	029311-0060	SHIM D19&10T0.7
56/1.	[0]	029311-0070	SHIM D19&10T0.8
56/1.	[0]	029311-0080	SHIM D19&10T0.9
56/1.	[0]	029311-0090	SHIM D19&10T1
56/1.	[0]	029311-0110	SHIM D19&10T1.1
56/1.	[0]	029311-0120	SHIM D19&10T1.2
56/1.	[0]	029311-0130	SHIM D19&10T1.3
56/1.	[0]	029311-0140	SHIM D19&10T1.4
56/1.	[0]	029311-0270	SHIM D19&10T0.55
56/1.	[0]	029311-0280	SHIM D19&10T0.65
56/1.	[0]	029311-0290	SHIM D19&10T0.75
56/1.	[0]	029311-0310	SHIM D19&10T0.85
56/1.	[0]	029311-0320	SHIM D19&10T0.95
56/1.	[0]	029311-0330	SHIM D19&10T1.05
56/1.	[0]	029311-0340	SHIM D19&10T1.15
56/1.	[0]	029311-0350	SHIM D19&10T1.25
56/1.	[0]	029311-0490	SHIM D19&10T1.5
56/1.	[0]	029311-0500	SHIM D19&10T1.6
56/1.	[0]	029311-0580	SHIM D19&10T0.2
56/1.	[0]	029311-0590	SHIM D19&10T0.25
56/1.	[0]	029311-0600	SHIM D19&10T0.35
56/1.	[0]	029311-0610	SHIM D19&10T0.45
56/1.	[0]	029311-0620	SHIM D19&10T1.35
56/1.	[0]	029311-0630	SHIM D19&10T1.45
56/1.	[0]	029311-0710	SHIM D19&10T1.55
61.	[4]	131215-2500	COMPRESSION SPRING
62.	[4]	131216-0100	SLOTTED WASHER
63.	[4]	131217-0200	SLOTTED WASHER
67.	[1]	131254-0500	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[4]	131240-0100	PINION
77.	[4]	131241-0100	CONTROL SLEEVE
78.	[4]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131360-1300	CAMSHAFT
91A.	[1]	016630-2030	BEARING PLATE
91B.	[1]	028201-7020	BEARING PLATE
91E.	[1]	016630-2030	BEARING PLATE
91F.	[1]	028201-7020	BEARING PLATE
92.	[1]	131302-0300	SPACER RING
92A.	[1]	131302-0300	SPACER RING
93/1.	[0]	029311-7010	SHIM D22&17T0.1
93/1.	[0]	029311-7020	SHIM D22&17T0.12
93/1.	[0]	029311-7030	SHIM D22&17T0.14
93/1.	[0]	029311-7040	SHIM D22&17T0.16
93/1.	[0]	029311-7050	SHIM D22&17T0.18
93/1.	[0]	029311-7060	SHIM D22&17T0.5
93/1.	[0]	029311-7070	SHIM D22&17T1.0
93/1.	[0]	029311-7090	SHIM D22&17T0.3
93/1.	[0]	029311-7210	SHIM D22&17T0.7
93/1.	[0]	029311-7220	SHIM D22&17T1.4
93/1.	[0]	139417-0000	SHIM D22&17T2.4
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
101A.	[1]	131330-2200	COVER
104A.	[4]	020006-1440	BLEEDER SCREW M6P1L14
112A.	[1]	025803-1610	WOODRUFF KEY
117A.	[1]	029731-4580	EYE BOLT
118A.	[2]	029341-4080	GASKET
191.	[1]	131459-1920	BRACKET
191/2.	[4]	029041-0010	STUD
192.	[1]	139768-0000	O-RING
194.	[4]	014011-0140	PLAIN WASHER D22&10.5T1.6
195.	[4]	014111-0440	LOCKING WASHER
196.	[4]	131465-0000	UNION NUT
334.	[1]	029731-0410	EYE BOLT
336.	[2]	029341-0090	GASKET

Include in #1:

101471-0150 as FUEL INJECTION PUMP

101471-0160

101693-9083 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

101047-8210

9 410 612 700

FUEL-INJECTION PUMP
* Q
