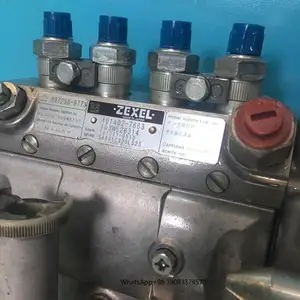

101041-9510 ZEXEL 9 410 612 521 BOSCH FUEL-INJECTION PUMP 9410612521 1010419510 8972413720

Information fuel-injection pump

BOSCH 9 410 612 521 9410612521

ZEXEL 101041-9510 1010419510

ISUZU 8972413720 8972413720

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 101041-9510 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

1.	[1]	131067-6020	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/35.	[1]	131400-0100	ADAPTOR
1/40.	[1]	131420-0420	BLEEDER SCREW
1/40A.	[1]	131423-0800	ADAPTOR
2.	[1]	131028-6220	COVER
2/2.	[1]	131011-1900	GASKET
3.	[2]	131017-1000	FLAT-HEAD SCREW
5.	[2]	029340-6020	GASKET D10&6.5T1.00
16.	[4]	131034-1401	CAPSULE
21.	[3]	139206-0400	UNION NUT
23.	[1]	029633-1010	O-RING
30.	[4]	131152-4820	PLUNGER-AND-BARREL ASSY
36.	[4]	131110-8620	DELIVERY-VALVE ASSEMBLY
37.	[4]	131112-5600	COMPRESSION SPRING
40.	[4]	131115-1600	GASKET
41.	[4]	131116-7600	FITTING
42.	[4]	131117-2300	FILLER PIECE
45.	[2]	131122-0520	PLATE
49.	[4]	029632-0030	O-RING
55.	[4]	131200-2820	TAPPET
55/2.	[1]	131203-0800	BEARING PIN
55/3.	[1]	131204-1000	ROLLER
55/4.	[1]	131205-0500	BUSHING
55/5.	[1]	131206-0200	SLIDER
56/1.	[0]	029311-0020	SHIM D19&10T0.30
56/1.	[0]	029311-0030	SHIM D19&10T0.40
56/1.	[0]	029311-0040	SHIM D19&10T0.50
56/1.	[0]	029311-0050	SHIM D19&10T0.6
56/1.	[0]	029311-0060	SHIM D19&10T0.7
56/1.	[0]	029311-0070	SHIM D19&10T0.8
56/1.	[0]	029311-0080	SHIM D19&10T0.9
56/1.	[0]	029311-0090	SHIM D19&10T1
56/1.	[0]	029311-0110	SHIM D19&10T1.1
56/1.	[0]	029311-0120	SHIM D19&10T1.2
56/1.	[0]	029311-0130	SHIM D19&10T1.3
56/1.	[0]	029311-0140	SHIM D19&10T1.4
56/1.	[0]	029311-0270	SHIM D19&10T0.55
56/1.	[0]	029311-0280	SHIM D19&10T0.65
56/1.	[0]	029311-0290	SHIM D19&10T0.75
56/1.	[0]	029311-0310	SHIM D19&10T0.85
56/1.	[0]	029311-0320	SHIM D19&10T0.95
56/1.	[0]	029311-0330	SHIM D19&10T1.05
56/1.	[0]	029311-0340	SHIM D19&10T1.15
56/1.	[0]	029311-0350	SHIM D19&10T1.25
56/1.	[0]	029311-0490	SHIM D19&10T1.5
56/1.	[0]	029311-0500	SHIM D19&10T1.6
56/1.	[0]	029311-0580	SHIM D19&10T0.2
56/1.	[0]	029311-0590	SHIM D19&10T0.25
56/1.	[0]	029311-0600	SHIM D19&10T0.35
56/1.	[0]	029311-0610	SHIM D19&10T0.45
56/1.	[0]	029311-0620	SHIM D19&10T1.35
56/1.	[0]	029311-0630	SHIM D19&10T1.45
56/1.	[0]	029311-0710	SHIM D19&10T1.55
61.	[4]	131215-2600	COMPRESSION SPRING
62.	[4]	131216-0100	SLOTTED WASHER
63.	[4]	131217-0200	SLOTTED WASHER
67.	[1]	131254-0000	CONTROL RACK
68.	[1]	131226-0300	FLAT-HEAD SCREW
76.	[4]	131240-0100	PINION
77.	[4]	131241-0100	CONTROL SLEEVE
78.	[4]	131242-0100	FLAT-HEAD SCREW
90.	[1]	131361-3300	CAMSHAFT
91A.	[1]	016630-2030	BEARING PLATE
91B.	[1]	028201-7020	BEARING PLATE
91E.	[1]	016640-2030	BEARING PLATE
91F.	[1]	028202-0020	BEARING PLATE
92.	[1]	131302-1000	SPACER RING
92A.	[1]	131302-0300	SPACER RING
93/1.	[0]	029312-0220	SHIM D27&20T0.1
93/1.	[0]	029312-0230	SHIM D27&20T0.12
93/1.	[0]	029312-0240	SHIM D27&20T0.14
93/1.	[0]	029312-0250	SHIM D27&20T0.16
93/1.	[0]	029312-0260	SHIM D27&20T0.18
93/1.	[0]	029312-0270	SHIM D27&20T0.5
93/1.	[0]	029312-0290	SHIM D27&20T0.3
93/1.	[0]	029312-0300	SHIM D27&20T1.0
93/1.	[0]	139420-0400	SHIM D27&20T0.7
93A/1.	[0]	029311-7010	SHIM D22&17T0.1
93A/1.	[0]	029311-7020	SHIM D22&17T0.12
93A/1.	[0]	029311-7030	SHIM D22&17T0.14
93A/1.	[0]	029311-7040	SHIM D22&17T0.16
93A/1.	[0]	029311-7050	SHIM D22&17T0.18
93A/1.	[0]	029311-7060	SHIM D22&17T0.5
93A/1.	[0]	029311-7070	SHIM D22&17T1.0
93A/1.	[0]	029311-7090	SHIM D22&17T0.3
93A/1.	[0]	029311-7210	SHIM D22&17T0.7
93A/1.	[0]	029311-7220	SHIM D22&17T1.4
93A/1.	[0]	139417-0000	SHIM D22&17T2.4
101.	[1]	131330-1800	COVER
104.	[4]	020006-2040	BLEEDER SCREW M6P1L20 4T
106.	[1]	131321-1900	GASKET
112.	[1]	025804-1610	WOODRUFF KEY
117.	[1]	029731-4580	EYE BOLT
118.	[2]	029341-4080	GASKET
191.	[1]	131460-5520	BRACKET
192.	[1]	029637-5020	O-RING &73.5W2
194.	[4]	014011-0140	PLAIN WASHER D22&10.5T1.6
195.	[4]	014111-0440	LOCKING WASHER
196.	[4]	131465-0000	UNION NUT
334.	[1]	029731-0360	EYE BOLT
336.	[2]	029341-0090	GASKET

Include in #1:

101402-7660 as FUEL INJECTION PUMP

106971-0674 as _

Cross reference number

Zexel num

Bosch num

Firm num

Name

101041-9510

9 410 612 521
NP-PES4A95C320LS2S

8972413720 ISUZU

FUEL-INJECTION PUMP
Q 14BC FUEL INJECTION PUMP PE4A,5A, PE

Information:

Caterpillar: Confidential Yellow
PSP FOR INSTALLING NEW ROCKER ARM BUTTONS THAT OPERATE WITH INJECTOR TAPPETS THAT ARE NOT FLAT ON CERTAIN 3606, 3608, 3612 AND 3616 ENGINES - PS0417 - MAILED US AND CANADA, CACO, COFA, BRAZIL, LIMITED CFEL, LIMITED COSA
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
U-232 A-149 AU-150 B-38 E-99.1 O-142.1 1123 PS0417 This Program can only be administered after a failure occurs. The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS0417" as Part Number, "7755" as Group Number, and "96" as Description Code. This Program cancels and replaces the April 24, 1989 Service Letter - PS0374. Termination Date
December 31, 1991
Problem
The 4W9294 Rocker Arm Button may break and fall off the fuel injector rocker arm. New buttons can be installed that will operate with injector tappets that are not flat. It is no longer necessary to change injectors when circular wear patterns show up on the rocker arm buttons.
Affected Product
Model Identification Number 3606 8RB306-335 3608 6MC246-264 3612 9RC16-46 3616 1PD18-23
Parts Needed
Note: Quantities Per Cylinder ***** Parts for use on failed cylinders only ***** 1 - 0R5738 Fuel Injector Group or 1 - 0R5510 Fuel Injector Group 1 - 7W7226
