106080-5870 ZEXEL F 01G 29M 03G BOSCH f01g29m03g 1060805870




Information

BOSCH F 01G 29M 03G f01g29m03g
ZEXEL 106080-5870 1060805870
106080-5870 None
Rating:
86
Buy None 106080-5870 zexel genuine, new aftermarket engine parts with delivery

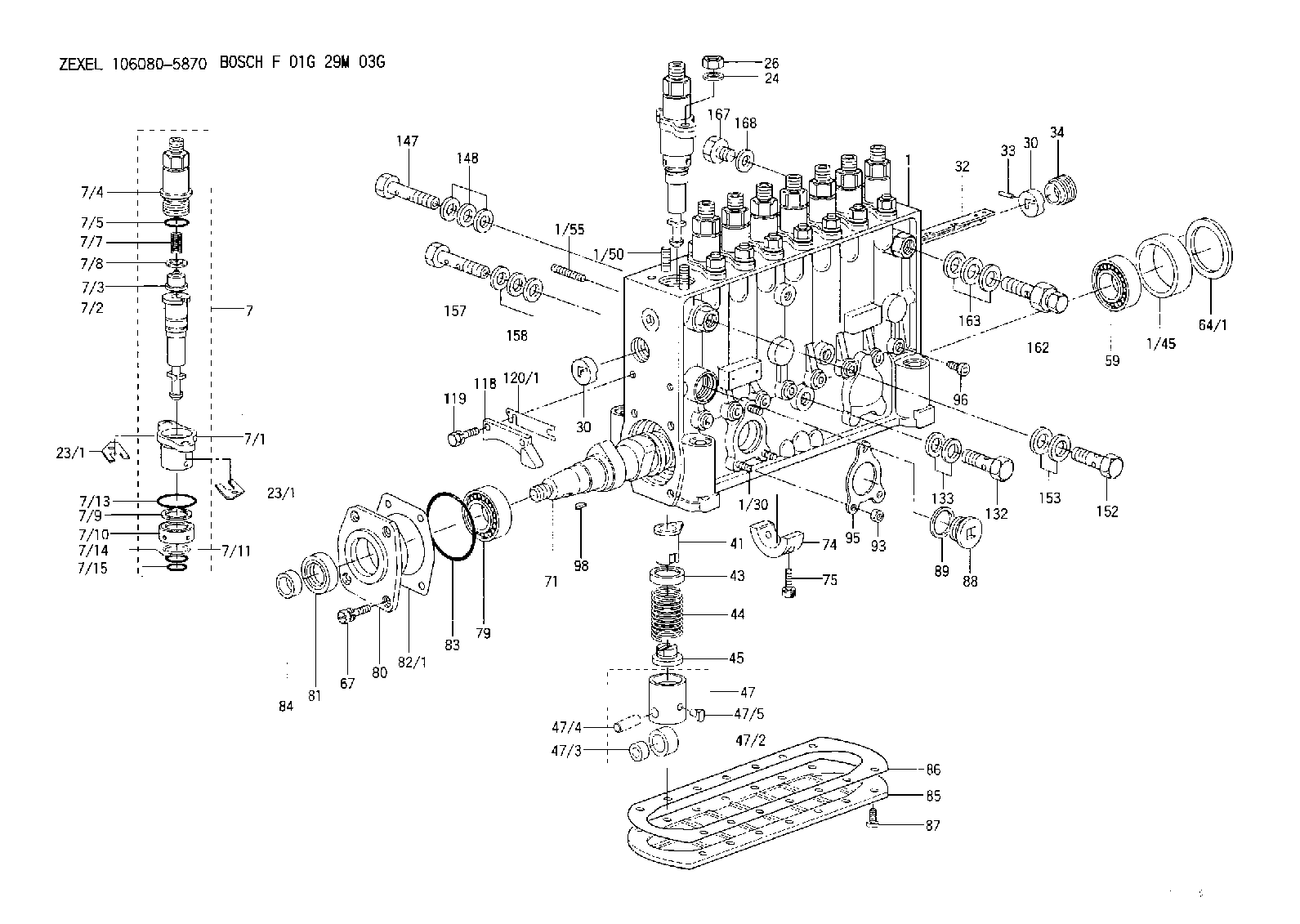

Scheme ###:

1. [1] 134064-6320 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [16] 134138-0000 STUD
1/55. [1] 139008-1000 STUD
7. [8] 134165-0621 PLUNGER-AND-BARREL ASSY
7/1. [8] 134131-1920 FLANGE BUSHING
7/2. [8] 134152-4820 PLUNGER-AND-BARREL ASSY P228
7/3. [8] 134160-2120 DELIVERY-VALVE ASSEMBLY 21P
7/4. [8] 134116-3521 FITTING
7/5. [8] 029632-2070 O-RING
7/7. [8] 134112-1900 COILED SPRING
7/8. [8] 134115-0100 GASKET
7/9. [8] 029302-0140 PLAIN WASHER
7/10. [8] 134135-0400 CAPSULE
7/11. [8] 029602-0010 LOCKING WASHER
7/13. [8] 139729-0300 O-RING
7/14. [8] 029631-5020 O-RING
7/15. [8] 029631-5020 O-RING
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-1000 SHIM T0.525
23/1. [0] 139400-1100 SHIM T0.550
23/1. [0] 139400-1200 SHIM T0.575
23/1. [0] 139400-1300 SHIM T0.600
23/1. [0] 139400-1400 SHIM T0.625
23/1. [0] 139400-1500 SHIM T0.650
23/1. [0] 139400-1600 SHIM T0.675
23/1. [0] 139400-1700 SHIM T0.700
23/1. [0] 139400-1800 SHIM T0.725
23/1. [0] 139400-1900 SHIM T0.750
23/1. [0] 139400-2000 SHIM T0.775
23/1. [0] 139400-2100 SHIM T0.800
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2300 SHIM T0.850
23/1. [0] 139400-2400 SHIM T0.875
23/1. [0] 139400-2500 SHIM T0.900
23/1. [0] 139400-2600 SHIM T0.925
23/1. [0] 139400-2700 SHIM T0.950
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2900 SHIM T1.000
23/1. [0] 139400-3000 SHIM T1.025
23/1. [0] 139400-3100 SHIM T1.050
23/1. [0] 139400-3200 SHIM T1.075
23/1. [0] 139400-3300 SHIM T1.100
23/1. [0] 139400-3400 SHIM T1.125
23/1. [0] 139400-3500 SHIM T1.150
23/1. [0] 139400-3600 SHIM T1.175
23/1. [0] 139400-3700 SHIM T1.200
23/1. [0] 139400-3800 SHIM T1.225
23/1. [0] 139400-3900 SHIM T1.250
23/1. [0] 139400-4000 SHIM T1.275
23/1. [0] 139400-4100 SHIM T1.300
23/1. [0] 139400-4200 SHIM T1.325
23/1. [0] 139400-4300 SHIM T1.350
23/1. [0] 139400-4400 SHIM T1.375
23/1. [0] 139400-4500 SHIM T1.400
23/1. [0] 139400-4600 SHIM T1.425
23/1. [0] 139400-4700 SHIM T1.450
23/1. [0] 139400-4800 SHIM T1.475
23/1. [0] 139400-4900 SHIM T1.500
23/1. [0] 139400-5000 SHIM T1.525
23/1. [0] 139400-5100 SHIM T1.550
23/1. [0] 139400-5200 SHIM T1.575
23/1. [0] 139400-5300 SHIM T1.600
23/1. [0] 139400-5400 SHIM T1.625
23/1. [0] 139400-5500 SHIM T1.650
23/1. [0] 139400-5600 SHIM T1.675
23/1. [0] 139400-5700 SHIM T1.700
23/1. [0] 139400-5800 SHIM T1.725
23/1. [0] 139400-5900 SHIM T1.750
23/1. [0] 139400-6000 SHIM T1.775
23/1. [0] 139400-6100 SHIM T1.800
23/1. [0] 139400-6200 SHIM T1.825
23/1. [0] 139400-6300 SHIM T1.850
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6500 SHIM T1.900
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6700 SHIM T1.950
23/1. [0] 139400-6800 SHIM T1.975
24. [16] 134132-0300 PLAIN WASHER
26. [16] 013021-0040 UNION NUT M10P1.5H8
30. [2] 134001-0000 BUSHING
30. [2] 134001-0000 BUSHING
32. [1] 134258-2200 CONTROL RACK
33. [1] 024030-2030 BEARING PIN
34. [1] 134222-0000 BUSHING
41. [8] 134241-0320 CONTROL SLEEVE
43. [8] 134216-0000 SLOTTED WASHER
44. [8] 134215-0700 COILED SPRING
45. [8] 134217-0500 SLOTTED WASHER
47. [8] 134200-0420 TAPPET
47/2. [8] 134204-0100 ROLLER
47/3. [8] 134205-0000 BUSHING
47/4. [8] 134203-0000 BEARING PIN
47/5. [8] 131206-0500 SLIDER
59. [1] 016650-2230 BEARING PLATE 4T-32205(NSK)
64/1. [0] 134303-0000 SHIM D59.8&43T1.2
64/1. [0] 134303-0100 SHIM D59.8&43T1.5
64/1. [0] 134303-0200 SHIM D59.8&43T1.8
64/1. [0] 134303-0300 SHIM D59.8&43T2.0
64/1. [0] 134303-0400 SHIM D59.8&43T0.6
67. [4] 029010-6810 BLEEDER SCREW
71. [1] 134381-4600 CAMSHAFT
74. [1] 134306-0300 BEARING SHELL
75. [2] 020106-2040 BLEEDER SCREW
79. [1] 016650-2230 BEARING PLATE 4T-32205(NSK)
80. [1] 134316-1700 COVER
81. [1] 139625-0000 PACKING RING
82/1. [0] 134314-0000 SHIM T0.1
82/1. [0] 134314-0100 SHIM T0.12
82/1. [0] 134314-0200 SHIM T0.14
82/1. [0] 134314-0300 SHIM T0.16
82/1. [0] 134314-0400 SHIM T0.18
82/1. [0] 134314-0500 SHIM T0.3
82/1. [0] 134314-0600 SHIM T0.5
83. [1] 029635-5010 O-RING
84. [1] 134563-0900 SLIDING PIECE
85. [1] 134043-0700 COVER
86. [1] 134042-1500 GASKET
87. [14] 012206-1640 FLAT-HEAD SCREW
88. [1] 134045-0100 CAPSULE
89. [1] 026524-2940 GASKET
93. [3] 139206-0400 UNION NUT
95. [1] 131041-0800 GASKET
96. [8] 134047-0000 CAPSULE
98. [1] 029470-5010 WOODRUFF KEY
118. [1] 134496-1300 POINTER
119. [2] 029020-6210 BLEEDER SCREW
120/1. [0] 139400-0100 SHIM T0.2
120/1. [0] 139400-0200 SHIM T0.3
120/1. [0] 139400-0300 SHIM T0.5
120/1. [0] 139400-0400 SHIM T1.0
120/1. [0] 139400-7200 SHIM T0.1
132. [1] 134430-3120 EYE BOLT
133. [2] 139516-0000 GASKET
147. [1] 139810-0700 EYE BOLT
148. [3] 139510-0100 GASKET
152. [1] 029731-4680 EYE BOLT
153. [2] 139514-0100 GASKET
157. [1] 139814-0400 EYE BOLT
158. [3] 139514-0100 GASKET
162. [1] 134424-0820 OVER FLOW VALVE
163. [3] 139514-0100 GASKET
167. [1] 029111-4120 SCREW PLUG
168. [1] 139514-0100 GASKET

Include in #1:

106871-4202 as FUEL INJECTION PUMP

Cross reference number

Zexel num
Bosch num
Firm num
Name
106080-5870
F 01G 29M 03G
NP-PE8P120/321RS3S


Q




Information:


Recommended engine warm-up procedure must be followed. Refer to the engine Operation and Maintenance Manual. Also refer to the relevant “Lubricant Viscosities for Ambient Temperatures” table footnote in this Special Publication.
Excessive engine idling time can contribute to excessive water in the crankcase oil, causing corrosion, sludge, and other problems. Excessive engine idling time can also lead to injector fouling, piston and combustion chamber deposits, corrosive damage, and increased oil consumption.
For proper selection of oil viscosity grade and oil type and/or specification, refer to this Special Publication, "Lubricant Specifications" section.Also, refer to this Special Publication, "Lubricant Viscosities" article.
Not following the recommendations found in the “Lubricant Viscosities for Ambient Temperatures” table and associated footnotes can lead to reduced performance and engine failure.
Do NOT use only the oil viscosities when determining the recommended oil for an engine compartment. The oil type (performance requirements) MUST also be used.
For easier cold weather starting, make sure that all of the components of the engine electrical system are properly maintained. All electrical wiring and connections should be free of the following: fraying, damaged insulation and corrosion. Batteries should be kept fully charged and warm. The batteries and the battery cables must be sized properly for the application.Various starting aids are available in order to assist with cold engine starts in low temperature conditions. Follow the recommendations that are provided by the manufacturer of the starting aid. Refer to the foreword section of this Special Publication, "Aftermarket Products and Warranty".For additional information concerning cold-weather operation, refer to this Special Publication, "Fuel Specifications" section. Also refer to this Special Publication, "Cooling System Specifications" section.Before attempting to start the engine, make sure that the oil in the engine is fluid enough to flow. Check the oil by removing the dipstick. If the oil will drip from the dipstick, then the oil should be fluid enough to allow the engine to start. Do not use oil that has been diluted with kerosene. Kerosene will evaporate in the engine. and cause the oil to thicken. Kerosene will cause swelling and softening of the silicone seals. Kerosene will dilute the oil additives. Dilution of the oil additives will reduce the performance, and reduce the engine protection that the additives provide.If the viscosity of the oil is changed for colder weather, also change the filter element. If the filter is not changed, the filter element and the filter housing can become a solid mass. After you change the oil, operate the engine in order to circulate the thinner oil.When you start a cold-soaked engine or when you operate an engine in ambient temperatures that are below −18°C (0°F), use base oils that can flow in low temperatures. These multigrade oils have lubricant viscosity grade of

Have questions with 106080-5870?





Group cross 106080-5870 ZEXEL

Mitsubishi

9 410 610 685
NP-PE8P120/721RS3S
ME738624
FUEL-INJECTION PUMP
9 410 610 686
NP-PE8P120/721RS3S
ME738703
FUEL-INJECTION PUMP
9 410 611 985
NP-PE8P120/721RS3S
ME738681
FUEL-INJECTION PUMP
9 410 612 240
NP-PE8P120/721RS3000

FUEL-INJECTION PUMP
9 410 612 437
NP-PE8P120/321RS3S

FUEL-INJECTION PUMP
9 410 612 438
NP-PE8P120/321RS3S

FUEL-INJECTION PUMP
106080-5870
F 01G 29M 03G
NP-PE8P120/321RS3S
