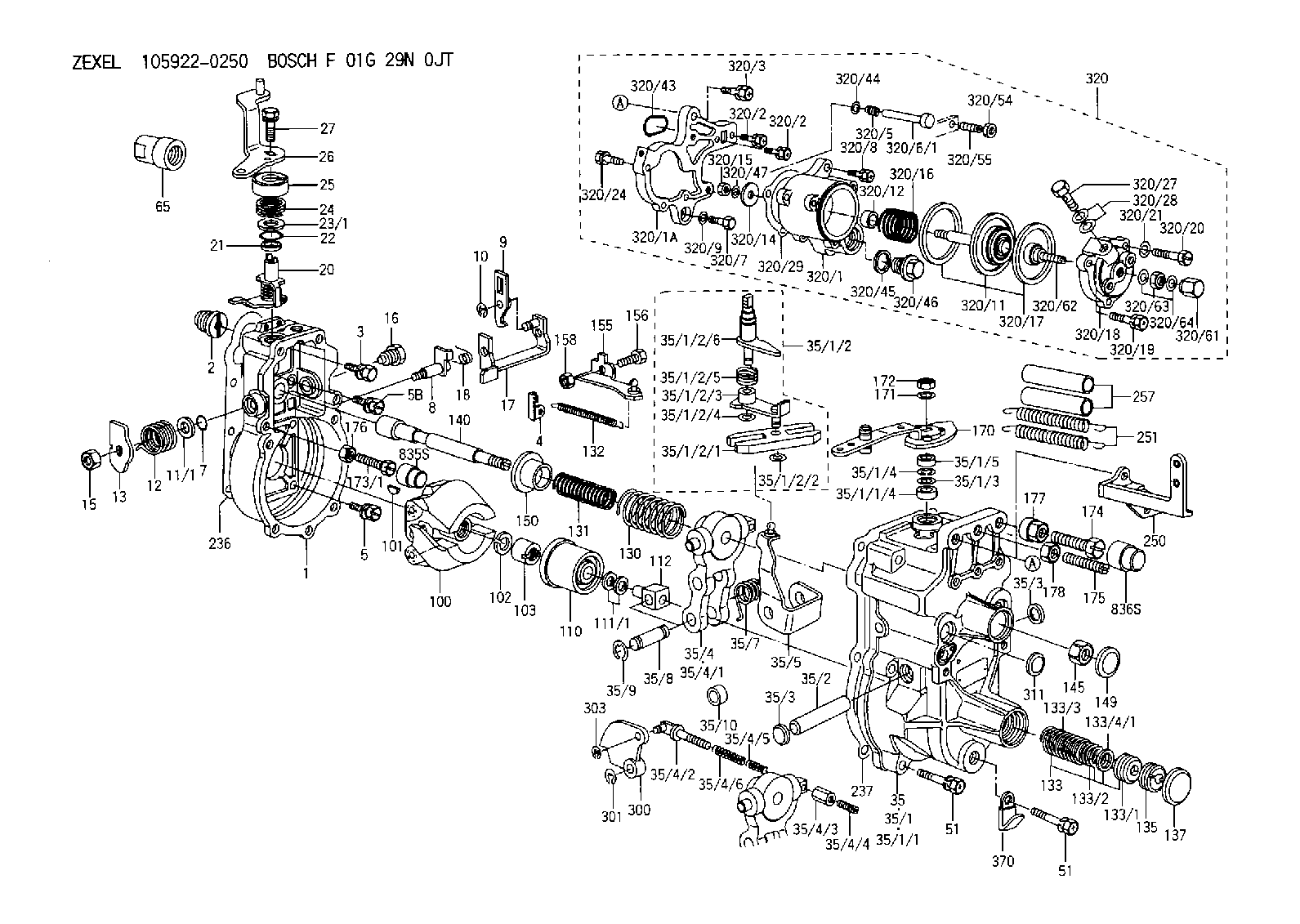

GOVERNOR HOUSING
1. [1] 159200-6920 GOVERNOR HOUSING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW
4. [1] 159232-2720 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW
7. [1] 016530-1010 O-RING
8. [1] 159205-2821 LEVER SHAFT
9. [1] 159202-4101 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159215-0500 COILED SPRING
13. [1] 159242-6601 CONTROL LEVER
15. [1] 013020-8040 UNION NUT
16. [1] 159237-5500 CAPSULE
17. [1] 159202-4220 CONTROL LEVER
18. [1] 159215-0600 COILED SPRING
20. [1] 159242-0920 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 029631-0030 O-RING
23/1. [0] 029311-0220 SHIM D18&10.3T0.2
23/1. [0] 029311-0230 SHIM D18&10.3T0.5
23/1. [0] 029311-0430 SHIM D18&10.3T0.30
23/1. [0] 029311-0440 SHIM D18&10.3T0.40
23/1. [0] 029311-0450 SHIM D18&10.3T0.25
23/1. [0] 029311-0460 SHIM D18&10.3T0.35
23/1. [0] 139410-3300 SHIM D18&10.3T0.6
23/1. [0] 139410-3400 SHIM D18&10.3T0.8
23/1. [0] 139410-3500 SHIM D18&10.3T0.9
24. [1] 159215-3100 COILED SPRING
25. [1] 159235-5800 CAP
26. [1] 159291-0220 CONTROL LEVER STAMP 102
27. [1] 020006-1640 BLEEDER SCREW
35. [1] 159250-8220 GOVERNOR COVER
35/1. [1] 159301-4020 GOVERNOR COVER
35/1/1. [1] 159301-2420 GOVERNOR COVER
35/1/1/4. [1] 159230-2800 BUSHING
35/1/2. [1] 159252-3121 LEVER GROUP
35/1/2/1. [1] 159202-2200 CONTROL LEVER
35/1/2/2. [1] 016010-0810 LOCKING WASHER
35/1/2/3. [1] 159202-3120 CONTROL LEVER
35/1/2/4. [1] 016010-0810 LOCKING WASHER
35/1/2/5. [1] 159215-2600 COILED SPRING
35/1/2/6. [1] 159205-4621 LEVER SHAFT
35/1/3. [1] 139411-0600 SHIM
35/1/4. [1] 159238-3000 LOCKING WASHER
35/1/5. [1] 029621-0080 PACKING RING
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-1720 TENSIONING LEVER
35/4/1. [1] 159203-1520 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0300 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-6220 GUIDE LEVER
35/7. [1] 159215-1701 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-2900 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY 16 MM
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14&10.1T0.5
111/1. [0] 139410-0100 SHIM D14&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0200 TERMINAL STUD
130. [1] 159210-5500 GOVERNOR SPRING
131. [1] 159211-2400 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159212-4520 SPRING PACK
133/1. [1] 159234-5602 GUIDE SLEEVE
133/2. [1] 159212-4700 COILED SPRING
133/3. [1] 159212-3400 COILED SPRING
133/4/1. [0] 029310-9240 SHIM D11.9&9T0.1
133/4/1. [0] 029310-9250 SHIM D11.9&9T0.2
133/4/1. [0] 029310-9260 SHIM D11.9&9T0.25
133/4/1. [0] 029310-9270 SHIM D11.9&9T1.0
133/4/1. [0] 139409-0100 SHIM D11.9&9T0.3
133/4/1. [0] 139409-0200 SHIM D11.9&9T0.5
133/4/1. [0] 139409-0300 SHIM D11.5&9T0.8
135. [1] 159248-2700 FLAT-HEAD SCREW
137. [1] 159237-5300 CAPSULE
140. [1] 159205-2101 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-7820 STRAP
156. [1] 159233-0520 BLEEDER SCREW
158. [1] 013020-5240 UNION NUT
170. [1] 159267-2920 CONTROL LEVER
171. [1] 014110-8440 LOCKING WASHER D15.4&8.2T2
172. [1] 013020-8040 UNION NUT
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-7200 BLEEDER SCREW
175. [1] 154010-0100 FLAT-HEAD SCREW
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-0100 HEXAGON NUT
236. [1] 154390-0000 GASKET
237. [1] 159238-3100 GASKET
250. [1] 159227-5320 BRACKET
251. [2] 154317-6900 COILED SPRING
257. [2] 154156-2700 TUBE
300. [1] 159310-3500 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [1] 159237-0200 CAPSULE
320. [1] 154423-2520 MANIFOLD-PRESSURE COMP.
320/1. [1] 154415-2420 DIAPHRAGM HOUSING
320/1A. [1] 154412-9401 SPACER BUSHING
320/2. [2] 020106-2540 BLEEDER SCREW
320/2. [2] 020106-2540 BLEEDER SCREW
320/3. [1] 020118-3040 BLEEDER SCREW
320/5. [1] 159275-1400 COILED SPRING
320/6/1. [1] 159274-0120 STOP PIN L125
320/6/1. [1] 159274-0220 STOP PIN L127.50
320/6/1. [1] 159274-0320 STOP PIN L128.00
320/6/1. [1] 159274-0420 STOP PIN L127.00
320/6/1. [1] 159274-0520 STOP PIN L126.00
320/6/1. [1] 159274-0620 STOP PIN L129.00
320/6/1. [1] 159274-0720 STOP PIN L128.50
320/6/1. [1] 159274-0820 STOP PIN L125.50
320/6/1. [1] 159274-0920 STOP PIN L126.50
320/6/1. [1] 159274-1120 STOP PIN L119.5
320/6/1. [1] 159274-1220 STOP PIN L120
320/6/1. [1] 159274-1320 STOP PIN L120.5
320/6/1. [1] 159274-1420 STOP PIN L121
320/6/1. [1] 159274-1520 STOP PIN L121.5
320/6/1. [1] 159274-1620 STOP PIN L122
320/6/1. [1] 159274-1720 STOP PIN L122.5
320/6/1. [1] 159274-1820 STOP PIN L123
320/6/1. [1] 159274-1920 STOP PIN L123.5
320/6/1. [1] 159274-4220 STOP PIN L129.5
320/6/1. [1] 159274-4320 STOP PIN L130
320/6/1. [1] 159274-4420 STOP PIN L130.5
320/6/1. [1] 159274-4520 STOP PIN L131
320/6/1. [1] 159274-4620 STOP PIN L131.5
320/6/1. [1] 159274-4720 STOP PIN L132
320/6/1. [1] 159274-4820 STOP PIN L132.5
320/6/1. [1] 159274-4920 STOP PIN L133
320/6/1. [1] 159274-5020 STOP PIN L133.5
320/7. [1] 020306-1640 BLEEDER SCREW
320/8. [3] 020106-2240 BLEEDER SCREW
320/9. [1] 139505-0000 PLAIN WASHER
320/11. [1] 154415-2520 DIAPHRAGM
320/12. [1] 154413-0500 BUSHING
320/14. [1] 154406-5500 SLOTTED WASHER
320/15. [1] 013030-6040 UNION NUT
320/16. [1] 154402-8100 COILED SPRING
320/17. [2] 154413-2600 GASKET
320/18. [1] 154404-5100 COVER
320/19. [1] 020106-2040 BLEEDER SCREW
320/20. [2] 139006-7000 BLEEDER SCREW
320/21. [2] 014110-6440 LOCKING WASHER D12.2&6.1T1.5
320/24. [2] 020106-2240 BLEEDER SCREW
320/27. [1] 029731-0180 EYE BOLT
320/28. [2] 026510-1340 GASKET
320/29. [1] 154413-2501 GASKET
320/43. [1] 159226-4500 SPACER RING
320/44. [1] 014010-5140 PLAIN WASHER
320/45. [1] 029331-8040 GASKET
320/46. [1] 154415-0101 FLAT-HEAD SCREW
320/47. [1] 014110-6440 LOCKING WASHER D12.2&6.1T1.5
320/54. [1] 013030-6040 UNION NUT
320/55. [1] 154404-4800 FLAT-HEAD SCREW
320/61. [1] 154035-1600 CAP NUT
320/62. [1] 154034-2700 FLAT-HEAD SCREW
320/63. [1] 013030-6040 UNION NUT
320/64. [2] 026506-1040 GASKET
370. [1] 155402-6320 PLATE
835S. [1] 154062-1900 CAP
836S. [1] 154062-1700 CAP

Include in #1:

101696-9942 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105922-0250
F 01G 29N 0JT
NP-EP/RLD275-1500A1FXR






Information:


When reporting the repair, use "PS90114" as the Part Number and "7777" as the Group Number. If administered before failure, use "56" as Warranty Claim Description and "T" as the SIMS Description Code. If administered after failure, use "96" as Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31May2014
PROBLEM
Fuel injectors and high pressure fuel pumps may need to be replaced at mid-life on certain 793F Off-Highway Trucks.
AFFECTED PRODUCT
Model Identification Number
793F SSP00118-00123, 162-163, 175, 181, 233, 242, 304-305, 333-334, 436, 438, 473-474, 509
PARTS NEEDED
Qty
Part Number Description
16 10R8998 INJECTOR GP-FUEL
1 10R9602 PUMP GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Replace the fuel injectors and high pressure fuel pump. Refer to Disassembly and Assembly, KENR6052.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-10000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 50.0-hour job
If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
