105636-2530 ZEXEL F 01G 29P 00N BOSCH f01g29p00n 1056362530

Information

BOSCH F 01G 29P 00N f01g29p00n

ZEXEL 105636-2530 1056362530

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy None 105636-2530 zexel genuine, new aftermarket engine parts with delivery

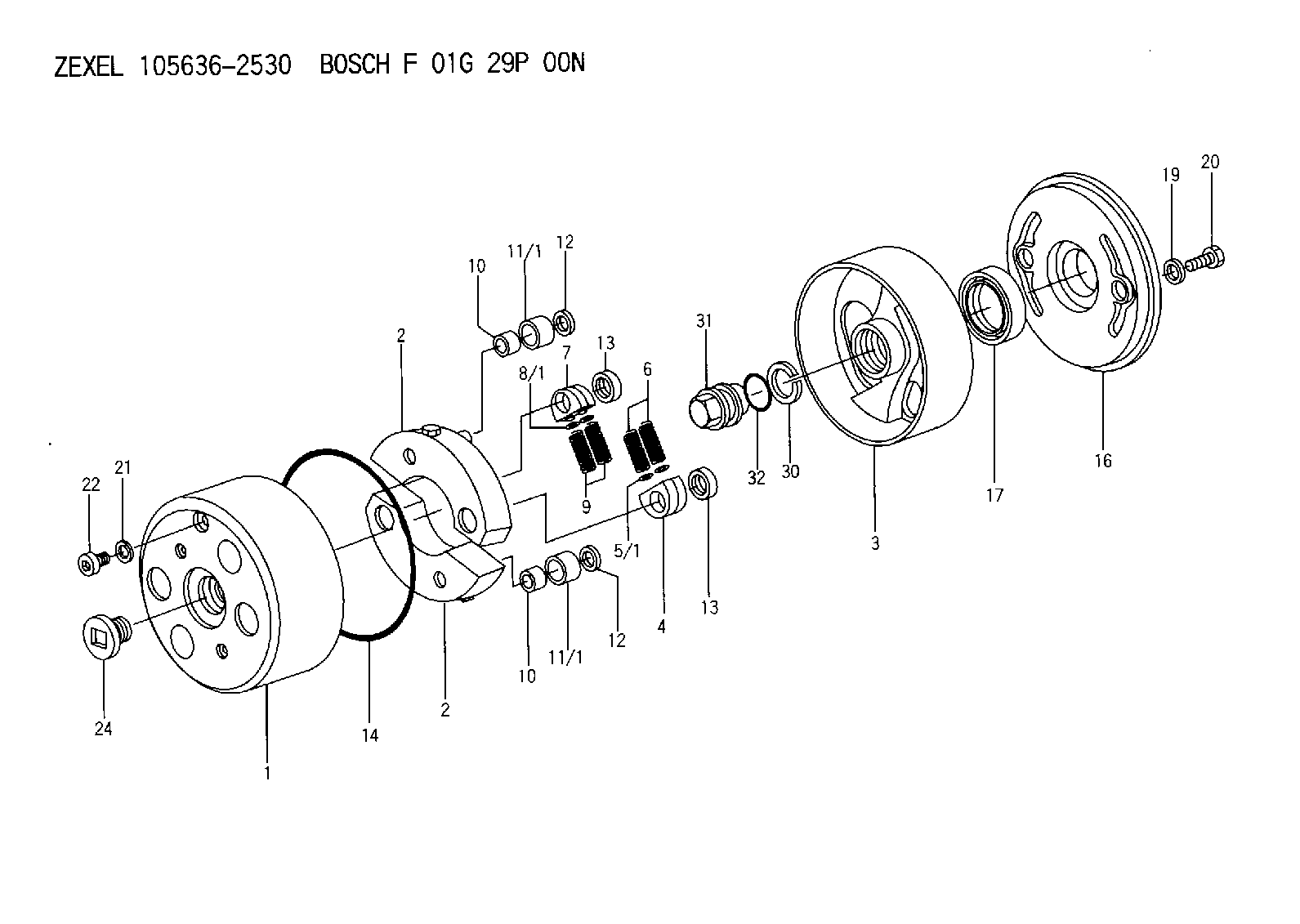

Scheme ###:

1.	[1]	156300-3021	TIMING-DEVICE HOUSING
2.	[2]	156305-0320	FLYWEIGHT
2.	[2]	156305-0320	FLYWEIGHT
3.	[1]	156323-0120	FLANGE BUSHING
4.	[2]	156310-0000	SLOTTED WASHER
5/1.	[0]	029310-8520	SHIM D14&8.4T0.2
5/1.	[0]	029310-8530	SHIM D14&8.4T0.4
5/1.	[0]	029310-8540	SHIM D14&8.4T0.5
5/1.	[0]	029310-8550	SHIM D14&8.4T0.6
5/1.	[0]	029310-8560	SHIM D14&8.4T0.7
5/1.	[0]	029310-8680	SHIM D14&8.4T1.0
5/1.	[0]	139408-0000	SHIM D14&8.4T0.30
5/1.	[0]	139408-0100	SHIM D14&8.4T0.80
5/1.	[0]	139408-0200	SHIM D14&8.4T0.90
5/1.	[0]	139408-0300	SHIM D14&8.4T0.10
5/1.	[0]	139408-0500	SHIM D14&8.4T1.5
5/1.	[0]	139408-0600	SHIM D14&8.4T2.0
6.	[2]	156321-3200	COMPRESSION SPRING
7.	[2]	156310-0000	SLOTTED WASHER
8/1.	[0]	029310-8520	SHIM D14&8.4T0.2
8/1.	[0]	029310-8530	SHIM D14&8.4T0.4
8/1.	[0]	029310-8540	SHIM D14&8.4T0.5
8/1.	[0]	029310-8550	SHIM D14&8.4T0.6
8/1.	[0]	029310-8560	SHIM D14&8.4T0.7
8/1.	[0]	029310-8680	SHIM D14&8.4T1.0
8/1.	[0]	139408-0000	SHIM D14&8.4T0.30
8/1.	[0]	139408-0100	SHIM D14&8.4T0.80
8/1.	[0]	139408-0200	SHIM D14&8.4T0.90
8/1.	[0]	139408-0300	SHIM D14&8.4T0.10
8/1.	[0]	139408-0500	SHIM D14&8.4T1.5
8/1.	[0]	139408-0600	SHIM D14&8.4T2.0
9.	[2]	156321-3200	COMPRESSION SPRING
10.	[2]	156312-0000	BUSHING
10.	[2]	156312-0000	BUSHING
11/1.	[1]	156313-0000	ROLLER D23.9
11/1.	[1]	156313-0000	ROLLER D23.9
11/1.	[1]	156313-0100	ROLLER D24.0
11/1.	[1]	156313-0200	ROLLER D24.1
11/1.	[1]	156313-0300	ROLLER D24.2
12.	[2]	029301-2250	PLAIN WASHER
12.	[2]	029301-2250	PLAIN WASHER
13.	[2]	156317-0100	RETAINER
13.	[2]	156317-0100	RETAINER
14.	[1]	156315-0200	O-RING
16.	[1]	156308-0600	COVER
17.	[1]	156309-0000	PACKING RING
19.	[2]	156319-0100	GASKET
20.	[2]	156633-4800	BLEEDER SCREW
21.	[1]	029331-0190	GASKET
22.	[1]	156316-0000	CAPSULE
24.	[1]	156314-0501	CAP
30.	[1]	029321-8020	LOCKING WASHER
31.	[1]	134325-0300	UNION NUT
32.	[1]	029632-8010	O-RING

Include in #1:

106671-9211 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105636-2530

F 01G 29P 00N
NP-EP/SP700-1100Z3R

Information:

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The 557-7633 Fuel Injector Gp has stayed the same, but the design level has changed to -02.The following injectors are affected by this issue:
387-9427
387-9432
387-9433
557-7633For fuel injectors leaking oil into the fuel and/or experiencing pressure too low symptoms, replace the o-ring seals and back-up rings prior to replacing the fuel injectors. If oil leakage is experienced after seal replacement, replace the fuel injector.The table below contains the parts needed for seal and ring replacement.
Table 1
Required Parts
Item Qty Part Number Part Name
1 1 109-3207 O-Ring Seal
2 2 148-2903 O-Ring Seals
3 1 149-5240 Backup Ring
4 1 293-0730 Backup Ring
