105489-5140 ZEXEL F 01G 29N 0LS BOSCH f01g29n0ls 1054895140

Information

BOSCH F 01G 29N 0LS f01g29n0ls

ZEXEL 105489-5140 1054895140

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy None 105489-5140 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

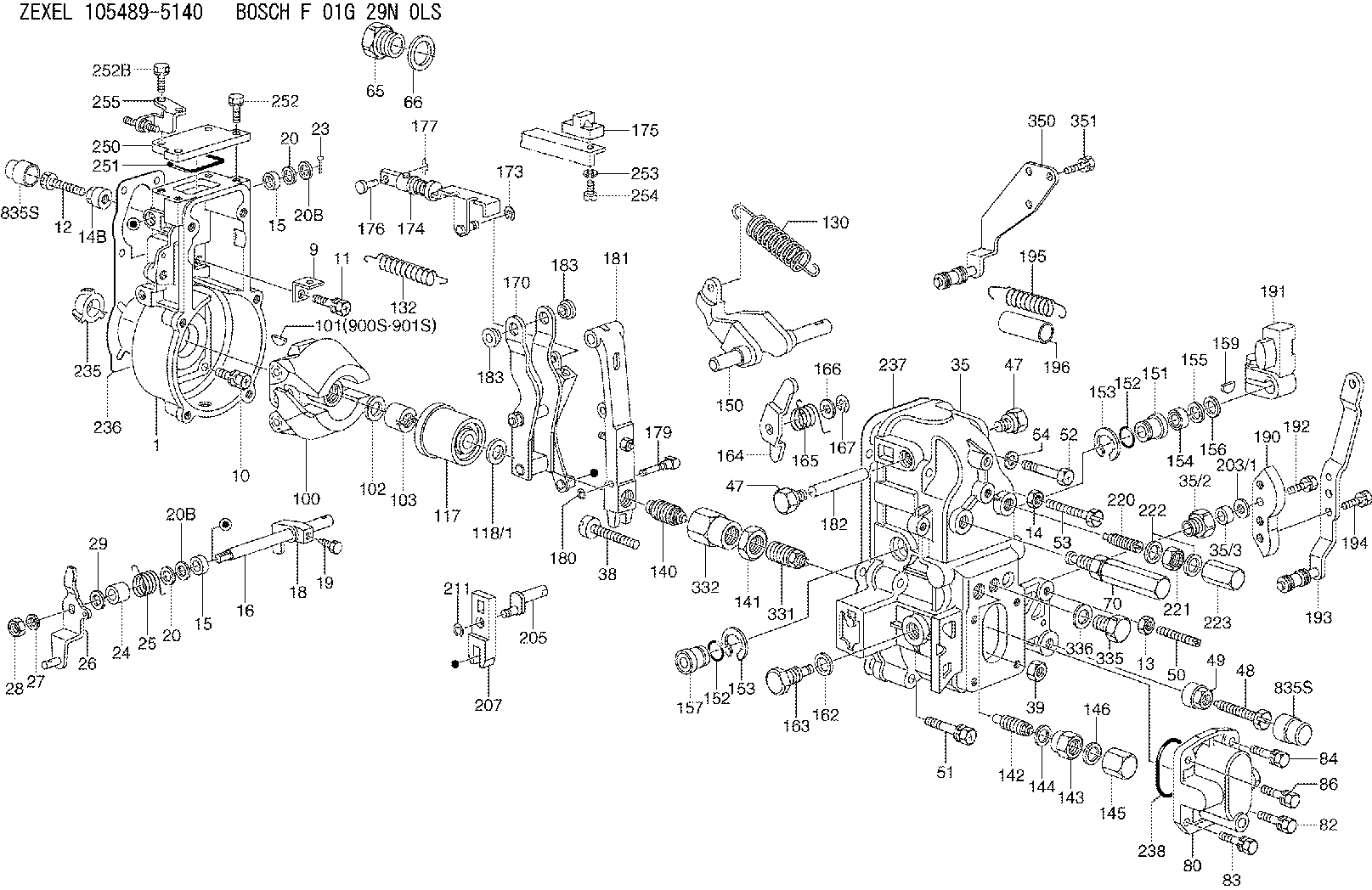

1.	[1]	154004-4621	GOVERNOR HOUSING
9.	[1]	154353-5601	PLATE
10.	[4]	020106-2040	BLEEDER SCREW
11.	[4]	020106-1840	BLEEDER SCREW
12.	[1]	154010-7300	BLEEDER SCREW
13.	[1]	013020-6040	UNION NUT
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2401	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER
20.	[1]	139308-0900	PLAIN WASHER
20B.	[1]	139308-1000	PLAIN WASHER
20B.	[1]	139308-1000	PLAIN WASHER
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-9000	COILED SPRING
26.	[1]	154381-4220	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
28.	[1]	013020-8040	UNION NUT
29.	[1]	139408-1400	SHIM D16&8T0.2
29B.	[1]	139408-1400	SHIM D16&8T0.2
29C.	[0]	139408-1500	SHIM D16&8T0.5
35.	[1]	154516-2120	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	139610-0600	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW
48B.	[1]	154010-5500	BLEEDER SCREW
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-3500	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-3100	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
70.	[1]	154055-4920	HEADLESS SCREW
80.	[1]	154063-4100	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY 13 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-4600	COILED SPRING
140.	[1]	154183-8220	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-5220	HEADLESS SCREW
143.	[1]	154242-5400	UNION NUT
144.	[1]	026516-2040	GASKET
145.	[1]	154159-1800	CAP NUT
146.	[1]	029331-6130	GASKET
150.	[1]	154200-5401	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM
156.	[1]	139411-0200	SHIM
156B.	[1]	139411-0300	SHIM
156C.	[1]	139411-0400	SHIM
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
162.	[1]	029331-6050	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0720	CONTROL LEVER
165.	[1]	154327-6000	COILED SPRING
166.	[1]	029310-8320	SHIM
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154217-7020	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-3220	STRAP
175.	[1]	154232-2323	CONNECTOR
176.	[1]	154222-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-0420	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-4320	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW
193.	[1]	154386-7020	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW
195.	[2]	154332-9200	COILED SPRING
196.	[2]	154156-3601	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-8220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
250.	[1]	154063-9800	COVER
251.	[1]	154358-2500	SEAL RING
252.	[2]	020006-1640	BLEEDER SCREW
252B.	[1]	020006-2040	BLEEDER SCREW
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW
255.	[1]	154375-5820	BRACKET
331.	[1]	154179-9320	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[1]	154375-5920	BRACKET
351.	[3]	029010-5340	BLEEDER SCREW
835S.	[2]	154062-1700	CAP
835S.	[2]	154062-1700	CAP
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106871-4271 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-5140

F 01G 29N 0LS
NP-EP/RFD200/1300PF10DJR
