105471-0120 ZEXEL Cross 1054710120 1910999004




Information

ZEXEL 105471-0120 1054710120
NISSAN-DIESEL 1910999004 1910999004
105471-0120 None
Rating:
13
Buy None 105471-0120 zexel genuine, new aftermarket engine parts with delivery

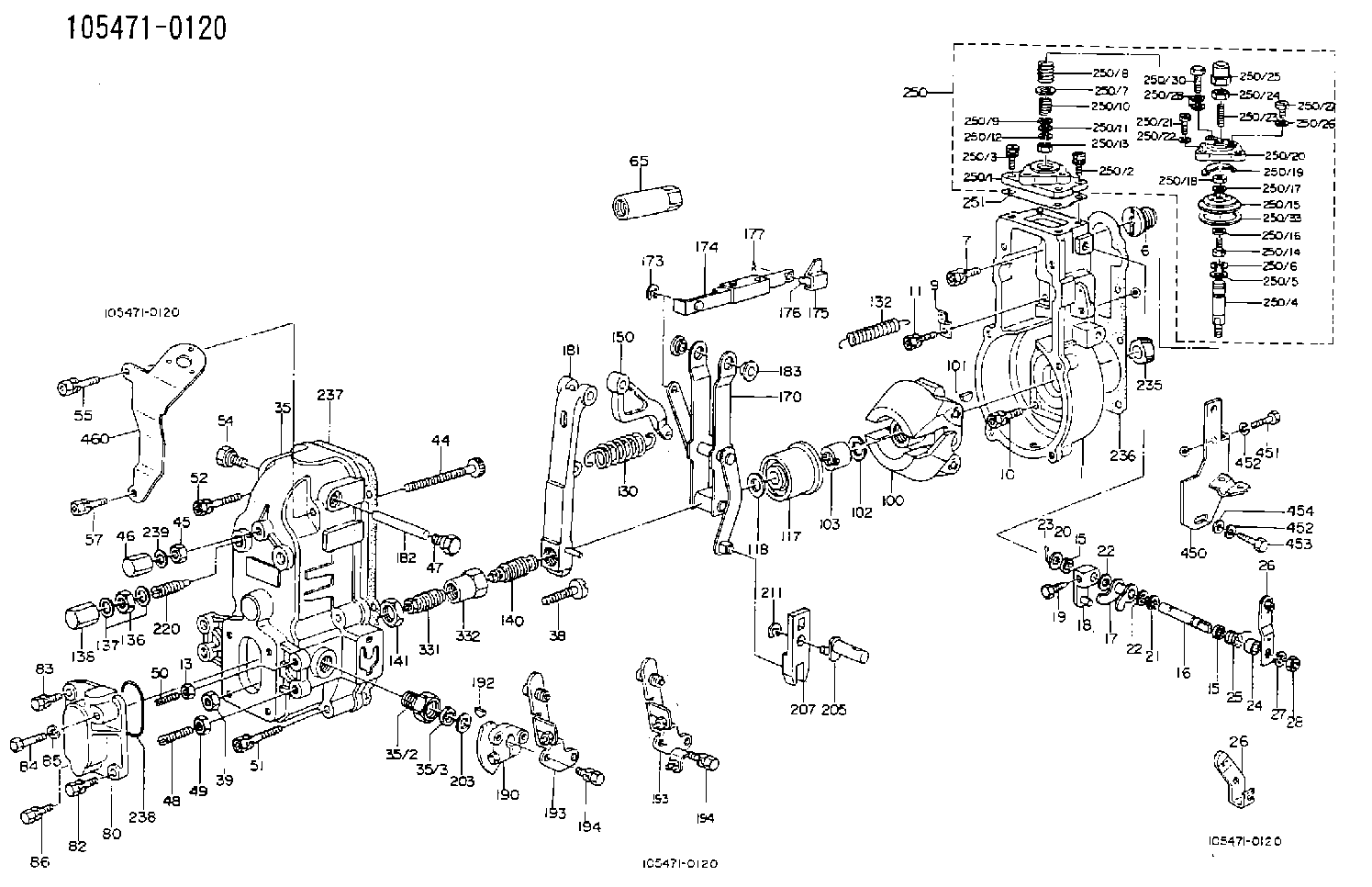

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-9620 GOVERNOR HOUSING
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1640 BLEEDER SCREW
9. [1] 154350-1800 PLATE
10. [5] 020006-1440 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW
13. [1] 029240-6010 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3200 LEVER SHAFT
17. [1] 154408-1820 CONTROL LEVER
18. [1] 155003-2020 CONTROL LEVER
19. [1] 155006-0100 BLEEDER SCREW
20. [0] 029300-8010 PLAIN WASHER
20B. [0] 029300-8030 PLAIN WASHER
21. [1] 016010-0740 LOCKING WASHER
22. [0] 029310-8040 SHIM
22. [0] 029310-8040 SHIM
22B. [0] 029310-8050 SHIM
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-4200 COILED SPRING
26. [1] 154364-4520 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT
35. [1] 154510-5020 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3200 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
44. [1] 154034-0600 FLAT-HEAD SCREW
45. [1] 029200-8500 UNION NUT
46. [1] 154035-1700 CAP NUT
47. [1] 154036-0300 CAPSULE
48. [1] 154010-5400 FLAT-HEAD SCREW
49. [1] 029240-8000 UNION NUT
50. [1] 155615-1100 FLAT-HEAD SCREW
51. [2] 020106-3840 BLEEDER SCREW
52. [1] 020106-5040 BLEEDER SCREW
54. [1] 154036-0700 CAPSULE
55. [1] 020106-5040 BLEEDER SCREW
57. [2] 020106-3840 BLEEDER SCREW
65. [1] 155404-5700 CAP
80. [1] 154060-0020 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW
84. [1] 029020-6220 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
100. [1] 154100-6020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-1420 SLIDING PIECE
118. [1] 029998-1000 SHIM
118/1. [0] 029311-0010 SHIM
118/1. [0] 029311-0180 SHIM
118/1. [0] 029311-0190 SHIM
118/1. [0] 029311-0210 SHIM
130. [1] 154150-2400 GOVERNOR SPRING
132. [1] 154154-1300 COILED SPRING
136. [1] 029201-2140 UNION NUT
137. [2] 026512-1540 GASKET
138. [1] 154159-1200 CAP NUT
140. [1] 154176-1120 HEADLESS SCREW
141. [1] 029201-6210 UNION NUT
150. [1] 154200-2300 CONTROL LEVER
170. [1] 154211-8320 FORK LEVER
170/5. [1] 026110-0510 LOCKING WASHER
170/8. [1] 154325-0600 SLOTTED WASHER
170/10. [1] 154325-0700 SLOTTED WASHER
170/11. [1] 016110-1010 LOCKING WASHER
170/12. [1] 154225-4720 FULCRUM LEVER
170/13. [1] 153313-0500 TAB WASHER
170/14. [1] 029200-8150 UNION NUT
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-6220 STRAP
175. [1] 154232-1300 CONNECTOR
176. [1] 154222-5800 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
181. [1] 154236-1120 TENSIONING LEVER
182. [1] 154237-0400 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154305-1020 CONTROL LEVER
192. [1] 025803-1310 WOODRUFF KEY
193. [1] 154361-1420 CONTROL LEVER
194. [2] 020006-1640 BLEEDER SCREW
203. [1] 029998-1050 SHIM
203/1. [0] 029311-0640 SHIM
203/1. [0] 029311-0650 SHIM
203/1. [0] 029311-0660 SHIM
203/1. [0] 029311-0670 SHIM
203/1. [0] 029311-0680 SHIM
203/1. [0] 029311-0690 SHIM
203/1. [0] 029311-0700 SHIM
205. [1] 154324-2600 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0810 LOCKING WASHER
220. [1] 154050-1220 HEADLESS SCREW
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
239. [1] 026508-1240 GASKET
250. [1] 154407-3920 MANIFOLD-PRESSURE COMP.
250/1. [1] 154408-6220 DIAPHRAGM HOUSING
250/2. [3] 020106-1840 BLEEDER SCREW
250/3. [1] 029010-6590 BLEEDER SCREW
250/4. [1] 154400-5100 STOP PIN
250/5. [1] 153400-0700 SLOTTED WASHER
250/6. [1] 016010-0740 LOCKING WASHER
250/7. [0] 029312-0180 SHIM
250/7B. [0] 029312-0210 SHIM
250/8. [1] 154403-6200 COILED SPRING
250/9. [0] 029310-8010 PLAIN WASHER
250/9B. [0] 029310-8020 PLAIN WASHER
250/10. [1] 154411-0200 COILED SPRING
250/11. [1] 153400-0800 SPRING SEAT
250/12. [1] 014110-5440 LOCKING WASHER
250/13. [1] 013030-5240 UNION NUT
250/14. [1] 154400-5200 BLEEDER SCREW
250/15. [1] 154400-0620 DIAPHRAGM
250/16. [1] 029340-8020 GASKET
250/17. [1] 014110-6440 LOCKING WASHER
250/18. [1] 023040-6040 UNION NUT
250/19. [1] 154404-3100 PLATE
250/20. [1] 154404-3900 COVER
250/21. [3] 029010-6310 BLEEDER SCREW
250/22. [3] 014110-6440 LOCKING WASHER
250/23. [1] 154404-1100 FLAT-HEAD SCREW
250/24. [1] 023040-6040 UNION NUT
250/25. [1] 154035-0320 CAP NUT
250/26. [1] 026506-1040 GASKET
250/27. [1] 029010-6010 CAPSULE
250/30. [1] 029731-0120 EYE BOLT
250/33. [1] 154413-2600 GASKET
251. [1] 154390-2000 GASKET
331. [1] 154172-3920 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
460. [1] 154355-7000 BRACKET

Include in #1:

101641-9070 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105471-0120

1910999004  NISSAN-DIESEL

*




Information:


New Part Number Reman Part Number Description
198-6605 10R0781 Injector Gp.- Fuel
177-4754 10R0782 Injector Gp.- Fuel
Features And Benefits
Cat® Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors. Cat Remanufactured injectors provide immediate, off-the-shelf availability at a fraction of the new
Features Benefits
? All critical engineering changes and updates included ? Improved reliability and performance
? Worldwide availability through Caterpillar® parts distribution system ? Customer access regardless of location
? Off-the-shelf availability ? Downtime reduced through exchange product
? Backed by Cat warranty ? Consistent support
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple, visual, and requires no special tools. Full core credit is issued when the core is complete, fully assembled, and has an acceptable part number. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman website and click on Procedures and Policies (listed under Reman Program Information).
If you have any questions regarding core return processing, feel free to call your Corinth Dealer Service Representative toll free at (800) 537-2928 or use our e-mail address -- reman_core_operations. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our e-mail address--Reman_Help.
RWSmith
Remanufactured Products Group
LC-2148 (309) 675-5445

Have questions with 105471-0120?





Group cross 105471-0120 ZEXEL

Nissan-Diesel

105471-0100
F 019 Z1E 634
1910990066
GOVERNOR
105471-0110

1920090018
GOVERNOR
105471-0120

1910999004
