105448-9930 ZEXEL F 01G 29N 0G4 BOSCH f01g29n0g4 1054489930




Information

BOSCH F 01G 29N 0G4 f01g29n0g4
ZEXEL 105448-9930 1054489930
105448-9930 None
Rating:
15
Buy None 105448-9930 zexel genuine, new aftermarket engine parts with delivery

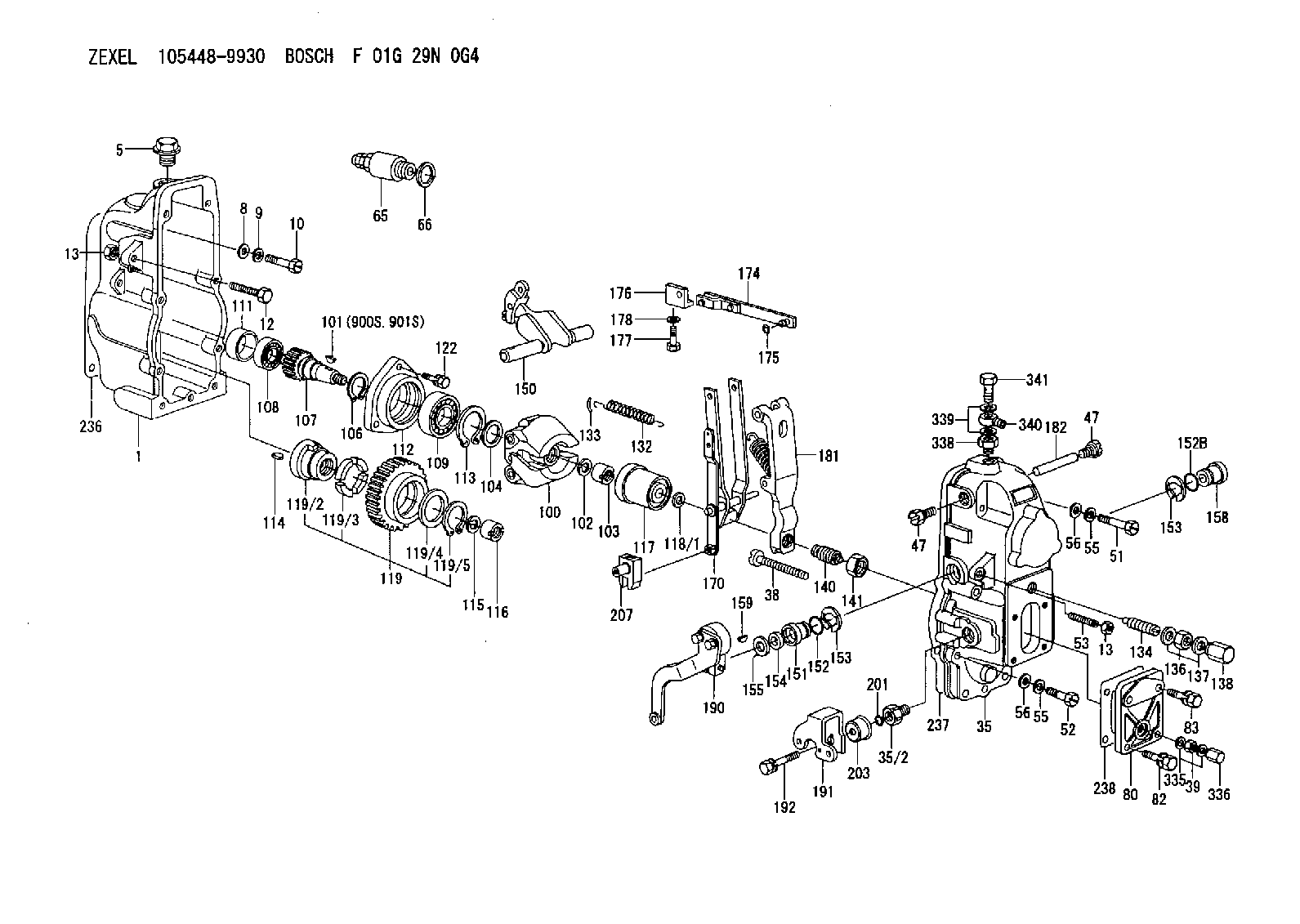

Scheme ###:

1. [1] 154002-2920 GOVERNOR HOUSING
5. [1] 154007-1600 CAPSULE
8. [9] 029300-6040 PLAIN WASHER
9. [9] 029320-6010 LOCKING WASHER
10. [9] 029000-6490 BLEEDER SCREW
12. [1] 154010-3900 BLEEDER SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154520-7520 GOVERNOR COVER
35/2. [1] 154321-0200 BUSHING
38. [1] 154031-3000 FLAT-HEAD SCREW
39. [1] 013020-6040 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [4] 029000-6470 BLEEDER SCREW
52. [5] 029000-6480 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
55. [9] 029320-6010 LOCKING WASHER
55. [9] 029320-6010 LOCKING WASHER
56. [9] 029300-6040 PLAIN WASHER
56. [9] 029300-6040 PLAIN WASHER
65. [1] 153020-3920 STOPPING DEVICE
66. [1] 029332-0050 GASKET
80. [1] 154063-0900 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 029020-6210 BLEEDER SCREW
100. [1] 154100-9720 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY 16 MM
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
104. [1] 154120-0100 PLAIN WASHER
106. [1] 029602-0020 LOCKING WASHER
107. [1] 154121-0400 TOOTHED GEAR
108. [1] 016610-2640 BEARING PLATE
109. [1] 028102-0010 BEARING PLATE
111. [1] 154134-0000 SPACER BUSHING
112. [1] 154122-0300 COVER
113. [1] 029614-7020 LOCKING WASHER
114. [1] 025803-1310 WOODRUFF KEY 13 MM
115. [1] 029321-2020 LOCKING WASHER
116. [1] 029231-2030 UNION NUT
117. [1] 154123-1920 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14&10.1T0.5
118/1. [0] 139410-0100 SHIM D14&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
119. [1] 154130-1720 TOOTHED GEAR
119/2. [1] 154132-0320 HOLDER
119/3. [4] 153251-0100 DAMPER
119/4. [1] 139329-0000 PLAIN WASHER
119/5. [1] 016020-2810 LOCKING WASHER
122. [3] 020106-2840 BLEEDER SCREW
132. [1] 154154-0900 COILED SPRING
133. [2] 154156-0100 TUBE
134. [1] 154158-0620 HEADLESS SCREW
136. [1] 029201-2290 UNION NUT
137. [2] 026512-1640 GASKET
138. [1] 154159-1200 CAP NUT
140. [1] 154185-2920 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-4520 SWIVELLING LEVER
151. [1] 154204-4100 BUSHING
152. [1] 139718-0200 O-RING
152B. [1] 139716-0100 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0200 PACKING RING
155. [1] 029311-1010 SHIM
158. [1] 154204-2200 BUSHING
159. [1] 025803-1310 WOODRUFF KEY 13 MM
170. [1] 154211-5220 FORK LEVER
174. [1] 154230-1820 STRAP
175. [1] 016010-0540 LOCKING WASHER
176. [1] 154232-0500 CONNECTOR
177. [1] 154316-2300 BLEEDER SCREW
178. [1] 029320-6010 LOCKING WASHER
181. [1] 154236-5821 TENSIONING LEVER
182. [1] 154237-0200 BEARING PIN
190. [1] 154347-4423 CONTROL LEVER
191. [1] 154365-4300 CONTROL LEVER
192. [1] 020006-2070 BLEEDER SCREW
201. [1] 139710-0400 O-RING
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
236. [1] 154390-2900 GASKET
237. [1] 154390-3100 GASKET
238. [1] 154390-3500 GASKET
335. [2] 026506-1040 GASKET
336. [1] 154035-1600 CAP NUT
338. [1] 131002-3800 ADAPTOR
339. [2] 029341-2140 GASKET
340. [1] 029711-2350 INLET UNION
341. [1] 029731-2240 EYE BOLT
900S. [1] 025803-1310 WOODRUFF KEY 13 MM
901S. [1] 025803-1610 WOODRUFF KEY 16 MM

Include in #1:

106692-4042 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105448-9930
F 01G 29N 0G4
NP-EP/RSUV150-910PDQ44A302


K




Information:

Reference for 3500 Series Engines
Troubleshooting, M0080819, "3516E Engine for Tier 4 Final 994K Wheel Loaders".Testing and Adjusting, M0080815, "3516E Engine for Tier 4 Final 994K Wheel Loaders".Disassembly and Assembly, M0092351, "3516E Engines for Caterpillar Built Machines".Procedure
Note: If failed parts need to be shipped back, please cap off the ports using the caps from the new part.
What code are you troubleshooting? ____________________
Follow the correct troubleshooting procedure. Refer to "Reference for C175 Engines" and "Reference for 3500 Series Engines" Sections for correct media number to use.
When troubleshooting procedure requests the DEF quality check, DEF system inspection filter replacement or dosing accuracy, document those results in Table 1, Table 2, Table 3, and Table 4.
Table 1
DEF Quality Results
Step Instruction Completed (Yes/No) Result Comments Units
1 Follow the Testing and Adjusting procedure for "Diesel Exhaust Fluid Quality - Test"
2 DEF Contamination Test (include photo of test strip is possible) Pass/Fail
3 DEF concentration Test % at 20° C (68° F)
Table 2
DEF Tank Vent Line, Breather, and Cap Inspection Results
Step Instruction Completed (Yes/No) Result Comments Units
1 Follow the Testing and Adjusting procedure for "Diesel Exhaust Fluid Quality - Test"
2 DEF Contamination Test (include photo of test strip is possible)
3 DEF concentration Test
4 Remove the breather and inspect at the breather-to-vent line connections if debris is bypassing the breather (take photo)
5 Inspect the DEF tank manual fill cap for damage or debris (take photo)
6 Remove the DEF tank manual fill cap and inspect for damage or debris at the manual fill inlet to the tank (take a photo)
7 Remove the fill neck strainer and inspect for damage or debris (take a photo)
8 Clean or replace the strainer (if necessary) (take a photo)
Table 3
DEF Pump Filters Replaced
Step Instruction Completed (Yes/No) Result Comments Units
1 Prior to removal, inspect the DEF pump suction line fitting and DEF pump filter cap for any damage (take a photo)
2 Replace the DEF pump suction line filter fitting and DEF pump filter on the affected DEF pump. Comment on any notable damage or debris (take a photo of each post removal)
3 Bag, label (pump number in PETU, pump serial number, date removed), and return with pump.
Table 4
Dosing Accuracy Test
Step Instruction Completed (Yes/No) Result Comments Units
1 Follow the Testing and Adjusting, Aftertreatment SCR system Dosing Test.
2 For the pump in question, take a photograph of both DEF injectors, mounts, gaskets, bolts on the SCR inlet prior to removal. Ensure that the picture captures the DEF injector serial number and part number and not which position and which aftertreatment it was installed.
3 For the pump in question, remove both injectors from the SCR inlet.
4 Take a photograph of both DEF injector mounts on the SCR inlet and the tip of both DEF injectors.
5 Install each injector on the beaker.
6 Run the DEF System Dosing Accuracy test through Cat® ET for each injector.
7 Use the beaker to measure the amount of fluid from the dosing test for each injector. ____________________ml
____________________ml
8 Repeat the test for each injector to verify consistency.
