105410-8920 ZEXEL F 01G 29N 0FW BOSCH f01g29n0fw 1054108920

Information

BOSCH F 01G 29N 0FW f01g29n0fw

ZEXEL 105410-8920 1054108920

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy None 105410-8920 zexel genuine, new aftermarket engine parts with delivery

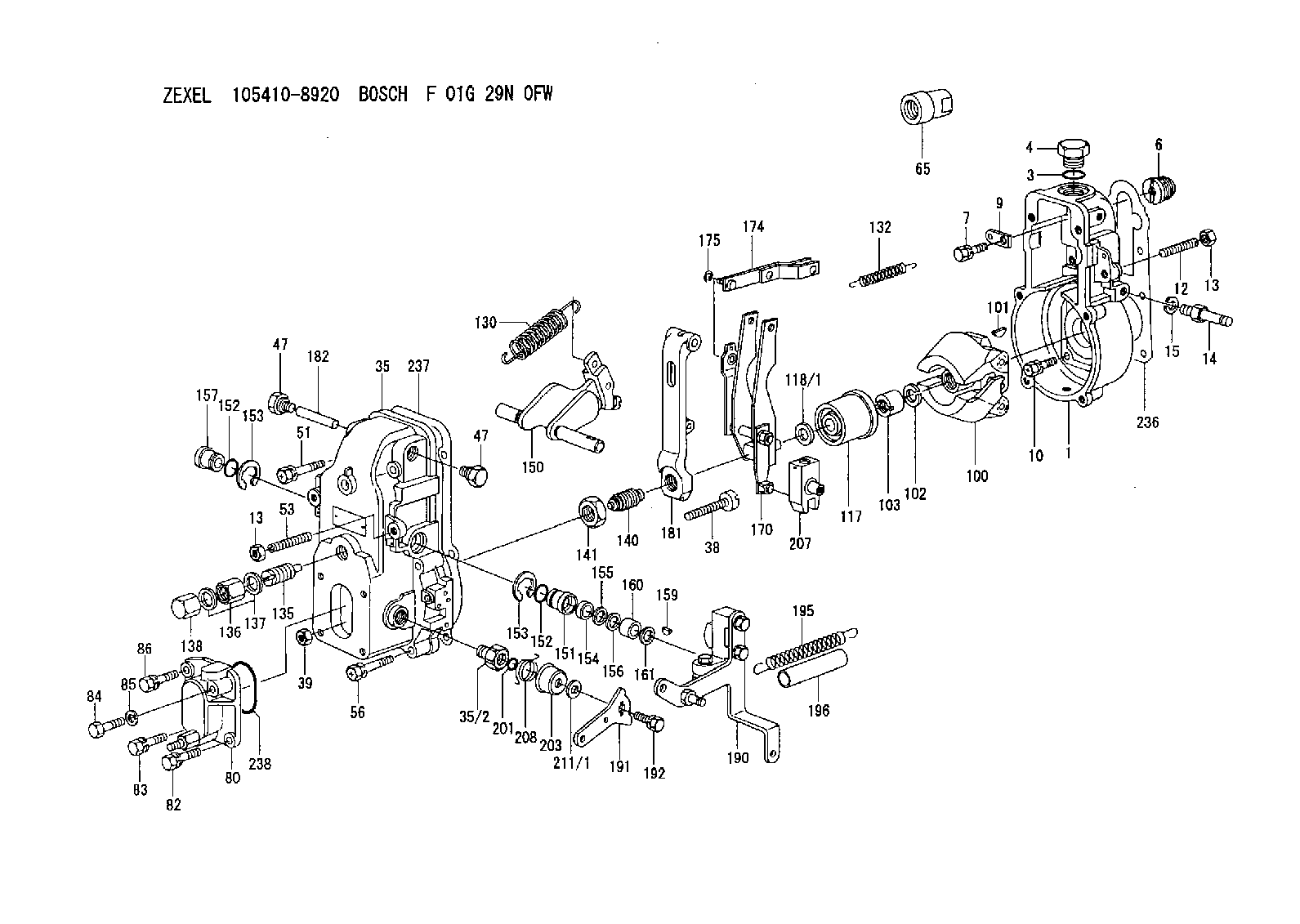

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
35.	[1]	154500-3020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-0200	CAP
80.	[1]	154060-1020	COVER
82.	[1]	020006-1640	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW
84.	[1]	029020-6220	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
86.	[1]	020006-1640	BLEEDER SCREW
100.	[1]	154100-9920	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY 16 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-0920	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-0920	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-1420	CONTROL LEVER
191.	[1]	154307-4100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW
195.	[1]	154314-0200	COILED SPRING
196.	[1]	154156-1100	TUBE
201.	[1]	029631-0030	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING

Include in #1:

101461-0510 as GOVERNOR

101461-1510

Cross reference number

Zexel num

Bosch num

Firm num

Name

105410-8920

F 01G 29N 0FW
NP-EP/RSV300-1850AQ22A301

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
Diesel exhaust fluid may begin to leak from the 421-6842 Control Valve As due to breakage of the valve stem.
Illustration 1 g03774942
Location of valve assemblySolution
In order to fix the valve assembly leakage, rework the hose installation and replace the valve if the valve stem has broken. Refer to the following ""Rework Procedure"".Required Parts
Table 1
Required Parts
Item Qty Part Number Description
1 1 421-6842 Control Valve As (1)
2 2 132-5789 Clip
3 2 3S-2093 Cable Strap
( 1 ) If neededRework Procedure
Check the diesel exhaust fluid leakage from valve assembly (1). If there is no leakage, skip Steps 2 and 3. If there is leakage present, perform the following Steps 1 through 6.
Illustration 2 g03774935
(1) 421-6842 Control Valve As (4) 8M-2773 Clip or 067-2551 Clip (depending on sales model) (5) 8T-4137 Bolt (6) 8T-4121 Hard Washer (7) 6S-8620 Hose Clamp
Remove two clips (4), two bolts (5), and two washers (6) .Note: Retain the bolts and washers for reuse when installing the new clips.
Remove valve assembly (1) and two clamps (7) .
Attach the two hoses to new valve assembly (1). Secure by tightening the clamps to a torque of 1.4 0.3 N m (12.4 2.7 lb in).Note: Insert the hose up to the root of the valve tube.Note: Place the clamp on the straight portion of the hose by the bead of the valve tube.
Illustration 3 g03774975
(1) 421-6842 Control Valve As (3) 3S-2093 Cable Strap (5) 8T-4137 Bolt (6) 8T-4121 Hard Washer (A) 90 degree angle
Install two new clips (2) and secure with bolts (5) and washers (6) on the mounting boss.
Tighten bolts (5) to a torque of 55 10 N m (40.6 7.8 lb ft).
Secure both hoses to clips (2) using straps (3). Ensure that both hoses are straight against valve assembly (1) .Note: The clips must be attached at a 90 degree angle to the valve assembly. Refer to Illustration 3.Note: Do not apply a twisting force on the valve assembly when securing the hoses.Note: Do not deform the hoses when tightening the straps.
