Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104266-1170 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |
Scheme ###:

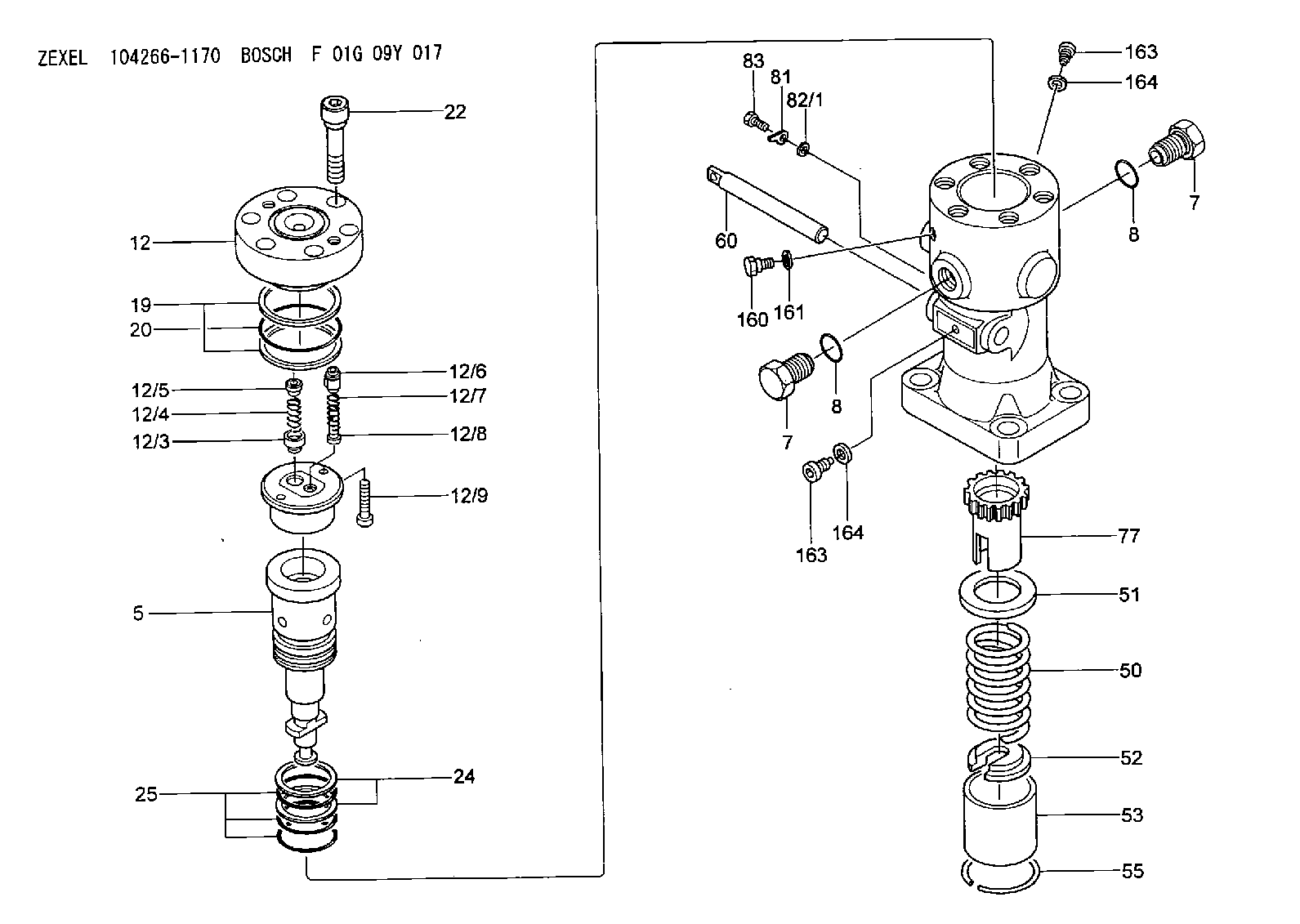

| 5. | [1] | 141187-3120 | PLUNGER-AND-BARREL ASSY SV49 |
| 7. | [2] | 141133-6901 | CAPSULE |
| 7. | [2] | 141133-6901 | CAPSULE |
| 8. | [2] | 141485-1203 | O-RING |
| 8. | [2] | 141485-1203 | O-RING |
| 12. | [1] | 141145-4021 | DELIVERY-VALVE ASSEMBLY SV13 |
| 12/3. | [1] | 141142-9100 | VALVE BODY |
| 12/4. | [1] | 141144-0500 | COMPRESSION SPRING |
| 12/5. | [1] | 141113-3201 | SLOTTED WASHER |
| 12/6. | [1] | 141145-8400 | VALVE BODY |
| 12/7. | [1] | 141112-8701 | COILED SPRING |
| 12/8. | [1] | 141113-2003 | FILLER PIECE |
| 12/9. | [2] | 010235-1620 | HEX-SOCKET-HEAD CAP SCREW |
| 19. | [2] | 016421-0700 | BACKUP RING |
| 20. | [1] | 141118-3002 | O-RING |
| 22. | [6] | 141124-4200 | BLEEDER SCREW |
| 24. | [2] | 016421-0600 | BACKUP RING |
| 25. | [3] | 141485-1002 | O-RING |
| 50. | [1] | 141215-7401 | COMPRESSION SPRING |
| 51. | [1] | 141216-5100 | SLOTTED WASHER |
| 52. | [1] | 141217-8300 | SLOTTED WASHER |
| 53. | [1] | 141218-9000 | GUIDE |
| 55. | [1] | 141220-2900 | LOCKING WASHER |
| 60. | [1] | 141291-1500 | CONTROL RACK |
| 77. | [1] | 141292-5400 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW |
| 160. | [1] | 141418-2600 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 163. | [2] | 373658-1400 | CAPSULE |
| 163. | [2] | 373658-1400 | CAPSULE |
| 164. | [2] | 141403-1800 | GASKET |
| 164. | [2] | 141403-1800 | GASKET |
Include in #1:
101491-9634
as _
Include in #2:
104266-1170
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Introduction
This publication contains information on the locking screw of the 341-8700 Fuel Injection Pump Gp . Locking Mechanism of the Three Lobe Fuel Pump
The locking screw is located on the side of the fuel injection pump. The locking screw is tightened with the washer in an Upward position. The washer is placed in the Upward position for shipping purposes prior to installation. Refer to Illustration 1. The locking screw must be moved to the Unlocked position after installation and prior to starting the engine. Loosen the screw and reposition the washer to the Downward position. Tighten the screw after moving the washer to the Downward position. Refer to Illustration 2
Illustration 1 g02166847
Locked position (1) Locking screw (2) Washer is moved in the upward position
Illustration 2 g02168035
Unlocked position (1) Locking Screw (2) Washer is moved in the downward position
This publication contains information on the locking screw of the 341-8700 Fuel Injection Pump Gp . Locking Mechanism of the Three Lobe Fuel Pump
The locking screw is located on the side of the fuel injection pump. The locking screw is tightened with the washer in an Upward position. The washer is placed in the Upward position for shipping purposes prior to installation. Refer to Illustration 1. The locking screw must be moved to the Unlocked position after installation and prior to starting the engine. Loosen the screw and reposition the washer to the Downward position. Tighten the screw after moving the washer to the Downward position. Refer to Illustration 2
Illustration 1 g02166847
Locked position (1) Locking screw (2) Washer is moved in the upward position
Illustration 2 g02168035
Unlocked position (1) Locking Screw (2) Washer is moved in the downward position
