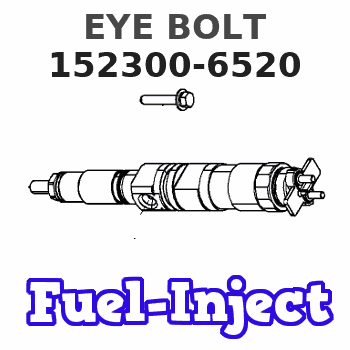

152300-6520 ZEXEL 9 441 610 558 BOSCH EYE BOLT 9441610558 1523006520

Appendix
Configuration Information
Table 7
Over-Temp
Inlet Over-Temperature Alarm
    Condition     Expected Value
    Enable Alarm     Yes
    Log Alarm Transitions     Yes
    Active Output During Alarm     Output 1
    Output function     ON only during alarm
    Assert Alarm     Above
650 °C (1202 °F)
    Hysteresis
20 °C (68 °F)
    Upon Over Temperature extend alarm for 60 seconds
Table 8
Over-Pres
Over-Pressure Warning
    Condition     Expected Value
    Enable Alarm     Yes
    Log Alarm Transitions     Yes
    Active Output During Alarm     Output 1
    Output Function     ON only during alarm
    Assert Alarm when the measured pressure exceeds 7" of Hg for 5% of the time during a 60 min measurement interval
Over-Pressure Alarm
    Condition     Expected Value
    Enable Alarm     Yes
    Log Alarm Transitions     Yes
    Active Output During Alarm     Output 2
    Output Function     Latched ON upon alarm
    Assert alarm when the measured pressure exceeds 8" of Hg for 5% of the time during a 60 min measurement interval
Table 9
TC-Fail (1)
Open Thermocouple Detect
    Condition     Expected Value
    Enable Alarm     Yes
    Log Alarm Transitions     Yes
    Output During Alarm     Output 1
    Output Function     Latched ON upon alarm
    Assert alarm if measured temperature is above
1000 °C (1832 °F)
Shorted Thermocouple Detect
    Condition     Expected Value
    Enable Alarm     Yes
    Log Alarm Transitions     Yes
    Output During Alarm     Output 1
    Output Function     Latched ON upon alarm
    Assert alarm if pressure is greater than 1" of Hg for 10 min and measured temperature does not exceed
120 °C (248 °F)
( 1 ) Output selection applies to both open and shorted alarms
Table 10
Pressure Sensor Fail
No Change Alarm
    Condition     Expected Value
    Enable Alarm     Yes
    Log Alarm Transitions     Yes
    Active Outputs During Alarm     Output 1
    Output Function     Latched ON upon Alarm
    Assert alarm if exhaust temperature is above
250 °C (482 °F) for 10 min and the pressure doesn't change by at least 0.25" of Hg
Negative Pressure Alarm
    Condition     Expected Value
    Enable Alarm     Yes
    Log Alarm Transitions     Yes
    Active Output During Alarm     Output 1
    Output Function     Latched ON during alarm
    Assert Alarm if temperature is above
200 °C (392 °F) for 10 min and the pressure is less than −1" of
