Information electric governor
BOSCH
F 019 Z9E 921
f019z9e921
ZEXEL
105960-0540
1059600540
MITSUBISHI
ME756398
me756398

Rating:

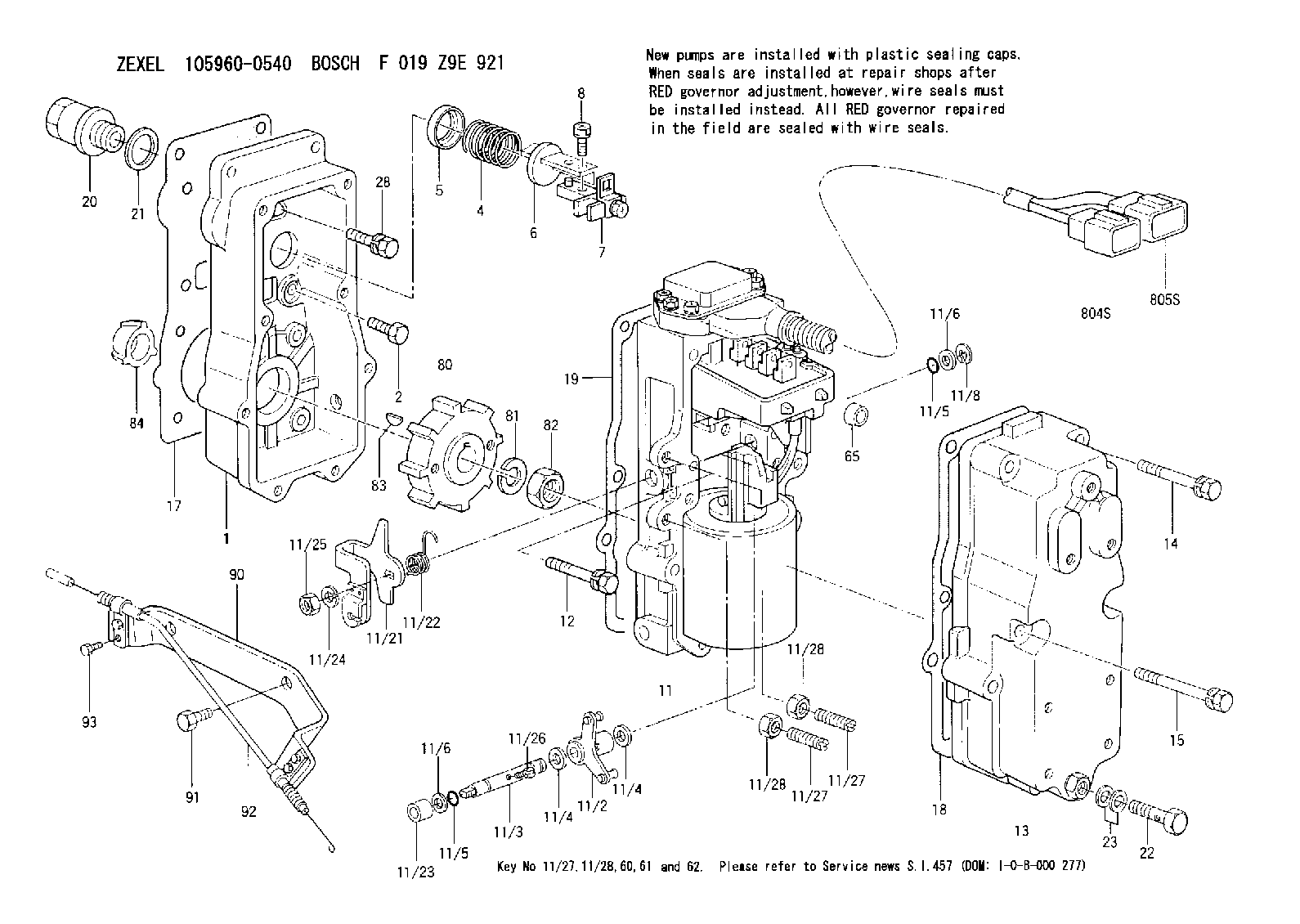

Scheme ###:
1. | [1] | 159560-1802 | GOVERNOR HOUSING |
2. | [10] | 139006-4100 | BLEEDER SCREW |
4. | [1] | 159635-8500 | COILED SPRING |
5. | [1] | 159564-4000 | SLOTTED WASHER |
6. | [1] | 159564-4100 | SLOTTED WASHER |
7. | [1] | 159636-3121 | CONNECTOR |
7B. | [1] | 159636-3321 | CONNECTOR |
7C. | [1] | 159636-3521 | CONNECTOR |
8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
11. | [1] | 159620-4823 | ACTUATOR |
11/2. | [1] | 159583-1020 | STRAP |
11/3. | [1] | 159563-1700 | LEVER SHAFT |
11/4. | [2] | 029311-0170 | SHIM |
11/4. | [2] | 029311-0170 | SHIM |
11/5. | [2] | 159635-0200 | O-RING |
11/5. | [2] | 159635-0200 | O-RING |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/8. | [1] | 016010-0940 | LOCKING WASHER |
11/10. | [4] | 139006-9100 | BLEEDER SCREW |
11/11. | [1] | 407914-2000 | CONTROL UNIT |
11/12. | [4] | 010235-1640 | HEX-SOCKET-HEAD CAP SCREW |
11/14. | [4] | 029300-5020 | PLAIN WASHER D10&5.1T1.5 |
11/15. | [1] | 159636-0500 | LIP |
11/18. | [2] | 020105-1640 | BLEEDER SCREW M5P0.8L16 |
11/21. | [1] | 159583-4620 | CONTROL LEVER |
11/22. | [1] | 159563-1600 | COILED SPRING |
11/23. | [1] | 159563-1800 | BUSHING |
11/24. | [1] | 014110-8440 | LOCKING WASHER |
11/25. | [1] | 013030-8140 | UNION NUT M8P1.25H5 |
11/26. | [1] | 159563-1000 | FLAT-HEAD SCREW |
11/27. | [2] | 139006-9800 | FLAT-HEAD SCREW |
11/27. | [2] | 139006-9800 | FLAT-HEAD SCREW |
11/28. | [2] | 013020-6040 | UNION NUT M6P1H5 |
11/28. | [2] | 013020-6040 | UNION NUT M6P1H5 |
11/32. | [2] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
11/39. | [2] | 159635-5200 | SEAL RING |
11/40. | [4] | 020106-2840 | BLEEDER SCREW |
12. | [2] | 020106-4040 | BLEEDER SCREW |
13. | [1] | 159561-1520 | GOVERNOR COVER |
14. | [6] | 139006-9400 | BLEEDER SCREW |
15. | [2] | 139006-9200 | BLEEDER SCREW |
17. | [1] | 159566-4401 | GASKET |
18. | [1] | 159635-0100 | GASKET |
19. | [1] | 154390-0500 | GASKET |
20. | [1] | 153021-5000 | CAP |
21. | [1] | 026524-3040 | GASKET |
22. | [1] | 029731-4680 | EYE BOLT |
23. | [2] | 029331-4240 | GASKET |
28. | [1] | 139008-1100 | BLEEDER SCREW |
60. | [2] | 013020-6040 | UNION NUT M6P1H5 |
65. | [2] | 159635-0400 | BUSHING |
80. | [1] | 159586-5600 | TOOTHED GEAR |
81. | [1] | 014111-2420 | LOCKING WASHER |
82. | [1] | 013031-2120 | UNION NUT |
83. | [1] | 025803-1310 | WOODRUFF KEY |
84. | [1] | 155412-5200 | IMPELLER WHEEL |
90. | [1] | 159586-5120 | BRACKET |
91. | [2] | 156633-4700 | BLEEDER SCREW |
92. | [1] | 159586-5220 | WIRE |
93. | [4] | 020106-1040 | BLEEDER SCREW M6P1L12 |
804S. | [1] | 159910-2500 | PLUG HOUSING |
805S. | [1] | 159911-7700 | PLUG HOUSING |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105960-0540
F 019 Z9E 921
ME756398 MITSUBISHI
ELECTRIC GOVERNOR
K 14JE ELECTRIC GOVERNOR GOV
K 14JE ELECTRIC GOVERNOR GOV
Information:
Introduction
Diesel Particulate Filters (DPF) and Catalytic Converter Mufflers (CCM) are not applicable to all engines. Some engines contain a DPF and a CCM device that were installed as original equipment to meet engine emissions certification requirements. However, some engines may have had the devices installed during a retrofit program for emissions reduction.
Do not perform any procedure in this Special Instruction until you read this information and you understand this information.Procedure for Shipping the Diesel Particulate Filters (DPF)
Wear goggles, gloves, protective clothing, and a National Institute for Occupational Safety and Health (NIOSH) approved P95 or N95 half-face respirator when handling a used Diesel Particulate Filter or Catalytic Converter Muffler. Failure to do so could result in personal injury.
Place all the used Diesel Particulate Filter (DPF) center sections, regardless of condition, into a 0.152 mm (0.006 inch) thick plastic bag. Make sure that the bag is sealed before placing the DPF into a shipping container. This must be performed in order to contain any constituents from the used DPF during shipping. New replacement diesel particulate filters may come with a 0.152 mm (0.006 inch) plastic bag that can be used for wrapping the used DPF.Procedure for Shipping the Catalytic Converter Mufflers (CCM)
Seal the inlet port and the outlet port on all used Catalytic Converter Mufflers (CCM) with rubber caps or plastic caps. Various sized plastic caps can be ordered from the Cat Shop Supplies and Hand Tools catalog. Reference caps and plugs under the Shop Supplies section. An alternative is to seal the inlet ports and outlet ports with a 0.152 mm (0.006 inch) thick sheet of plastic and 50 mm (2 inch) wide sealing tape with good adhesive properties before shipping. Sealing or capping must be performed in order to contain any constituents from the used CCM during shipping.
Diesel Particulate Filters (DPF) and Catalytic Converter Mufflers (CCM) are not applicable to all engines. Some engines contain a DPF and a CCM device that were installed as original equipment to meet engine emissions certification requirements. However, some engines may have had the devices installed during a retrofit program for emissions reduction.
Do not perform any procedure in this Special Instruction until you read this information and you understand this information.Procedure for Shipping the Diesel Particulate Filters (DPF)
Wear goggles, gloves, protective clothing, and a National Institute for Occupational Safety and Health (NIOSH) approved P95 or N95 half-face respirator when handling a used Diesel Particulate Filter or Catalytic Converter Muffler. Failure to do so could result in personal injury.
Place all the used Diesel Particulate Filter (DPF) center sections, regardless of condition, into a 0.152 mm (0.006 inch) thick plastic bag. Make sure that the bag is sealed before placing the DPF into a shipping container. This must be performed in order to contain any constituents from the used DPF during shipping. New replacement diesel particulate filters may come with a 0.152 mm (0.006 inch) plastic bag that can be used for wrapping the used DPF.Procedure for Shipping the Catalytic Converter Mufflers (CCM)
Seal the inlet port and the outlet port on all used Catalytic Converter Mufflers (CCM) with rubber caps or plastic caps. Various sized plastic caps can be ordered from the Cat Shop Supplies and Hand Tools catalog. Reference caps and plugs under the Shop Supplies section. An alternative is to seal the inlet ports and outlet ports with a 0.152 mm (0.006 inch) thick sheet of plastic and 50 mm (2 inch) wide sealing tape with good adhesive properties before shipping. Sealing or capping must be performed in order to contain any constituents from the used CCM during shipping.
