105960-0521 ZEXEL F 019 Z9E 274 BOSCH ELECTRIC GOVERNOR f019z9e274 1059600521 me756336

Information electric governor

BOSCH F 019 Z9E 274 f019z9e274

ZEXEL 105960-0521 1059600521

MITSUBISHI ME756336 me756336

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ELECTRIC GOVERNOR 105960-0521 zexel genuine, new aftermarket engine parts with delivery

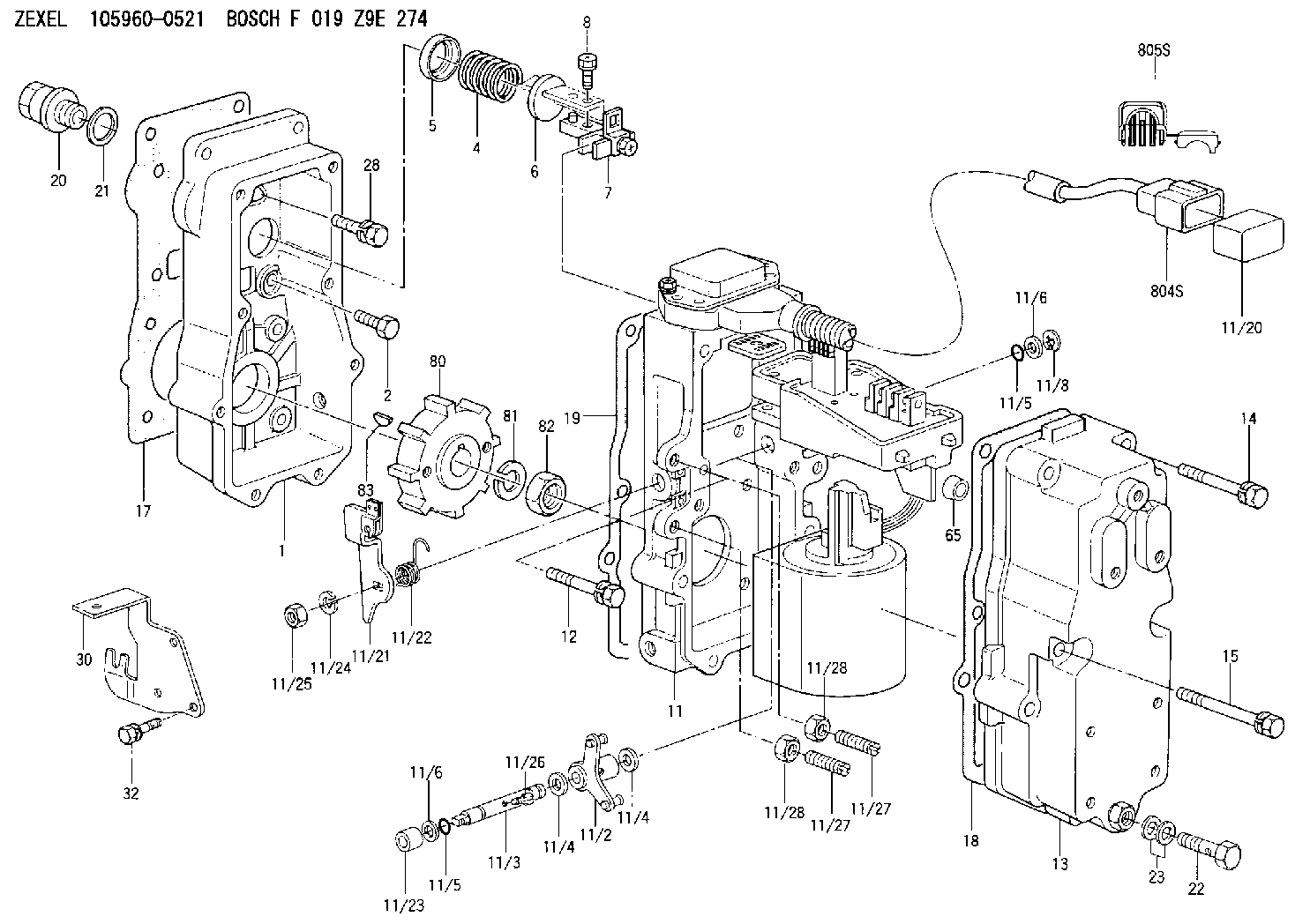

Scheme ###:

1.	[1]	159560-1802	GOVERNOR HOUSING
2.	[10]	139006-4100	BLEEDER SCREW
4.	[1]	159635-8500	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159620-7821	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	159635-0200	O-RING
11/5.	[2]	159635-0200	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	139006-9100	BLEEDER SCREW
11/12.	[4]	010235-1640	HEX-SOCKET-HEAD CAP SCREW
11/14.	[4]	029300-5020	PLAIN WASHER D10&5.1T1.5
11/15.	[1]	159636-0500	LIP
11/18.	[2]	020105-1640	BLEEDER SCREW M5P0.8L16
11/20.	[1]	159586-2800	CAP
11/21.	[1]	159583-3120	CONTROL LEVER
11/22.	[1]	159563-1600	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/40.	[4]	020106-2840	BLEEDER SCREW
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-1520	GOVERNOR COVER
14.	[6]	139006-9400	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
17.	[1]	159566-4401	GASKET
18.	[1]	159635-0100	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-5000	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
23.	[2]	029331-4240	GASKET
28.	[1]	139008-1100	BLEEDER SCREW
30.	[1]	159586-2300	BRACKET
32.	[3]	020106-1240	BLEEDER SCREW M6P1.0L12
65.	[2]	159635-0400	BUSHING
80.	[1]	159586-5600	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
804S.	[1]	159911-8800	PLUG HOUSING
805S.	[1]	159911-8500	HOLDER

Include in #1:

108822-7271 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105960-0521

F 019 Z9E 274

ME756336 MITSUBISHI

ELECTRIC GOVERNOR
K 14JE ELECTRIC GOVERNOR GOV
