Information electric governor
BOSCH
F 019 Z3E 911
f019z3e911
ZEXEL
105960-0410
1059600410

Rating:

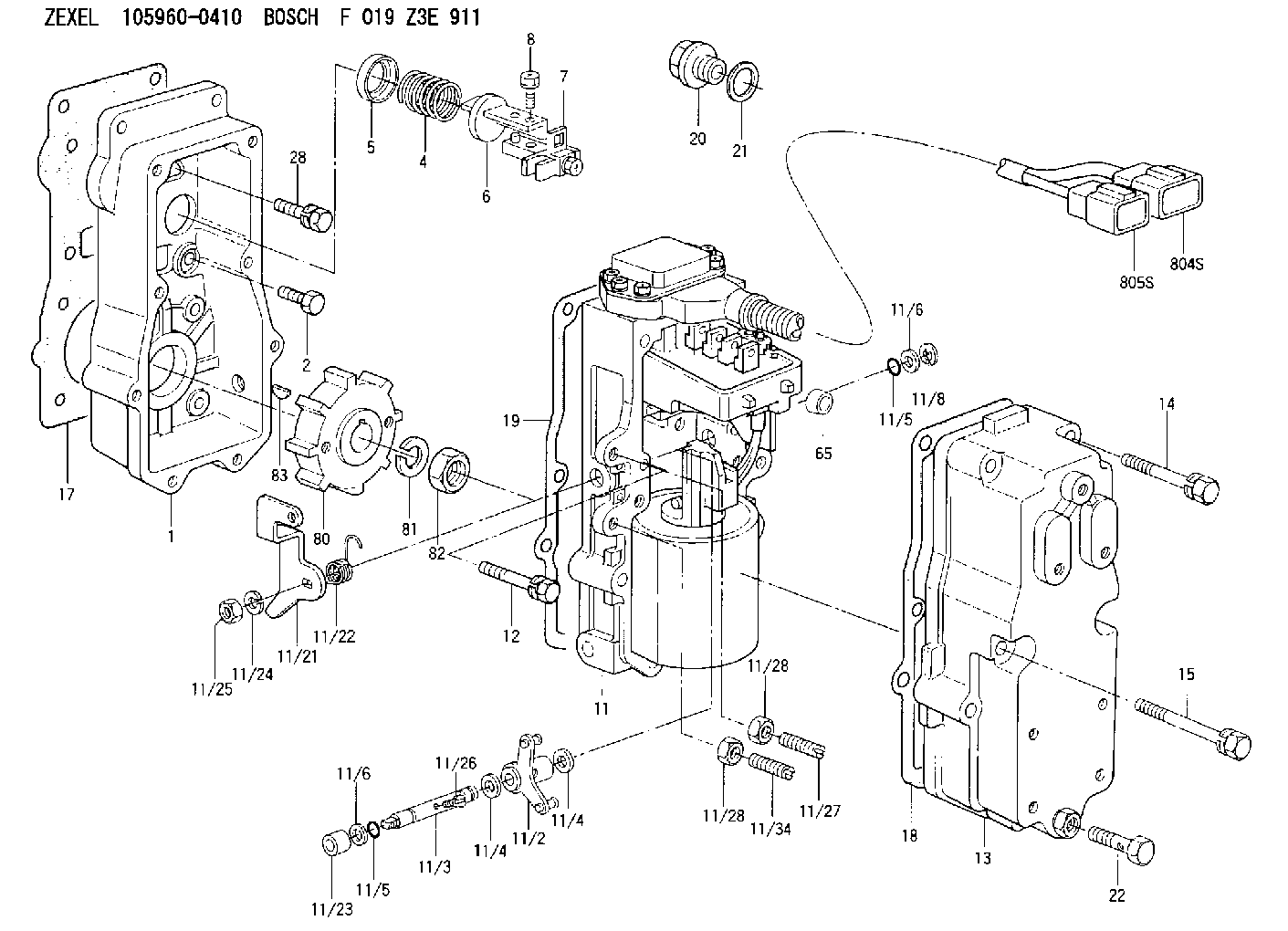

Scheme ###:
1. | [1] | 159560-1802 | GOVERNOR HOUSING |
2. | [10] | 139006-4100 | BLEEDER SCREW |
4. | [1] | 159564-5200 | COILED SPRING |
5. | [1] | 159564-4000 | SLOTTED WASHER |
6. | [1] | 159564-4100 | SLOTTED WASHER |
7. | [1] | 159636-3121 | CONNECTOR |
7B. | [1] | 159636-3321 | CONNECTOR |
7C. | [1] | 159636-3521 | CONNECTOR |
8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
11. | [1] | 159620-3620 | ACTUATOR |
11/2. | [1] | 159583-1020 | STRAP |
11/3. | [1] | 159563-1700 | LEVER SHAFT |
11/4. | [2] | 029311-0170 | SHIM |
11/4. | [2] | 029311-0170 | SHIM |
11/5. | [2] | 159635-0200 | O-RING |
11/5. | [2] | 159635-0200 | O-RING |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/8. | [1] | 016010-0940 | LOCKING WASHER |
11/10. | [4] | 139006-9100 | BLEEDER SCREW |
11/12. | [4] | 010235-1640 | HEX-SOCKET-HEAD CAP SCREW |
11/14. | [4] | 029300-5020 | PLAIN WASHER D10&5.1T1.5 |
11/15. | [1] | 159636-0500 | LIP |
11/18. | [2] | 020105-1640 | BLEEDER SCREW M5P0.8L16 |
11/21. | [1] | 159563-7520 | CONTROL LEVER |
11/22. | [1] | 159563-4800 | COILED SPRING |
11/23. | [1] | 159563-1800 | BUSHING |
11/24. | [1] | 014110-8440 | LOCKING WASHER |
11/25. | [1] | 013030-8140 | UNION NUT M8P1.25H5 |
11/26. | [1] | 159563-1000 | FLAT-HEAD SCREW |
11/27. | [1] | 155615-1700 | FLAT-HEAD SCREW |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/34. | [1] | 159563-8400 | FLAT-HEAD SCREW |
11/40. | [4] | 020106-2840 | BLEEDER SCREW |
12. | [2] | 020106-4040 | BLEEDER SCREW |
13. | [1] | 159561-1520 | GOVERNOR COVER |
14. | [6] | 139006-9400 | BLEEDER SCREW |
15. | [2] | 139006-9200 | BLEEDER SCREW |
17. | [1] | 159566-4401 | GASKET |
18. | [1] | 159635-0100 | GASKET |
19. | [1] | 154390-0500 | GASKET |
20. | [1] | 153021-6300 | CAP |
21. | [1] | 026524-3040 | GASKET |
22. | [1] | 029731-4680 | EYE BOLT |
28. | [1] | 139008-1100 | BLEEDER SCREW |
65. | [2] | 159635-0400 | BUSHING |
80. | [1] | 159584-1500 | TOOTHED GEAR |
81. | [1] | 014111-2420 | LOCKING WASHER |
82. | [1] | 013031-2120 | UNION NUT |
83. | [1] | 025803-1310 | WOODRUFF KEY |
804S. | [1] | 159911-7200 | PLUG HOUSING |
805S. | [1] | 159911-5900 | PLUG HOUSING |
Include in #1:
108821-0270
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105960-0410
F 019 Z3E 911
ELECTRIC GOVERNOR
K
K
