Information electric governor
BOSCH
F 019 Z1E 921
f019z1e921
ZEXEL
105960-0280
1059600280
NISSAN-DIESEL
1910697015
1910697015
Rating:

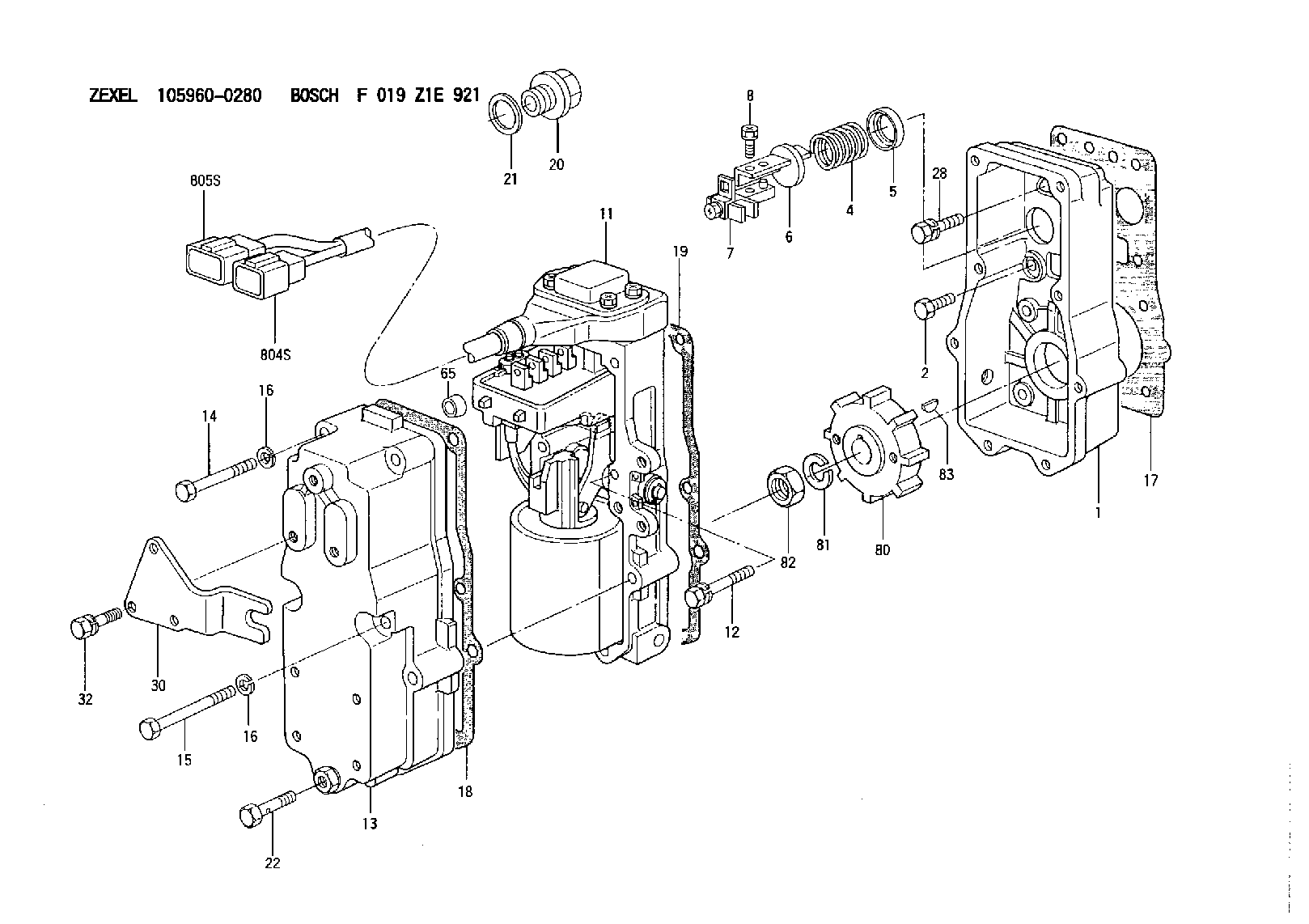

Scheme ###:
| 1. | [1] | 159560-3000 | GOVERNOR HOUSING |
| 2. | [10] | 139006-4100 | BLEEDER SCREW |
| 4. | [1] | 159564-5200 | COILED SPRING |
| 5. | [1] | 159564-4000 | SLOTTED WASHER |
| 6. | [1] | 159564-4100 | SLOTTED WASHER |
| 7. | [1] | 159636-3120 | CONNECTOR 3.5MM |
| 7B. | [1] | 159636-3320 | CONNECTOR 4.0MM |
| 7C. | [1] | 159636-3520 | CONNECTOR 4.5MM |
| 8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
| 11. | [1] | 159620-4220 | ACTUATOR |
| 12. | [2] | 020106-4040 | BLEEDER SCREW |
| 13. | [1] | 159561-1520 | GOVERNOR COVER |
| 14. | [6] | 139006-1300 | BLEEDER SCREW M6P1L76 |
| 15. | [2] | 010006-5540 | BLEEDER SCREW M6P1L55 4T |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 17. | [1] | 159635-9900 | GASKET |
| 18. | [1] | 159635-0100 | GASKET |
| 19. | [1] | 154390-0500 | GASKET |
| 20. | [1] | 153021-6300 | CAP |
| 21. | [1] | 026524-3040 | GASKET |
| 22. | [1] | 159636-0000 | EYE BOLT |
| 28. | [1] | 139008-1100 | BLEEDER SCREW |
| 30. | [1] | 159584-9300 | BRACKET |
| 32. | [3] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
| 65. | [2] | 159635-0400 | BUSHING |
| 80. | [1] | 159584-1000 | TOOTHED GEAR |
| 81. | [1] | 014111-2420 | LOCKING WASHER |
| 82. | [1] | 013031-2120 | UNION NUT |
| 83. | [1] | 025803-1310 | WOODRUFF KEY |
| 804S. | [1] | 159911-7200 | PLUG HOUSING |
| 805S. | [1] | 159911-5900 | PLUG HOUSING |
Include in #1:
108921-0070
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
