105960-0222 ZEXEL F 019 Z3E 217 BOSCH ELECTRIC GOVERNOR f019z3e217 1059600222 1157900652

Information electric governor

BOSCH F 019 Z3E 217 f019z3e217

ZEXEL 105960-0222 1059600222

ISUZU 1157900652 1157900652

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ELECTRIC GOVERNOR 105960-0222 zexel genuine, new aftermarket engine parts with delivery

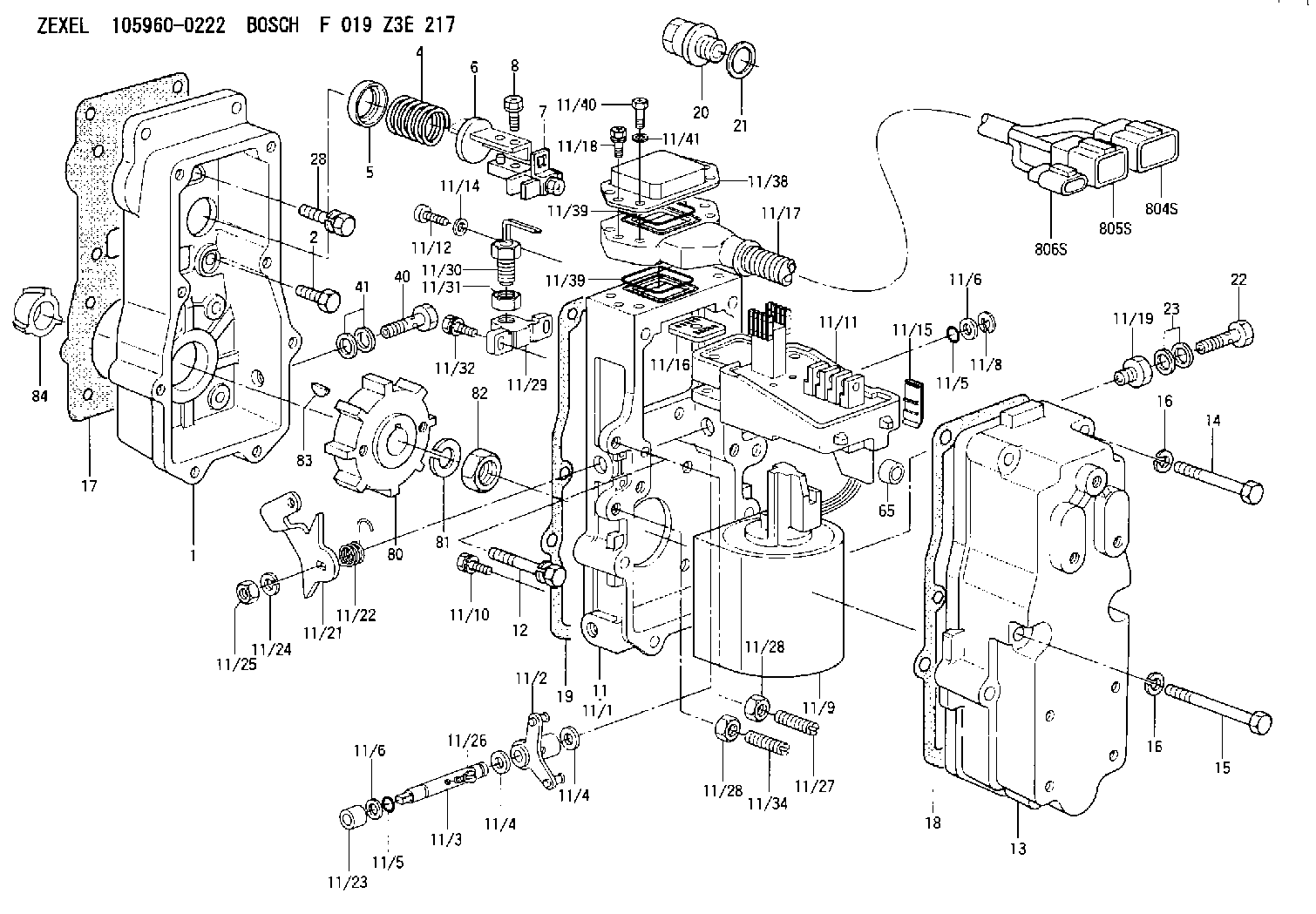

Scheme ###:

1.	[1]	159560-3320	GOVERNOR HOUSING
2.	[10]	139006-4100	BLEEDER SCREW
4.	[1]	159635-8500	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159620-4721	ACTUATOR
11/1.	[1]	159562-3620	PLATE;GOV.
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	159635-0200	O-RING
11/5.	[2]	159635-0200	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/9.	[1]	159635-8621	LINEAR DC MOTOR
11/10.	[4]	139006-9100	BLEEDER SCREW
11/11.	[1]	407914-2000	CONTROL UNIT
11/12.	[4]	010235-1640	HEX-SOCKET-HEAD CAP SCREW
11/14.	[4]	029300-5020	PLAIN WASHER D10&5.1T1.5
11/15.	[1]	159636-0500	LIP
11/16.	[1]	159635-9300	GROMMET
11/17.	[1]	159630-3521	CABLE SET
11/18.	[2]	020105-1640	BLEEDER SCREW M5P0.8L16
11/19.	[1]	134002-0200	ADAPTOR
11/21.	[1]	159583-4500	CONTROL LEVER
11/22.	[1]	159563-4800	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/29.	[1]	159635-5400	BRACKET
11/30.	[1]	479765-6820	PULSE GENERATOR
11/31.	[1]	159635-0300	UNION NUT
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/34.	[1]	159563-8400	FLAT-HEAD SCREW
11/38.	[1]	159635-5520	COVER
11/39.	[2]	159635-5200	SEAL RING
11/39.	[2]	159635-5200	SEAL RING
11/40.	[4]	159635-9800	BLEEDER SCREW
11/41.	[4]	014110-6440	LOCKING WASHER
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-1300	GOVERNOR COVER
14.	[6]	139006-1300	BLEEDER SCREW M6P1L76
15.	[2]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	159566-4401	GASKET
18.	[1]	159635-0100	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-5000	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	159564-0800	EYE BOLT
23.	[2]	139514-0000	GASKET D19.2&14.2T1.0
28.	[1]	139008-1100	BLEEDER SCREW
40.	[1]	159564-0800	EYE BOLT
41.	[2]	139514-0000	GASKET D19.2&14.2T1.0
65.	[2]	159635-0400	BUSHING
80.	[1]	159564-8200	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
84.	[1]	155412-5200	IMPELLER WHEEL
804S.	[1]	159911-2300	PLUG HOUSING
805S.	[1]	159911-2400	PLUG HOUSING
806S.	[1]	159911-2500	PLUG HOUSING

Include in #1:

108822-1033 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105960-0222
105960-0223

F 019 Z3E 217

1157900652 ISUZU

ELECTRIC GOVERNOR
