105960-0221 ZEXEL F 019 Z1E 947 BOSCH ELECTRIC GOVERNOR f019z1e947 1059600221

Information electric governor

BOSCH F 019 Z1E 947 f019z1e947

ZEXEL 105960-0221 1059600221

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ELECTRIC GOVERNOR 105960-0221 zexel genuine, new aftermarket engine parts with delivery

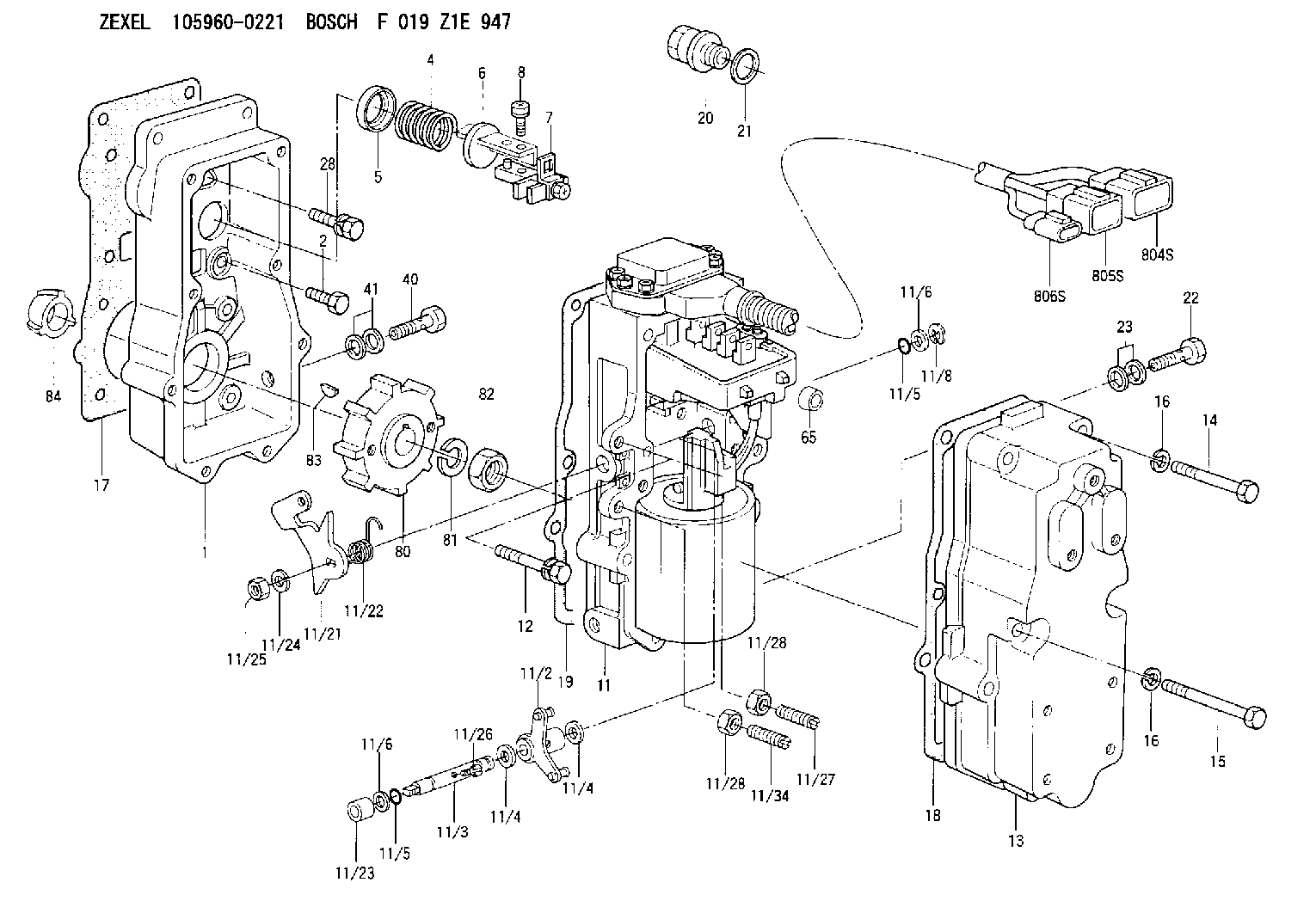

Scheme ###:

1.	[1]	159560-3320	GOVERNOR HOUSING
2.	[10]	139006-4100	BLEEDER SCREW
4.	[1]	159635-8500	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3120	CONNECTOR 3.5MM
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3320	CONNECTOR 4.0MM
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3520	CONNECTOR 4.5MM
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159620-4721	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	159635-0200	O-RING
11/5.	[2]	159635-0200	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	139006-9100	BLEEDER SCREW
11/11.	[1]	407914-2000	CONTROL UNIT
11/12.	[4]	010235-1640	HEX-SOCKET-HEAD CAP SCREW
11/14.	[4]	029300-5020	PLAIN WASHER D10&5.1T1.5
11/15.	[1]	159636-0500	LIP
11/18.	[2]	020105-1640	BLEEDER SCREW M5P0.8L16
11/19.	[1]	134002-0200	ADAPTOR
11/21.	[1]	159583-4500	CONTROL LEVER
11/22.	[1]	159563-4800	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/34.	[1]	159563-8400	FLAT-HEAD SCREW
11/39.	[2]	159635-5200	SEAL RING
11/41.	[4]	014110-6440	LOCKING WASHER
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-1300	GOVERNOR COVER
14.	[6]	139006-1300	BLEEDER SCREW M6P1L76
15.	[2]	029010-6550	BLEEDER SCREW
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	159566-4401	GASKET
18.	[1]	159635-0100	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-5000	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	159564-0800	EYE BOLT
23.	[2]	139514-0000	GASKET D19.2&14.2T1.0
28.	[1]	139008-1100	BLEEDER SCREW
40.	[1]	159564-0800	EYE BOLT
41.	[2]	139514-0000	GASKET D19.2&14.2T1.0
65.	[2]	159635-0400	BUSHING
80.	[1]	159564-8200	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
84.	[1]	155412-5200	IMPELLER WHEEL
804S.	[1]	159911-2300	PLUG HOUSING
805S.	[1]	159911-2400	PLUG HOUSING
806S.	[1]	159911-2500	PLUG HOUSING

Include in #1:

108822-1032 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105960-0221
105960-0222

F 019 Z1E 947

ELECTRIC GOVERNOR
* K

Information:

PARTS NEEDED
Qty
Part Number Description
6 3879434 INJECTOR GP-FUEL
1 5638152 FILTER-LUBE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Upon failure of an injector or multiple injectors, replace the entire set of fuel injectors with six 3879434 fuel injectors and install a new 5638152 fuel filter.
Refer to Disassembly and Assembly, RENR9579, Unit Injector - Remove, and Unit Injector - Install.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-4000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-8000 hrs,
25-36 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 12.9-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
