105960-0205 ZEXEL F 019 Z3E 476 BOSCH ELECTRIC GOVERNOR f019z3e476 1059600205 1157900595

Information electric governor

BOSCH F 019 Z3E 476 f019z3e476

ZEXEL 105960-0205 1059600205

ISUZU 1157900595 1157900595

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ELECTRIC GOVERNOR 105960-0205 zexel genuine, new aftermarket engine parts with delivery

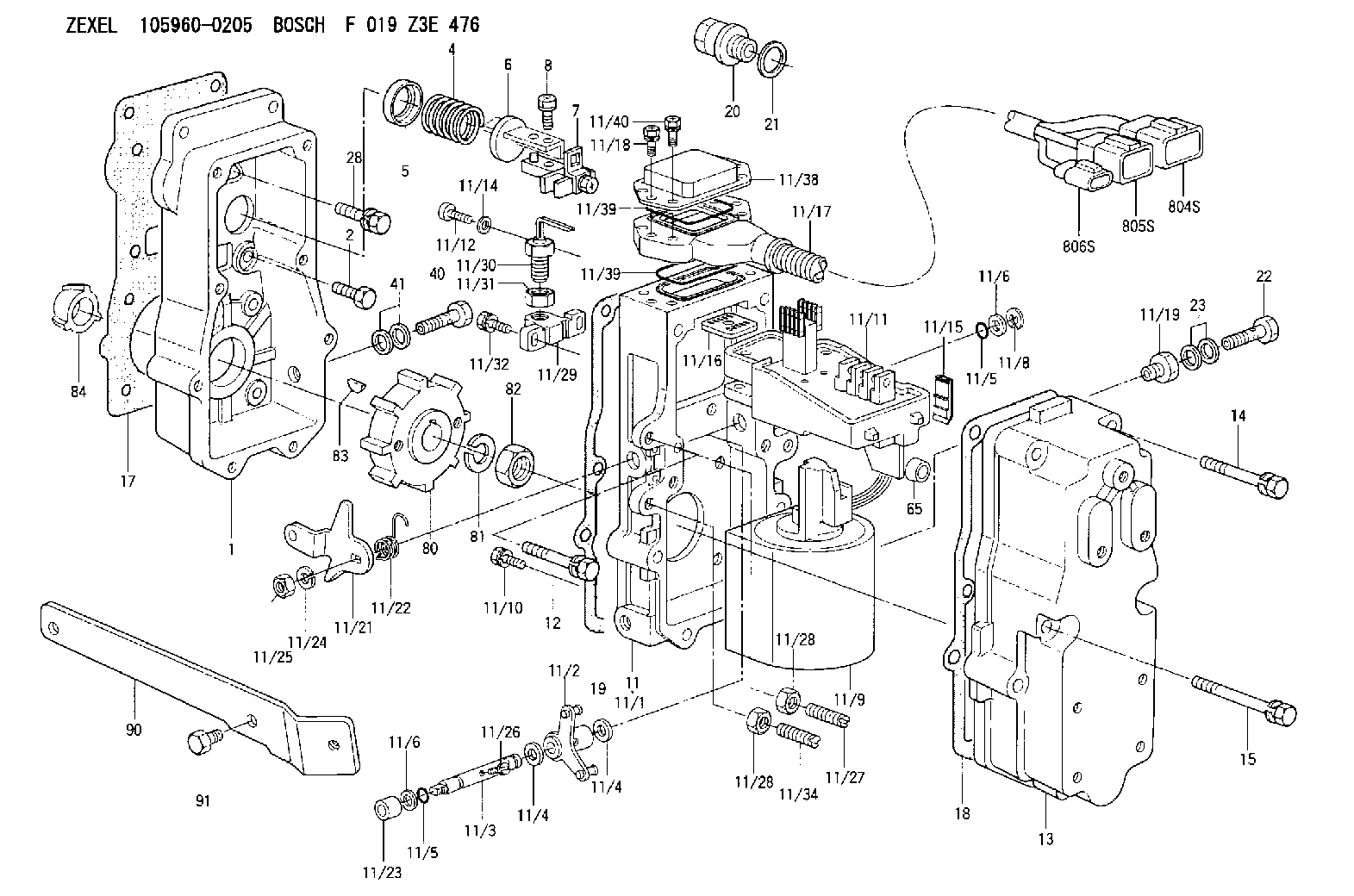

Scheme ###:

1.	[1]	159560-3420	GOVERNOR HOUSING
2.	[10]	139006-4100	BLEEDER SCREW
4.	[1]	159635-8500	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159620-4424	ACTUATOR
11/1.	[1]	159562-2420	PLATE;GOV.
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	159635-0200	O-RING
11/5.	[2]	159635-0200	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/9.	[1]	159635-8621	LINEAR DC MOTOR
11/10.	[4]	139006-9100	BLEEDER SCREW
11/11.	[1]	407914-2000	CONTROL UNIT
11/12.	[4]	010235-1640	HEX-SOCKET-HEAD CAP SCREW
11/14.	[4]	029300-5020	PLAIN WASHER D10&5.1T1.5
11/15.	[1]	159636-0500	LIP
11/16.	[1]	159635-9300	GROMMET
11/17.	[1]	159630-3221	CABLE SET
11/18.	[2]	020105-1640	BLEEDER SCREW M5P0.8L16
11/19.	[1]	134002-0200	ADAPTOR
11/21.	[1]	159583-5220	CONTROL LEVER
11/22.	[1]	159563-4800	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/29.	[1]	159635-5400	BRACKET
11/30.	[1]	479765-6820	PULSE GENERATOR
11/31.	[1]	159635-0300	UNION NUT
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/34.	[1]	159563-8400	FLAT-HEAD SCREW
11/38.	[1]	159635-5520	COVER
11/39.	[2]	159635-5200	SEAL RING
11/39.	[2]	159635-5200	SEAL RING
11/40.	[4]	020106-2840	BLEEDER SCREW
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-1300	GOVERNOR COVER
14.	[6]	139006-9400	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
17.	[1]	159566-4401	GASKET
18.	[1]	159635-0100	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-5000	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	159636-0300	EYE BOLT
23.	[2]	139514-0000	GASKET D19.2&14.2T1.0
28.	[1]	139008-1100	BLEEDER SCREW
40.	[1]	159636-0300	EYE BOLT
41.	[2]	139514-0000	GASKET D19.2&14.2T1.0
65.	[2]	159635-0400	BUSHING
80.	[1]	159586-0000	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
84.	[1]	155412-5200	IMPELLER WHEEL
90.	[1]	159586-4121	BRACKET
91.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
804S.	[1]	159911-2300	PLUG HOUSING
805S.	[1]	159911-2400	PLUG HOUSING
806S.	[1]	159911-2500	PLUG HOUSING

Include in #1:

108822-1026 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105960-0205

F 019 Z3E 476

1157900595 ISUZU

ELECTRIC GOVERNOR
K 14JE ELECTRIC GOVERNOR GOV

Information:

TECHNICAL INFORMATION BULLETIN November 30, 2005
This Technical Information Bulletin replaces the November 11, 2005 TIB "System Malfunctions Related To The Injection Actuation Pressure Sensors In Excavators, Wheel Loaders, Engines, Track-Type Tractors and Track Loaders". Disregard the November 11, 2005 TIB. Refer to the following information.
Excavators 322C (EMR215-523,MAR165-468)
325C (CRB650-1677,CSJ800-1486)
(DTF276-285,JLC283-306)
(JLD313-348)
330C (CAP950-2085,CGZ444-889)
(JCD285-351,MKM308-316)
330CL(JNK238-343)
Wheel Loaders 938GII (PHN550-2023)
950GII (AYB693-1086)
(AYL1039-2384)
962GII (AYE530-695,BAB437-758)
Engines C9 (C9B1-266,CSN1-1070)
(JLW1-279,JSC1-395)
(MTB1-1550,X9X1-258)
Track-Type Tractors D6N LGP (ALR1-715)
(ALY1-1932)
(CCG1-261)
(CCS1-402)
D6N XL (AKM1-1694,ALH1-794)
(CBF1-309,CBJ1-448)
(CBL1-400,CCK1-623)
D6RII (AEM1-117,BPM1-104)
(BRJ1-201,CAD1-257)
(FDT1-362)
D6RII LGP (ACJ1-113)
(ADE1-1016)
(AFD1-98)
(BNC1-433)
(BPP1-502)
(BPZ1-532)
D6RII XL (AAX1-139)
(AGM1-111)
(BMJ1-166)
(BMY1-479)
(BPS1-503)
(BRZ1-537)
D6RII XW (AEP1-711)
(BRE1-501)
(DAE1-192)
D6RIII LGP (WCB1-111,WRG1-157)
D6RIII XW (HDC1-132,MRT1-1)
Track Loader 963C (BBD1-2311)
Component Code 1925SUBJECT: System Malfunctions Related To The Injection Actuation Pressure Sensors In Excavators, Wheel Loaders, Engines, Track-Type Tractors and Track Loaders
PROBLEM:
The Injection Actuation Pressure (IAP) sensors are being replaced on machine applications with C7/3126 engines. Some C9 engine models are also affected. The system event code 164-11 or 164-02 leads the technician to replace the sensor. Many of these sensors are no fault found. The result of these failures is loss of production due to unscheduled downtime.
SOLUTION:
Follow current troubleshooting guidelines for highway trucks to troubleshoot the part causing the failure. This will aid the technician in finding the correct part causing the failure. Report any troubleshooting guidelines errors using the feedback function in the Service Information System (SIS Web).
COPYRIGHT 2005 CATERPILLAR
ALL RIGHTS RESERVED
