Information electric governor
BOSCH
F 019 Z1E 979
f019z1e979
ZEXEL
105960-0203
1059600203
Rating:

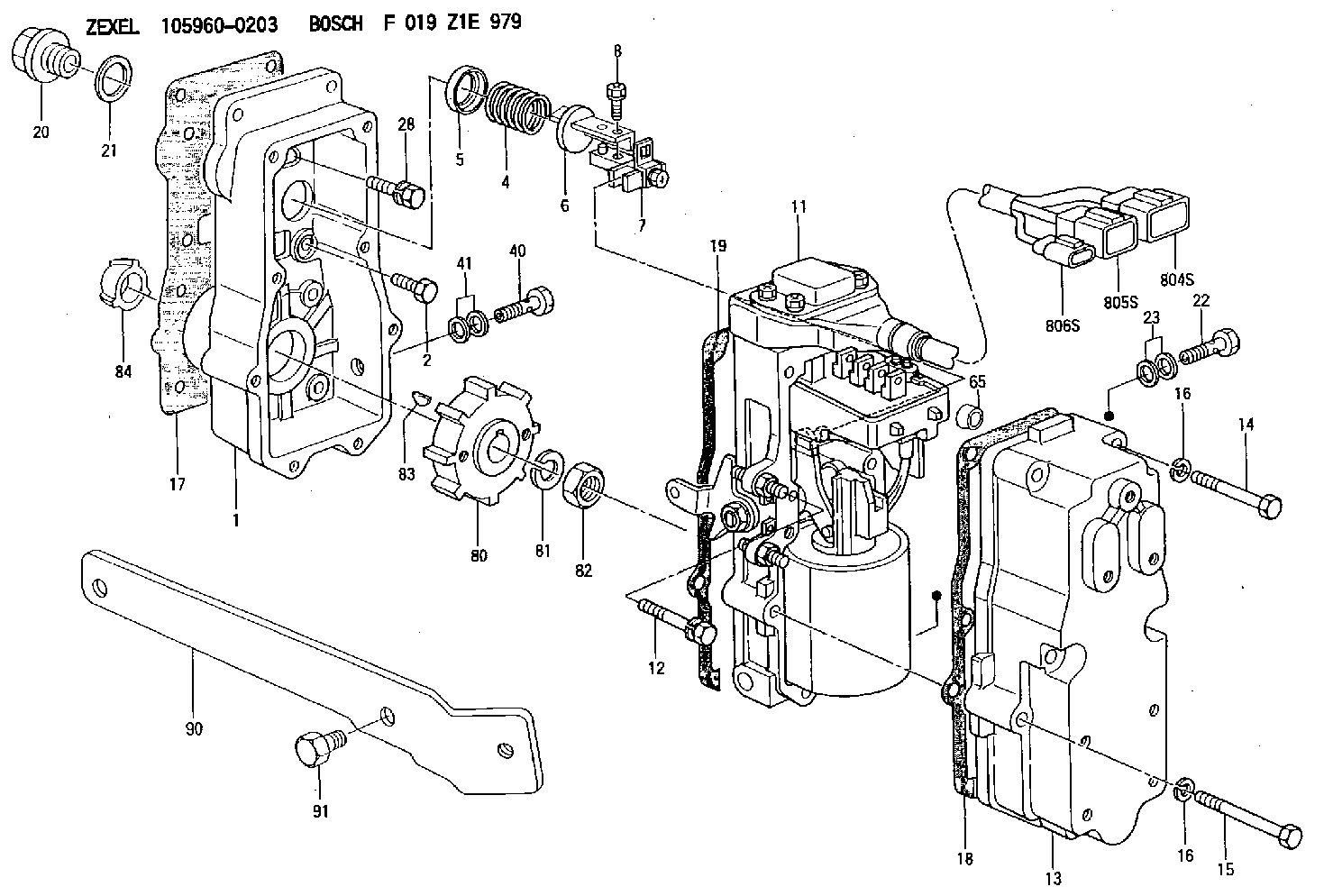

Scheme ###:
| 1. | [1] | 159560-3420 | GOVERNOR HOUSING |
| 2. | [10] | 139006-4100 | BLEEDER SCREW |
| 4. | [1] | 159635-8500 | COILED SPRING |
| 5. | [1] | 159564-4000 | SLOTTED WASHER |
| 6. | [1] | 159564-4100 | SLOTTED WASHER |
| 7. | [1] | 159636-3120 | CONNECTOR 3.5MM |
| 7B. | [1] | 159636-3320 | CONNECTOR 4.0MM |
| 7C. | [1] | 159636-3520 | CONNECTOR 4.5MM |
| 8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
| 11. | [1] | 159620-4423 | ACTUATOR |
| 12. | [2] | 020106-4040 | BLEEDER SCREW |
| 13. | [1] | 159561-1300 | GOVERNOR COVER |
| 14. | [6] | 139006-1300 | BLEEDER SCREW M6P1L76 |
| 15. | [2] | 029010-6550 | BLEEDER SCREW |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 17. | [1] | 159566-4401 | GASKET |
| 18. | [1] | 159635-0100 | GASKET |
| 19. | [1] | 154390-0500 | GASKET |
| 20. | [1] | 153021-5000 | CAP |
| 21. | [1] | 026524-3040 | GASKET |
| 22. | [1] | 159636-0300 | EYE BOLT |
| 23. | [2] | 139514-0000 | GASKET D19.2&14.2T1.0 |
| 28. | [1] | 139008-1100 | BLEEDER SCREW |
| 40. | [1] | 159636-0300 | EYE BOLT |
| 41. | [2] | 139514-0000 | GASKET D19.2&14.2T1.0 |
| 65. | [2] | 159635-0400 | BUSHING |
| 80. | [1] | 159586-0000 | TOOTHED GEAR |
| 81. | [1] | 014111-2420 | LOCKING WASHER |
| 82. | [1] | 013031-2120 | UNION NUT |
| 83. | [1] | 025803-1310 | WOODRUFF KEY |
| 84. | [1] | 155412-5200 | IMPELLER WHEEL |
| 90. | [1] | 159586-4121 | BRACKET |
| 91. | [2] | 010010-1640 | BLEEDER SCREW M10P1.5L16 4T |
| 804S. | [1] | 159911-2300 | PLUG HOUSING |
| 805S. | [1] | 159911-2400 | PLUG HOUSING |
| 806S. | [1] | 159911-2500 | PLUG HOUSING |
Cross reference number
Zexel num
Bosch num
Firm num
Name
