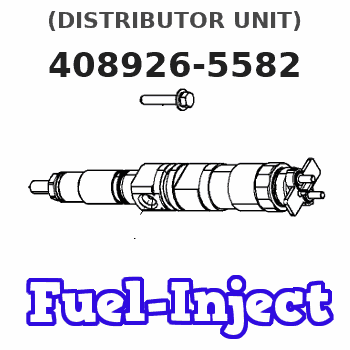

408926-5582 ZEXEL (DISTRIBUTOR UNIT) Cross 4089265582

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The new 583-9296 Gasket replace the former 553-1133 Gasket.Note: The former part number listed is for reference only and may differ.The new gasket is adaptable to the above machines back to first production.
Illustration 1 g06432905
Cross pattern
Illustration 2 g06432913
Square pattern
Apply nickel anti-seize to the bolts.
Hand tighten all bolts.
Using the cross pattern (1-2-3-4), torque each bolt to 25 N m (18 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 65 N m (48 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 125 N m (92 lb ft).
Using the square pattern (1-3-2-4), torque each bolt to 125 20 N m (92 15 lb ft).
