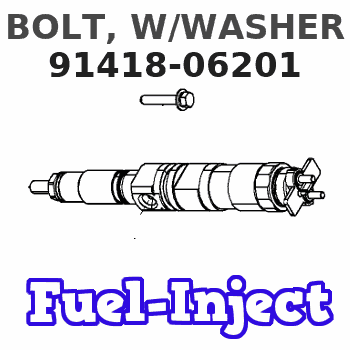

Information bolt, w/washer
Rating:
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 91418-06201 | ME702041 | BOLT, W/WASHER | |
| 22815-1290A | HINO | BOLT, W/WASHER | |
| 21706380 | MITSUI DEUTZ | BOLT, W/WASHER | |
| 90091-20608 | TICO | BOLT, W/WASHER | |
| 90091-20608 | TOYOTA | BOLT, W/WASHER | |
| 90099-04564-000 | DAIHATSU | BOLT, W/WASHER | |
| 91418-06201 | KOMATSU | BOLT, W/WASHER | |
| 91418-06201 | MITSUBISHI | BOLT, W/WASHER | |
| 91611-60620-000 | DAIHATSU | BOLT, W/WASHER | |
| ME702041 | MITSUBISHI | BOLT, W/WASHER | |
| S2281-51290-A | HINO | BOLT, W/WASHER |
Information:
2. Loosen bolts (3) from the belt tightener bracket. Remove belts (2) from the fan drive.3. Disconnect the fan drive lubrication tube from the support block.4. Remove nuts (1) from the fan drive bracket. Remove the fan drive from the pump drive cover studs.Install Fan Drive
1. Put fan drive (1) in position on pump drive cover studs (4). Install the nuts that hold the fan drive.2. Connect lubrication line (2) to support block (3).3. Install the belts on the fan drive, crankshaft pulley and belt tightener bracket. Tighten the belts to have an adjustment of belt deflection (movement) to 7/8" (22.2 mm) under 25 lb. (110 N) force half way between pulleys.4. Tighten the 5/8" diameter bolt on the belt tightener bracket to a torque of 75 10 lb.ft. (100 14 N m). Tighten the 1/2" diameter bolt to a torque of 40 5 lb.ft. (55 7 N m).5. Install the belts on the alternator and the fan drive. Check the belt deflection (movement) again as in Step 3.end by:a) install fan assemblyDisassemble Fan Drive
start by:a) remove fan drive 1. Remove lubrication tube (1) from the fan drive.2. Remove bolts (3) from fan drive adapter (2). Remove the adapter. 3. Remove bolts (4) and washer (5). Remove seal (6). 4. Remove pulley (9) from bracket (7).5. Remove bearing (11) and spacer (10) from the pulley. Remove spacer (8), seal (12) and bearing (13) from the pulley.Assemble Fan Drive
1. Install bearing (2) in the rear of pulley (3). 2. Put 5P960 Multipurpose Grease on the lip of the seal. Install the lip type seal (1) with tooling (A). The lip of the seal must be away from the bearing.3. Install spacer (5) so the end with the taper is toward the lip type seal.4. Install spacer (6) and bearing (4) in the front of the pulley. 5. Put seal (7) on front of the pulley. Install the pulley on bracket (8).6. Put the washer in position on the bracket shaft and install the bolts that hold the pulley in position on bracket.7. Install the lubrication tube and fill with 5P960 Multipurpose Grease.end by:a) install fan drive
1. Put fan drive (1) in position on pump drive cover studs (4). Install the nuts that hold the fan drive.2. Connect lubrication line (2) to support block (3).3. Install the belts on the fan drive, crankshaft pulley and belt tightener bracket. Tighten the belts to have an adjustment of belt deflection (movement) to 7/8" (22.2 mm) under 25 lb. (110 N) force half way between pulleys.4. Tighten the 5/8" diameter bolt on the belt tightener bracket to a torque of 75 10 lb.ft. (100 14 N m). Tighten the 1/2" diameter bolt to a torque of 40 5 lb.ft. (55 7 N m).5. Install the belts on the alternator and the fan drive. Check the belt deflection (movement) again as in Step 3.end by:a) install fan assemblyDisassemble Fan Drive
start by:a) remove fan drive 1. Remove lubrication tube (1) from the fan drive.2. Remove bolts (3) from fan drive adapter (2). Remove the adapter. 3. Remove bolts (4) and washer (5). Remove seal (6). 4. Remove pulley (9) from bracket (7).5. Remove bearing (11) and spacer (10) from the pulley. Remove spacer (8), seal (12) and bearing (13) from the pulley.Assemble Fan Drive
1. Install bearing (2) in the rear of pulley (3). 2. Put 5P960 Multipurpose Grease on the lip of the seal. Install the lip type seal (1) with tooling (A). The lip of the seal must be away from the bearing.3. Install spacer (5) so the end with the taper is toward the lip type seal.4. Install spacer (6) and bearing (4) in the front of the pulley. 5. Put seal (7) on front of the pulley. Install the pulley on bracket (8).6. Put the washer in position on the bracket shaft and install the bolts that hold the pulley in position on bracket.7. Install the lubrication tube and fill with 5P960 Multipurpose Grease.end by:a) install fan drive
