29400-01130 PUMP ASSY, SUPPLY Denso Cross




Information pump assy, supply

29400-01130 PUMP ASSY, SUPPLY
Rating:
6
Buy PUMP ASSY, SUPPLY 29400-01130 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, SUPPLY 29400-01130
002. OVERHAUL KIT, SUPP 29400-90031

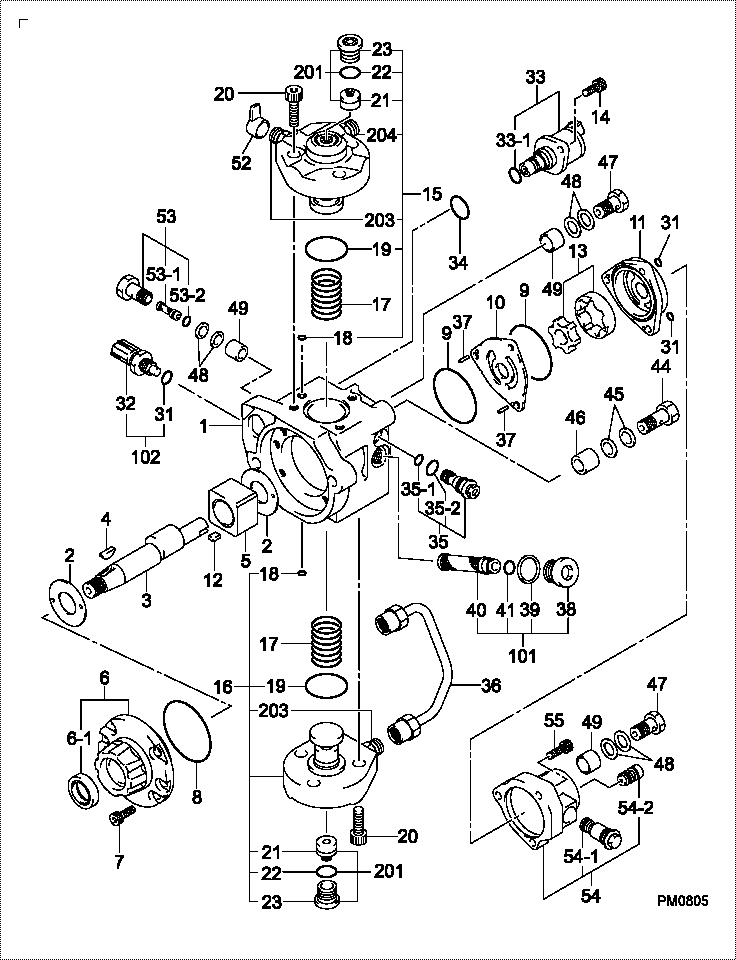

Scheme ###:

PUMP ASSY, SUPPLY
000. [01] 29400-01130 PUMP ASSY, SUPPLY 8-98081772-1
001. [01] 29410-01470 HOUSING SUB-ASSY,
002. [02] 29417-80040 WASHER, CAMSHAFT
003. [01] 29419-10080 CAMSHAFT, SUPPLY P
004. [1C] 29402-10030 KEY, WOODRUFF
004. [1C] 29402-10040 KEY, WOODRUFF
005. [01] 29417-00210 RING SUB-ASSY, CAM
006. [01] 29412-00310 COVER SUB-ASSY, BE
006-001. [01] 29419-70010 SEAL, OIL
007. [06] 09644-90110 BOLT, SOCKET
008. [01] 29419-80050 O-RING, SUPPLY PUM
009. [02] 29419-80030 O-RING, SUPPLY PUM
010. [01] 29418-30260 PLATE, FEED PUMP,
011. [01] 29418-40190 COVER, FEED PUMP
012. [01] 29418-70010 KEY, FEED PUMP
012. [01] 29418-70040 KEY, FEED PUMP
013. [01] 29418-00080 ROTOR SET, FEED PU
014. [02] 09644-90050 BOLT, SOCKET
015. [01] 29409-00850 ELEMENT KIT, SUPPL
016. [01] 29409-00800 ELEMENT KIT, SUPPL
017. [02] 29415-90040 SPRING, PLUNGER
018. [02] 29419-80010 O-RING, SUPPLY PUM
019. [02] 29419-80040 O-RING, SUPPLY PUM
020. [06] 29419-90060 BOLT, SOCKET
021. [02] 29414-00150 VALVE SUB-ASSY, SU
022. [02] 29419-80020 O-RING, SUPPLY PUM
023. [02] 29413-50012 PLUG, CYLINDER
031. [03] 09806-60030 O-RING, DISTRIBUTI
032. [01] 17973-00100 SENSOR, FUEL TEMPE
033. [01] 29420-02750 VALVE ASSY, SUCTIO
033-001. [01] 29428-60010 O-RING, VALVE
034. [01] 29428-50010 O-RING, SOLENOID
035. [01] 29416-00160 VALVE SUB-ASSY, RE
035-001. [01] 29419-80060 O-RING, SUPPLY PUM
035-002. [01] 29419-80070 O-RING, SUPPLY PUM
036. [01] 29401-00250 PIPE, SUPPLY PUMP
037. [02] 29416-90010 PIN, STOPPER
038. [01] 29411-50040 PLUG, FILTER
039. [01] 29411-70010 GASKET, PLUG
040. [01] 09737-00010 FILTER SUB-ASSY
041. [01] 09604-90460 O-RING
044. [01] 09543-80200 SCREW, HOLLOW
045. [02] 94901-02530 WASHER 8-97602218-0
046. [01] 94919-80260 COLLAR, PRESSBOARD
047. [02] 94918-00310 SCREW, HOLLOW 5-15759003-0
048. [06] 94901-02490 WASHER 1-15619507-0
049. [03] 94919-80270 COLLAR, PRESSBOARD
052. [01] 09001-40160 CAP, VALVE HOLDER
053. [01] 29404-00070 SCREW SUB-ASSY, HO
053. [01] 29404-00080 SCREW SUB-ASSY, HO
053-001. [01] 09737-00090 FILTER SUB-ASSY
053-001. [01] 09737-00080 FILTER SUB-ASSY
053-002. [01] 09604-90460 O-RING
054. [01] 29412-50031 COVER SUB-ASSY, RE
054-001. [01] 29416-05040 VALVE SUB-ASSY, RE
054-002. [01] 29406-00011 VALVE SUB-ASSY, CH
054-01A. [01] 09806-60020 O-RING, DISTRIBUTI
054-01B. [01] 09806-60030 O-RING, DISTRIBUTI
054-02A. [01] 09806-60030 O-RING, DISTRIBUTI
055. [03] 09644-90020 BOLT, SOCKET
101. [01] 29400-90010 OVERHAUL KIT, SUPP
102. [01] 29400-90100 OVERHAUL KIT, SUPP
200. [01] 29400-90031 OVERHAUL KIT, SUPP
201. [02] 29400-90940 OVERHAUL KIT, SUPP
202. [01] 29400-91310 OVERHAUL KIT, SUPP
203. [02] 29409-05000 ELEMENT KIT, SUPPL
204. [01] 29413-10080 HOLDER, DELIVERY V

Include in #3:

29400-01130 as PUMP ASSY, SUPPLY

Cross reference number



Part num Firm num Firm Name
29400-01130  8-98081772  PUMP ASSY, SUPPLY
8-98081772-1    ISUZU PUMP ASSY, SUPPLY
8-98081772-0    ISUZU PUMP ASSY SUPPLY




Information:

Engine Crankshaft Will Not Turn
Recommended Procedure
1. Low or No Battery Voltage ... Check battery voltage. If battery voltage is less than 8 volts for a 12 volt system, or 16 volts for a 24 volt system, put a charge to the battery. If battery will not hold a charge, load test the battery as shown in the Electrical System of the Testing and Adjusting section of this Service Manual.2. Bad Switch, Bad Wiring or Connection in Switch Circuit ... With ignition switch in START position, check voltage at switch connection on starter solenoid. If there is no voltage, or if the voltage is low at this connection, check wiring, connections, ignition switch, and magnetic switch (if used).3. Bad Cable or Connection; Battery to Starter ... With ignition switch in the START position, check voltage at connection of battery cable to starter. If there is no voltage, or if the voltage is low at this
