Information pump assy, supply
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

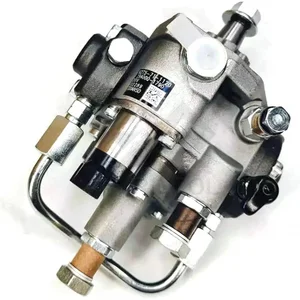

294000-1123 294000-1126 8-98081771-6 294000-1121 294000-1120 CR HP3 Diesel Fuel Injection Pump for Isuzu 4HK1 5.2L Engine Medium Heavy Duty Truck
TuneCrumph Part Number: 294000-1120 294000-1121 294000-1122 294000-1123 294000-1124 294000-1125 294000-1126 2-90123-771-0 98081771 || Engine Model: for Isuzu 4HK1 5.2L Engine || Vehicle Application: for Isuzu Medium Heavy Duty Truck || Note: If you are unsure if the product is suitable.In order not to delay your use of the parts, please provide your engine nameplate or serial number and part number, and we will help you confirm if it is suitable. To avoid unnecessary returns, please check the product image and part number to ensure it is the product you want.Thank you for your support and understanding! || Tip: Please contact us - we are a professional sales team and we have many products to offer to you. Many buyers are very satisfied with our service. You can get first-class products and high-quality services from us, believe me, you will have a pleasant shopping experience here.
TuneCrumph Part Number: 294000-1120 294000-1121 294000-1122 294000-1123 294000-1124 294000-1125 294000-1126 2-90123-771-0 98081771 || Engine Model: for Isuzu 4HK1 5.2L Engine || Vehicle Application: for Isuzu Medium Heavy Duty Truck || Note: If you are unsure if the product is suitable.In order not to delay your use of the parts, please provide your engine nameplate or serial number and part number, and we will help you confirm if it is suitable. To avoid unnecessary returns, please check the product image and part number to ensure it is the product you want.Thank you for your support and understanding! || Tip: Please contact us - we are a professional sales team and we have many products to offer to you. Many buyers are very satisfied with our service. You can get first-class products and high-quality services from us, believe me, you will have a pleasant shopping experience here.

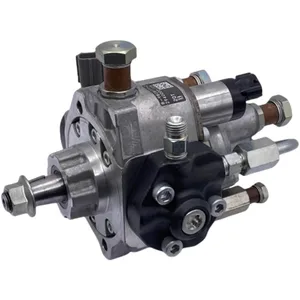

294000-1120 294000-1121 294000-1126 8-98081771-2 8-98081771-4 8-98081771-6 HP3 CR Fuel Injection Pump for Isuzu 4HK1 5.2L Engine
HIRINTOL 🔸Replace Part Number: 294000-1120, 294000-1121, 294000-1122, 294000-1123, 294000-1124, 294000-1125, 294000-1126. || 🔸Replace Part Number: 8-98081771-0, 8-98081771-1, 8-98081771-2, 8-98081771-3, 8-98081771-4, 8-98081771-5, 8-98081771-6. || 🔸Compatible Model: For Isuzu 4HK1 5.2L Engine. || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || 🔸Durable And Reliable: Tested and proven many times, it has a long life and reliable quality to keep working under extreme conditions.
HIRINTOL 🔸Replace Part Number: 294000-1120, 294000-1121, 294000-1122, 294000-1123, 294000-1124, 294000-1125, 294000-1126. || 🔸Replace Part Number: 8-98081771-0, 8-98081771-1, 8-98081771-2, 8-98081771-3, 8-98081771-4, 8-98081771-5, 8-98081771-6. || 🔸Compatible Model: For Isuzu 4HK1 5.2L Engine. || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || 🔸Durable And Reliable: Tested and proven many times, it has a long life and reliable quality to keep working under extreme conditions.
WZCNLXLX HP3 Fuel Injection Pump 294000-1120 8-98081771-0 2940001120 8980817710 For Isuzu 4HK1 Engine
WZCNLXLX Item Name:Fuel Injection Pump || Item Number:294000-1120 8-98081771-0 2940001120 8980817710 || Application:For Isuzu 4HK1 Engine || Note: If you are unsure if the product is suitable.In order not to delay your use of the parts, please provide your engine nameplate or serial number and part number, and we will help you confirm if it is suitable. To avoid unnecessary returns, please check the product image and part number to ensure it is the product you want. || Tip: Please contact us - we are a professional sales team and we have many products to offer to you. Many buyers are very satisfied with our service. You can get first-class products and high-quality services from us, believe me, you will have a pleasant shopping experience here.
WZCNLXLX Item Name:Fuel Injection Pump || Item Number:294000-1120 8-98081771-0 2940001120 8980817710 || Application:For Isuzu 4HK1 Engine || Note: If you are unsure if the product is suitable.In order not to delay your use of the parts, please provide your engine nameplate or serial number and part number, and we will help you confirm if it is suitable. To avoid unnecessary returns, please check the product image and part number to ensure it is the product you want. || Tip: Please contact us - we are a professional sales team and we have many products to offer to you. Many buyers are very satisfied with our service. You can get first-class products and high-quality services from us, believe me, you will have a pleasant shopping experience here.
Components :
| 001. | PUMP ASSY, SUPPLY | 29400-01120 |
| 002. | OVERHAUL KIT, SUPP | 29400-90031 |
Scheme ###:
| 000. | [01] | 29400-01120 | PUMP ASSY, SUPPLY | 8-98081771-2 |
| 001. | [01] | 29410-01470 | HOUSING SUB-ASSY, | |
| 002. | [02] | 29417-80040 | WASHER, CAMSHAFT | |
| 003. | [01] | 29419-10080 | CAMSHAFT, SUPPLY P | |
| 004. | [1C] | 29402-10030 | KEY, WOODRUFF | |
| 004. | [1C] | 29402-10040 | KEY, WOODRUFF | |
| 005. | [01] | 29417-00210 | RING SUB-ASSY, CAM | |
| 006. | [01] | 29412-00310 | COVER SUB-ASSY, BE | |
| 006-001. | [01] | 29419-70010 | SEAL, OIL | |
| 007. | [06] | 09644-90110 | BOLT, SOCKET | |
| 008. | [01] | 29419-80050 | O-RING, SUPPLY PUM | |
| 009. | [02] | 29419-80030 | O-RING, SUPPLY PUM | |
| 010. | [01] | 29418-30260 | PLATE, FEED PUMP, | |
| 011. | [01] | 29418-40190 | COVER, FEED PUMP | |
| 012. | [01] | 29418-70040 | KEY, FEED PUMP | |
| 012. | [01] | 29418-70010 | KEY, FEED PUMP | |
| 013. | [01] | 29418-00080 | ROTOR SET, FEED PU | |
| 014. | [02] | 09644-90050 | BOLT, SOCKET | |
| 015. | [01] | 29409-00850 | ELEMENT KIT, SUPPL | |
| 016. | [01] | 29409-00800 | ELEMENT KIT, SUPPL | |
| 017. | [02] | 29415-90040 | SPRING, PLUNGER | |
| 018. | [02] | 29419-80010 | O-RING, SUPPLY PUM | |
| 019. | [02] | 29419-80040 | O-RING, SUPPLY PUM | |
| 020. | [06] | 29419-90010 | BOLT, SOCKET | |
| 031. | [03] | 09806-60030 | O-RING, DISTRIBUTI | |
| 032. | [01] | 17973-00100 | SENSOR, FUEL TEMPE | |
| 033. | [01] | 29420-02760 | VALVE ASSY, SUCTIO | |
| 033-001. | [01] | 29428-60010 | O-RING, VALVE | |
| 034. | [01] | 29428-50010 | O-RING, SOLENOID | |
| 035. | [01] | 29416-00160 | VALVE SUB-ASSY, RE | |
| 035-001. | [01] | 29419-80060 | O-RING, SUPPLY PUM | |
| 035-002. | [01] | 29419-80070 | O-RING, SUPPLY PUM | |
| 036. | [01] | 29401-00250 | PIPE, SUPPLY PUMP | |
| 037. | [02] | 29416-90010 | PIN, STOPPER | |
| 038. | [01] | 29411-50010 | PLUG, FILTER | |
| 039. | [01] | 29411-70010 | GASKET, PLUG | |
| 040. | [01] | 09737-00010 | FILTER SUB-ASSY | |
| 041. | [01] | 09604-90460 | O-RING | |
| 044. | [01] | 09543-80200 | SCREW, HOLLOW | |
| 045. | [02] | 94901-02530 | WASHER | 8-97602218-0 |
| 046. | [01] | 94919-80260 | COLLAR, PRESSBOARD | |
| 047. | [02] | 94918-00310 | SCREW, HOLLOW | 5-15759003-0 |
| 048. | [06] | 94901-02490 | WASHER | 1-15619507-0 |
| 049. | [03] | 94919-80270 | COLLAR, PRESSBOARD | |
| 052. | [01] | 09001-40160 | CAP, VALVE HOLDER | |
| 053. | [01] | 29404-00080 | SCREW SUB-ASSY, HO | |
| 053. | [01] | 29404-00070 | SCREW SUB-ASSY, HO | |
| 053-001. | [01] | 09737-00080 | FILTER SUB-ASSY | |
| 053-001. | [01] | 09737-00090 | FILTER SUB-ASSY | |
| 053-002. | [01] | 09604-90460 | O-RING | |
| 054. | [01] | 29412-50031 | COVER SUB-ASSY, RE | |
| 054-001. | [01] | 29416-05040 | VALVE SUB-ASSY, RE | |
| 054-002. | [01] | 29406-00011 | VALVE SUB-ASSY, CH | |
| 054-01A. | [01] | 09806-60020 | O-RING, DISTRIBUTI | |
| 054-01B. | [01] | 09806-60030 | O-RING, DISTRIBUTI | |
| 054-02A. | [01] | 09806-60030 | O-RING, DISTRIBUTI | |
| 055. | [03] | 09644-90020 | BOLT, SOCKET | |
| 101. | [01] | 29400-90010 | OVERHAUL KIT, SUPP | |
| 102. | [01] | 29400-90100 | OVERHAUL KIT, SUPP | |
| 200. | [01] | 29400-90031 | OVERHAUL KIT, SUPP | |
| 202. | [01] | 29400-91310 | OVERHAUL KIT, SUPP |
Include in #3:
29400-01120
as PUMP ASSY, SUPPLY
Cross reference number
| Part num | Firm num | Firm | Name |
| 29400-01120 | 8-98081771 | PUMP ASSY, SUPPLY | |
| 8-98081771-2 | ISUZU | PUMP ASSY, SUPPLY | |
| 8-98081771-0 | ISUZU | PUMP ASSY SUPPLY |
Information:
(5) Torque for bolts holding caps for main bearings: a. Put 2P2506 Thread Lubricant on bolt threads and washer face.b. Tighten all bolts in number sequence to ... 40 4 N m (30 3 lb ft)c. Put a mark on each bolt and cap.d. Tighten all bolts in number sequence from mark ... 120 5° (6) Dimension (new) from centerline of crankshaft bearing bore to bottom of block (pan rails) ... 95.250 0.038 mm (3.7500 .0015 in)(7) Dimension (new) from centerline of crankshaft bearing bore to top of block (top deck) ... 322.66 0.13 mm (12.703 .005 in)
There are holes in the bores for the main bearings, between the cylinders for piston cooling orifices. These holes must have orifices or plugs installed or low oil pressure will be the result.
If the base for the oil cooler is 357.2 mm (14.06 in) long the engine has piston cooling orifices installed. If the base for the oil cooler is 268.2 mm (10.56 in) long the engine has plugs installed.Piston cooling orifices were eliminated from 3208 truck engines effective with truck engine 2Z30692 with a rating of 150 KW (200 hp) @ 2000 rpm or 160 KW (215 hp) @ 2200 rpm. On earlier engines with these ratings the piston cooling orifices may continue to be used or replaced with 7N4953 Plugs.
There are holes in the bores for the main bearings, between the cylinders for piston cooling orifices. These holes must have orifices or plugs installed or low oil pressure will be the result.
If the base for the oil cooler is 357.2 mm (14.06 in) long the engine has piston cooling orifices installed. If the base for the oil cooler is 268.2 mm (10.56 in) long the engine has plugs installed.Piston cooling orifices were eliminated from 3208 truck engines effective with truck engine 2Z30692 with a rating of 150 KW (200 hp) @ 2000 rpm or 160 KW (215 hp) @ 2200 rpm. On earlier engines with these ratings the piston cooling orifices may continue to be used or replaced with 7N4953 Plugs.
