Information pump assy, supply
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
WZCNLXLX Fuel Injection Pump 294000-0560 294000-0561 RE527528 for JD Tractor 4045T 6068T Engine
WZCNLXLX Item Name:Fuel Injection Pump || Item Number:294000-0560, 294000-0561, 294000-0564, RE519595, RE527528 || Application:for JD Tractor 4045T 6068T Engine || Note: If you are unsure if the product is suitable.In order not to delay your use of the parts, please provide your engine nameplate or serial number and part number, and we will help you confirm if it is suitable. To avoid unnecessary returns, please check the product image and part number to ensure it is the product you want. || Tip: Please contact us - we are a professional sales team and we have many products to offer to you. Many buyers are very satisfied with our service. You can get first-class products and high-quality services from us, believe me, you will have a pleasant shopping experience here.
WZCNLXLX Item Name:Fuel Injection Pump || Item Number:294000-0560, 294000-0561, 294000-0564, RE519595, RE527528 || Application:for JD Tractor 4045T 6068T Engine || Note: If you are unsure if the product is suitable.In order not to delay your use of the parts, please provide your engine nameplate or serial number and part number, and we will help you confirm if it is suitable. To avoid unnecessary returns, please check the product image and part number to ensure it is the product you want. || Tip: Please contact us - we are a professional sales team and we have many products to offer to you. Many buyers are very satisfied with our service. You can get first-class products and high-quality services from us, believe me, you will have a pleasant shopping experience here.
HP3 Fuel Injection Pump for John Deere 4045 4.5L 6068 6.8L Engine 290GLC 670G 180GLC 310K Trucks 294000-0564 294000-0562 RE507959 RE527528
KoovDem Part Number: 294000-0564, 294000-0563, 294000-0562, RE507959, RE527528. || Compatible Model: for John Deere 4045 4.5L 6068 6.8L Engine 290GLC 670G 180GLC 310K Trucks. || Effective and Reliable: Utilizing cutting-edge technology, this system delivers effective and reliable fuel supply, guaranteeing smooth vehicle performance. || Rugged and Dependable: With a track record of being rigorously tested and proven, this product offers durability and reliability, ensuring it operates consistently even in the harshest of environments. || Straightforward Installation: With a user-friendly interface, installing this product is a breeze. Simply plug it in and you're good to go, no technical expertise needed.
KoovDem Part Number: 294000-0564, 294000-0563, 294000-0562, RE507959, RE527528. || Compatible Model: for John Deere 4045 4.5L 6068 6.8L Engine 290GLC 670G 180GLC 310K Trucks. || Effective and Reliable: Utilizing cutting-edge technology, this system delivers effective and reliable fuel supply, guaranteeing smooth vehicle performance. || Rugged and Dependable: With a track record of being rigorously tested and proven, this product offers durability and reliability, ensuring it operates consistently even in the harshest of environments. || Straightforward Installation: With a user-friendly interface, installing this product is a breeze. Simply plug it in and you're good to go, no technical expertise needed.
RE527528 Fuel Injection Pump for John Deere 4045 6068 4.5L 6.8L Engine 160GLC 200DLC 410K 2156G 6230 6330 6430 7330 7430 7530 7630 Tractor 294000-0560 294000-0561 294000-0562 294000-0563
KoovDem Part Number: 294000-0560, 294000-0561, 294000-0562, 294000-0563, 294000-0564, 294000-0565, 2940000560, 2940000561, 2940000562, 2940000563, 2940000564, 2940000565, RE527528 || Engine Model: for John Deere Engine 4045 6068 4.5L 6.8L || Compatible models include John Deere tractors such as the 2044M, 2204, 6130, 6225, 6230, 6330, 6430, 6534, 6830, 6930, 7130, 7330, 7430, 7530, 7630, 7720, 7730, 7820, 7830, 7920, 7930, 2204M, 6100D, 6100E, 6105M, 6110D, 6110M, 6115D, 6115E, 6125D, 6125M, 6130D, 6130E, 6140D, 7195J, 7200J, 7210J, 7215J, and 7225J. || Compatible Models: for John Deere Loader 2156G, 2156GLC, 310K, 310L, 310SK, 310SL, 315SK, 315SL, 344J, 444J, 444K, 524K, 524K-II, 544 G, 544 G-tier, 544K, 544K-II, 624J, 624K, 624K-II, 644 G, 644 G-tier, Gen-A 4WD, 644J, 644K, L514, L524, L528, LR612, LR614. || Compatible Models: for John Deere Excavators including 120D, 130G, 160DLC, 160GLC, 180GLC, 200DLC, 210G, 210GLC, 2144G, 2154D, 2154G, 2154GLC, 250GLC, E210, E210LC, E230, E230LC, E240, E240LC, E260LC, and E300LC.
KoovDem Part Number: 294000-0560, 294000-0561, 294000-0562, 294000-0563, 294000-0564, 294000-0565, 2940000560, 2940000561, 2940000562, 2940000563, 2940000564, 2940000565, RE527528 || Engine Model: for John Deere Engine 4045 6068 4.5L 6.8L || Compatible models include John Deere tractors such as the 2044M, 2204, 6130, 6225, 6230, 6330, 6430, 6534, 6830, 6930, 7130, 7330, 7430, 7530, 7630, 7720, 7730, 7820, 7830, 7920, 7930, 2204M, 6100D, 6100E, 6105M, 6110D, 6110M, 6115D, 6115E, 6125D, 6125M, 6130D, 6130E, 6140D, 7195J, 7200J, 7210J, 7215J, and 7225J. || Compatible Models: for John Deere Loader 2156G, 2156GLC, 310K, 310L, 310SK, 310SL, 315SK, 315SL, 344J, 444J, 444K, 524K, 524K-II, 544 G, 544 G-tier, 544K, 544K-II, 624J, 624K, 624K-II, 644 G, 644 G-tier, Gen-A 4WD, 644J, 644K, L514, L524, L528, LR612, LR614. || Compatible Models: for John Deere Excavators including 120D, 130G, 160DLC, 160GLC, 180GLC, 200DLC, 210G, 210GLC, 2144G, 2154D, 2154G, 2154GLC, 250GLC, E210, E210LC, E230, E230LC, E240, E240LC, E260LC, and E300LC.
You can express buy:
USD 361.41
27-05-2025
27-05-2025
Remanufactured 294000-0562 Fuel Pump RE527528 for 4045 4.5L 6068 6.8L Engine Common Rail Diesel Pump
USD 429.58
19-05-2025
19-05-2025

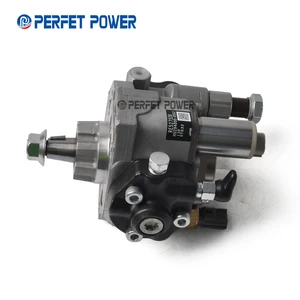

HP3 Common Rail Diesel Injection Fuel Pump 294000-0562 RE527528 for John Deere 4045T 6068T Engine
USD 769.11
19-05-2025
19-05-2025

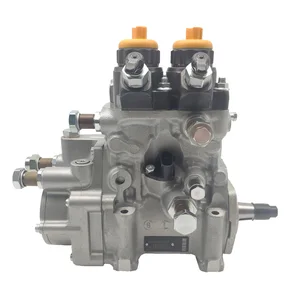

6WG1 Dies el Fuel Injecti on Pump 294000-0562 8-98013910-0 Common Rail Fuel Pump 294000-0560 294000-0561 294000-0563
Images:
USD 645.37
[07-May-2025]
USD 374.4
[19-May-2025]
USD 382.52
[15-May-2025]
USD 384.18
[19-May-2025]
Components :
| 001. | PUMP ASSY, SUPPLY | 29400-00562 |
| 001. | PUMP ASSY, SUPPLY | 29400-00562 |
| 001. | PUMP ASSY, SUPPLY | 29400-00562 |
Scheme ###:
| 000. | [01] | 29400-00561 | PUMP ASSY, SUPPLY | RE527528 |
| 000. | [01] | 29400-00562 | PUMP ASSY, SUPPLY | RE527528 |
| 000. | [01] | 29400-00563 | PUMP ASSY, SUPPLY | RE546123 |
| 001. | [01] | 29410-00530 | HOUSING SUB-ASSY, | |
| 001. | [01] | 29410-00900 | HOUSING SUB-ASSY, | |
| 002. | [02] | 29417-80040 | WASHER, CAMSHAFT | |
| 003. | [01] | 29419-10080 | CAMSHAFT, SUPPLY P | |
| 003. | [01] | 29419-10010 | CAMSHAFT, SUPPLY P | |
| 004. | [01] | 29402-10020 | KEY, WOODRUFF | |
| 004. | [01] | 29402-10040 | KEY, WOODRUFF | |
| 005. | [01] | 29417-00010 | RING SUB-ASSY, CAM | |
| 005. | [01] | 29417-00210 | RING SUB-ASSY, CAM | |
| 006. | [01] | 29412-00310 | COVER SUB-ASSY, BE | |
| 006. | [01] | 29412-00270 | COVER SUB-ASSY, BE | |
| 006-001. | [01] | 29419-70010 | SEAL, OIL | |
| 007. | [06] | 09644-90110 | BOLT, SOCKET | |
| 008. | [01] | 29419-80050 | O-RING, SUPPLY PUM | |
| 009. | [02] | 29419-80030 | O-RING, SUPPLY PUM | |
| 010. | [01] | 29418-30160 | PLATE, FEED PUMP, | |
| 011. | [01] | 29418-40080 | COVER, FEED PUMP | |
| 012. | [01] | 29418-70040 | KEY, FEED PUMP | |
| 012. | [01] | 29418-70010 | KEY, FEED PUMP | |
| 013. | [01] | 29418-00080 | ROTOR SET, FEED PU | |
| 014. | [05] | 09644-90050 | BOLT, SOCKET | |
| 015. | [01] | 29409-00040 | ELEMENT KIT, SUPPL | |
| 015. | [01] | 29409-00690 | ELEMENT KIT, SUPPL | |
| 016. | [01] | 29409-00760 | ELEMENT KIT, SUPPL | |
| 016. | [01] | 29409-00010 | ELEMENT KIT, SUPPL | |
| 017. | [02] | 29415-90040 | SPRING, PLUNGER | |
| 018. | [02] | 29419-80010 | O-RING, SUPPLY PUM | |
| 019. | [02] | 29419-80040 | O-RING, SUPPLY PUM | |
| 020. | [06] | 29419-90010 | BOLT, SOCKET | |
| 031. | [01] | 09806-60030 | O-RING, DISTRIBUTI | |
| 032. | [01] | 17973-00100 | SENSOR, FUEL TEMPE | |
| 033. | [01] | 29420-00160 | VALVE ASSY, SUCTIO | |
| 033. | [01] | 29420-00360 | VALVE ASSY, SUCTIO | |
| 033-001. | [01] | 29428-60030 | O-RING, VALVE | |
| 034. | [01] | 29428-50040 | O-RING, SOLENOID | |
| 035. | [01] | 29416-00011 | VALVE SUB-ASSY, RE | |
| 035. | [01] | 29416-00200 | VALVE SUB-ASSY, RE | |
| 035-001. | [01] | 29419-80060 | O-RING, SUPPLY PUM | |
| 035-002. | [01] | 29419-80070 | O-RING, SUPPLY PUM | |
| 037. | [02] | 29416-90010 | PIN, STOPPER | |
| 038. | [01] | 29411-50010 | PLUG, FILTER | |
| 039. | [01] | 29411-70010 | GASKET, PLUG | |
| 040. | [01] | 09737-00010 | FILTER SUB-ASSY | |
| 041. | [01] | 09604-90460 | O-RING | |
| 043. | [01] | 29425-90020 | GASKET, SOLENOID | |
| 052. | [02] | 09001-40160 | CAP, VALVE HOLDER | |
| 053. | [01] | 09003-45220 | PLUG | |
| 054. | [01] | 09003-45230 | PLUG | |
| 101. | [01] | 29400-90010 | OVERHAUL KIT, SUPP | RE516999 |
| 102. | [01] | 29400-90020 | OVERHAUL KIT, SUPP | |
| 200. | [01] | 29400-90031 | OVERHAUL KIT, SUPP |
Include in #3:
29400-00562
as PUMP ASSY, SUPPLY
Cross reference number
| Part num | Firm num | Firm | Name |
| 29400-00562 | RE527528 | PUMP ASSY, SUPPLY |
Information:
start by:a) remove fuel transfer pump 1. Remove bolts (1). Remove cover (2) from the fuel transfer pump. 2. Remove bolt (3). Remove gasket, spring and plunger from under bolt.3. Remove gear (4).4. Remove shaft assembly (5). 5. Remove O-ring seal (7) from body assembly.6. Install a 5/16"-18 NC forged eyebolt (6) in the plug. Remove plug (8) and O-ring seal. Remove the O-ring seal from the plug. 7. Remove valve assembly (9). 8. Remove two lip seals (10) from the body assembly. 9. Remove two bearings (11) from the body assembly with tooling (A).Assemble Fuel Transfer Pump (Later)
1. Install bearings in body (1) with tooling (A). Install bearing on gear end of body to a depth of .03 .02 in. (0.76 0.51 mm) below the surface of the body. Install the bearing on the opposite end of the body even with the body surface. 2. Put 4H5363 Sealant on the outside diameters of the seals. Install the lip seals in the body assembly with tooling (A). Install the first seal with lip toward bearing. Install the lip seal to a depth of .406 .010 (10.31 0.25 mm). Install the second seal with lip away from bearing. Make sure the second lip seal is even with the surface of the body assembly. 3. Install the valve assembly in the body assembly with tooling (A) to a depth of .57 .02 in. (14.5 0.5 mm). 4. Install O-ring seal (3) on the plug. Install a 5/16"-18 NC forged eyebolt (2) in the plug. Put a small amount of clean diesel fuel on the O-ring seal and install plug (4) in the body assembly. Make sure plug is even with the surface of the body.5. Install O-ring seal on the body assembly. 6. Put a small amount of clean diesel fuel on the lip seals. Put tool (B) in position on shaft assembly. Install shaft assembly (5) in the body assembly. 7. Install gear (7).
Do not get liquid gasket material into pump.
8. Put 7M7260 Liquid Gasket Material on the body assembly surface that makes contact with the cover. Install cover (6).9. Shaft assembly must turn by hand after cover is installed. 10. Install plunger (8), spring (9), gasket (11) and plug (10) in body assembly. Tighten plug to a torque of 27 3 lb. ft. (38 4 N m).end by:a) install fuel transfer pump
1. Install bearings in body (1) with tooling (A). Install bearing on gear end of body to a depth of .03 .02 in. (0.76 0.51 mm) below the surface of the body. Install the bearing on the opposite end of the body even with the body surface. 2. Put 4H5363 Sealant on the outside diameters of the seals. Install the lip seals in the body assembly with tooling (A). Install the first seal with lip toward bearing. Install the lip seal to a depth of .406 .010 (10.31 0.25 mm). Install the second seal with lip away from bearing. Make sure the second lip seal is even with the surface of the body assembly. 3. Install the valve assembly in the body assembly with tooling (A) to a depth of .57 .02 in. (14.5 0.5 mm). 4. Install O-ring seal (3) on the plug. Install a 5/16"-18 NC forged eyebolt (2) in the plug. Put a small amount of clean diesel fuel on the O-ring seal and install plug (4) in the body assembly. Make sure plug is even with the surface of the body.5. Install O-ring seal on the body assembly. 6. Put a small amount of clean diesel fuel on the lip seals. Put tool (B) in position on shaft assembly. Install shaft assembly (5) in the body assembly. 7. Install gear (7).
Do not get liquid gasket material into pump.
8. Put 7M7260 Liquid Gasket Material on the body assembly surface that makes contact with the cover. Install cover (6).9. Shaft assembly must turn by hand after cover is installed. 10. Install plunger (8), spring (9), gasket (11) and plug (10) in body assembly. Tighten plug to a torque of 27 3 lb. ft. (38 4 N m).end by:a) install fuel transfer pump
