Information pump assy, supply
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

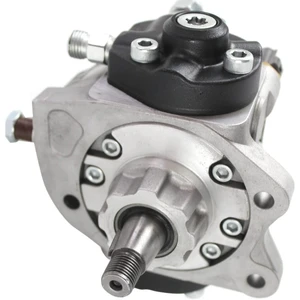

294000-0035 294000-0036 8-97306044-5 Fuel Injection Pump for Isuzu 4HK1 4HK1-TCC 4HK1-TCS 5.2L Engine FSR FRR FTR NPR NQR NRR Trucks Hitachi ZX200-3 ZX210-3 ZX240-3 Excavator
HIRINTOL 🔸Replace Part Number: 294000-0035, 294000-0036, 8-97306044-5, 8973060445 || 🔸Engine Model: for Isuzu 4HK1 4HK1-TCC 4HK1-TCS 5.2L Engine || 🔸Compatible Model: for Isuzu FSR FRR FTR NPR NQR NRR Trucks; for Hitachi ZX200-3 ZX210-3 ZX240-3 Excavator || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || 🔸Durable And Reliable: Tested and proven many times, it has a long life and reliable quality to keep working under extreme conditions.
HIRINTOL 🔸Replace Part Number: 294000-0035, 294000-0036, 8-97306044-5, 8973060445 || 🔸Engine Model: for Isuzu 4HK1 4HK1-TCC 4HK1-TCS 5.2L Engine || 🔸Compatible Model: for Isuzu FSR FRR FTR NPR NQR NRR Trucks; for Hitachi ZX200-3 ZX210-3 ZX240-3 Excavator || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || 🔸Durable And Reliable: Tested and proven many times, it has a long life and reliable quality to keep working under extreme conditions.
Common Rail Fuel Pump Assy 294000-0039 294000-0038 294000-0037 294000-0036 294000-0035 8973060449-9 Compatible With 4HK1
HXYAIEOGD Ensure the continuous and stable operation of the engine. || The installation procedure is simple. || Ensure OE number before placing order. || The warranty period is 12 months. || 1 piece jet pump
HXYAIEOGD Ensure the continuous and stable operation of the engine. || The installation procedure is simple. || Ensure OE number before placing order. || The warranty period is 12 months. || 1 piece jet pump
IMELBUFF 294000-0035 8-97306044-5 8973060445 CR HP3 Fuel Injection Pump 24V for Isuzu 4HK1 5.2L Engine F Series N Series Trucks
IMELBUFF 🚜Part Number: 294000-0035 8-97306044-5 8973060445 || 🚜Engine Model: for Isuzu Engine 4HK1 4HK1-TCC 4HK1-TCS || 🚜Vehicle Application: for Isuzu Trucks FRR FSR FTR FVR FSS NPR NQR NRR || 🚜Warm Tips: Please check your part numbers before placing an order. If you are not sure, you can send us your engine model or fuel pump part number || 🚜Service: 5-months warranty and 24 hour support for customer service. Please feel free to contact us by email if you have any question with the product
IMELBUFF 🚜Part Number: 294000-0035 8-97306044-5 8973060445 || 🚜Engine Model: for Isuzu Engine 4HK1 4HK1-TCC 4HK1-TCS || 🚜Vehicle Application: for Isuzu Trucks FRR FSR FTR FVR FSS NPR NQR NRR || 🚜Warm Tips: Please check your part numbers before placing an order. If you are not sure, you can send us your engine model or fuel pump part number || 🚜Service: 5-months warranty and 24 hour support for customer service. Please feel free to contact us by email if you have any question with the product
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 29400-00035 | 1670089TQ0 | PUMP ASSY, SUPPLY |
Information:
1. Remove the oil outlet line (1) for oil pump.2. Remove the bolts (2) and locks, and remove the oil pump. Weight of oil pump is 40 lb. (17 kg).Install Oil Pump
1. Put the oil pump in position on engine, and install the bolts and locks.2. Install the oil outlet line for pump.end by: a) install oil panDisassemble Oil Pump
start by: a) remove oil pump 1. Remove suction bell (2). 2. Remove cover (4) and screen (5) from suction bell.3. Remove the cover (1) from bypass valve.4. Remove the bypass valve spring and plunger for the oil pump.5. Remove the cotter pin, and loosen nut (3). 6. Install tool setup (A) and make the gear separate from shaft.7. Remove tool setup (A), nut (3), and gear. Remove the woodruff key from shaft. 8. Remove the bolts (6) and locks. Remove cover assembly (7).9. Remove the oil pump gears.10. Remove the bolts (9) and locks. Remove the cover assembly (8).11. Remove the bearings from cover assemblies (7) and (8).Assemble Oil Pump
1. Use tool setup (A) to install the bearings in the cover assemblies. 2. Put cover assembly (1) in position on body, and install the bolts and locks.3. Put clean oil on the oil pump gears and on the bearings in the cover assemblies.4. Put the oil pump gears in position on cover assembly (2), and install the cover assembly. Install the bolts and locks.5. Install the woodruff key in shaft.6. Put the drive gear in position on shaft, and install the nut and washer. Tighten the nut to 60 lb.ft. (8.3 mkg) plus the amount needed to put holes for cotter pin in alignment. Install the cotter pin. 7. Install the bypass valve plunger (3) and spring (4). Install the cover for bypass valve. 8. Put the screen assembly (5) in position in the suction bell, and install the cover.9. Install the suction bell on oil pump.end by: a) install oil pump
1. Put the oil pump in position on engine, and install the bolts and locks.2. Install the oil outlet line for pump.end by: a) install oil panDisassemble Oil Pump
start by: a) remove oil pump 1. Remove suction bell (2). 2. Remove cover (4) and screen (5) from suction bell.3. Remove the cover (1) from bypass valve.4. Remove the bypass valve spring and plunger for the oil pump.5. Remove the cotter pin, and loosen nut (3). 6. Install tool setup (A) and make the gear separate from shaft.7. Remove tool setup (A), nut (3), and gear. Remove the woodruff key from shaft. 8. Remove the bolts (6) and locks. Remove cover assembly (7).9. Remove the oil pump gears.10. Remove the bolts (9) and locks. Remove the cover assembly (8).11. Remove the bearings from cover assemblies (7) and (8).Assemble Oil Pump
1. Use tool setup (A) to install the bearings in the cover assemblies. 2. Put cover assembly (1) in position on body, and install the bolts and locks.3. Put clean oil on the oil pump gears and on the bearings in the cover assemblies.4. Put the oil pump gears in position on cover assembly (2), and install the cover assembly. Install the bolts and locks.5. Install the woodruff key in shaft.6. Put the drive gear in position on shaft, and install the nut and washer. Tighten the nut to 60 lb.ft. (8.3 mkg) plus the amount needed to put holes for cotter pin in alignment. Install the cotter pin. 7. Install the bypass valve plunger (3) and spring (4). Install the cover for bypass valve. 8. Put the screen assembly (5) in position in the suction bell, and install the cover.9. Install the suction bell on oil pump.end by: a) install oil pump
