Buy 19600-05070 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

PUMP ASSY, INJECTI EB
  • *THE SMOKE SCREW KIT P/N IS 096010-0890 WHICH INCLUDES
  • NO.142,143,144 AND CAP.
  • *THE HI-SPEED SET SCREW KIT P/N IS 096010-0900 WHICH
  • INCLUDES NO.141,143,144 AND CAP.
Nozzle: 0935007600
19600-05070 PUMP ASSY, INJECTI
Rating:
42
Buy PUMP ASSY, INJECTI 19600-05070 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100141

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

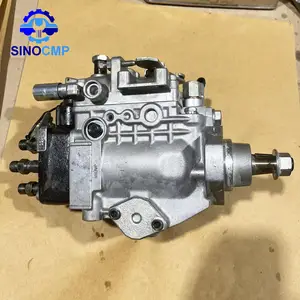

VE6 Fuel Injection Pump for Mitsubishi S6S Compatible with Caterpillar 3046 Engine D3G D5G Tractor 32B65-17010 280-6720 196000-5070
$769.68

16 Apr 2025

CN: TUF Parts
VE6 Fuel Injection Pump for Mitsubishi S6S Compatible with Caterpillar 3046 Engine D3G D5G Tractor 32B65-17010 280-6720 196000-5070
KoovDem Part Number: 32B65-17010, 280-6720, 196000-5070, 32B6517010, 2806720, 1960005070 || Compatible Model: for Mitsubishi S6S Caterpillar 3046 Engine; for Caterpillar D3G D5G Tractor || Effective and Reliable: Utilizing cutting-edge technology, this system delivers effective and reliable fuel supply, guaranteeing smooth vehicle performance. || Rugged and Dependable: With a track record of being rigorously tested and proven, this product offers durability and reliability, ensuring it operates consistently even in the harshest of environments. || Straightforward Installation: With a user-friendly interface, installing this product is a breeze. Simply plug it in and you're good to go, no technical expertise needed.
WZCNLXLX Fuel Injection Pump 32B65-17030 32B65-17010 For Mitsubishi S6S Engine For Cat 3046 Engine
$855.55

11 Mar 2025

CN: LONGXUN
WZCNLXLX Fuel Injection Pump 32B65-17030 32B65-17010 For Mitsubishi S6S Engine For Cat 3046 Engine
WZCNLXLX Item Name:Fuel Injection Pump || Item Number:32B6517030, CA10R7638, 10R-7638, 10R7638, CA2165472, 216-5472, 2165472, CA2806719, 280-6719, 2806719, CA2806720, 280-6720, 2806720, 32B65-17010, 32B65-17030, VE6-RND509, 196000-5090, 32B6517010, VE6RND509, 1960005090 || Application: For Caterpillar Engine:3046 For Mitsubishi Engine: S6S, S6S-DT For Caterpillar Tractor: D3G XL, D3G LGP, D5G XL, D5G LGP || Note: If you are unsure if the product is suitable.In order not to delay your use of the parts, please provide your engine nameplate or serial number and part number, and we will help you confirm if it is suitable. To avoid unnecessary returns, please check the product image and part number to ensure it is the product you want. || Tip: Please contact us - we are a professional sales team and we have many products to offer to you. Many buyers are very satisfied with our service. You can get first-class products and high-quality services from us, believe me, you will have a pleasant shopping experience here.
YIHETOP Fuel Injection Pump 32B65-17030 32B65-17010 Compatible For Mitsubishi S6S Caterpillar 3046 Engine D3G XL D5G XL
$797.00

11 Mar 2025

CN: YIHETOP
YIHETOP Fuel Injection Pump 32B65-17030 32B65-17010 Compatible For Mitsubishi S6S Caterpillar 3046 Engine D3G XL D5G XL
YIHETOP Replace Part Number:32B6517030, CA10R7638, 10R-7638, 10R7638, CA2165472, 216-5472, 2165472, CA2806719, 280-6719, 2806719, CA2806720, 280-6720, 2806720, 32B65-17010, 32B65-17030, VE6-RND509, 196000-5090, 32B6517010, VE6RND509, 1960005090 || Compatible For Caterpillar Engine:3046 || Compatible For Mitsubishi Engine: S6S, S6S-DT || Compatible For Caterpillar Tractor: D3G XL, D3G LGP, D5G XL, D5G LGP

Components :

001. PUMP ASSY, INJECTI 19600-05070
002. RING SUB-ASSY, ROL 09618-00280
003. COVER SUB-ASSY, GO 09644-01850

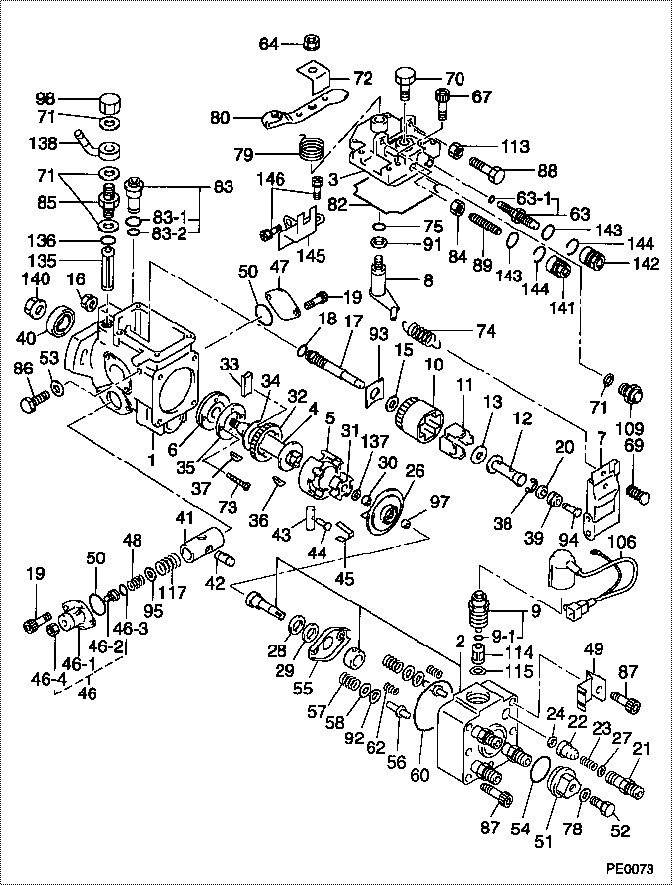

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 19600-05070 PUMP ASSY, INJECTI 32B6517010
001. [01] 09611-01390 HOUSING SUB-ASSY,
002. [01] 09640-01320 HEAD SUB-ASSY, DIS
003. [01] 09644-01850 COVER SUB-ASSY, GO
004. [01] 09612-10330 SHAFT, DRIVE
005. [01] 09618-00280 RING SUB-ASSY, ROL
006. [01] 09614-00030 PUMP SUB-ASSY, FUE
007. [01] 09627-01890 GOVERNOR ASSY, TOR
008. [1C] 09645-00480 SHAFT SUB-ASSY, GO
008. [1C] 09645-00700 SHAFT SUB-ASSY, GO
009. [01] 09603-00520 SOLENOID ASSY, FUE
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F
011. [04] 09626-30050 FLYWEIGHT, DISTRIB
012. [1C] 09625-22190 SLEEVE, GOVERNOR
012. [1C] 09625-22200 SLEEVE, GOVERNOR
012. [1C] 09625-22210 SLEEVE, GOVERNOR
013. [01] 09626-50030 WASHER, FLYWEIGHT
015. [01] 09626-50020 WASHER, FLYWEIGHT
016. [01] 09625-40050 NUT, GOVERNOR SHAF
017. [01] 09625-00210 SHAFT SUB-ASSY, GO
018. [01] 94914-02930 O-RING
019. [04] 09644-90280 BOLT, SOCKET
020. [01] 09625-50020 RING, GOVERNOR SLE
021. [06] 09642-50190 HOLDER, DELIVERY V
022. [06] 09642-00740 VALVE SUB-ASSY, DI
023. [06] 09642-70050 SPRING, DELIVERY V
024. [06] 09642-60070 GASKET, DELIVERY V
026. [01] 09623-00340 CAMPLATE SUB-ASSY,
027. [06] 09642-80010 SEAT, DELIVERY VAL
028. [01] 09624-50020 PLATE, PLUNGER, LW
029. [01] 09624-40040 PLATE, PLUNGER, UP
030. [01] 09622-50010 SPACER, COUPLING
031. [01] 09622-20070 COUPLING
032. [01] 09612-40030 GEAR, GOVERNOR DRI
033. [02] 09612-60020 JOINT, RUBBER
034. [01] 09612-50010 WASHER, DRIVE SHAF
035. [01] 09614-70052 COVER, FEED PUMP
036. [01] 94913-00260 KEY, WOODRUFF
037. [01] 94913-00300 KEY, WOODRUFF
038. [01] 90577-02000 E-RING
039. [01] 94910-02860 BEARING, BALL
040. [01] 09603-90040 SEAL, 0IL
041. [01] 09619-01660 PISTON ASSY, TIMER
042. [01] 09621-30020 SUB-PISTON, TIMER
043. [01] 09620-50020 PIN, TIMER SLIDE
044. [01] 09621-60120 STOPPER, TIMER SLI
045. [01] 09621-10080 CLIP, TIMER
046. [01] 09621-00870 COVER SUB-ASSY, TI
046-001. [01] 09621-80870 COVER, TIMER
046-002. [01] 09621-60110 STOPPER, TIMER SLI
046-003. [01] 09604-90290 O-RING
046-004. [01] 94905-05010 NUT, HEXAGON
047. [01] 09621-81030 COVER, TIMER
048. [1C] 09620-82840 SPRING, TIMER, OUT
048. [1C] 09620-81481 SPRING, TIMER, OUT
048. [1C] 09620-81461 SPRING, TIMER, OUT
049. [01] 09602-92240 CLIP, CONNECTOR SU
050. [02] 09604-90400 O-RING
051. [01] 09641-70040 PLUG, DISTRIBUTIVE
052. [01] 09641-80060 BOLT, DISTRIBUTIVE
053. [02] 09642-60130 GASKET, DELIVERY V
054. [01] 09604-90510 O-RING
055. [01] 09624-70030 SHEET, PLUNGER SPR
056. [02] 09623-70020 GUIDE SUB-ASSY, PL
057. [02] 09623-60090 SPRING, PLUNGER
058. [02] 09624-60030 SHEET, PLUNGER SPR
060. [01] 94914-02980 O-RING
062. [02] 09627-90010 SPRING, LEVER SUPP
063. [01] 09648-00040 SMOKE SET SUB-ASSY
063-001. [01] 09604-90470 O-RING
064. [01] 94905-61680 NUT
067. [04] 09644-90020 BOLT, SOCKET
069. [01] 09626-80170 SEAT SUB-ASSY, GOV
070. [01] 09602-00180 SCREW SUB-ASSY, OV
071. [04] 09024-10010 WASHER, AIR BLEEDE MM500486
072. [01] 09644-50011 GUIDE, RETURN SPRI
073. [02] 94900-20420 SCREW, COUNTERSUNK
074. [01] 09626-10210 SPRING, SPEED CONT
075. [01] 09604-90300 O-RING
078. [01] 09642-60060 GASKET, DELIVERY V
079. [01] 09644-41000 SPRING, RETURN
080. [1C] 09643-67300 LEVER, ADJUSTING
080. [1C] 09643-67290 LEVER, ADJUSTING
080. [1C] 09643-67280 LEVER, ADJUSTING
082. [01] 09644-60100 GASKET, GOVERNOR C
083. [01] 09616-00270 VALVE SUB-ASSY, RE
083-001. [01] 09604-90180 O-RING
083-002. [01] 09604-90500 O-RING
084. [01] 09634-20010 NUT, LOCK 09634-20010
085. [01] 94918-00770 SCREW, HOLLOW
086. [02] 09626-90020 BOLT, GOVERNOR LIN
087. [04] 09644-90070 BOLT, SOCKET
088. [01] 94904-50180 BOLT, HEXAGON, W/
089. [01] 09266-40400 SCREW, LEVER STOP
091. [01] 09627-30140 WASHER, GOVERNOR T
092. [2C] 09624-80170 SHIM, PLUNGER SPRI
092. [2C] 09624-80180 SHIM, PLUNGER SPRI
092. [2C] 09624-80190 SHIM, PLUNGER SPRI
092. [2C] 09624-80200 SHIM, PLUNGER SPRI
092. [2C] 09624-80210 SHIM, PLUNGER SPRI
092. [2C] 09624-80220 SHIM, PLUNGER SPRI
092. [2C] 09624-80230 SHIM, PLUNGER SPRI
092. [2C] 09624-80240 SHIM, PLUNGER SPRI
092. [2C] 09624-80250 SHIM, PLUNGER SPRI
092. [2C] 09624-80260 SHIM, PLUNGER SPRI
092. [2C] 09624-80270 SHIM, PLUNGER SPRI
092. [2C] 09624-80150 SHIM, PLUNGER SPRI
092. [2C] 09624-80140 SHIM, PLUNGER SPRI
092. [2C] 09624-80130 SHIM, PLUNGER SPRI
092. [2C] 09624-80010 SHIM, PLUNGER SPRI
092. [2C] 09624-80020 SHIM, PLUNGER SPRI
092. [2C] 09624-80030 SHIM, PLUNGER SPRI
092. [2C] 09624-80040 SHIM, PLUNGER SPRI
092. [2C] 09624-80050 SHIM, PLUNGER SPRI
092. [2C] 09624-80060 SHIM, PLUNGER SPRI
092. [2C] 09624-80070 SHIM, PLUNGER SPRI
092. [2C] 09624-80080 SHIM, PLUNGER SPRI
092. [2C] 09624-80090 SHIM, PLUNGER SPRI
092. [2C] 09624-80100 SHIM, PLUNGER SPRI
092. [2C] 09624-80110 SHIM, PLUNGER SPRI
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G
093. [1C] 09626-60110 WASHER, GOVERNOR G
093. [1C] 09626-60120 WASHER, GOVERNOR G
093. [1C] 09626-60130 WASHER, GOVERNOR G
093. [1C] 09626-60140 WASHER, GOVERNOR G
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
094. [1C] 09625-61211 PLUG, GOVERNOR SLE
094. [1C] 09625-61201 PLUG, GOVERNOR SLE
094. [1C] 09625-61191 PLUG, GOVERNOR SLE
094. [1C] 09625-61181 PLUG, GOVERNOR SLE
094. [1C] 09625-61171 PLUG, GOVERNOR SLE
094. [1C] 09625-61161 PLUG, GOVERNOR SLE
094. [1C] 09625-61221 PLUG, GOVERNOR SLE
094. [1C] 09625-61231 PLUG, GOVERNOR SLE
094. [1C] 09625-61241 PLUG, GOVERNOR SLE
094. [1C] 09625-61251 PLUG, GOVERNOR SLE
094. [1C] 09625-61261 PLUG, GOVERNOR SLE
094. [1C] 09625-61271 PLUG, GOVERNOR SLE
094. [1C] 09625-61281 PLUG, GOVERNOR SLE
094. [1C] 09625-61291 PLUG, GOVERNOR SLE
094. [1C] 09625-61301 PLUG, GOVERNOR SLE
094. [1C] 09625-61151 PLUG, GOVERNOR SLE
094. [1C] 09625-61141 PLUG, GOVERNOR SLE
094. [1C] 09625-60991 PLUG, GOVERNOR SLE
094. [1C] 09625-61001 PLUG, GOVERNOR SLE
094. [1C] 09625-61011 PLUG, GOVERNOR SLE
094. [1C] 09625-61021 PLUG, GOVERNOR SLE
094. [1C] 09625-61031 PLUG, GOVERNOR SLE
094. [1C] 09625-61041 PLUG, GOVERNOR SLE
094. [1C] 09625-61051 PLUG, GOVERNOR SLE
094. [1C] 09625-61061 PLUG, GOVERNOR SLE
094. [1C] 09625-61071 PLUG, GOVERNOR SLE
094. [1C] 09625-61131 PLUG, GOVERNOR SLE
094. [1C] 09625-61121 PLUG, GOVERNOR SLE
094. [1C] 09625-61111 PLUG, GOVERNOR SLE
094. [1C] 09625-61101 PLUG, GOVERNOR SLE
094. [1C] 09625-61091 PLUG, GOVERNOR SLE
094. [1C] 09625-61081 PLUG, GOVERNOR SLE
095. [01] 09621-40260 WASHER, TIMER SENS
097. [1C] 09640-60580 SHIM, PLUNGER ADJU
097. [1C] 09640-60510 SHIM, PLUNGER ADJU
097. [1C] 09640-60910 SHIM, PLUNGER ADJU
097. [1C] 09640-60750 SHIM, PLUNGER ADJU
097. [1C] 09640-60020 SHIM, PLUNGER ADJU
098. [01] 94905-50300 NUT, CAP
106. [01] 09604-51260 WIRE SUB-ASSY
109. [01] 09616-10160 BODY, REGULATE VAL
113. [01] 90166-06051 NUT, HEXAGON
114. [01] 09653-00071 FILTER, SUB-ASSY
115. [01] 09606-40110 WASHER
117. [01] 09620-81830 SPRING, TIMER, OUT
135. [01] 09653-00111 FILTER, SUB-ASSY
136. [01] 09604-90460 O-RING
137. [01] 09606-40220 WASHER
138. [01] 09221-80060 NIPPLE SUB-ASSY, S
140. [01] 94905-62390 NUT
141. [01] 09644-80490 COLLAR, SMOKE SET
142. [01] 09644-80500 COLLAR, SMOKE SET
143. [02] 94914-04060 O-RING
144. [02] 94907-21500 RING, SNAP
145. [01] 09643-80523 BRACKET, IDLE UP
146. [02] 91518-06141 BOLT, W/WASHER

Include in #3:

19600-05070 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
19600-05070  32B6517010  PUMP ASSY, INJECTI
32B6517010    MITSUBISHI PUMP ASSY, INJECTI




Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
The engines that are affected by this problem are 3056 and 3054. Incorrect troubleshooting may lead to a diagnosis that is incorrect. A diagnosis that is incorrect may lead to unnecessary replacement of the fuel injection pump.The fuel injection pumps on 3056 and 3054 may incorrectly lead to an assumption of a problem.Solution
Before the fuel injection pump is replaced, refer to illustration 1, 2 and 3 to troubleshoot the fuel injection pump. The illustrations should help to identify other possible problems with the fuel injection pump.
Illustration 1 g06064810
Illustration 2 g06064842
Illustration 3 g06064869
