19600-04080 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935005450
19600-04080 PUMP ASSY, INJECTI
Rating:
68
Buy PUMP ASSY, INJECTI 19600-04080 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100561

Components :

001. PUMP ASSY, INJECTI 19600-04080
002. RING SUB-ASSY, ROL 09618-00050
003. COVER SUB-ASSY, TI 09621-01040
004. GOVERNOR ASSY, TOR 09627-00171
005. SHIM, PLUNGER ADJU 09640-60020
006. COMPENSATOR SUB-AS 09649-01670

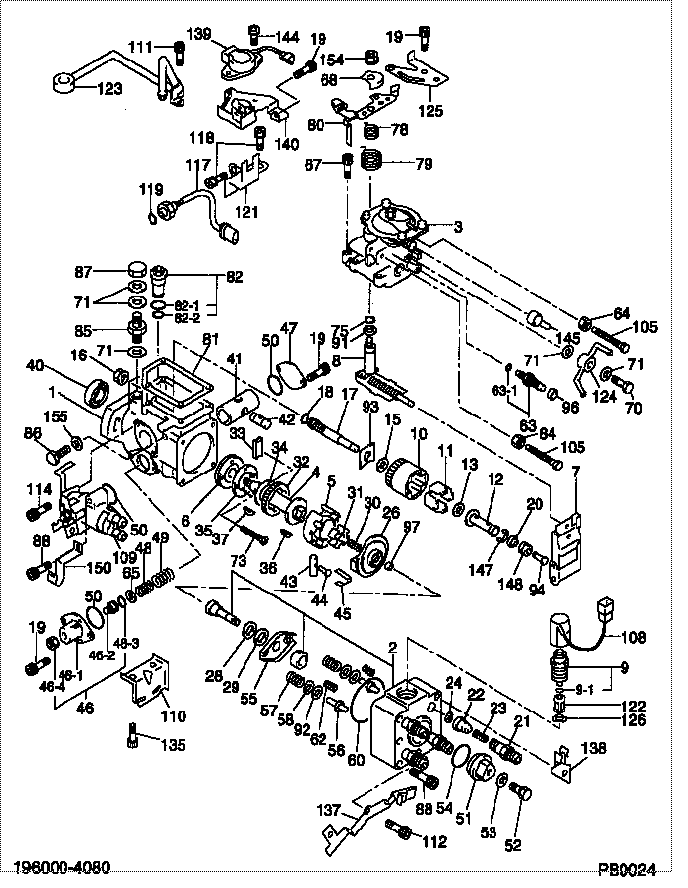

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 19600-04080 PUMP ASSY, INJECTI MR514475
001. [01] 09611-00512 HOUSING SUB-ASSY,
002. [01] 09640-01430 HEAD SUB-ASSY, DIS MD627098
003. [01] 09649-01670 COMPENSATOR SUB-AS
004. [01] 09612-10060 SHAFT, DRIVE ME736309
005. [01] 09618-00050 RING SUB-ASSY, ROL ME736310
006. [01] 09614-00030 PUMP SUB-ASSY, FUE ME736311
007. [01] 09627-00171 GOVERNOR ASSY, TOR
008. [01] 09646-01560 SHAFT SUB-ASSY, SP
009. [01] 09603-00520 SOLENOID ASSY, FUE ME736821
009-001. [01] 09604-90350 O-RING ME743582
010. [01] 09626-00050 HOLDER SUB-ASSY, F ME736316
011. [04] 09626-30030 FLYWEIGHT, DISTRIB ME736317
012. [1C] 09625-21091 SLEEVE, GOVERNOR
012. [1C] 09625-21380 SLEEVE, GOVERNOR ME736825
012. [1C] 09625-21510 SLEEVE, GOVERNOR
013. [01] 09626-50030 WASHER, FLYWEIGHT ME736319
015. [01] 09626-50020 WASHER, FLYWEIGHT ME736320
016. [01] 09625-40050 NUT, GOVERNOR SHAF ME736321
017. [01] 09625-00030 SHAFT SUB-ASSY, GO ME736468
018. [01] 94914-02930 O-RING ME736323
019. [07] 09644-90110 BOLT, SOCKET ME736324
020. [01] 09625-50020 RING, GOVERNOR SLE ME736325
021. [04] 09643-00150 VALVE SUB-ASSY, SN ME736326
022. [04] 09642-00510 VALVE SUB-ASSY, DI ME736327
023. [04] 09642-70010 SPRING, DELIVERY V ME736328
024. [04] 09642-60070 GASKET, DELIVERY V ME736329
026. [01] 09623-00250 CAMPLATE SUB-ASSY, MD627106
028. [01] 09624-50020 PLATE, PLUNGER, LW ME736331
029. [01] 09624-40040 PLATE, PLUNGER, UP ME736332
030. [01] 09622-40040 SPRING, COUPLING ME736333
031. [01] 09622-20020 COUPLING ME736334
032. [01] 09612-40030 GEAR, GOVERNOR DRI ME736335
033. [02] 09612-60020 JOINT, RUBBER ME736336
034. [01] 09612-50010 WASHER, DRIVE SHAF ME736337
035. [01] 09614-70052 COVER, FEED PUMP ME736338
036. [01] 94913-00260 KEY, WOODRUFF ME736339
037. [01] 94913-00300 KEY, WOODRUFF ME736340
040. [01] 09603-90040 SEAL, 0IL ME736342
041. [01] 09619-01370 PISTON ASSY, TIMER
042. [01] 09621-30020 SUB-PISTON, TIMER ME736344
043. [01] 09620-50020 PIN, TIMER SLIDE ME736345
044. [01] 09621-60120 STOPPER, TIMER SLI ME736849
045. [01] 09621-10080 CLIP, TIMER ME736850
046. [01] 09621-00870 COVER SUB-ASSY, TI ME736348
046-001. [01] 09621-80870 COVER, TIMER ME736349
046-002. [01] 09621-60110 STOPPER, TIMER SLI ME736350
046-003. [01] 09604-90290 O-RING ME736351
046-004. [01] 94905-05010 NUT, HEXAGON ME736352
047. [01] 09621-80270 COVER, TIMER ME736353
048. [1C] 09620-81320 SPRING, TIMER, OUT MD627109
048. [1C] 09620-81330 SPRING, TIMER, OUT ME736829
048. [1C] 09620-81340 SPRING, TIMER, OUT MD627110
048. [1C] 09620-81350 SPRING, TIMER, OUT ME736830
048. [1C] 09620-81360 SPRING, TIMER, OUT ME743606
049. [01] 09620-81370 SPRING, TIMER, OUT ME736358
050. [03] 09604-90400 O-RING ME743600
051. [01] 09641-70040 PLUG, DISTRIBUTIVE ME736360
052. [01] 09641-80020 BOLT, DISTRIBUTIVE ME736361
053. [01] 09642-60030 GASKET, DELIVERY V ME736362
054. [01] 09604-90510 O-RING ME743620
055. [01] 09624-70010 SHEET, PLUNGER SPR ME736364
056. [02] 09623-70010 GUIDE SUB-ASSY, PL ME736365
057. [02] 09623-60040 SPRING, PLUNGER ME736366
058. [02] 09624-60010 SHEET, PLUNGER SPR ME736367
060. [01] 94914-02980 O-RING ME736368
062. [02] 09627-90010 SPRING, LEVER SUPP ME736369
063. [01] 09648-00010 SMOKE SET SUB-ASSY ME736370
063-001. [01] 09604-90470 O-RING ME743622
064. [01] 90166-06051 NUT, HEXAGON ME736372
065. [01] 09621-40180 WASHER, TIMER SENS ME736374
067. [04] 09644-90020 BOLT, SOCKET ME736373
068. [01] 09644-50140 GUIDE, RETURN SPRI ME736832
070. [01] 09602-00030 SCREW SUB-ASSY, OV ME736376
071. [05] 09024-10010 WASHER, AIR BLEEDE ME702102
073. [02] 94900-20420 SCREW, COUNTERSUNK ME736377
075. [01] 09604-90300 O-RING ME736378
078. [01] 09644-40920 SPRING, RETURN ME736834
079. [01] 09644-40930 SPRING, RETURN ME736835
080. [1C] 09643-54261 LEVER SUB-ASSY, AD
080. [1C] 09643-54251 LEVER SUB-ASSY, AD
081. [01] 09644-60100 GASKET, GOVERNOR C ME736386
082. [01] 09616-00280 VALVE SUB-ASSY, RE MD627115
082-001. [01] 09604-90180 O-RING ME736285
082-002. [01] 09604-90500 O-RING ME743633
084. [01] 09634-20010 NUT, LOCK ME702196
085. [01] 94918-00770 SCREW, HOLLOW ME736389
086. [02] 09626-90020 BOLT, GOVERNOR LIN ME736390
087. [01] 94905-50300 NUT, CAP ME736391
088. [05] 09644-90070 BOLT, SOCKET ME736392
091. [01] 09627-30140 WASHER, GOVERNOR T ME736379
092. [2C] 09624-80080 SHIM, PLUNGER SPRI ME736400
092. [2C] 09624-80090 SHIM, PLUNGER SPRI ME736401
092. [2C] 09624-80100 SHIM, PLUNGER SPRI ME736402
092. [2C] 09624-80110 SHIM, PLUNGER SPRI ME736403
092. [2C] 09624-80220 SHIM, PLUNGER SPRI ME736404
092. [2C] 09624-80070 SHIM, PLUNGER SPRI ME736399
092. [2C] 09624-80060 SHIM, PLUNGER SPRI ME736398
092. [2C] 09624-80050 SHIM, PLUNGER SPRI ME736397
092. [2C] 09624-80040 SHIM, PLUNGER SPRI ME736396
092. [2C] 09624-80030 SHIM, PLUNGER SPRI ME736395
092. [2C] 09624-80020 SHIM, PLUNGER SPRI ME736394
092. [2C] 09624-80010 SHIM, PLUNGER SPRI ME736393
093. [1C] 09626-60280 WASHER, GOVERNOR G ME736415
093. [1C] 09626-60290 WASHER, GOVERNOR G ME736416
093. [1C] 09626-60300 WASHER, GOVERNOR G ME736417
093. [1C] 09626-60310 WASHER, GOVERNOR G ME743634
093. [1C] 09626-60320 WASHER, GOVERNOR G ME743635
093. [1C] 09626-60330 WASHER, GOVERNOR G ME743636
093. [1C] 09626-60340 WASHER, GOVERNOR G ME743637
093. [1C] 09626-60270 WASHER, GOVERNOR G ME736414
093. [1C] 09626-60180 WASHER, GOVERNOR G ME736413
093. [1C] 09626-60170 WASHER, GOVERNOR G ME736412
093. [1C] 09626-60100 WASHER, GOVERNOR G ME736405
093. [1C] 09626-60110 WASHER, GOVERNOR G ME736406
093. [1C] 09626-60120 WASHER, GOVERNOR G ME736407
093. [1C] 09626-60130 WASHER, GOVERNOR G ME736408
093. [1C] 09626-60140 WASHER, GOVERNOR G ME736409
093. [1C] 09626-60150 WASHER, GOVERNOR G ME736410
093. [1C] 09626-60160 WASHER, GOVERNOR G ME736411
094. [1C] 09625-60600 PLUG, GOVERNOR SLE ME736430
094. [1C] 09625-60590 PLUG, GOVERNOR SLE ME736429
094. [1C] 09625-60580 PLUG, GOVERNOR SLE ME736428
094. [1C] 09625-60570 PLUG, GOVERNOR SLE ME736427
094. [1C] 09625-60560 PLUG, GOVERNOR SLE ME736426
094. [1C] 09625-60550 PLUG, GOVERNOR SLE ME736425
094. [1C] 09625-60540 PLUG, GOVERNOR SLE ME736424
094. [1C] 09625-60530 PLUG, GOVERNOR SLE ME736423
094. [1C] 09625-60520 PLUG, GOVERNOR SLE ME736422
094. [1C] 09625-60510 PLUG, GOVERNOR SLE ME736421
094. [1C] 09625-60500 PLUG, GOVERNOR SLE ME736420
094. [1C] 09625-60490 PLUG, GOVERNOR SLE ME736419
094. [1C] 09625-60480 PLUG, GOVERNOR SLE ME736418
095. [2C] 09621-40110 WASHER, TIMER SENS
095. [2C] 09621-40120 WASHER, TIMER SENS
095. [2C] 09621-40130 WASHER, TIMER SENS
095. [2C] 09621-40140 WASHER, TIMER SENS
095. [2C] 09621-40150 WASHER, TIMER SENS
095. [2C] 09621-40200 WASHER, TIMER SENS
095. [2C] 09621-40100 WASHER, TIMER SENS ME736839
095. [2C] 09621-40090 WASHER, TIMER SENS
095. [2C] 09621-40030 WASHER, TIMER SENS
095. [2C] 09621-40040 WASHER, TIMER SENS
095. [2C] 09621-40050 WASHER, TIMER SENS
095. [2C] 09621-40060 WASHER, TIMER SENS
095. [2C] 09621-40070 WASHER, TIMER SENS
095. [2C] 09621-40080 WASHER, TIMER SENS
096. [01] 09644-80111 COLLAR, SMOKE SET ME736431
097. [1C] 09640-60520 SHIM, PLUNGER ADJU ME736436
097. [1C] 09640-60420 SHIM, PLUNGER ADJU ME736435
097. [1C] 09640-60270 SHIM, PLUNGER ADJU ME736434
097. [1C] 09640-60170 SHIM, PLUNGER ADJU ME736433
097. [1C] 09640-60020 SHIM, PLUNGER ADJU ME736432
105. [02] 94904-50210 BOLT, HEXAGON, W/ ME736437
108. [01] 09604-50201 WIRE SUB-ASSY MD627116
109. [01] 09621-01040 COVER SUB-ASSY, TI MD627117
110. [01] 09643-83180 BRACKET, IDLE UP
111. [01] 09644-90130 BOLT, SOCKET ME736283
111. [01] 09644-90110 BOLT, SOCKET ME736324
112. [01] 09644-90140 BOLT, SOCKET ME736442
114. [02] 09644-90100 BOLT, SOCKET ME736443
117. [01] 07630-00310 PICKUP ASSY, TACHO
118. [02] 91518-06141 BOLT, W/WASHER ME736842
119. [01] 09604-90190 O-RING ME736444
121. [01] 09643-80523 BRACKET, IDLE UP ME736843
122. [01] 09653-00071 FILTER, SUB-ASSY ME736445
123. [01] 09221-70370 NIPPLE, SWIVEL
124. [01] 09221-70380 NIPPLE, SWIVEL
125. [01] 09643-82320 BRACKET, IDLE UP
126. [01] 09606-40110 WASHER ME736446
135. [02] 09644-90151 BOLT, SOCKET ME736456
137. [01] 09602-91000 CLIP, CONNECTOR SU
138. [01] 09602-90381 CLIP, CONNECTOR SU MD627124
139. [01] 19850-00492 SENSOR, ROTARY POS MD620795
140. [01] 09647-10470 BRACKET SUB-ASSY,
144. [02] 91370-04121 SCREW, W/WASHER MF350745
145. [01] 09646-80250 CAP RUBBER ME743624
147. [01] 90577-02000 E-RING ME736460
148. [01] 94910-02860 BEARING, BALL ME736459
150. [01] 09602-90651 CLIP, CONNECTOR SU
154. [01] 94905-61680 NUT ME736463
155. [01] 09642-60130 GASKET, DELIVERY V ME743647

Include in #3:

19600-04080 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
19600-04080  MR514475  PUMP ASSY, INJECTI
MR514475    MITSUBISHI PUMP ASSY, INJECTI




Information:


UEBE1053-01
28Aug2020
(Revised 11Sep2020)
U-527
A-437
D-504
O-495
After Failure Only
PRODUCT SUPPORT PROGRAM FOR REPLACING FUEL INJECTORS ON CERTAIN 120K, 120K 2, 12K, 140K, 140K 2, 160K, 12M, AND 140M MOTOR GRADERS
1290 PS54428
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS54428" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 28Aug2020 Service Letter. Changes have been made to the Problem.
TERMINATION DATE
31Aug2022
PROBLEM
The existing fuel injectors can fail on certain 120K, 120K 2, 12K, 140K, 140K 2, 160K, 12M, and 140M Motor Graders. If an existing fuel injector or fuel injectors fail, it can cause fuel dilution of the engine oil and hard starting conditions.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
120K JAP06841, 6854, 6866-6867, 6874, 6876, 6879, 6885-6890, 6892-6893, 6899, 6902, 6904-6910, 6912-6922, 6924-6931, 6933-7106, 7108-7117, 7119-7126, 7128-7136, 7138-7150, 7152-7215, 7217-7221, 7223-7231, 7233-7235, 7237, 7239-7248, 7250-7253, 7255-7280
SZN01604, 2250, 2329, 2364-2365, 2374-2375, 2377-2379, 2381-2382, 2384, 2393, 2444, 2462, 2480, 2509, 2522-2524, 2528-2530, 2537-2538, 10100-10108, 10110-10111, 10114-10115, 10117-10120, 10123-10124, 10126-10139, 10144-10145, 10147-10150, 10155-10162, 10164-10179, 10182-10195, 10199, 10203-10205, 10208-10214, 10216-10220, 10226-10233, 10235-10240, 10243-10258, 10260-10270, 10275-10283, 10285-10286, 10292-10299, 10305-10306, 10308-10311, 10328, 10330-10331, 10333, 10335, 10338-10340, 10342-10349, 20101-20103, 20105, 20107, 20113-20116, 20118-20121, 20123-20131, 20134-20138, 20140, 20142-20151, 20153-20158, 20160-20161, 20163-20174, 20176-20177, 20179-20189, 20192-20199, 20201-20227, 20230-20254, 20257-20279, 20281-20311, 20322-20328, 20330-20334
120K 2 SZS01003, 1023, 1076, 1096-1097, 1103, 1119-1123, 1125-1126, 1128-1136, 1138-1139, 1141, 1143-1176, 1178-1219, 10100-10157, 10159-10210, 10212-10217, 10219-10433, 10435-10446, 20100-20294, 20297, 20299-20316, 20321-20331, 20333-20452
12K JJA03227-03229, 3233, 3236-3238, 3240-3241, 3246-3247, 3500-3501, 3504, 3508-3515, 3517, 3522-3528, 3530-3538, 3540-3544, 3546-3553, 3555-3556, 3558-3562, 3564-3603, 3606, 3608-3630, 3636-3638
SZP00581-00582
140K JPA04085-04086, 4102, 4107, 4143-4145, 4163, 4166-4167, 4171-4172, 4185, 4187-4192, 4195, 4211, 4213, 4215, 4218-4219, 4233, 4236-4237, 4240, 4243-4248, 4253-4265, 4267-4271, 4273, 4280-4282, 4284-4291, 4293-4304, 4306, 4309-4319, 4323-4325, 4327-4328, 4330-4331, 4333-4339, 4341-4352, 4354-4365, 4382-4391, 4393-4400, 4402-4406, 4408, 4427-4431, 4435, 4441-4451, 4453-4458, 4460-4463, 4465-4468, 4470-4478, 4480-4482, 4484-4494, 4496-4500, 4507-4523, 4528, 4532-4541, 4543-4550, 4552-4555, 4557-4568, 4575-4586, 4626, 4654-4656, 4662-4664, 4669-4681, 4683-4696, 4699, 4701-4725, 4727-4736, 4738-4780, 4782, 4784-4815, 4817-4860, 4862-4895, 4897-4901, 4903-4932, 4934-4943, 4945, 4954-4971, 4974-4977, 4979-4981, 4990-4992, 4994-5019, 5021, 5023-5087, 5089-5092, 5094, 5097-5107, 5109-5158, 5160-5169, 5171-5174, 5176-5184, 5186, 5188-5211, 5213-5255, 5257, 5261-5286, 5289-5296, 5300, 5302-5304, 5306, 5308-5315, 5318, 5320-5323, 5325-5329, 5332, 5334-5343, 5345-5360, 5362-5367, 5369, 5372-5374, 5376, 5379, 5381-5382, 5384-5400
SZL02968-02969, 3119, 3126, 3483, 20141-20143
140K 2 SZW00188, 199, 10105-10107, 10109-10110, 10112-10113, 20100-20106
