Information pump assy, injecti
PUMP ASSY, INJECTI
FA
- NO.84 IS DIFFERENT COMPARING WITH 196000-3260.
Nozzle:
0935005260

Rating:
KIT List:
Pump assy, injecti | 0960100541 |
Components :
001. | PUMP ASSY, INJECTI | 19600-04010 |
002. | RING SUB-ASSY, ROL | 09618-00050 |
003. | RING SUB-ASSY, ROL | 09618-00360 |
004. | COVER SUB-ASSY, TI | 09621-01320 |
005. | GOVERNOR ASSY, TOR | 09627-00090 |
006. | SHIM, PLUNGER ADJU | 09640-60020 |
007. | COVER SUB-ASSY, GO | 09644-01281 |

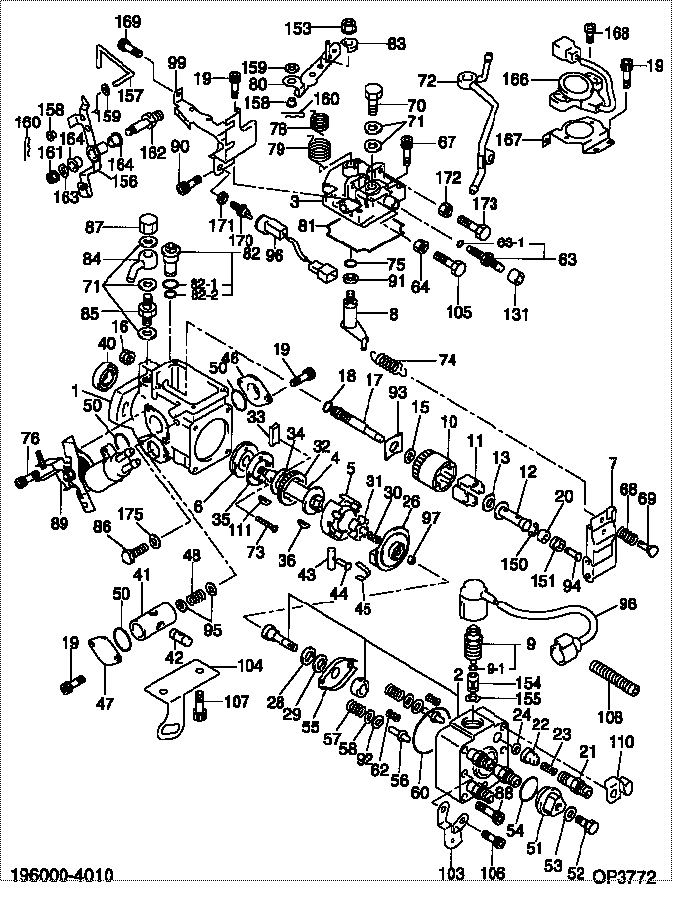

Scheme ###:
000. | [01] | 19600-04010 | PUMP ASSY, INJECTI | VS22 13 800 |
001. | [01] | 09611-01020 | HOUSING SUB-ASSY, | VS01 13 V01 |
002. | [01] | 09640-01610 | HEAD SUB-ASSY, DIS | VS10 13 V20 |
003. | [01] | 09644-01281 | COVER SUB-ASSY, GO | S5A1 13 VL1A |
004. | [01] | 09612-10050 | SHAFT, DRIVE | S501 24 031 |
005. | [01] | 09618-00360 | RING SUB-ASSY, ROL | |
005. | [01] | 09618-00050 | RING SUB-ASSY, ROL | S503 24 040 |
006. | [01] | 09614-00020 | PUMP SUB-ASSY, FUE | S501 24 020 |
007. | [01] | 09627-00090 | GOVERNOR ASSY, TOR | S501 24 200 |
008. | [01] | 09645-00531 | SHAFT SUB-ASSY, GO | VS01 13 VL3 |
009. | [01] | 09603-00540 | SOLENOID ASSY, FUE | S5A3 13 VF4 |
009-001. | [01] | 09604-90350 | O-RING | S5A1 13 VJ7 |
010. | [01] | 09626-00050 | HOLDER SUB-ASSY, F | S501 24 231 |
011. | [04] | 09626-30030 | FLYWEIGHT, DISTRIB | S501 24 232 |
012. | [1C] | 09625-21720 | SLEEVE, GOVERNOR | VS21 13 VL6 |
012. | [1C] | 09625-21730 | SLEEVE, GOVERNOR | VS22 13 VL6 |
012. | [1C] | 09625-21740 | SLEEVE, GOVERNOR | VS23 13 VL6 |
012. | [1C] | 09625-21710 | SLEEVE, GOVERNOR | |
012. | [1C] | 09625-21270 | SLEEVE, GOVERNOR | |
013. | [01] | 09626-50030 | WASHER, FLYWEIGHT | S501 24 233 |
015. | [01] | 09626-50020 | WASHER, FLYWEIGHT | S501 24 229 |
016. | [01] | 09625-40040 | NUT, GOVERNOR SHAF | |
017. | [01] | 09625-00040 | SHAFT SUB-ASSY, GO | RF10 24 222 |
018. | [01] | 94914-02930 | O-RING | S501 24 223 |
019. | [10] | 09644-90110 | BOLT, SOCKET | S5A1 13 TD4 |
020. | [01] | 09625-50020 | RING, GOVERNOR SLE | RF10 24 130 |
021. | [04] | 09643-00200 | VALVE SUB-ASSY, SN | |
022. | [04] | 09642-00530 | VALVE SUB-ASSY, DI | VS01 13 V21 |
023. | [04] | 09642-70010 | SPRING, DELIVERY V | S501 24 142 |
024. | [04] | 09642-60070 | GASKET, DELIVERY V | S5A1 13 V81 |
026. | [01] | 09623-00331 | CAMPLATE SUB-ASSY, | VS01 13 V12 |
028. | [01] | 09624-50020 | PLATE, PLUNGER, LW | S501 24 071 |
029. | [01] | 09624-40040 | PLATE, PLUNGER, UP | S501 24 072 |
030. | [01] | 09622-40040 | SPRING, COUPLING | S501 24 048 |
031. | [01] | 09622-20090 | COUPLING | VS21 13 V11 |
032. | [01] | 09612-40030 | GEAR, GOVERNOR DRI | S501 24 035 |
033. | [02] | 09612-60020 | JOINT, RUBBER | S501 24 034 |
034. | [01] | 09612-50010 | WASHER, DRIVE SHAF | S501 24 036 |
035. | [01] | 09614-70052 | COVER, FEED PUMP | VS01 13 VF1 |
036. | [01] | 94913-00260 | KEY, WOODRUFF | S501 24 032 |
040. | [01] | 09603-90020 | SEAL, 0IL | S501 24 012 |
041. | [01] | 09620-10160 | PISTON, TIMER | VS21 13 TA1 |
042. | [01] | 09621-30020 | SUB-PISTON, TIMER | S501 24 053 |
043. | [01] | 09620-50020 | PIN, TIMER SLIDE | S501 24 044 |
044. | [01] | 09621-60120 | STOPPER, TIMER SLI | S501 24 045 |
045. | [01] | 09621-10080 | CLIP, TIMER | S501 24 046 |
046. | [01] | 09621-80040 | COVER, TIMER | S501 24 057 |
047. | [01] | 09621-80270 | COVER, TIMER | VS01 13 TA5 |
048. | [1C] | 09620-80161 | SPRING, TIMER, OUT | VS01 13 TA6 |
048. | [1C] | 09620-80341 | SPRING, TIMER, OUT | VS22 13 TA3 |
048. | [1C] | 09620-80450 | SPRING, TIMER, OUT | VS21 13 TA3 |
050. | [03] | 09604-90400 | O-RING | S501 24 051 |
051. | [01] | 09641-70040 | PLUG, DISTRIBUTIVE | S501 24 151 |
052. | [01] | 09641-80020 | BOLT, DISTRIBUTIVE | S501 24 152 |
053. | [01] | 09642-60030 | GASKET, DELIVERY V | |
054. | [01] | 09604-90510 | O-RING | S501 24 153 |
055. | [01] | 09624-70010 | SHEET, PLUNGER SPR | S501 24 073 |
056. | [02] | 09623-70010 | GUIDE SUB-ASSY, PL | S501 24 076 |
057. | [02] | 09623-60040 | SPRING, PLUNGER | RF10 24 074 |
058. | [02] | 09624-60010 | SHEET, PLUNGER SPR | S501 24 075 |
060. | [01] | 94914-02980 | O-RING | S501 24 105 |
062. | [02] | 09627-90010 | SPRING, LEVER SUPP | S501 24 078 |
063. | [01] | 09648-00010 | SMOKE SET SUB-ASSY | VS01 13 VM2 |
063-001. | [01] | 09604-90470 | O-RING | S501 24 196 |
064. | [01] | 09634-20010 | NUT, LOCK | S501 24 182 |
067. | [04] | 09644-90020 | BOLT, SOCKET | S501 24 163 |
068. | [01] | 09628-90520 | SPRING, GOVERNOR I | VS10 13 T53 |
069. | [01] | 09626-70030 | SHEET, GOVERNOR SP | S501 24 261 |
070. | [01] | 09602-00030 | SCREW SUB-ASSY, OV | S501 24 280 |
071. | [05] | 09024-10010 | WASHER, AIR BLEEDE | S501 24 283 |
072. | [01] | 09221-80690 | NIPPLE SUB-ASSY, S | VS21 13 VH6 |
073. | [02] | 94900-20420 | SCREW, COUNTERSUNK | S501 24 024 |
074. | [01] | 09626-10170 | SPRING, SPEED CONT | VS20 13 VS7 |
075. | [01] | 09604-90300 | O-RING | S501 24 171 |
076. | [02] | 09644-90100 | BOLT, SOCKET | VS01 13 TP3 |
078. | [01] | 09644-41380 | SPRING, RETURN | VS10 13 T44 |
079. | [01] | 09644-41370 | SPRING, RETURN | VS10 13 T45 |
080. | [1C] | 09643-55800 | LEVER SUB-ASSY, AD | VS10 13 VR3 |
080. | [1C] | 09643-55790 | LEVER SUB-ASSY, AD | VS10 13 VR2 |
080. | [1C] | 09643-55780 | LEVER SUB-ASSY, AD | VS10 13 VR1 |
081. | [01] | 09644-60100 | GASKET, GOVERNOR C | S501 24 162 |
082. | [01] | 09616-00050 | VALVE SUB-ASSY, RE | S501 24 270 |
082-001. | [01] | 09604-90180 | O-RING | S501 24 271 |
082-002. | [01] | 09604-90500 | O-RING | S501 24 272 |
083. | [01] | 09644-50140 | GUIDE, RETURN SPRI | |
084. | [01] | 09221-80790 | NIPPLE SUB-ASSY, S | |
085. | [01] | 94918-00770 | SCREW, HOLLOW | RF66 13 VG7 |
086. | [02] | 09626-90020 | BOLT, GOVERNOR LIN | S501 24 201 |
087. | [01] | 94905-50300 | NUT, CAP | RF66 13 VX7 |
088. | [04] | 09644-90070 | BOLT, SOCKET | |
089. | [01] | 09621-01320 | COVER SUB-ASSY, TI | VS21 13 TP0 |
090. | [01] | 09644-90250 | BOLT, SOCKET | VS01 13 TP2 |
091. | [01] | 09627-30140 | WASHER, GOVERNOR T | |
092. | [2C] | 09624-80150 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80170 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80180 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80190 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80200 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80210 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80220 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80230 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80240 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80250 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80140 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80130 | SHIM, PLUNGER SPRI | |
092. | [2C] | 09624-80110 | SHIM, PLUNGER SPRI | S501 24 092 |
092. | [2C] | 09624-80010 | SHIM, PLUNGER SPRI | S501 24 081 |
092. | [2C] | 09624-80020 | SHIM, PLUNGER SPRI | S501 24 082 |
092. | [2C] | 09624-80030 | SHIM, PLUNGER SPRI | S501 24 083 |
092. | [2C] | 09624-80040 | SHIM, PLUNGER SPRI | S501 24 084 |
092. | [2C] | 09624-80050 | SHIM, PLUNGER SPRI | S501 24 085 |
092. | [2C] | 09624-80060 | SHIM, PLUNGER SPRI | S501 24 086 |
092. | [2C] | 09624-80070 | SHIM, PLUNGER SPRI | S501 24 087 |
092. | [2C] | 09624-80080 | SHIM, PLUNGER SPRI | S501 24 088 |
092. | [2C] | 09624-80090 | SHIM, PLUNGER SPRI | S501 24 089 |
092. | [2C] | 09624-80100 | SHIM, PLUNGER SPRI | S501 24 091 |
093. | [1C] | 09626-60290 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60300 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60310 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60320 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60330 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60340 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60280 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60270 | WASHER, GOVERNOR G | |
093. | [1C] | 09626-60160 | WASHER, GOVERNOR G | S501 24 249 |
093. | [1C] | 09626-60100 | WASHER, GOVERNOR G | S501 24 224 |
093. | [1C] | 09626-60110 | WASHER, GOVERNOR G | S501 24 225 |
093. | [1C] | 09626-60120 | WASHER, GOVERNOR G | S501 24 226 |
093. | [1C] | 09626-60130 | WASHER, GOVERNOR G | S501 24 227 |
093. | [1C] | 09626-60140 | WASHER, GOVERNOR G | S501 24 228 |
093. | [1C] | 09626-60150 | WASHER, GOVERNOR G | S501 24 248 |
094. | [1C] | 09625-60570 | PLUG, GOVERNOR SLE | RF10 24 629 |
094. | [1C] | 09625-60580 | PLUG, GOVERNOR SLE | RF10 24 630 |
094. | [1C] | 09625-60590 | PLUG, GOVERNOR SLE | RF10 24 631 |
094. | [1C] | 09625-60600 | PLUG, GOVERNOR SLE | RF10 24 632 |
094. | [1C] | 09625-60610 | PLUG, GOVERNOR SLE | RF10 24 633 |
094. | [1C] | 09625-60620 | PLUG, GOVERNOR SLE | RF10 24 634 |
094. | [1C] | 09625-60560 | PLUG, GOVERNOR SLE | RF10 24 628 |
094. | [1C] | 09625-60550 | PLUG, GOVERNOR SLE | RF10 24 627 |
094. | [1C] | 09625-60460 | PLUG, GOVERNOR SLE | S501 13 VP2 |
094. | [1C] | 09625-60400 | PLUG, GOVERNOR SLE | RF10 24 622 |
094. | [1C] | 09625-60410 | PLUG, GOVERNOR SLE | RF10 24 623 |
094. | [1C] | 09625-60420 | PLUG, GOVERNOR SLE | RF10 24 624 |
094. | [1C] | 09625-60430 | PLUG, GOVERNOR SLE | RF10 24 625 |
094. | [1C] | 09625-60440 | PLUG, GOVERNOR SLE | RF10 24 626 |
094. | [1C] | 09625-60450 | PLUG, GOVERNOR SLE | S501 13 VP1 |
095. | [2C] | 09621-40100 | WASHER, TIMER SENS | 4782 13 TE7 |
095. | [2C] | 09621-40090 | WASHER, TIMER SENS | 4782 13 TE6 |
095. | [2C] | 09621-40080 | WASHER, TIMER SENS | 4782 13 TE5 |
095. | [2C] | 09621-40070 | WASHER, TIMER SENS | 4782 13 TE4 |
095. | [2C] | 09621-40060 | WASHER, TIMER SENS | 4782 13 TE3 |
095. | [2C] | 09621-40050 | WASHER, TIMER SENS | 4782 13 TE2 |
095. | [2C] | 09621-40040 | WASHER, TIMER SENS | 4782 13 TE1 |
096. | [01] | 09604-50972 | WIRE SUB-ASSY | VS20 13 VZ9 |
097. | [1C] | 09640-60520 | SHIM, PLUNGER ADJU | S501 24 122 |
097. | [1C] | 09640-60420 | SHIM, PLUNGER ADJU | S501 24 119 |
097. | [1C] | 09640-60270 | SHIM, PLUNGER ADJU | S501 24 116 |
097. | [1C] | 09640-60170 | SHIM, PLUNGER ADJU | S501 24 114 |
097. | [1C] | 09640-60020 | SHIM, PLUNGER ADJU | S501 24 111 |
098. | [01] | 09604-50981 | WIRE SUB-ASSY | |
099. | [01] | 09647-11150 | BRACKET SUB-ASSY, | VS21 13 VV7 |
103. | [01] | 09643-82480 | BRACKET, IDLE UP | VS01 13 V03 |
104. | [01] | 09643-80080 | BRACKET, IDLE UP | S501 24 147 |
105. | [01] | 94904-50190 | BOLT, HEXAGON, W/ | |
106. | [02] | 09644-90260 | BOLT, SOCKET | VS01 13 V53 |
107. | [02] | 09644-90151 | BOLT, SOCKET | S5A1 13 V51 |
108. | [01] | 09071-60200 | COVER | VS01 13 VH8 |
110. | [01] | 09602-90990 | CLIP, CONNECTOR SU | S5A1 13 VH3 |
111. | [01] | 94913-00410 | KEY, WOODRUFF | VS01 13 V29 |
131. | [01] | 09644-80111 | COLLAR, SMOKE SET | S501 24 197 |
150. | [01] | 90577-02000 | E-RING | RF10 24 235 |
151. | [01] | 94910-02860 | BEARING, BALL | RF10 24 467 |
153. | [01] | 94905-61680 | NUT | S5A1 13 VY1 |
154. | [01] | 09653-00071 | FILTER, SUB-ASSY | S5A1 13 VF5 |
155. | [01] | 09606-40110 | WASHER | S5A1 13 VK3 |
156. | [01] | 09643-57030 | LEVER SUB-ASSY, AD | VS21 13 VR0 |
157. | [1C] | 09646-51110 | R0D, PUSH | VS23 13 VZ7 |
157. | [1C] | 09646-51100 | R0D, PUSH | VS22 13 VZ7 |
157. | [1C] | 09646-51090 | R0D, PUSH | VS21 13 VZ7 |
158. | [02] | 09611-70520 | BUSHING | S501 13 VW2 |
159. | [02] | 90200-04331 | WASHER, PLATE | S501 24 332 |
160. | [02] | 09645-50070 | PIN, LEVER CONECTI | RFP1 13 V26 |
161. | [01] | 94905-63320 | NUT | VS10 13 VX8 |
162. | [01] | 09645-20130 | SHAFT, LEVER | S501 24 321A |
163. | [01] | 94901-35800 | WASHER, PLATE, SK | S501 24 329 |
164. | [02] | 09611-70430 | BUSHING | S501 24 333 |
166. | [01] | 19850-05060 | SENSOR, ROTARY POS | |
167. | [01] | 09643-82990 | BRACKET, IDLE UP | VS20 13 TN2 |
168. | [02] | 91370-04121 | SCREW, W/WASHER | RFP1 13 TN3 |
169. | [01] | 09644-90100 | BOLT, SOCKET | VS01 13 TP3 |
170. | [01] | 09009-00320 | SWITCH SUB-ASSY, C | PN41 13 XH0 |
171. | [01] | 09634-20060 | NUT, LOCK | RFP1 13 VX7 |
172. | [01] | 90166-06051 | NUT, HEXAGON | S501 24 176 |
173. | [01] | 94904-50180 | BOLT, HEXAGON, W/ | |
175. | [02] | 09642-60130 | GASKET, DELIVERY V |
Include in #3:
19600-04010
as PUMP ASSY, INJECTI
Cross reference number
Part num | Firm num | Firm | Name |
19600-04010 | VS22 13 80 | PUMP ASSY, INJECTI | |
VS22 13 800 | MAZDA | PUMP ASSY, INJECTI |
Information:
ENGINES
COMPACTORS
MOTOR GRADERS
OFF-HIGHWAY TRUCKS
TRACK-TYPE TRACTORS
WHEEL LOADERS
WHEEL TRACTORS
WHEEL-TRACTOR SCRAPERS
PAVING PRODUCTS
3408E (7PR),
3412E (4CR) INDUSTRIAL ENGINES;
836 (7FR) COMPACTORS;
24H (7KK) MOTOR GRADERS;
669D (5TR),
771D (6JR),
773D (7ER),
775D (6KR) OFF-HIGHWAY TRUCKS;
D9R (7TL, 8BL),
D10R (3KR) TRACK-TYPE TRACTORS;
988F (2ZR),
990 (4FR),
WHEEL LOADERS;
834B (7BR) WHEEL TRACTORS;
631E (1AB),
633E (2PS),
637E (1FB),
651E (4YR),
657E (5YR, 6TR, 7KR),
WHEEL-TRACTOR SCRAPERS;
PM565 (3TK) COLD PLANERSTHIS TIB REPLACES THE JULY 2, 1997 ENGINE TIB, COMPONENT CODE 1290. EXCESSIVE OIL LEAKAGE FROM HYDRAULICALLY ACTUATED ELECTRONIC UNIT INJECTORS (HEUI). DESTROY THE JULY 2, 1997 TIB. IT WILL NOT APPEAR IN THE QUARTERLY INDEX.Problem:
Some of the 3408E (99C) and 3412E (80M) Engines in these machines and some 3408E (7PR) and 3412E (4CR) Industrial Engines may experience hard starting or low power due to oil leaking past the poppet valve in the injector. The oil leakage is caused by the operating conditions at either low or high idle. Excessive oil leakage can reduce actuation pressure to the fuel injector. This may prevent fuel injection. Solution:
First, be sure to go through the normal trouble shooting procedures ("Engine Cranks, But Will Not Start" and "Consistent Low Power or Poor Response To Throttle") for the machine you are troubleshooting. If the problem is not located, and the symptoms (hard starting and/or low power) continue, remove the engine valve covers. Electrically disable the injectors. Crank the engine and watch the injector oil spill ports (see Illustration) for oil leakage. A small amount of oil leakage is acceptable, but a continuous stream of oil may mean poppet valve leakage. Excessive poppet valve leakage may prevent fuel injection. Injection actuation oil pressure will be less than 5 MPa (725 psi) during cranking because of excessive injector oil leakage. Do NOT change the oil pump.Injectors that leak a continuous stream of oil from the oil spill ports should be replaced. This does NOT justify wholesale replacement of injectors. Replace ONLY the injectors that leak a continuous stream of oil from the oil spill ports.
(TOP VIEW OF INSTALLED INJECTOR) The black arrow points to the oil drain port. On some engines, the oil drain port is relocated underneath. This will direct the oil flow downward. Excess oil leakage will still be visible on the cylinder head.COPYRIGHT 1997 CATERPILLAR ALL RIGHTS RESERVED
COMPACTORS
MOTOR GRADERS
OFF-HIGHWAY TRUCKS
TRACK-TYPE TRACTORS
WHEEL LOADERS
WHEEL TRACTORS
WHEEL-TRACTOR SCRAPERS
PAVING PRODUCTS
3408E (7PR),
3412E (4CR) INDUSTRIAL ENGINES;
836 (7FR) COMPACTORS;
24H (7KK) MOTOR GRADERS;
669D (5TR),
771D (6JR),
773D (7ER),
775D (6KR) OFF-HIGHWAY TRUCKS;
D9R (7TL, 8BL),
D10R (3KR) TRACK-TYPE TRACTORS;
988F (2ZR),
990 (4FR),
WHEEL LOADERS;
834B (7BR) WHEEL TRACTORS;
631E (1AB),
633E (2PS),
637E (1FB),
651E (4YR),
657E (5YR, 6TR, 7KR),
WHEEL-TRACTOR SCRAPERS;
PM565 (3TK) COLD PLANERSTHIS TIB REPLACES THE JULY 2, 1997 ENGINE TIB, COMPONENT CODE 1290. EXCESSIVE OIL LEAKAGE FROM HYDRAULICALLY ACTUATED ELECTRONIC UNIT INJECTORS (HEUI). DESTROY THE JULY 2, 1997 TIB. IT WILL NOT APPEAR IN THE QUARTERLY INDEX.Problem:
Some of the 3408E (99C) and 3412E (80M) Engines in these machines and some 3408E (7PR) and 3412E (4CR) Industrial Engines may experience hard starting or low power due to oil leaking past the poppet valve in the injector. The oil leakage is caused by the operating conditions at either low or high idle. Excessive oil leakage can reduce actuation pressure to the fuel injector. This may prevent fuel injection. Solution:
First, be sure to go through the normal trouble shooting procedures ("Engine Cranks, But Will Not Start" and "Consistent Low Power or Poor Response To Throttle") for the machine you are troubleshooting. If the problem is not located, and the symptoms (hard starting and/or low power) continue, remove the engine valve covers. Electrically disable the injectors. Crank the engine and watch the injector oil spill ports (see Illustration) for oil leakage. A small amount of oil leakage is acceptable, but a continuous stream of oil may mean poppet valve leakage. Excessive poppet valve leakage may prevent fuel injection. Injection actuation oil pressure will be less than 5 MPa (725 psi) during cranking because of excessive injector oil leakage. Do NOT change the oil pump.Injectors that leak a continuous stream of oil from the oil spill ports should be replaced. This does NOT justify wholesale replacement of injectors. Replace ONLY the injectors that leak a continuous stream of oil from the oil spill ports.
(TOP VIEW OF INSTALLED INJECTOR) The black arrow points to the oil drain port. On some engines, the oil drain port is relocated underneath. This will direct the oil flow downward. Excess oil leakage will still be visible on the cylinder head.COPYRIGHT 1997 CATERPILLAR ALL RIGHTS RESERVED
