19600-02260 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935006180
19600-02260 PUMP ASSY, INJECTI
Rating:
66
Buy PUMP ASSY, INJECTI 19600-02260 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100561

Components :

001. PUMP ASSY, INJECTI 19600-02260
002. RING SUB-ASSY, ROL 09618-00050
003. COVER SUB-ASSY, TI 09621-00931
004. GOVERNOR ASSY, TOR 09627-01120
005. SHIM, PLUNGER ADJU 09640-60020
006. COMPENSATOR SUB-AS 09649-01450
007. COVER SUB-ASSY, GO 09644-01160

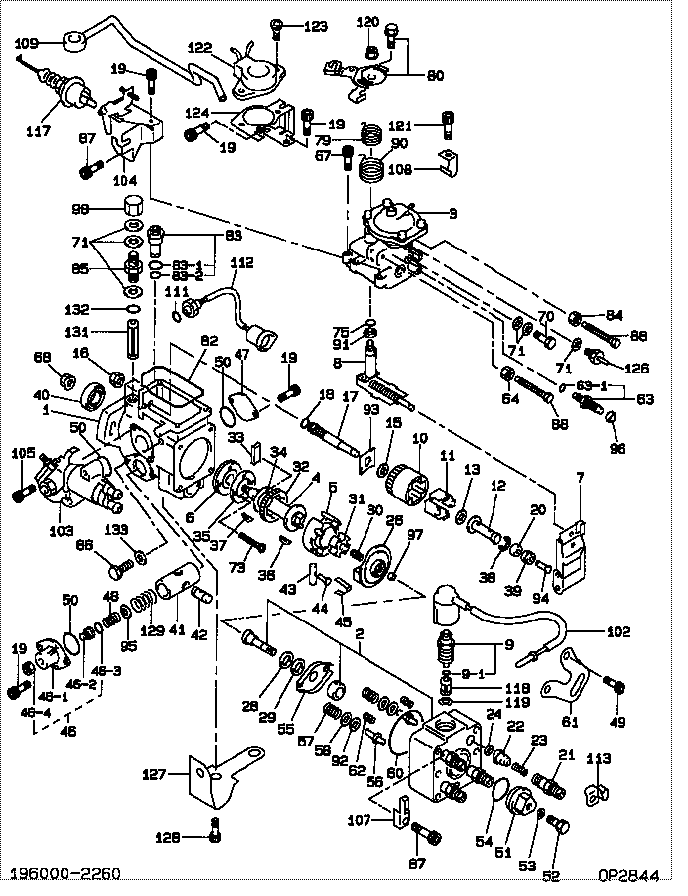

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 19600-02260 PUMP ASSY, INJECTI 22100-6E200
001. [01] 09611-00292 HOUSING SUB-ASSY, 22101-54260
002. [01] 09640-01360 HEAD SUB-ASSY, DIS 22140-6D050
003. [01] 09649-01450 COMPENSATOR SUB-AS 22540-6D830
004. [01] 09612-10100 SHAFT, DRIVE 22170-6A510
005. [01] 09618-00050 RING SUB-ASSY, ROL 22108-54180
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
007. [01] 09627-01120 GOVERNOR ASSY, TOR 22350-6D480
008. [01] 09646-01710 SHAFT SUB-ASSY, SP 22302-6D810
009. [01] 09603-00520 SOLENOID ASSY, FUE 22390-6A511
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010
012. [1C] 09625-21260 SLEEVE, GOVERNOR 22316-6D090
012. [1C] 09625-21270 SLEEVE, GOVERNOR 22316-55240
012. [1C] 09625-21280 SLEEVE, GOVERNOR 22316-5C080
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020
018. [01] 94914-02930 O-RING 90099-14049
019. [09] 09644-90110 BOLT, SOCKET 22395-56351
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
021. [04] 09643-00180 VALVE SUB-ASSY, SN 22190-6A680
022. [04] 09642-00640 VALVE SUB-ASSY, DI 22104-6D310
023. [04] 09642-70010 SPRING, DELIVERY V 22148-54010
024. [04] 09642-60070 GASKET, DELIVERY V 22149-56351
026. [01] 09623-00250 CAMPLATE SUB-ASSY, 22130-6A770
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
030. [01] 09622-40040 SPRING, COUPLING 22659-64150
031. [01] 09622-20020 COUPLING 22632-54010
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
035. [01] 09614-70040 COVER, FEED PUMP 22511-54020
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
038. [01] 90577-02000 E-RING 90096-90024
039. [01] 94910-02860 BEARING, BALL 90099-10148
040. [01] 09603-90040 SEAL, 0IL 22544-64740
041. [01] 09619-01230 PISTON ASSY, TIMER 22582-5C150
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
045. [01] 09621-10080 CLIP, TIMER 22656-17840
046. [01] 09621-00870 COVER SUB-ASSY, TI 22790-17020
046-001. [01] 09621-80870 COVER, TIMER 22612-17020
046-002. [01] 09621-60110 STOPPER, TIMER SLI 22658-17020
046-003. [01] 09604-90290 O-RING 22193-17020
046-004. [01] 94905-05010 NUT, HEXAGON 90099-05225
047. [01] 09621-80270 COVER, TIMER 22612-56350
048. [1C] 09620-81410 SPRING, TIMER, OUT 22615-18020
048. [1C] 09620-81350 SPRING, TIMER, OUT 22615-18022
048. [1C] 09620-81340 SPRING, TIMER, OUT 22615-17021
048. [1C] 09620-81330 SPRING, TIMER, OUT 22615-18021
048. [1C] 09620-81320 SPRING, TIMER, OUT 22615-17020
049. [02] 09644-90140 BOLT, SOCKET 22395-56350
050. [03] 09604-90400 O-RING 22193-17840
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
052. [01] 09641-80020 BOLT, DISTRIBUTIVE 22128-54010
053. [01] 09642-60030 GASKET, DELIVERY V 22149-56200
054. [01] 09604-90510 O-RING 22193-54772
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-54010
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-54010
057. [02] 09623-60040 SPRING, PLUNGER 22144-54190
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-54010
060. [01] 94914-02980 O-RING 90099-14053
061. [01] 09643-80110 BRACKET, IDLE UP 22178-64010
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
063. [01] 09648-00010 SMOKE SET SUB-ASSY
063-001. [01] 09604-90470 O-RING 22193-54771
064. [01] 90166-06051 NUT, HEXAGON 90092-10608
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
068. [01] 94905-62390 NUT 90099-05166
070. [01] 09602-00030 SCREW SUB-ASSY, OV 22160-64010
071. [06] 09024-10010 WASHER, AIR BLEEDE 22119-77020
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
075. [01] 09604-90300 O-RING 22193-54770
079. [01] 09644-40670 SPRING, RETURN 22322-6A221
080. [1C] 09643-53930 LEVER SUB-ASSY, AD 22701-6D050
080. [1C] 09643-53940 LEVER SUB-ASSY, AD 22701-6D051
082. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
083. [01] 09616-00030 VALVE SUB-ASSY, RE 22180-54010
083-001. [01] 09604-90180 O-RING 22193-54561
083-002. [01] 09604-90500 O-RING
084. [01] 09634-20010 NUT, LOCK 22775-77121
085. [01] 94918-00770 SCREW, HOLLOW 90099-18022
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
087. [05] 09644-90070 BOLT, SOCKET 22395-58200
088. [02] 94904-50210 BOLT, HEXAGON, W/ 90099-04954
090. [01] 09644-40760 SPRING, RETURN 22322-6A230
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
094. [1C] 09625-60520 PLUG, GOVERNOR SLE 22787-64680
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60500 PLUG, GOVERNOR SLE 22787-54033
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60460 PLUG, GOVERNOR SLE 22787-54029
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60400 PLUG, GOVERNOR SLE 22787-64641
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60420 PLUG, GOVERNOR SLE 22787-64643
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60440 PLUG, GOVERNOR SLE 22787-54027
095. [01] 09621-40180 WASHER, TIMER SENS 22625-17020
096. [01] 09644-80111 COLLAR, SMOKE SET
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
098. [01] 94905-50300 NUT, CAP 90099-05161
102. [01] 09604-50380 WIRE SUB-ASSY 22751-6A041
103. [01] 09621-00931 COVER SUB-ASSY, TI 22790-6D480
104. [01] 09647-00480 IDLE UP SUB-ASSY 22305-6D480
105. [02] 09644-90100 BOLT, SOCKET 22395-56352
107. [01] 09602-90950 CLIP, CONNECTOR SU 22172-6A330
108. [01] 09602-90251 CLIP, CONNECTOR SU 22172-64150
109. [01] 09221-80010 NIPPLE SUB-ASSY, S 22548-64150
111. [01] 09604-90190 O-RING 22193-64750
112. [01] 07630-01950 PICKUP ASSY, TACHO 83180-32020
113. [01] 09602-90350 CLIP, CONNECTOR SU 22172-64230
117. [01] 09647-20600 ACTUATOR SET, IDLE 88031-27040
118. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350
119. [01] 09606-40110 WASHER 22689-56350
120. [01] 94905-61680 NUT 90179-06009
121. [01] 09644-90130 BOLT, SOCKET 22395-54263
121. [01] 09644-90110 BOLT, SOCKET 22395-56351
122. [01] 19850-05071 SENSOR, ROTARY POS 89452-20120
123. [02] 91370-04121 SCREW, W/WASHER 93315-14012
124. [01] 09647-10690 BRACKET SUB-ASSY, 22601-6D670
126. [01] 09602-10090 SCREW, OVERFLOW 22569-67050
127. [01] 14652-04562 BRACKET SUB-ASSY 16269-64030
128. [02] 09644-90310 BOLT, SOCKET 22395-6D810
129. [01] 09620-81370 SPRING, TIMER, OUT 22615-17030
131. [01] 09653-00111 FILTER, SUB-ASSY 22602-5B320
132. [01] 09604-90460 O-RING 22193-5B320
133. [02] 09642-60130 GASKET, DELIVERY V 22149-54771

Include in #3:

19600-02260 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
19600-02260  22100-6E20  PUMP ASSY, INJECTI
22100-6E200    TOYOTA PUMP ASSY, INJECTI
