19600-00930 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935005550
19600-00930 PUMP ASSY, INJECTI
Rating:
11
Buy PUMP ASSY, INJECTI 19600-00930 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100561

Components :

001. PUMP ASSY, INJECTI 19600-00930
002. RING SUB-ASSY, ROL 09618-00230
003. COVER SUB-ASSY, TI 09621-00910
004. GOVERNOR ASSY, TOR 09627-01050
005. SHIM, PLUNGER ADJU 09640-60020
006. COMPENSATOR SUB-AS 09649-01160

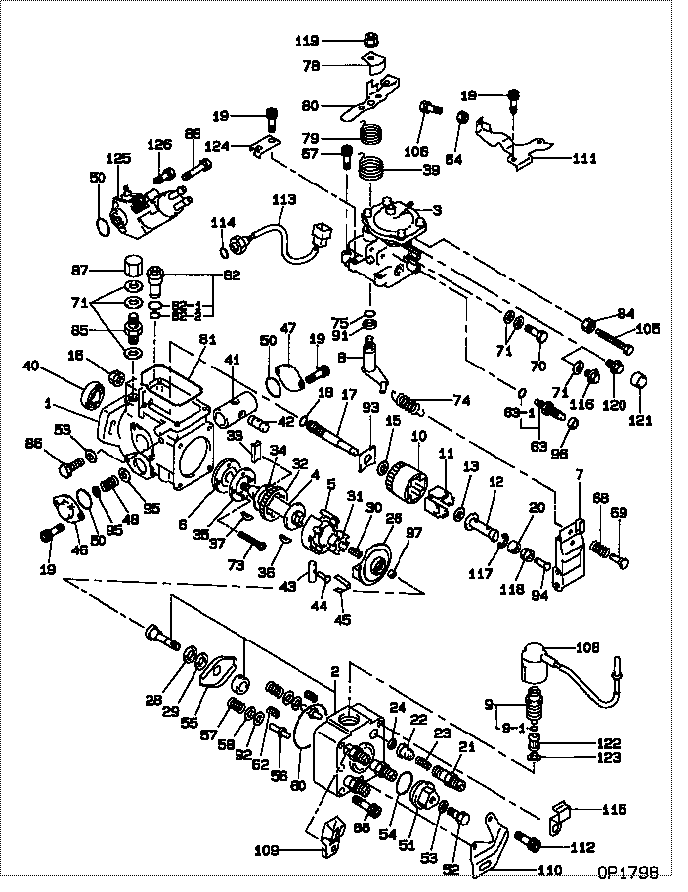

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 19600-00930 PUMP ASSY, INJECTI 22100-87622-000
001. [01] 09611-00910 HOUSING SUB-ASSY, 22101-87604-000
002. [01] 09640-01030 HEAD SUB-ASSY, DIS 22140-87601-000
003. [01] 09649-01160 COMPENSATOR SUB-AS 22540-87606-000
004. [01] 09612-10070 SHAFT, DRIVE 22170-54180-000
005. [01] 09618-00230 RING SUB-ASSY, ROL 22108-87602-000
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010-000
007. [01] 09627-01050 GOVERNOR ASSY, TOR 22350-87601-000
008. [01] 09645-00100 SHAFT SUB-ASSY, GO 22740-54490-000
009. [01] 09603-00520 SOLENOID ASSY, FUE
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020-000
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-87701-000
012. [01] 09625-20230 SLEEVE, GOVERNOR 22316-87302-000
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-87703-000
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010-000
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470-000
017. [01] 09625-10020 SHAFT, GOVERNOR MA 22384-87301-000
018. [01] 94914-02930 O-RING 22541-87703-000
019. [07] 09644-90110 BOLT, SOCKET 22395-56351-000
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290-000
021. [04] 09643-00150 VALVE SUB-ASSY, SN 22190-6A290-000
022. [04] 09642-00540 VALVE SUB-ASSY, DI 22104-87601-000
023. [04] 09642-70010 SPRING, DELIVERY V 22148-87701-000
024. [04] 09642-60070 GASKET, DELIVERY V 22149-87601-000
026. [01] 09623-00070 CAMPLATE SUB-ASSY, 22130-54010-000
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010-000
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010-000
030. [01] 09622-40040 SPRING, COUPLING 22228-87701-000
031. [01] 09622-20020 COUPLING 22632-87701-000
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010-000
033. [02] 09612-60020 JOINT, RUBBER 22169-54180-000
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010-000
035. [01] 09614-70040 COVER, FEED PUMP 22511-87701-000
036. [01] 94913-00260 KEY, WOODRUFF 22353-87702-000
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018-000
039. [01] 09644-40401 SPRING, RETURN 22322-64361-000
040. [01] 09603-90040 SEAL, 0IL 22544-64740-000
041. [01] 09620-10560 PISTON, TIMER 22654-56350-000
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010-000
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010-000
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840-000
045. [01] 09621-10080 CLIP, TIMER 22656-17840-000
046. [01] 09621-80040 COVER, TIMER 22612-87702-000
047. [01] 09621-80270 COVER, TIMER 22612-87601-000
048. [1C] 09620-80120 SPRING, TIMER, OUT 22615-87702-000
048. [1C] 09620-80161 SPRING, TIMER, OUT 22615-54180-000
048. [1C] 09620-80180 SPRING, TIMER, OUT 22615-54413-000
050. [03] 94914-05820 O-RING 90099-14105-000
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020-000
052. [01] 09641-80020 BOLT, DISTRIBUTIVE 22128-87701-000
053. [03] 09642-60030 GASKET, DELIVERY V 22149-87702-000
054. [01] 09604-90510 O-RING 22193-54772-000
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-87701-000
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-87701-000
057. [02] 09623-60030 SPRING, PLUNGER 22144-54180-000
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-87701-000
060. [01] 94914-02980 O-RING 22541-87706-000
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010-000
063. [01] 09648-00010 SMOKE SET SUB-ASSY 22776-87601-000
063-001. [01] 94914-02900 O-RING 22541-87701-000
064. [01] 90166-06051 NUT, HEXAGON 90092-10608-000
067. [04] 09644-90020 BOLT, SOCKET 22395-54010-000
068. [01] 09628-90020 SPRING, GOVERNOR I 22317-87701-000
069. [01] 09626-70030 SHEET, GOVERNOR SP 22369-54010-000
070. [01] 09602-00030 SCREW SUB-ASSY, OV 22160-87701-000
071. [06] 09024-10010 WASHER, AIR BLEEDE 22119-77020-000
073. [02] 94900-20420 SCREW, COUNTERSUNK 22226-87701-000
074. [01] 09626-10041 SPRING, SPEED CONT 22726-54010-000
075. [01] 09604-90300 O-RING 22193-54770-000
078. [01] 09644-50140 GUIDE, RETURN SPRI 22728-87303-000
079. [01] 09644-40390 SPRING, RETURN 22322-64360-000
080. [1C] 09643-62730 LEVER, ADJUSTING 22708-87301-000
080. [1C] 09643-62740 LEVER, ADJUSTING 22708-87302-000
081. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270-000
082. [01] 09616-00050 VALVE SUB-ASSY, RE 22180-58200-000
082-001. [01] 09604-90180 O-RING 22292-87703-000
082-002. [01] 94914-02920 O-RING 90099-14080-000
084. [01] 09634-20010 NUT, LOCK 22775-87701-000
085. [01] 94918-00770 SCREW, HOLLOW 90099-18022-000
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020-000
087. [01] 94905-50300 NUT, CAP 90099-05161-000
088. [05] 09644-90070 BOLT, SOCKET 22395-58200-000
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010-000
092. [2C] 09624-80220 SHIM, PLUNGER SPRI 22182-87303-000
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013-000
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012-000
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011-000
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010-000
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010-000
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010-000
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010-000
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010-000
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010-000
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010-000
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010-000
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G 22715-87301-000
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G 22714-87303-000
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010-000
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010-000
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010-000
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010-000
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010-000
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
094. [1C] 09625-60620 PLUG, GOVERNOR SLE 22787-64667-000
094. [1C] 09625-60610 PLUG, GOVERNOR SLE 22787-64666-000
094. [1C] 09625-60600 PLUG, GOVERNOR SLE 22787-64665-000
094. [1C] 09625-60590 PLUG, GOVERNOR SLE 22787-64664-000
094. [1C] 09625-60580 PLUG, GOVERNOR SLE 22787-64663-000
094. [1C] 09625-60570 PLUG, GOVERNOR SLE 22787-64662-000
094. [1C] 09625-60560 PLUG, GOVERNOR SLE 22787-64661-000
094. [1C] 09625-60550 PLUG, GOVERNOR SLE 22787-64660-000
094. [1C] 09625-60400 PLUG, GOVERNOR SLE 22787-64641-000
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642-000
094. [1C] 09625-60420 PLUG, GOVERNOR SLE 22787-64643-000
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026-000
094. [1C] 09625-60440 PLUG, GOVERNOR SLE 22787-54027-000
095. [2C] 09621-40200 WASHER, TIMER SENS
095. [2C] 09621-40100 WASHER, TIMER SENS 22625-54277-000
095. [2C] 09621-40090 WASHER, TIMER SENS 22625-54276-000
095. [2C] 09621-40080 WASHER, TIMER SENS 22625-54275-000
095. [2C] 09621-40070 WASHER, TIMER SENS 22625-54274-000
095. [2C] 09621-40060 WASHER, TIMER SENS 22625-54273-000
095. [2C] 09621-40050 WASHER, TIMER SENS 22625-54272-000
095. [2C] 09621-40040 WASHER, TIMER SENS 22625-87702-000
095. [2C] 09621-40030 WASHER, TIMER SENS 22625-87701-000
096. [01] 09644-80111 COLLAR, SMOKE SET 22749-87701-000
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018-000
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015-000
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013-000
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010-000
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020-000
105. [01] 94904-50210 BOLT, HEXAGON, W/ 22389-87705-000
106. [01] 94904-50180 BOLT, HEXAGON, W/ 22389-87702-000
108. [01] 09604-50100 WIRE SUB-ASSY 22751-64010-000
109. [01] 09602-90110 CLIP, CONNECTOR SU 22172-64040-000
110. [01] 09643-81731 BRACKET, IDLE UP 22178-87307-000
111. [01] 09647-10210 BRACKET SUB-ASSY, 22178-87306-000
112. [02] 09644-90140 BOLT, SOCKET 22395-56350-000
113. [01] 07630-01710 PICKUP ASSY, TACHO 83275-87701-000
114. [01] 09604-90190 O-RING 22193-64750-000
115. [01] 09602-91160 CLIP, CONNECTOR SU 22172-87602-000
116. [01] 09116-70031 PLUG, SCREW 22446-47030-000
117. [01] 90577-02000 E-RING 22365-87702-000
118. [01] 94910-02860 BEARING, BALL 22694-87702-000
119. [01] 94905-61680 NUT 90179-06009-000
120. [01] 09602-00110 SCREW SUB-ASSY, OV 22160-87702-000
121. [01] 09646-80300 CAP RUBBER 22777-87303-000
122. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350-000
123. [01] 09606-40110 WASHER 22689-56350-000
124. [01] 09602-91440 CLIP, CONNECTOR SU 22172-87605-000
125. [01] 09621-00910 COVER SUB-ASSY, TI 22790-87604-000
126. [02] 09644-90100 BOLT, SOCKET 22395-87602-000

Include in #3:

19600-00930 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
19600-00930  22100-8762  PUMP ASSY, INJECTI
22100-87622-000    DAIHATSU PUMP ASSY, INJECTI




Information:


18Nov2014
A-508
D-601
O-593
After Failure Only
PRODUCT SUPPORT PROGRAM FOR REPLACING THE FUEL INJECTORS ON CERTAIN 320D 2 EXCAVATORS
1252 1290 PS52817
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS52817" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
30Nov2016
PROBLEM
Under some circumstances, certain 320D 2 Excavators can be hard to start when at normal operating temperature. When this problem occurs the machine displays the symptom of hard to start only when attempting to restart the engine 5 to 30 minutes after engine shut down.
Cold starting and general performance are not affected.
AFFECTED PRODUCT
Model Identification Number
320D 2 DFM00149-00558, 560-624, 638-946, 951-954, 975
DNP00252-00495, 497-503, 510, 513, 518
FKK00281-00360
GBA00132-01650
LMA00251-00828
TMF00192-00539
YEA00182-00555
320D 2GC JFM00175-01088
320D 2L EKT00152-00161
HDM00263-00265
KHR00103-00558
NBT00121-00845
ZCS00178-01339
320D 2L OEM P9X00101-00150, 158-162
PARTS NEEDED
Qty
Part Number Description
6 4545091 INJECTOR AS-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 2% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Before completing this rework, review the safety actions in the Operation and Maintenance Manual for the Excavator.
Remove the 398-1507 Injectors.
For detailed instructions on removing the injectors refer to Disassembly and Assembly, UENR0674, "Fuel Injection Lines - Remove" and "Fuel Injector - Remove".
Install the new 454-5091 Injectors.
For detailed instructions on installing the injectors refer to Disassembly and Assembly, UENR0674, "Fuel Injector - Install" and "Fuel Injection Lines - Install".
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested
