19600-00210 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

PUMP ASSY, INJECTI AA
  • *1: THE ORIFICE DIAMETER:096360-0260:1.37,-0270:1.57,
  • -280:1.77,-0290:1.97. CHOOSE NO.132 DEPENDING ON THE
  • TIMER STROKE VALUE. IF LESS THAN THE STANDARD :USE THE
  • SMALLER ORIFICE DIAMETER.IF LARGER:USE THE LARGER ONE.
PUMP ASSY, INJECTI DA
  • *1: THE ORIFICE DIAMETER:096360-0260:1.37,-0270:1.57,
  • -280:1.77,-0290:1.97. CHOOSE NO.132 DEPENDING ON THE
  • TIMER STROKE VALUE. IF LESS THAN THE STANDARD :USE THE
  • SMALLER ORIFICE DIAMETER.IF LARGER:USE THE LARGER ONE.
Nozzle: 0935006230
19600-00210 PUMP ASSY, INJECTI
Rating:
20
Buy PUMP ASSY, INJECTI 19600-00210 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100141

Components :

001. PUMP ASSY, INJECTI 19600-00210
001. PUMP ASSY, INJECTI 19600-00210
002. RING SUB-ASSY, ROL 09618-00290
002. SHIM, PLUNGER ADJU 09640-60020
003. COVER SUB-ASSY, TI 09621-01071
004. SHIM, PLUNGER ADJU 09640-60020
005. VALVE SUB-ASSY, DI 09642-00720

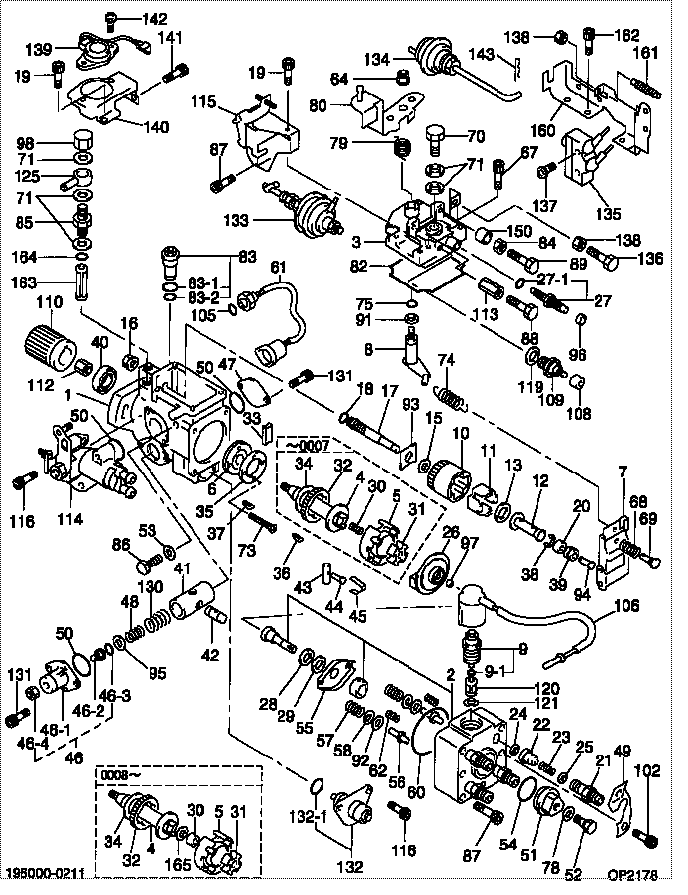

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 19600-00211 PUMP ASSY, INJECTI
001. [01] 09611-01120 HOUSING SUB-ASSY,
002. [01] 09640-01581 HEAD SUB-ASSY, DIS
003. [01] 09644-01600 COVER SUB-ASSY, GO
004. [01] 09612-10140 SHAFT, DRIVE
004. [01] 09612-10320 SHAFT, DRIVE
005. [01] 09618-00290 RING SUB-ASSY, ROL
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 0 961 4000 30
007. [01] 09627-01330 GOVERNOR ASSY, TOR
008. [1C] 09645-00020 SHAFT SUB-ASSY, GO 0 964 5000 20
008. [1C] 09645-00440 SHAFT SUB-ASSY, GO
008. [1C] 09645-00540 SHAFT SUB-ASSY, GO
009. [01] 09603-00170 SOLENOID ASSY, FUE
009. [01] 09603-00540 SOLENOID ASSY, FUE
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 0 962 6000 50
011. [04] 09626-30040 FLYWEIGHT, DISTRIB
011. [04] 09626-30050 FLYWEIGHT, DISTRIB
012. [01] 09625-20450 SLEEVE, GOVERNOR
013. [01] 09626-50030 WASHER, FLYWEIGHT
015. [01] 09626-50020 WASHER, FLYWEIGHT
016. [01] 09625-40050 NUT, GOVERNOR SHAF
017. [01] 09625-10020 SHAFT, GOVERNOR MA
018. [01] 94914-02930 O-RING 9 491 4029 30
019. [03] 09644-90110 BOLT, SOCKET
020. [01] 09625-50020 RING, GOVERNOR SLE
021. [04] 09642-50190 HOLDER, DELIVERY V
022. [04] 09642-00720 VALVE SUB-ASSY, DI
023. [04] 09642-70050 SPRING, DELIVERY V
024. [04] 09642-60070 GASKET, DELIVERY V
025. [04] 09642-80010 SEAT, DELIVERY VAL
026. [01] 09623-00401 CAMPLATE SUB-ASSY,
027. [01] 09648-00020 SMOKE SET SUB-ASSY
027-001. [01] 94914-02900 O-RING 9 491 4029 00
027-001. [01] 09604-90470 O-RING
028. [01] 09624-50020 PLATE, PLUNGER, LW
029. [01] 09624-40040 PLATE, PLUNGER, UP
030. [01] 09622-50010 SPACER, COUPLING
030. [01] 09622-40111 SPRING, COUPLING
031. [01] 09622-20070 COUPLING
032. [01] 09612-40030 GEAR, GOVERNOR DRI 0 961 2400 30
033. [02] 09612-60020 JOINT, RUBBER
034. [01] 09612-50010 WASHER, DRIVE SHAF 0 961 2500 10
035. [01] 09614-70052 COVER, FEED PUMP
036. [01] 94913-00260 KEY, WOODRUFF
037. [01] 94913-00300 KEY, WOODRUFF
038. [01] 90577-02000 E-RING
039. [01] 94910-02860 BEARING, BALL
040. [01] 09603-90040 SEAL, 0IL
041. [01] 09619-01212 PISTON ASSY, TIMER
042. [01] 09621-30020 SUB-PISTON, TIMER
043. [01] 09620-50060 PIN, TIMER SLIDE
044. [01] 09621-60120 STOPPER, TIMER SLI
045. [01] 09621-10080 CLIP, TIMER
046. [01] 09621-00870 COVER SUB-ASSY, TI
046-001. [01] 09621-80870 COVER, TIMER
046-002. [01] 09621-60110 STOPPER, TIMER SLI
046-003. [01] 09604-90290 O-RING
046-004. [01] 94905-05010 NUT, HEXAGON
047. [01] 09621-80901 COVER, TIMER
047. [01] 09621-81030 COVER, TIMER
048. [1C] 09620-81930 SPRING, TIMER, OUT
048. [1C] 09620-81940 SPRING, TIMER, OUT
048. [1C] 09620-81960 SPRING, TIMER, OUT
048. [1C] 09620-81970 SPRING, TIMER, OUT
048. [1C] 09620-81980 SPRING, TIMER, OUT
049. [01] 09602-91041 CLIP, CONNECTOR SU
050. [03] 09604-90400 O-RING
051. [01] 09641-70040 PLUG, DISTRIBUTIVE
052. [01] 09641-80060 BOLT, DISTRIBUTIVE
053. [02] 09642-60030 GASKET, DELIVERY V
053. [02] 09642-60130 GASKET, DELIVERY V
054. [01] 09604-90510 O-RING
054. [01] 94914-02970 O-RING 9 491 4029 70
055. [01] 09624-70030 SHEET, PLUNGER SPR
056. [02] 09623-70020 GUIDE SUB-ASSY, PL
057. [02] 09623-60100 SPRING, PLUNGER
057. [02] 09623-60110 SPRING, PLUNGER
058. [02] 09624-60030 SHEET, PLUNGER SPR
060. [01] 94914-02980 O-RING 9 491 4029 80
061. [01] 07630-02000 PICKUP ASSY, TACHO
062. [02] 09627-90010 SPRING, LEVER SUPP
064. [01] 94905-61680 NUT
067. [04] 09644-90020 BOLT, SOCKET
068. [01] 09628-90350 SPRING, GOVERNOR I
069. [01] 09626-70030 SHEET, GOVERNOR SP
070. [01] 09602-00180 SCREW SUB-ASSY, OV
071. [05] 09024-10010 WASHER, AIR BLEEDE 22847-2150A
073. [02] 94900-20420 SCREW, COUNTERSUNK 9 490 0204 20
074. [01] 09626-10800 SPRING, SPEED CONT
075. [01] 09604-90300 O-RING
078. [01] 09642-60060 GASKET, DELIVERY V
079. [01] 09644-40021 SPRING, RETURN
080. [1C] 09643-55630 LEVER SUB-ASSY, AD
080. [1C] 09643-55620 LEVER SUB-ASSY, AD
080. [1C] 09643-55610 LEVER SUB-ASSY, AD
082. [01] 09644-60100 GASKET, GOVERNOR C
083. [01] 09616-00140 VALVE SUB-ASSY, RE
083-001. [01] 09604-90180 O-RING
083-002. [01] 94914-02920 O-RING 9 491 4029 20
083-002. [01] 09604-90500 O-RING
084. [01] 94905-04800 NUT, HEXAGON
085. [01] 94918-00770 SCREW, HOLLOW
086. [02] 09626-90020 BOLT, GOVERNOR LIN
087. [05] 09644-90070 BOLT, SOCKET
088. [01] 94904-50210 BOLT, HEXAGON, W/
089. [01] 94904-50190 BOLT, HEXAGON, W/
091. [01] 09627-30140 WASHER, GOVERNOR T
092. [2C] 09624-80100 SHIM, PLUNGER SPRI
092. [2C] 09624-80110 SHIM, PLUNGER SPRI
092. [2C] 09624-80230 SHIM, PLUNGER SPRI
092. [2C] 09624-80240 SHIM, PLUNGER SPRI
092. [2C] 09624-80250 SHIM, PLUNGER SPRI
092. [2C] 09624-80260 SHIM, PLUNGER SPRI
092. [2C] 09624-80270 SHIM, PLUNGER SPRI
092. [2C] 09624-80090 SHIM, PLUNGER SPRI
092. [2C] 09624-80080 SHIM, PLUNGER SPRI
092. [2C] 09624-80010 SHIM, PLUNGER SPRI
092. [2C] 09624-80020 SHIM, PLUNGER SPRI
092. [2C] 09624-80030 SHIM, PLUNGER SPRI
092. [2C] 09624-80040 SHIM, PLUNGER SPRI
092. [2C] 09624-80050 SHIM, PLUNGER SPRI
092. [2C] 09624-80060 SHIM, PLUNGER SPRI
092. [2C] 09624-80070 SHIM, PLUNGER SPRI
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G
093. [1C] 09626-60110 WASHER, GOVERNOR G
093. [1C] 09626-60120 WASHER, GOVERNOR G
093. [1C] 09626-60130 WASHER, GOVERNOR G
093. [1C] 09626-60140 WASHER, GOVERNOR G
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
094. [1C] 09625-60800 PLUG, GOVERNOR SLE
094. [1C] 09625-60790 PLUG, GOVERNOR SLE
094. [1C] 09625-60780 PLUG, GOVERNOR SLE
094. [1C] 09625-60770 PLUG, GOVERNOR SLE
094. [1C] 09625-60760 PLUG, GOVERNOR SLE
094. [1C] 09625-60750 PLUG, GOVERNOR SLE
094. [1C] 09625-60700 PLUG, GOVERNOR SLE
094. [1C] 09625-60810 PLUG, GOVERNOR SLE
094. [1C] 09625-60820 PLUG, GOVERNOR SLE
094. [1C] 09625-60830 PLUG, GOVERNOR SLE
094. [1C] 09625-60840 PLUG, GOVERNOR SLE
094. [1C] 09625-60850 PLUG, GOVERNOR SLE
094. [1C] 09625-60860 PLUG, GOVERNOR SLE
094. [1C] 09625-60870 PLUG, GOVERNOR SLE
094. [1C] 09625-60880 PLUG, GOVERNOR SLE
094. [1C] 09625-60890 PLUG, GOVERNOR SLE
094. [1C] 09625-60900 PLUG, GOVERNOR SLE
094. [1C] 09625-60690 PLUG, GOVERNOR SLE
094. [1C] 09625-60680 PLUG, GOVERNOR SLE
094. [1C] 09625-60670 PLUG, GOVERNOR SLE
094. [1C] 09625-60400 PLUG, GOVERNOR SLE
094. [1C] 09625-60410 PLUG, GOVERNOR SLE
094. [1C] 09625-60420 PLUG, GOVERNOR SLE
094. [1C] 09625-60430 PLUG, GOVERNOR SLE
094. [1C] 09625-60440 PLUG, GOVERNOR SLE
094. [1C] 09625-60450 PLUG, GOVERNOR SLE
094. [1C] 09625-60460 PLUG, GOVERNOR SLE
094. [1C] 09625-60470 PLUG, GOVERNOR SLE
094. [1C] 09625-60480 PLUG, GOVERNOR SLE
094. [1C] 09625-60490 PLUG, GOVERNOR SLE
094. [1C] 09625-60660 PLUG, GOVERNOR SLE
094. [1C] 09625-60650 PLUG, GOVERNOR SLE
094. [1C] 09625-60540 PLUG, GOVERNOR SLE
094. [1C] 09625-60530 PLUG, GOVERNOR SLE
094. [1C] 09625-60520 PLUG, GOVERNOR SLE
094. [1C] 09625-60510 PLUG, GOVERNOR SLE
094. [1C] 09625-60500 PLUG, GOVERNOR SLE
095. [01] 09621-40190 WASHER, TIMER SENS
096. [01] 09644-80111 COLLAR, SMOKE SET
097. [1C] 09640-60520 SHIM, PLUNGER ADJU
097. [1C] 09640-60420 SHIM, PLUNGER ADJU
097. [1C] 09640-60270 SHIM, PLUNGER ADJU
097. [1C] 09640-60170 SHIM, PLUNGER ADJU
097. [1C] 09640-60020 SHIM, PLUNGER ADJU
098. [01] 94905-50300 NUT, CAP
102. [01] 09644-90140 BOLT, SOCKET
105. [01] 09604-90190 O-RING
106. [01] 09604-50700 WIRE SUB-ASSY
108. [01] 09644-80290 COLLAR, SMOKE SET
109. [01] 09616-00310 VALVE SUB-ASSY, RE
110. [01] 09257-50162 SHAFT, SPLINE
112. [01] 09001-20190 NUT, TIMER ROUND
113. [01] 94905-04910 NUT, HEXAGON
114. [01] 09621-01071 COVER SUB-ASSY, TI
115. [01] 09647-00530 IDLE UP SUB-ASSY
116. [04] 09644-90100 BOLT, SOCKET
119. [1C] 09024-10080 WASHER, AIR BLEEDE
119. [1C] 09024-10010 WASHER, AIR BLEEDE 22847-2150A
120. [01] 09653-00071 FILTER, SUB-ASSY
121. [01] 09606-40110 WASHER
125. [01] 09221-80150 NIPPLE SUB-ASSY, S
130. [01] 09620-81370 SPRING, TIMER, OUT
131. [04] 09644-90280 BOLT, SOCKET
132. [1C] 09636-00260 VALVE ASSY, TIMING
132. [1C] 09636-00270 VALVE ASSY, TIMING
132. [1C] 09636-00280 VALVE ASSY, TIMING
132. [1C] 09636-00290 VALVE ASSY, TIMING
132-001. [01] 09604-90070 O-RING
133. [01] 09647-20980 ACTUATOR SET, IDLE
134. [01] 09647-21000 ACTUATOR SET, IDLE
135. [01] 09009-00330 SWITCH SUB-ASSY, C
136. [01] 09266-40280 SCREW, LEVER STOP
137. [02] 94900-76921 SCREW, W/WASHER
138. [02] 90166-06051 NUT, HEXAGON
139. [01] 19850-05011 SENSOR, ROTARY POS
140. [01] 09643-82920 BRACKET, IDLE UP
141. [02] 09644-90220 BOLT, SOCKET
142. [02] 91370-04121 SCREW, W/WASHER
143. [01] 09645-50070 PIN, LEVER CONECTI 22456-1200A
150. [01] 09644-80360 COLLAR, SMOKE SET
160. [01] 09647-10790 BRACKET SUB-ASSY,
161. [01] 09266-40110 SCREW, LEVER STOP
161. [01] 09266-40290 SCREW, LEVER STOP
162. [03] 09644-90210 BOLT, SOCKET
163. [01] 09653-00111 FILTER, SUB-ASSY
164. [01] 09604-90460 O-RING
165. [01] 09606-40220 WASHER

Cross reference number



Part num Firm num Firm Name
19600-00210    PUMP ASSY, INJECTI
22100-5C280    TOYOTA PUMP ASSY, INJECTI




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The new and former DEF filter part numbers are listed in Table 1.
Table 1
Required Parts
Qty New Part Number Part Name Former Part Numbers(1)
1 584-8135 Diesel Exhaust Fluid Filter Gp 453-1604
1 584-8136 Diesel Exhaust Fluid Filter Gp 453-1605
1 584-8137 Diesel Exhaust Fluid Filter Gp 453-1606
(1) The former part number listed is for reference only and may differ.
