Information assy nzl
Nozzle:
0935003720
Rating:
KIT List:
| Body assy, injecti | 1904400380 |
| Pump assy, fuel fe | 1922900060 |
| Governor assy, mec | No Application |
Cross reference number
| Part num | Firm num | Firm | Name |

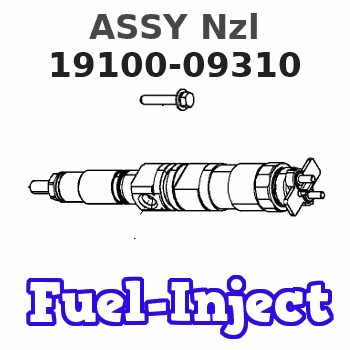

| 19100-09310 | ASSY Nzl | ||
| RE47041 | JOHN DEERE | PUMP ASSY, INJECTI |
Information:
19Mar2018
U-161
D-142
O-148
TM-3
Priority
PRODUCT IMPROVEMENT PROGRAM FOR REPLACING FUEL INJECTORS ON CERTAIN 3508C, 3512B, 3512C, 3516C, AND 3516E GENERATOR SETS, MARINE ENGINES, AND PETROLEUM ENGINES
1290 1251 PI32868
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program must be administered as soon as possible.When reporting the repair, use "PI32868" as the Part Number and "7751" as the Group Number, "56" as the Warranty Claim Description Codeand "T" as the SIMS Description code. Exception: If the repair is done after failure, use "PI32868" as the Part Number, "7751" as the Group Number,"96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
COMPLETION DATE
TERMINATION DATE
30Sep2018 31Mar2019
PROBLEM
Certain fuel injectors need to be replaced on certain 3508C, 3512B, 3512C, 3516C, and 3516E Generator Sets, Marine Engines, and Petroleum Engines. The existing fuel injectors can cause the cylinder to be over fueled and possibly lead to engine damage.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
3516E HD MR900203
*******Group 2*******
