Information pump assy, injecti
Nozzle:
0935004370
Rating:
KIT List:
| Body assy, injecti | 1904400380 |
| Governor assy, mec | No Application |
| Timer assy, automa | No Application |
| Pump assy, fuel fe | 1922900060 |
Components :
| 001. | PUMP ASSY, INJECTI | 19100-09220 |
| 002. | BODY ASSY, INJECTI | 09010-08571 |
| 003. | COVER, BEARING | 09020-10430 |
| 004. | GOVERNOR ASSY, MEC | 09130-03701 |
| 005. | LEVER SET | 09129-10061 |
| 006. | COVER ASSY, GOVERN | 09145-00223 |
| 007. | COMPENSATOR SUB-AS | 19260-00531 |
| 008. | TIMER ASSY, AUTOMA | 09180-03161 |
| 009. | PUMP ASSY, FUEL FE | 09210-02470 |
| 010. | COUPLING ASSY | 09250-00870 |

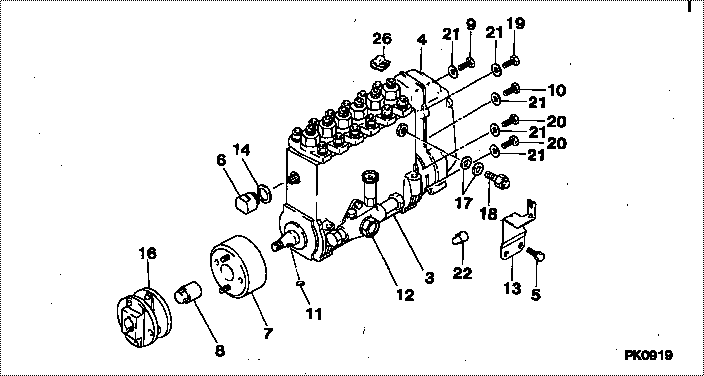

Scheme ###:
| 000. | [01] | 19100-09221 | PUMP ASSY, INJECTI | 22010-6700 |
| 003. | [01] | 09010-08571 | BODY ASSY, INJECTI | 22110-2570A |
| 004. | [01] | 09130-03702 | GOVERNOR ASSY, MEC | |
| 005. | [02] | 94904-70620 | BOLT, W/WASHER | 22815-1620A |
| 005. | [02] | 91418-06121 | BOLT, W/WASHER | 22815-1500A |
| 006. | [01] | 09001-80420 | COVER, CONTROL RAC | 22114-1240A |
| 007. | [01] | 09180-03161 | TIMER ASSY, AUTOMA | 22510-2411A |
| 008. | [01] | 09001-20340 | NUT, TIMER ROUND | |
| 009. | [01] | 94904-44070 | BOLT | 22815-3140A |
| 009. | [01] | 94904-76910 | BOLT, W/WASHER | |
| 010. | [01] | 94904-44060 | BOLT | 22815-3130A |
| 010. | [01] | 94904-76900 | BOLT, W/WASHER | |
| 011. | [01] | 90458-05750 | KEY, WOODRUFF | 22891-1070A |
| 012. | [01] | 09210-02470 | PUMP ASSY, FUEL FE | |
| 013. | [01] | 09069-11450 | BRACKET, STOP WIRE | |
| 014. | [01] | 94901-81550 | WASHER, COPPER PLA | 96542-2150A |
| 016. | [01] | 09250-00870 | COUPLING ASSY | |
| 017. | [02] | 94901-02480 | WASHER | 22847-1940A |
| 018. | [01] | 09031-00240 | VALVE ASSY, OVERFL | 22107-1290A |
| 019. | [02] | 94904-76880 | BOLT, W/WASHER | |
| 019. | [02] | 94904-44000 | BOLT | |
| 020. | [04] | 94904-44010 | BOLT | |
| 020. | [04] | 94904-76890 | BOLT, W/WASHER | |
| 021. | [08] | 94901-36520 | WASHER, PLATE, SK | |
| 022. | [01] | 09028-50030 | CAP | 22323-1210A |
| 026. | [01] | 09039-10040 | CLIP, CORD | 22323-1190A |
Cross reference number
| Part num | Firm num | Firm | Name |
| 19100-09220 | PUMP ASSY, INJECTI | ||
| 22010-6700 | HINO | PUMP ASSY, INJECTI |
Information:
Start By:a. remove oil pump1. Check the main bearing caps for identification for their location and direction in the block. The caps must be installed in the same location and direction from which they were removed. 2. Remove No. 2 through No. 6 bearing caps (1). Remove thrust plates from the No. 4 main bearing.
If the crankshaft is turned in the wrong direction, the tab of the bearing will be pushed between the crankshaft and cylinder block. This can cause damage to either the crankshaft or cylinder block or both.
3. Remove the upper halves of the main bearings by putting tool (A) in oil hole (2) in the crankshaft. Turn the crankshaft in the direction which will push the
If the crankshaft is turned in the wrong direction, the tab of the bearing will be pushed between the crankshaft and cylinder block. This can cause damage to either the crankshaft or cylinder block or both.
3. Remove the upper halves of the main bearings by putting tool (A) in oil hole (2) in the crankshaft. Turn the crankshaft in the direction which will push the
