19100-08420 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935004860
19100-08420 PUMP ASSY, INJECTI
Rating:
9
Buy PUMP ASSY, INJECTI 19100-08420 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400430
Timer assy, automa No Application
Pump assy, fuel fe 1922900060
Governor assy, mec 1908900210

Components :

001. PUMP ASSY, INJECTI 19100-08420
002. BODY ASSY, INJECTI 09010-09160
003. TIMER ASSY, AUTOMA 09180-03010
003. TIMER ASSY, AUTOMA 09180-03010
004. PUMP ASSY, FUEL FE 09210-01800
005. COUPLING ASSY 09250-00931
006. GOVERNOR ASSY, MEC 19080-03300
007. SWITCH KIT, CONTRO 09009-90612

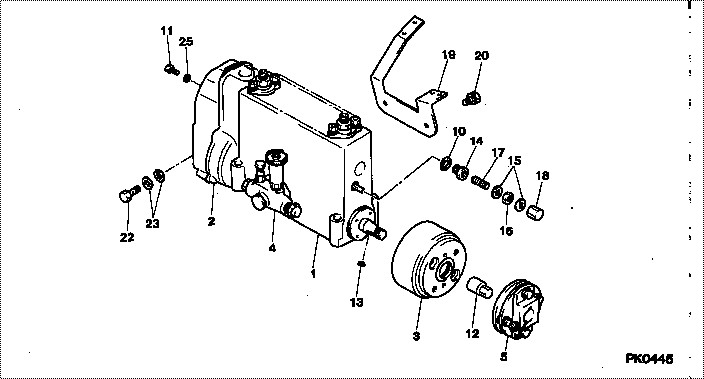

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 19100-08420 PUMP ASSY, INJECTI ME091879
001. [01] 09010-09160 BODY ASSY, INJECTI ME728340
002. [01] 19080-03300 GOVERNOR ASSY, MEC ME728341
003. [01] 09180-03010 TIMER ASSY, AUTOMA ME728334
004. [01] 09210-01800 PUMP ASSY, FUEL FE ME702667
005. [01] 09250-00931 COUPLING ASSY ME728335
010. [01] 94901-80710 WASHER, COPPER PLA ME702915
011. [08] 94904-44010 BOLT ME728336
011. [04] 94904-76890 BOLT, W/WASHER ME728978
012. [01] 09001-20340 NUT, TIMER ROUND ME728343
013. [01] 90458-05750 KEY, WOODRUFF ME702920
014. [01] 09001-80152 COVER, CONTROL RAC ME702921
015. [02] 94901-80350 WASHER, COPPER PLA ME702922
016. [01] 94805-30100 NUT, HEXAGON, W/HO ME702923
017. [01] 09002-60050 SCREW, ADJUSTING ME702924
018. [01] 09003-20040 CAP ME702858
019. [01] 09069-11050 BRACKET, STOP WIRE ME702672
020. [02] 91410-08141 BOLT, W/WASHER ME702925
022. [01] 94918-00050 SCREW, HOLLOW ME702926
023. [02] 09022-20060 WASHER, FUEL PIPE ME702927
025. [08] 94901-36520 WASHER, PLATE, SK ME728337

Include in #3:

19100-08420 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
19100-08420  ME091879  PUMP ASSY, INJECTI
ME091879    MITSUBISHI PUMP ASSY, INJECTI




Information:

Disassembly of Water Pump
Inspection of Water Pump
If the inspection of the impeller and shaft finds abnormal noise or rough rotation, replace the assembly.
Inspection of impeller and shaft rotation conditionThermostat
Disassembly of Thermostat
Inspection of Thermostat
To test the thermostat operation, immerse the thermostat in a container filled with water, and heat the water while measuring the water temperature. Record the temperature at which the valve starts to open and the temperature at which the valve lift becomes 8 mm [0.3 in.] or more. (a) Stir the water in the container to ensure uniform temperature distribution.(b) When installing the thermostat, be sure to check the valve opening temperature indication stamped on the upper face of the thermostat mounting flange.
Inspection of thermostatThermo Switch
Inspection of Thermo Switch
Immerse the temperature sensor in oil, and measure the resistance while increasing the oil temperature. If the temperature measurement exceeds the standard value significantly, replace the thermo switch.
Since the inspection requires heating of oil to high temperatures, be careful not to get burns or start a fire.
Inspection of thermo switch
