Information pump assy, injecti
Rating:
Components :
| 001. | PUMP ASSY, INJECTI | 19100-08271 |
| 002. | BODY ASSY, INJECTI | 09010-09040 |
| 003. | TIMER ASSY, AUTOMA | 09180-02920 |
| 004. | PUMP ASSY, FUEL FE | 09210-01860 |
| 005. | COUPLING ASSY | 09250-00910 |
| 006. | GOVERNOR ASSY, ELE | 09550-00120 |
| 006. | GOVERNOR ASSY, ELE | 09550-00120 |

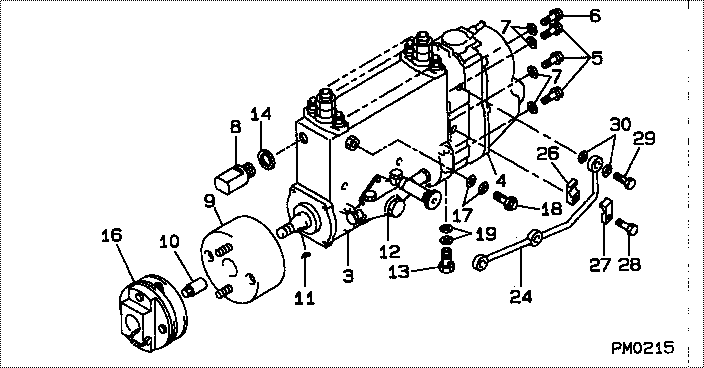

Scheme ###:
| 000. | [01] | 19100-08271 | PUMP ASSY, INJECTI | 22010-6241 |
| 003. | [01] | 09010-09040 | BODY ASSY, INJECTI | |
| 004. | [01] | 09550-00120 | GOVERNOR ASSY, ELE | |
| 004. | [01] | 09550-00121 | GOVERNOR ASSY, ELE | |
| 005. | [06] | 94904-44010 | BOLT | |
| 005. | [04] | 94904-76890 | BOLT, W/WASHER | 22815-3210A |
| 006. | [02] | 94904-76880 | BOLT, W/WASHER | |
| 006. | [02] | 94904-44000 | BOLT | |
| 007. | [08] | 94901-36520 | WASHER, PLATE, SK | |
| 008. | [01] | 09001-80410 | COVER, CONTROL RAC | 22372-1160A |
| 009. | [01] | 09180-02921 | TIMER ASSY, AUTOMA | |
| 010. | [01] | 09001-20340 | NUT, TIMER ROUND | |
| 011. | [01] | 90458-05750 | KEY, WOODRUFF | 22891-1070A |
| 012. | [01] | 09210-01860 | PUMP ASSY, FUEL FE | 22570-1340A |
| 013. | [01] | 94918-00310 | SCREW, HOLLOW | S2283-51310-A |
| 014. | [01] | 94901-81550 | WASHER, COPPER PLA | 96542-2150A |
| 016. | [01] | 09250-00910 | COUPLING ASSY | |
| 017. | [02] | 94901-02480 | WASHER | 22847-1940A |
| 018. | [01] | 09031-00050 | VALVE ASSY, OVERFL | 22107-1190A |
| 018. | [01] | 09031-00130 | VALVE ASSY, OVERFL | 22107-1090A |
| 019. | [02] | 94901-02490 | WASHER | 22877-1100A |
| 024. | [01] | 09025-00320 | NIPPLE SUB-ASSY, O | |
| 026. | [01] | 09282-60020 | CLAMP | |
| 027. | [01] | 09282-60030 | CLAMP | |
| 028. | [01] | 91418-06301 | BOLT, W/WASHER | 22815-3460A |
| 029. | [01] | 09024-50340 | SCREW, HOLLOW | |
| 030. | [02] | 94901-02470 | WASHER | 22847-1900A |
Include in #3:
19100-08271
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19100-08271 | 22010-6241 | PUMP ASSY, INJECTI |
Information:
TEBE8558-01
14Dec2018
(Revised 26Mar2020)
U-712
A-516
D-629
O-625
After Failure Only
PRODUCT SUPPORT PROGRAM FOR REPLACING THE DEF INJECTOR IF REQUIRED ON CERTAIN 314F EXCAVATORS, AND D6K2 TRACK-TYPE TRACTORS
108I 1920 7610 PS53936
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS53936" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 14Dec2018 Service Letter. Changes have been made to the Service Claim Allowances.
TERMINATION DATE
31Dec2020
PROBLEM
Certain 314F Excavators, and D6K2 Track-Type Tractors may have a problem with the DEF injector 459-7216 which can lead to an internal leak within the DEF injector. DEF Dosing Unit/Actuator Diagnostic Trouble Codes (3361/3821) can be triggered which can lead to a system inducement.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
D6K 2 LGP EL700101, 107, 110, 117, 119, 123-124, 126-127, 132, 134-135, 137, 139-140, 151, 153, 157, 159, 166-167, 172-175, 177, 181, 184-187, 189, 192-197, 200, 202, 206-208, 211, 215, 217, 219-222, 224-227, 231, 233-235, 237, 239, 241-242, 245-255, 258-259, 262, 266, 268-269, 271, 274, 277, 280-281, 291, 296-297, 301-302, 305-306, 308, 312-316, 318-325, 327-328, 331, 333, 336, 338, 342-343, 345-346, 348, 351, 391-637
JTR00203, 205, 209-212, 218, 227, 233-234, 237, 239, 244, 249-250, 252, 257, 259, 261, 266, 271, 273, 278, 281, 285-286, 289-290, 306-307, 312, 318, 324, 326, 329, 332, 334, 346, 350, 352, 361-362, 365, 371-373, 376-379, 382, 390-391, 396, 400-401, 404, 407, 409, 424, 428, 439, 441, 446, 448-450, 454, 460-461, 464, 468, 470, 473, 476, 479, 482-485, 489, 491, 498, 503, 507-508, 510-511, 513-514, 517, 527-528, 531, 539, 543-544, 547, 550-552, 556-557, 564, 567, 571, 577, 579-581, 583, 587, 589-590, 594, 598-599, 603, 606-608, 619, 621, 625, 627-628, 632-633, 635-636, 639, 641-642, 649, 654, 659, 661, 666, 668, 671-674, 676, 680, 682, 689, 692-693, 701, 703, 707, 710-711, 713, 722-723, 725-727, 730, 734-737, 743-744, 746-747, 750, 752, 759, 767-771, 773, 776, 778, 780, 782, 791-793, 797, 799-801, 803, 805, 808, 810, 819-820, 823-824, 827, 832, 837, 844, 849-850, 853, 857, 863, 869-870, 872, 874-875, 882, 884-885, 893-894, 896, 900, 904, 907, 910-914, 918, 925, 932, 936, 938, 940, 942, 946, 948, 953, 957-959, 965, 967, 971, 976, 982-985, 987, 989, 998, 1000, 1003-1005, 1007-1008, 1010, 1012-1014, 1020-1022, 1026, 1029, 1033, 1035-1039, 1041-1044, 1048, 1051-1052, 1056-1058, 1060, 1062-1063, 1066-1073, 1075, 1077, 1082-1083, 1085-1086, 1089-1093, 1096, 1101, 1108, 1112-1114, 1119-1120, 1124, 1126, 1129-1304
D6K 2 XL DFR00202, 208, 210, 213-214, 219, 224-225, 230, 245, 247, 253, 258,
