Information assy nzl
Nozzle:
0935004730
Rating:
KIT List:
| Body assy, injecti | 1904400380 |
| Timer assy, automa | No Application |
| Pump assy, fuel fe | 1922900060 |
| Governor assy, mec | No Application |
Components :
| 001. | PUMP ASSY, INJECTI | 19100-08180 |
| 002. | BODY ASSY, INJECTI | 09010-09030 |
| 003. | TIMER ASSY, AUTOMA | 09180-02920 |
| 004. | PUMP ASSY, FUEL FE | 09210-01860 |
| 005. | COUPLING ASSY | 09250-00910 |
| 006. | GOVERNOR ASSY, MEC | 19080-03121 |
Cross reference number
| Part num | Firm num | Firm | Name |

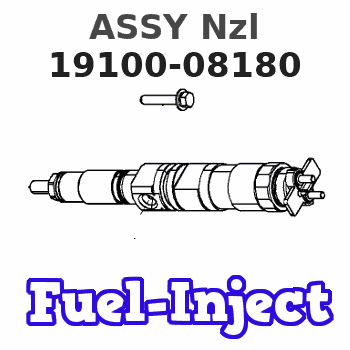

| 19100-08180 | ASSY Nzl | ||
| 22010-6232 | HINO | PUMP ASSY, INJECTI |
Information:
1. Put compression on valve spring (2) with Tool (A). Remove locks (1).2. Remove Tool (A), rotocoil, spring, valve stem oil shield and valve. Put identification marks on valves with respect to their location in the cylinder head. 3. Check the spring force with Tool (B). The spring force is 257 25 N (57.8 5.6 lb). The length of spring under test force is 44.86 mm (1.766 in). The free length after test is 52.07 mm (2.050 in).4. Do Steps 1 through 3 again for the remainder of the valves.Install Valves
1. Put clean engine oil on the valve stems. Install valve (3), oil shield (4), spring (2) and rotocoil (1) in the cylinder head. 2. Put Tool (A) in position on the valve spring. Install the locks with Tool (B).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
3. Remove Tool (A), and hit the top of valve with a plastic hammer to be sure the locks are in their correct position on valve.4. Do Steps 1 through 3 again for the remainder of the valves.End By:a. install cylinder head assembly and spacer plateb. install fuel injection nozzles
1. Put clean engine oil on the valve stems. Install valve (3), oil shield (4), spring (2) and rotocoil (1) in the cylinder head. 2. Put Tool (A) in position on the valve spring. Install the locks with Tool (B).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
3. Remove Tool (A), and hit the top of valve with a plastic hammer to be sure the locks are in their correct position on valve.4. Do Steps 1 through 3 again for the remainder of the valves.End By:a. install cylinder head assembly and spacer plateb. install fuel injection nozzles
