Information pump assy, injecti
Nozzle:
0935001810
Rating:
KIT List:
| Body assy, injecti | 1904400300 |
| Governor assy, inj | 1908900260 |
| Pump assy, fuel fe | 1922900060 |
Components :

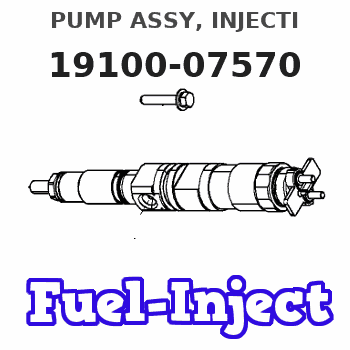

| 001. | PUMP ASSY, INJECTI | 19100-07570 |
| 002. | BODY ASSY, INJECTI | 09010-08550 |
| 003. | GOVERNOR ASSY, INJ | 09050-00612 |
| 004. | PUMP ASSY, FUEL FE | 09210-02480 |
Scheme ###:
| 000. | [01] | 19100-07570 | PUMP ASSY, INJECTI | 22100-78515-71 |
| 001. | [01] | 09010-08550 | BODY ASSY, INJECTI | |
| 002. | [01] | 09050-00612 | GOVERNOR ASSY, INJ | |
| 003. | [01] | 09210-02480 | PUMP ASSY, FUEL FE | |
| 006. | [01] | 94913-00050 | KEY, WOODRUFF | |
| 007. | [01] | 94901-50490 | WASHER, SPRING | |
| 008. | [01] | 09001-20020 | NUT, TIMER ROUND | |
| 009. | [01] | 09257-50020 | SHAFT, SPLINE | |
| 010. | [03] | 91518-06161 | BOLT, W/WASHER | |
| 011. | [01] | 94904-70620 | BOLT, W/WASHER | |
| 012. | [01] | 91518-08221 | BOLT, W/WASHER | |
| 015. | [01] | 09001-80061 | COVER, CONTROL RAC | |
| 016. | [01] | 09009-30012 | WIRE, OVER, INJECT | 22175-46010 |
| 017. | [01] | 09006-10011 | COVER, PRIMING PUM |
Include in #3:
19100-07570
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19100-07570 | 22100-7851 | PUMP ASSY, INJECTI | |
| 22100-78515-71 | TICO | PUMP ASSY, INJECTI |
Information:
Removal
Fig. 1-Cap Screw and BoltLoosen cap screw and alternator mounting bolt (Fig. 1). Move alternator so fan belt can be moved off pulley. Remove fan belt.Repair
Inspect belts for:1 Cracking2 Rupture3 Tears4 Burning5 Gouging6 Wear7 Internal Cord Failure8 Cuts9 Peeling, Fraying, ChewingDo not reuse a damaged belt. Install a new belt.Installation
Fig. 2-Install Fan BeltPut fan belt over fan (1, Fig. 2). Put fan belt over crankshaft pulley (2) and alternator pulley (3). Position fan belt in pulley grooves.Adjust fan belt tension (Group 9010).Crankshaft Pulley
Removal
Remove fan belt from pulley (Group 0429).
Fig. 3-Cap Screw and WasherRemove cap screw and washer (Fig. 3) holding crankshaft pulley on crankshaft. IMPORTANT: On six cylinder engines the crankshaft pulley is also a vibration damper. Do not drop or hammer on vibration dampers.
Fig. 4-D01200AA PullerUsing D01200AA Puller (Fig. 4), pull crankshaft pulley off crankshaft.Repair
Inspect pulley sheaves for cracks and wear. Replace pulley if damaged.For vibration damper repair, see Group 0401.Installation
Position crankshaft pulley on crankshaft.Put washer on cap screw. Install cap screw through crankshaft pulley into crankshaft.
Fig. 5-Cap ScrewTighten cap screw (Fig. 5) to 85 lb-ft (115 N m) (12 kg-m).Install fan belts (Group 0429).Adjust fan belt tension (Group 9010).
Fig. 1-Cap Screw and BoltLoosen cap screw and alternator mounting bolt (Fig. 1). Move alternator so fan belt can be moved off pulley. Remove fan belt.Repair
Inspect belts for:1 Cracking2 Rupture3 Tears4 Burning5 Gouging6 Wear7 Internal Cord Failure8 Cuts9 Peeling, Fraying, ChewingDo not reuse a damaged belt. Install a new belt.Installation
Fig. 2-Install Fan BeltPut fan belt over fan (1, Fig. 2). Put fan belt over crankshaft pulley (2) and alternator pulley (3). Position fan belt in pulley grooves.Adjust fan belt tension (Group 9010).Crankshaft Pulley
Removal
Remove fan belt from pulley (Group 0429).
Fig. 3-Cap Screw and WasherRemove cap screw and washer (Fig. 3) holding crankshaft pulley on crankshaft. IMPORTANT: On six cylinder engines the crankshaft pulley is also a vibration damper. Do not drop or hammer on vibration dampers.
Fig. 4-D01200AA PullerUsing D01200AA Puller (Fig. 4), pull crankshaft pulley off crankshaft.Repair
Inspect pulley sheaves for cracks and wear. Replace pulley if damaged.For vibration damper repair, see Group 0401.Installation
Position crankshaft pulley on crankshaft.Put washer on cap screw. Install cap screw through crankshaft pulley into crankshaft.
Fig. 5-Cap ScrewTighten cap screw (Fig. 5) to 85 lb-ft (115 N m) (12 kg-m).Install fan belts (Group 0429).Adjust fan belt tension (Group 9010).
