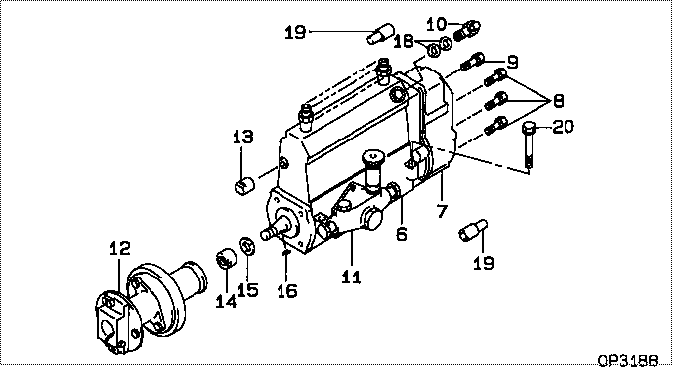

19100-06900 PUMP ASSY, INJECTI Denso Cross

TEBE8117-00
17Aug2018
K212
Containment -
Before/After
(Limited distribution)
PRODUCT SUPPORT PROGRAM FOR REPLACING THE FUEL INJECTOR NOZZLES ON CERTAIN D8R TRACK-TYPE TRACTORS
1252 1254 PS90908
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Containment Program can be administered either before or after a failure occurs.In either case the decision whether to apply the Program is made by the dealer and service rep. Obtain the service reps Goodwill Approver Code before completing the repair. EAME dealers should use their standard Industry Group specific goodwill approval codes. The Goodwill Approver Code must be included when submitting the claim.
When reporting the repair, use "PS90908" as the Part Number and "7777" as the Group Number. If administered before failure, use "56" as Warranty Claim Description and "T" as the SIMS Description Code. If administered after failure, use "96" as Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31Aug2019
PROBLEM
The existing injector nozzles can leak diesel on certain D8R Track-Type Tractors. If the existing injector nozzles leak it can cause dilution of the engine oil and affect engine performance.
AFFECTED PRODUCT
Model Identification Number
D8R RJM00517-00529, 531-547
PARTS NEEDED
Qty
Part Number Description
1 1R0716 FILTER AS-LUBE (After Failure Only)
2 5P5678 SEAL
6 7W2315 RETAINER
6 1291351 NOZZLE AS-DI F V
6 2033940 SEAL-O-RING
6 4640509 SEAL-O-RING
1 OIL_BULK See OMM - Cat DEO 42 L (After Failure Only as Req)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Replace the injector nozzles.
For the repair of the Affected Product, ensure the injector nozzles have a date code of "CAT 01 A 17" (1st Jan 2017) or a later date. See Image 1 with date code details (example date 7th Dec 2016). Image 2 shows the general ID location on an injector nozzle.
Refer to Disassembly and Assembly, SENR1029 for removing and installing the valve covers, valve cover bases, and replacing injectors.
For an injector nozzle replacement, after failure, when a leak has occurred, replace the engine oil and filter.
