Information pump assy, injecti
Nozzle:
0935002730
Rating:
KIT List:
| Body assy, injecti | 1904400380 |
| Governor assy, mec | 1908900271 |
| Timer assy, automa | 0918030010 |
| Pump assy, fuel fe | 1922900060 |
Components :
| 001. | PUMP ASSY, INJECTI | 19100-04190 |
| 002. | BODY ASSY, INJECTI | 09010-07620 |
| 003. | COVER, BEARING | 09020-10430 |
| 004. | GOVERNOR ASSY, MEC | 09130-01950 |
| 005. | COVER ASSY, GOVERN | 09145-00131 |
| 006. | TIMER ASSY, AUTOMA | 09180-01801 |
| 006. | TIMER ASSY, AUTOMA | 09180-01801 |
| 007. | PUMP ASSY, FUEL FE | 09210-00942 |
| 008. | COUPLING ASSY | 09250-00681 |

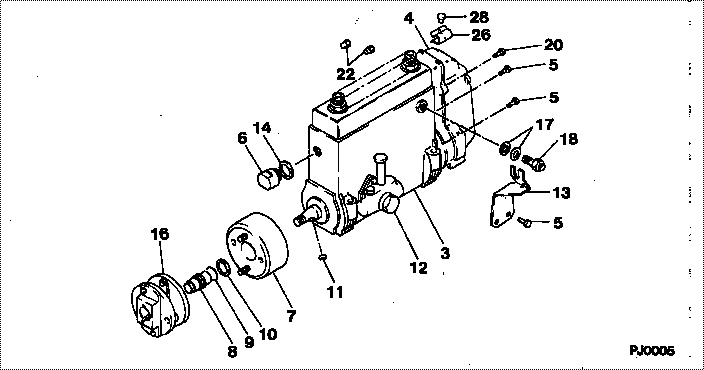

Scheme ###:
| 000. | [01] | 19100-04190 | PUMP ASSY, INJECTI | 22010-4740 |
| 003. | [01] | 09010-07620 | BODY ASSY, INJECTI | 22110-2370A |
| 004. | [01] | 09130-01950 | GOVERNOR ASSY, MEC | 22310-3440A |
| 005. | [04] | 94904-70620 | BOLT, W/WASHER | 22815-1620A |
| 006. | [01] | 09001-80471 | COVER, CONTROL RAC | 22114-1350A |
| 007. | [01] | 09180-01801 | TIMER ASSY, AUTOMA | 22510-1650A |
| 008. | [01] | 09001-20230 | NUT, TIMER ROUND | 22825-1110A |
| 009. | [01] | 90801-40280 | O-RING | 22817-1050A |
| 010. | [01] | 94901-40070 | WASHER, COUNTERSUN | 22877-1580A |
| 011. | [01] | 90458-05750 | KEY, WOODRUFF | 22891-1070A |
| 012. | [01] | 09210-00942 | PUMP ASSY, FUEL FE | 22570-1220A |
| 013. | [01] | 09069-11000 | BRACKET, STOP WIRE | 22343-2600A |
| 014. | [01] | 94901-81550 | WASHER, COPPER PLA | 96542-2150A |
| 016. | [01] | 09250-00681 | COUPLING ASSY | 22610-1480A |
| 017. | [02] | 94901-02480 | WASHER | 22877-1090A |
| 018. | [01] | 09031-00130 | VALVE ASSY, OVERFL | 22107-1090A |
| 018. | [01] | 09031-00050 | VALVE ASSY, OVERFL | 22107-1190A |
| 020. | [01] | 94904-72690 | BOLT, W/WASHER | 22815-2410A |
| 022. | [02] | 09028-50030 | CAP | 22323-1210A |
| 026. | [01] | 09039-10040 | CLIP, CORD | 22323-1190A |
| 028. | [01] | 09001-60060 | SEAL, LEAD | 22323-1200A |
Include in #3:
19100-04190
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19100-04190 | 22010-4740 | PUMP ASSY, INJECTI | |
| 22010-4740 | HINO | PUMP ASSY, INJECTI |
Information:
TEBE1401-00
10Jun2014
E08A
E140
E143
E14G
E300
E450
E459
Containment -
Before/After
(Limited distribution)
PRODUCT SUPPORT PROGRAM FOR REPLACING THE 375-5244 COMMON RAIL FUEL INJECTION PUMP AND REWORKING CRS SYSTEM COMPONENTS ON CERTAIN D6T TRACK-TYPE TRACTORS
1251 1290 108M 1088 1288 1258 1274 PS90394
This Containment Program can be administered either before or after a failure occurs.In either case the decision whether to apply the Program is made by the dealer and service rep. Obtain the service reps Goodwill Approver Code before completing the repair. EAME dealers should use their standard Industry Group specific goodwill approval codes. The Goodwill Approver Code must be included when submitting the claim.
When reporting the repair, use "PS90394" as the Part Number and "7777" as the Group Number. If administered before failure, use "56" as Warranty Claim Description and "T" as the SIMS Description Code. If administered after failure, use "96" as Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
30Jun2016
PROBLEM
The existing common rail fuel injection pump or CRS system components may fail on certain D6T Track-Type Tractors. If the existing common rail fuel injection pump or CRS fuel system components fail the engine may exhibit no start, hard to start, loss of power or the CRS system may exhibit regeneration failures.
AFFECTED PRODUCT
Model Identification Number
D6T LGP ZJB00157, 196, 396
D6T LGP PAT KSB00243, 365
D6T XL GMK00104, 106-107, 111-112, 116, 120, 126, 129-130, 156-157, 185, 194, 197, 206, 215, 217, 238, 291, 293, 302, 322, 324, 335, 361, 395, 403, 405, 408, 410, 434, 438-439, 452-454, 456-458, 514-515, 531, 582, 771, 1081, 1252, 1254, 1301, 1305, 1390, 1404, 1435
D6T XL PAT DTD00178, 182, 224
D6T XW SLJ00127, 130, 144, 183, 225, 240, 265, 272, 280
D6T XW PAT RCW00202, 205, 225, 276, 291
PARTS NEEDED
Qty
Part Number Description
1 6V8260 SEAL-O-RING
1 2147567 SEAL-O-RING-STOR
1 2147568 SEAL-O-RING-STOR
1 2287102 SEAL-O-RING-STOR
1 2842728 SENSOR GP-PRESS
1 2953099 PLUG-SPARK
1 2986488
