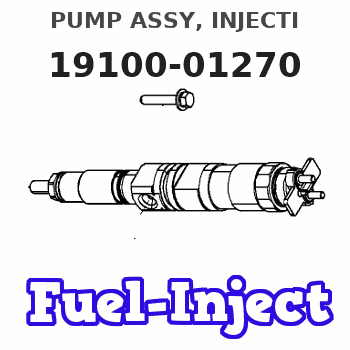

Information pump assy, injecti
Nozzle:
0935002890
Rating:
KIT List:
| Body assy, injecti | 1904400320 |
| Governor assy, mec | 1908900271 |
| Pump assy, fuel fe | 1922900060 |
Components :
| 001. | PUMP ASSY, INJECTI | 19100-01270 |
| 002. | BODY ASSY, INJECTI | 09010-05690 |
| 003. | GOVERNOR ASSY, MEC | 09130-00780 |
| 004. | COVER ASSY, GOVERN | 09145-00232 |
| 005. | PUMP ASSY, FUEL FE | 09210-01850 |
Scheme ###:
| 000. | [01] | 19100-01270 | PUMP ASSY, INJECTI | 22100-87C35-000 |
| 001. | [01] | 09010-05690 | BODY ASSY, INJECTI | 22120-58230-000 |
| 002. | [01] | 09130-00780 | GOVERNOR ASSY, MEC | 22410-58230-000 |
| 003. | [01] | 09210-01850 | PUMP ASSY, FUEL FE | 22510-87307-000 |
| 008. | [01] | 09001-80090 | COVER, CONTROL RAC | 22116-56230-000 |
| 009. | [01] | 09257-50170 | SHAFT, SPLINE | 22174-58201-000 |
| 010. | [01] | 09001-20190 | NUT, TIMER ROUND | 22616-58200-000 |
| 011. | [01] | 94901-50590 | WASHER, SPRING | 90099-01449-000 |
| 012. | [01] | 94913-00210 | KEY, WOODRUFF | 90099-13023-000 |
| 016. | [01] | 91418-06201 | BOLT, W/WASHER | 90099-04564-000 |
| 017. | [04] | 94904-72690 | BOLT, W/WASHER | 90099-04319-000 |
| 018. | [01] | 94904-74850 | BOLT, W/WASHER | 90099-04415-000 |
| 019. | [01] | 94904-73910 | BOLT, W/WASHER | 90099-04346-000 |
Include in #3:
19100-01270
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19100-01270 | 22100-87C3 | PUMP ASSY, INJECTI | |
| 22100-87C35-000 | DAIHATSU | PUMP ASSY, INJECTI |
Information:
Table 1
Part Number Part Description Qty
378-3187 Diesel Exhaust Fluid Filter Gp 1
423-3251 Connector 1
391-5262 Gasket 1
425-0385 Filter As 1
452-6055 Filter Base As 1
453-1604(1) Diesel Exhaust Fluid Filter Gp 1
453-1605(1) Diesel Exhaust Fluid Filter Gp 1
453-1606(1) Diesel Exhaust Fluid Filter Gp 1
(1) Use Table 2 to choose the correct part that corresponds to the DEF heater
Table 2
DEF Heater Part Number Required DEF Filter
434-3241 453-1604
434-3242 453-1605
434-3243 453-1606 The effective serial numbers for this change are related to the Pump Electronic Tank Unit (PETU) serial numbers and not the machine serial numbers. Table 3 contains the effective serial numbers for the PETU tank. Refer to illustration 1 and illustration 2 for examples of where to locate the PETU serial number.
Illustration 1 g06018843
Typical example
(1) The location of the PETU serial plate.
Illustration 2 g03418749
Typical example
Table 3
PETU Effective Serial Numbers
S/N:PET007086T-UP Refer to Special Instruction, M0066142, A New Diesel Exhaust Fluid Filter is Now Available for C7.1 Engines for installation instructions.
