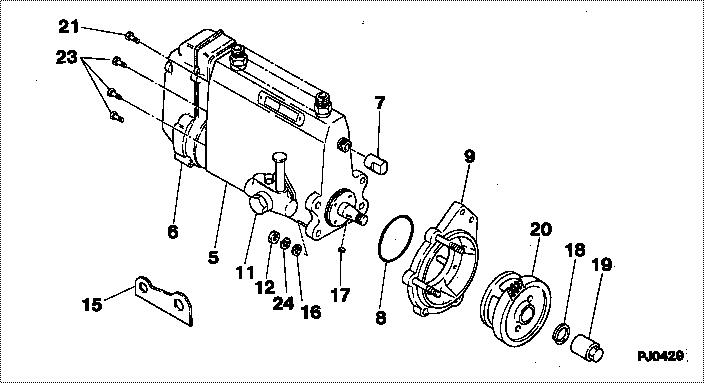

19100-00840 PUMP ASSY, INJECTI Denso Cross

TEBE4044-02
18Dec2015
(Revised 01Feb2016)
J182
J183
J186
J187
J192
J195
J196
J197
J198
J19L
J210
J211
J212
J213
J214
J215
J216
J217
J218
J219
J21T
J21Y
J21Z
J221
J223
J225
J226
J227
J229
J22K
J22N
J22P
J22T
J22U
J237
J241
J242
J243
J244
J246
J248
J249
J360
J361
J362
J368
Z800
Before/After
(Limited distribution)
Parts stock action needed PRODUCT SUPPORT PROGRAM FOR REPLACING THE FUEL INJECTION PUMP AND POSSIBLY REPLACING THE ENGINE HEAD GASKET ON CERTAIN CS-533E COMPACTORS
1124 1251 7750 1100 PS44946
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS44946" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
When submitting claim for Parts Stock Action, Use the appropriate 99Z as the s/n, the appropriate Service Letter Program Number as the Part number in the Part Causing Failure field, "7755" as the Group Number, "56" as the Description Code.
Although this Program is to be administered as described above on the Affected Product,parts should be removed from parts stock as soon as possible.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 18Dec2015 (Revised 21Dec2015) Service Letter. Changes have been made to the Parts Needed.
TERMINATION DATE
31Dec2017
PROBLEM
The engine head gasket can fail on certain CS-533E Compactors. If the head gasket fails it can leak combustion gas into the coolant system, resulting in coolant over pressurization and overheating. Indication of failure includes engine overheating, coolant loss and gas in coolant.
AFFECTED PRODUCT
Model Identification Number
CS-533E TJL00886, 920, 1465-1467, 1649-1651, 1665, 1684, 1688, 1726, 1729, 1795, 1801-1804, 1806, 1808-1809, 1813, 1819-1821, 1900, 2064-2066, 2068-2069, 2104-2106, 2108, 2110, 2171-2175, 2177-2181, 2189-2193, 2195-2199, 2330-2331, 23
