Information pump assy, injecti
Nozzle:
0935002370
Rating:
KIT List:
| Body assy, injecti | 1904400300 |
| Governor assy, com | 1908900230 |
| Pump assy, fuel fe | 1922900060 |
Components :
| 001. | PUMP ASSY, INJECTI | 19100-00380 |
| 002. | BODY ASSY, INJECTI | 09010-04800 |
| 003. | GOVERNOR ASSY, COM | 09070-00560 |
| 004. | PUMP ASSY, FUEL FE | 09210-01101 |
| 004. | PUMP ASSY, FUEL FE | 09210-01101 |

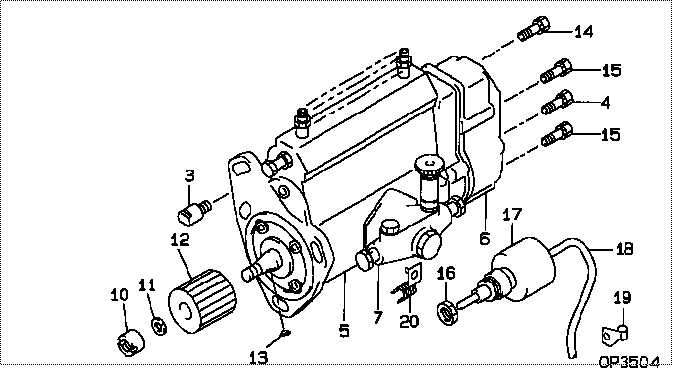

Scheme ###:
| 000. | [01] | 19100-00380 | PUMP ASSY, INJECTI | 22100-58072 |
| 003. | [01] | 09001-80061 | COVER, CONTROL RAC | 22116-46010 |
| 004. | [01] | 91418-06121 | BOLT, W/WASHER | 90091-20607 |
| 005. | [01] | 09010-04800 | BODY ASSY, INJECTI | 22120-58011 |
| 006. | [01] | 09070-00560 | GOVERNOR ASSY, COM | 22320-58071 |
| 007. | [01] | 09210-01101 | PUMP ASSY, FUEL FE | 22510-56040 |
| 010. | [01] | 09001-20020 | NUT, TIMER ROUND | 22611-46010 |
| 011. | [01] | 94901-50490 | WASHER, SPRING | 22173-46010 |
| 012. | [01] | 09257-50020 | SHAFT, SPLINE | 22174-47010 |
| 013. | [01] | 94913-00050 | KEY, WOODRUFF | 90099-13002 |
| 014. | [01] | 91518-08221 | BOLT, W/WASHER | 90091-20804 |
| 015. | [03] | 94904-70620 | BOLT, W/WASHER | 90099-04526 |
| 016. | [01] | 94905-30241 | NUT, HEXAGON, W/ H | 90099-05137 |
| 017. | [01] | 09071-00040 | BELLOWS ASSY, PNEU | 22680-48062 |
| 018. | [01] | 94933-03581 | TUBE, RUBBER | 90099-33044 |
| 019. | [01] | 94935-03042 | CLIP, CORD | 90099-35023 |
| 020. | [01] | 09048-10030 | CLAMP, HOSE | 90929-01132 |
Include in #3:
19100-00380
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19100-00380 | 22100-5807 | PUMP ASSY, INJECTI | |
| 22100-58072 | TOYOTA | PUMP ASSY, INJECTI |
Information:
Table 1
Part Number Description
370-5513 Fuel Line
370-5516 Fuel Injection Line As
370-5517 Fuel Injection Line As
370-5518 Fuel Injection Line As
393-5467 Fuel Line
393-5468 Fuel Line
396-2606 Fuel Line
396-2607 Fuel Line
396-2608 Fuel Line
396-2609 Fuel Line Any of the part numbers listed in Table 1 may be affected.
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
If any of the fuel injection lines are leaking, Caterpillar recommends replacing all high-pressure fuel lines on the engine. Refer to Disassembly and Assembly, Fuel Injection Lines - Remove and Disassembly and Assembly, Fuel Injection Lines - Install.
