Information pump assy, injecti
Nozzle:
0935002370
Rating:
KIT List:
| Body assy, injecti | 1904400300 |
| Governor assy, com | 1908900230 |
| Pump assy, fuel fe | 1922900060 |
Components :
| 001. | PUMP ASSY, INJECTI | 19100-00350 |
| 002. | BODY ASSY, INJECTI | 09010-04800 |
| 003. | GOVERNOR ASSY, COM | 09070-00530 |
| 004. | PUMP ASSY, FUEL FE | 09210-01101 |
| 004. | PUMP ASSY, FUEL FE | 09210-01101 |

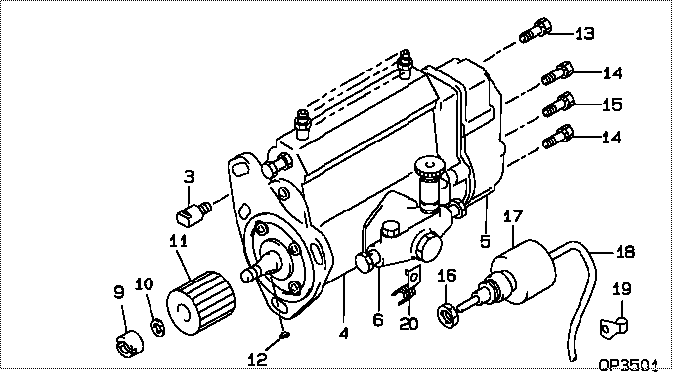

Scheme ###:
| 000. | [01] | 19100-00350 | PUMP ASSY, INJECTI | 22100-58032 |
| 003. | [01] | 09001-80061 | COVER, CONTROL RAC | 22116-46010 |
| 004. | [01] | 09010-04800 | BODY ASSY, INJECTI | 22120-58011 |
| 005. | [01] | 09070-00530 | GOVERNOR ASSY, COM | 22320-58031 |
| 006. | [01] | 09210-01101 | PUMP ASSY, FUEL FE | 22510-56040 |
| 009. | [01] | 09001-20020 | NUT, TIMER ROUND | 22611-46010 |
| 010. | [01] | 94901-50490 | WASHER, SPRING | 22173-46010 |
| 011. | [01] | 09257-50020 | SHAFT, SPLINE | 22174-47010 |
| 012. | [01] | 94913-00050 | KEY, WOODRUFF | 90099-13002 |
| 013. | [01] | 91518-08221 | BOLT, W/WASHER | 90091-20804 |
| 014. | [03] | 94904-70620 | BOLT, W/WASHER | 90099-04526 |
| 015. | [01] | 91418-06121 | BOLT, W/WASHER | 90091-20607 |
| 016. | [01] | 94905-30241 | NUT, HEXAGON, W/ H | 90099-05137 |
| 017. | [01] | 09071-00040 | BELLOWS ASSY, PNEU | 22680-48062 |
| 018. | [01] | 94933-03581 | TUBE, RUBBER | 90099-33044 |
| 019. | [01] | 94935-03042 | CLIP, CORD | 90099-35023 |
| 020. | [01] | 09048-10030 | CLAMP, HOSE | 90929-01132 |
Include in #3:
19100-00350
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19100-00350 | 22100-5803 | PUMP ASSY, INJECTI | |
| 22100-58032 | TOYOTA | PUMP ASSY, INJECTI |
