Information over-haul kit, gov
Rating:
Components :
| 001. | OVER-HAUL KIT, GOV | 19089-00700 |

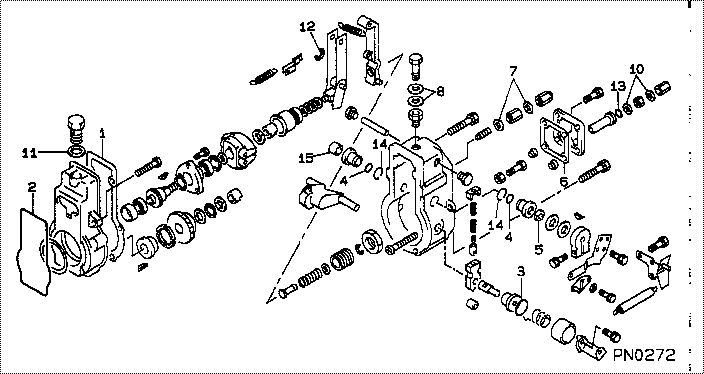

Scheme ###:
| 000. | [01] | 19089-00700 | OVER-HAUL KIT, GOV | |
| 001. | [01] | 09082-30430 | GASKET | |
| 002. | [01] | 09011-90140 | GASKET, PUMP BODY | |
| 003. | [01] | 94914-01640 | O-RING | |
| 004. | [02] | 94914-03400 | O-RING | |
| 005. | [01] | 94915-01030 | SEAL, OIL | |
| 006. | [01] | 09169-40180 | GASKET | |
| 007. | [04] | 09024-10010 | WASHER, AIR BLEEDE | |
| 009. | [02] | 09025-10010 | WASHER, INJECTION | |
| 010. | [02] | 94901-81020 | WASHER, COPPER PLA | |
| 011. | [01] | 94901-81550 | WASHER, COPPER PLA | |
| 012. | [01] | 09089-40010 | E-RING | |
| 013. | [01] | 94914-03390 | O-RING | |
| 014. | [02] | 94907-10090 | WASHER, SNAP | |
| 015. | [01] | 09109-40060 | CAP, LEVER |
Include in #3:
19089-00700
as OVER-HAUL KIT, GOV
Cross reference number
| Part num | Firm num | Firm | Name |
| 19089-00700 | OVER-HAUL KIT, GOV |
Use as kit:
| 1908001210 | 1908001210 | Governor assy, mec | 1908900700 |
| 1910004620 | 1908001210 | Governor assy, mec | 1908900700 |
