19080-07140 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-07140 GOVERNOR ASSY, MEC
Rating:
15
Buy GOVERNOR ASSY, MEC 19080-07140 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170

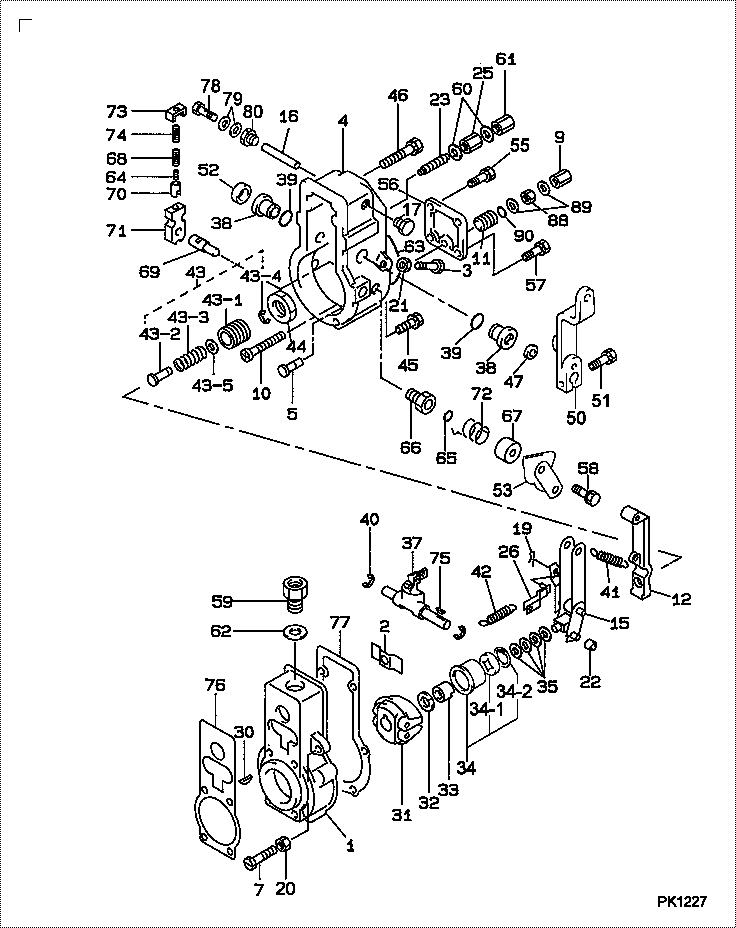

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-07140 GOVERNOR ASSY, MEC
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE
003. [01] 09082-10080 STOPPER 09082-10080
004. [01] 09101-11670 COVER, GOVERNOR
005. [01] 09101-40090 PIN, STOP
007. [01] 09102-40150 SCREW, ADJUSTING
009. [01] 09103-10151 NUT, CAP 09103-10151
010. [01] 09100-60150 SCREW, STROKE ADJU 09100-60150
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-10150 LEVER, TENSION
015. [01] 09093-00270 LEVER ASSY, CONTRO
016. [01] 09098-90060 SHAFT, LEVER SUPPO
017. [01] 09099-10010 PLUG, SCREW 09099-10010
019. [01] 90400-02101 PIN, SPLIT 90400-02101
020. [01] 09116-90034 NUT
021. [01] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
022. [01] 09104-60010 SLIDER, SUPPORTING 09104-60010
023. [01] 09056-00150 CAPSULE, FULL STOP
025. [01] 09092-30060 NUT, ADAPTER LOCK
026. [01] 09097-00170 SHACKLE ASSY 09097-00170
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00320 FLYWEIGHT ASSY 09084-00320
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 85264-00026
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 09086-00200
034-001. [01] 09086-80040 PLATE, THRUST 09086-80040
034-002. [01] 90567-30000 RING, HOLE SNAP 90567-30000
035. [4C] 94901-34100 WASHER, PLATE, SK 94901-34100
035. [4C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [4C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [4C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [4C] 94901-34060 WASHER, PLATE, SK 94901-34060
037. [01] 09088-00140 LEVER ASSY, SWIEVE
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 85264-00037
041. [01] 09099-20410 SPRING, SPEED CONT
042. [01] 09099-30010 SPRING, START 09099-30010
043. [01] 09091-01300 ADAPTER ASSY
043-001. [01] 09091-10010 SCREW, ADPTER 09091-10010
043-002. [01] 09091-80011 SPRING, MECHANICAL
043-003. [01] 09091-90010 ADAPTER 09091-90010
043-004. [01] 09089-40010 E-RING 09089-40010
043-005. [1C] 94901-33880 WASHER, PLATE, SK 94901-33880
043-005. [1C] 94901-34020 WASHER, PLATE, SK 94901-34020
043-005. [1C] 94901-34030 WASHER, PLATE, SK 94901-34030
043-005. [1C] 94901-34040 WASHER, PLATE, SK 94901-34040
043-005. [1C] 94901-37880 WASHER, PLATE, SK
044. [01] 09092-30011 NUT, ADAPTER LOCK 85264-00044
045. [04] 94904-71760 BOLT, W/WASHER 94904-71760
046. [02] 94904-71750 BOLT, W/WASHER 94904-71750
047. [01] 94915-00210 SEAL, OIL 94915-00210
050. [01] 09107-00770 LEVER SUB-ASSY, AD 09107-00770
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
053. [01] 09109-00320 LEVER SUB-ASSY, ST
055. [02] 91418-06201 BOLT, W/WASHER 91418-06201
056. [01] 09105-10930 PLATE, COVER
057. [02] 94904-72701 BOLT, W/WASHER
058. [01] 91418-06141 BOLT, W/WASHER 91418-06141
059. [01] 09116-70050 PLUG, SCREW 09116-70050
060. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
061. [01] 09103-10030 NUT, CAP 09103-10030
062. [01] 94901-81550 WASHER, COPPER PLA
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
064. [01] 09103-80040 SPRING, B 09103-80040
065. [01] 94914-00130 O-RING 85264-00073
066. [01] 09101-60360 BUSHING, BEARING
067. [01] 09104-30010 COVER, SPRING 85264-00075
068. [01] 09103-80050 SPRING, B 09103-80050
069. [01] 09103-50240 SHAFT, MECHANICAL 09103-50240
070. [01] 09103-60010 CUP, SPRING 85264-00065
071. [01] 09103-40130 LEVER, SUPPORT 09103-40130
072. [01] 09104-20030 SPRING, RETURN 09104-20030
073. [01] 09103-30030 PLATE, CAP 09103-30030
074. [01] 09103-80030 SPRING, B 09103-80030
075. [01] 94913-00030 KEY, WOODRUFF 94913-00031
076. [01] 09082-30460 GASKET
077. [01] 09082-30420 GASKET
078. [01] 09316-60070 SCREW, HOLLOW
079. [02] 09024-80010 WASHER, DRAIN SCRE 09024-80010
080. [01] 09012-10210 NIPPLE
088. [01] 94905-03390 NUT, HEXAGON 94905-03390
089. [02] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 90801-10120 O-RING EZ40058081

Include in #3:

09300-06910 as GOVERNOR ASSY, MEC
19080-07140

Cross reference number



Part num Firm num Firm Name
19080-07140    GOVERNOR ASSY, MEC




Information:

Caterpillar: Confidential Yellow
Termination Date
October 31, 1993Problem
Certain 2S7264 and 3S1467 Fuel Injection Pump Assemblies need to be removed from parts stock.
Action Required
Remove all 2S7264 and 3S1467 Fuel Injection Pump Assemblies from parts stock with date codes of December 1992 through March 1993. The date code appears at the bottom of the part number label on the pump box. The first two numbers indicate the month and the next two numbers indicate the year as shown in the example below:
Service Claim Allowances
Submit one claim for all 2S7264 and 3S1467 Fuel Injection Pump Assemblies removed from parts stock.
US and Canadian Dealers Only - When submitting a parts stock claim use 99Z00007 in the Product Identification Number Field.
Parts Disposition
U.S. And Canadian Dealers
Return all 2S7264 and 3S1467 Fuel Injection Pump Assemblies that are removed from parts stock and a copy of the claim to:
Caterpillar Inc.
Memory Lane
B Receiving
York, PA 17402
Attention: Quality Dept./PI7318
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
