19080-05670 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-05670 GOVERNOR ASSY, MEC
Rating:
1
Buy GOVERNOR ASSY, MEC 19080-05670 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec No Application
Governor assy, mec No Application
Governor assy, mec No Application

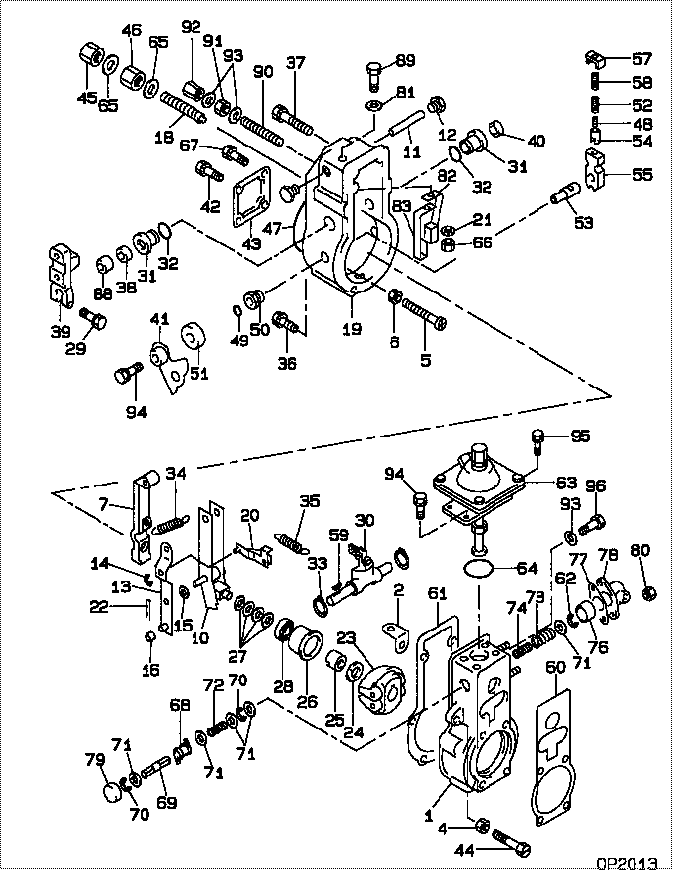

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-05670 GOVERNOR ASSY, MEC
001. [01] 09081-00620 HOUSING SUB-ASSY,
002. [01] 09087-80200 PLATE
004. [01] 94805-30051 NUT, HEXAGON, W/HO
005. [01] 09100-60170 SCREW, STROKE ADJU
006. [01] 94905-03390 NUT, HEXAGON
007. [01] 09090-10150 LEVER, TENSION
010. [01] 09095-90010 LEVER ASSY, GUIDE
011. [01] 09098-90010 SHAFT, LEVER SUPPO
012. [02] 09099-10090 PLUG, SCREW
013. [01] 09093-00190 LEVER ASSY, CONTRO
014. [01] 09089-40010 E-RING
015. [01] 09098-70010 SHIM
016. [01] 09104-60010 SLIDER, SUPPORTING
018. [01] 09056-00170 CAPSULE, FULL STOP
019. [01] 09101-01070 COVER SUB-ASSY, GO
020. [01] 09097-00390 SHACKLE ASSY
021. [01] 90258-06001 WASHER, SPRING
022. [01] 90400-02101 PIN, SPLIT
023. [01] 09084-00720 FLYWEIGHT ASSY
024. [01] 94901-50500 WASHER, SPRING
025. [01] 09084-40010 NUT, ROUND
026. [01] 09086-10010 SLEEVE, GOVERNOR
027. [4C] 94901-34100 WASHER, PLATE, SK
027. [4C] 94901-34090 WASHER, PLATE, SK
027. [4C] 94901-34080 WASHER, PLATE, SK
027. [4C] 94901-34070 WASHER, PLATE, SK
027. [4C] 94901-34060 WASHER, PLATE, SK
028. [01] 94910-00010 BEARING, BALL
029. [01] 94904-71190 BOLT, W/WASHER
030. [01] 09088-00110 LEVER ASSY, SWIEVE
031. [02] 09089-20080 BUSHING, LEVER
032. [02] 90801-20160 O-RING
033. [02] 94907-10090 WASHER, SNAP
034. [01] 09099-20410 SPRING, SPEED CONT
035. [01] 09099-30200 SPRING, START
036. [04] 94904-71760 BOLT, W/WASHER
037. [02] 94904-72340 BOLT, W/WASHER
038. [01] 94915-00210 SEAL, OIL
039. [01] 09107-11420 LEVER, ADJUSTING
040. [01] 09109-40060 CAP, LEVER
041. [01] 09109-01441 LEVER SUB-ASSY, ST
042. [02] 91418-06121 BOLT, W/WASHER
043. [01] 09105-00500 PLATE SUB-ASSY, CO
044. [01] 09102-40031 SCREW, ADJUSTING
045. [01] 09103-10030 NUT, CAP
046. [01] 09092-30060 NUT, ADAPTER LOCK
047. [01] 94906-21270 PACKING, RUBBER PL
048. [01] 09103-80040 SPRING, B
049. [01] 94914-00130 O-RING
050. [01] 09101-60020 BUSHING, BEARING
050. [01] 09101-60360 BUSHING, BEARING
051. [01] 09104-30010 COVER, SPRING
052. [01] 09103-80050 SPRING, B
053. [01] 09103-50240 SHAFT, MECHANICAL
054. [01] 09103-60010 CUP, SPRING
055. [01] 09103-40130 LEVER, SUPPORT
057. [01] 09103-30030 PLATE, CAP
058. [01] 09103-80030 SPRING, B
059. [01] 94913-00030 KEY, WOODRUFF
060. [01] 09011-90160 GASKET, PUMP BODY
061. [01] 09082-30022 GASKET
062. [01] 09089-40070 E-RING
063. [01] 19260-01070 COMPENSATOR SUB-AS
064. [01] 90801-20260 O-RING
065. [02] 09024-10010 WASHER, AIR BLEEDE
066. [01] 90160-06051 NUT, HEXAGON
067. [02] 94904-72210 BOLT, W/WASHER
068. [01] 19265-00010 LEVER SUB-ASSY, FO
069. [01] 19265-30010 SHAFT, LEVER
070. [02] 90577-05000 E-RING
071. [05] 94901-33150 WASHER, PLATE, SK
072. [01] 19265-40010 SPRING, CANCEL
073. [01] 19264-50010 SPRING, RETURN, A
074. [01] 19264-60010 SPRING, RETURN, B
076. [01] 19264-30012 PISTON
077. [01] 19264-80010 GASKET
078. [01] 19264-10011 HOUSING, START EXC
079. [01] 09109-40080 CAP, LEVER
080. [02] 94905-63820 NUT
080. [02] 94905-63860 NUT
081. [01] 09024-80010 WASHER, DRAIN SCRE
082. [01] 19266-10011 MAGNET SUB-ASSY
083. [01] 19266-50010 COVER, MAGNET
088. [01] 94919-24580 COLLAR, STEEL
089. [01] 90107-06201 BOLT, HEXAGON
090. [01] 09082-10171 STOPPER
091. [01] 94905-30140 NUT, HEXAGON, W/ H
092. [01] 09103-10042 NUT, CAP
093. [03] 94901-81020 WASHER, COPPER PLA
094. [03] 91418-06141 BOLT, W/WASHER
095. [02] 94904-71790 BOLT, W/WASHER
096. [01] 09116-70110 PLUG, SCREW

Include in #3:

09200-03240 as GOVERNOR ASSY, MEC
09200-03250
19080-05670

Cross reference number



Part num Firm num Firm Name
19080-05670    GOVERNOR ASSY, MEC




Information:


Do not let the retaining compound get into the compressor wheel bore or on the shaft, because it can make removal of the compressor wheel difficult during future turbocharger disassembly.
C. Put a small amount of lubricant, such as Lubriplate, on the nut seat area on the compressor. Do not put lubricant on the threads.D. Tighten the compressor wheel retainer nut to ... 30 3 N m (264 24 lb in)
Do not bend or add stress to the shaft when nut is tightened.
(7) Bore in housing (new) ... 22.255 to 22.268 mm (.8762 to .8767 in.) Outside diameter of the bearing (new) ... 22.144 to 22.154 mm (.8718 to .8722 in.)Maximum permissible clearance
